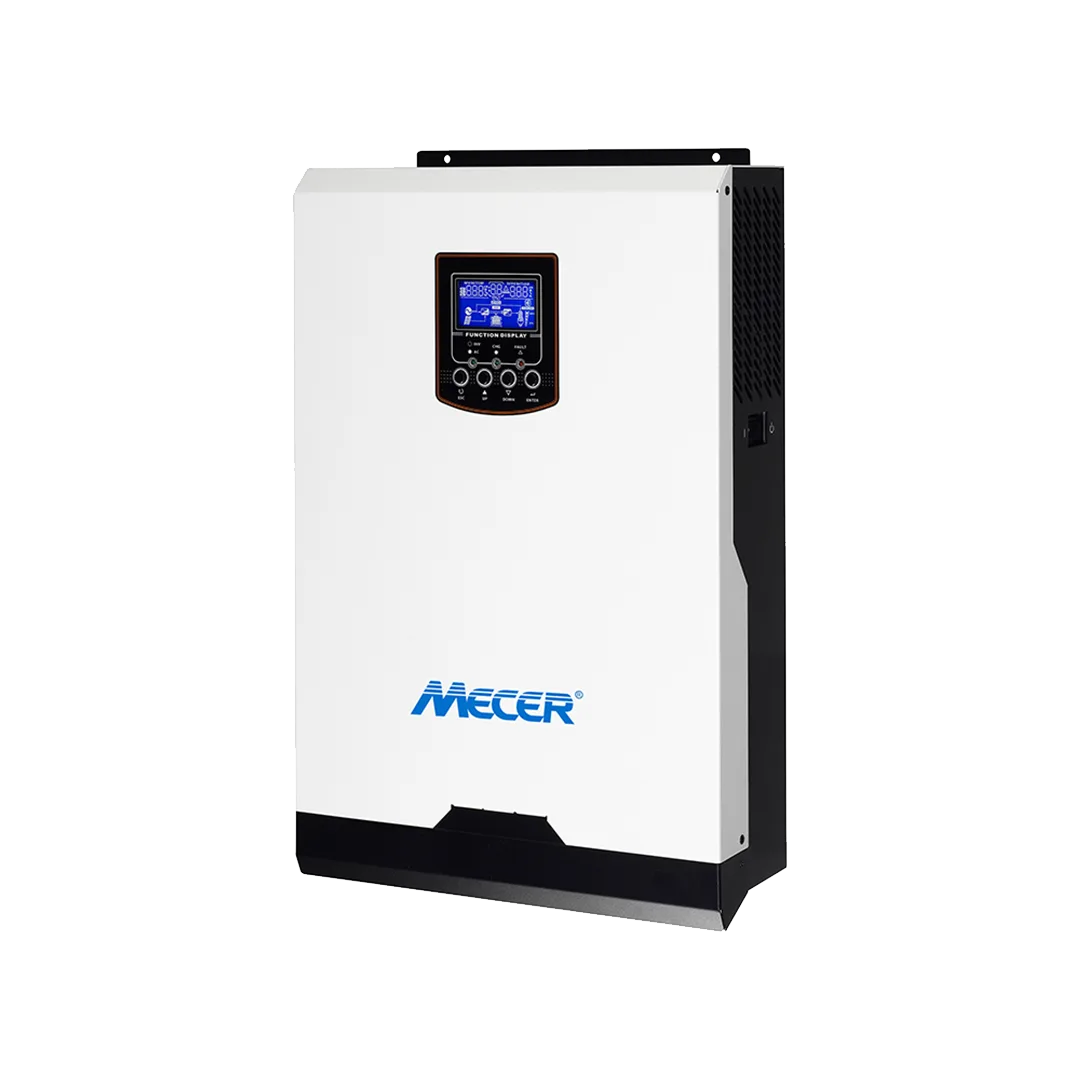

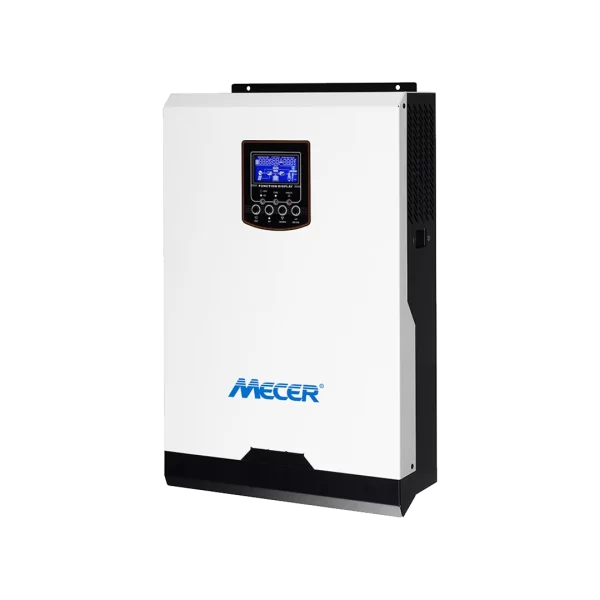

Mecer Axpert V Off-Grid 5kW 400 PWM Controller Inverter

Mecer Axpert V Off-Grid 5kW 400 PWM Controller Inverter

Features:

• Pure sine wave inverter
• Output power factor 1
• Selectable input voltage range for home appliances and personal computers
• Selectable high-power charging current
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Battery equalization for optimized battery performance and lifecycle
• Cold start function

Specifications:

• Rated Power: 5000VA/5000W
• Parallel Capability: None

Input:

• Voltage: 230V AC
• Selectable Voltage Range:
  • 170-280V AC (For Personal Computers)
  • 90-280V AC (For Home Appliances)
• Frequency Range: 50Hz / 60Hz (Auto sensing)

Output:

• AC Voltage Regulation (Batt Mode): 230V AC ±5%
• Surge Power: 10 000VA
• Efficiency (Peak): 90-93%
• Transfer Time:
  • 10ms (Personal computers)
  • 20ms (Home appliances)
• Waveform: Pure sine wave

Battery:

• Battery Voltage: 48V DC
• Floating Charge Voltage: 54V DC
• Overcharge Protection: 63V DC

Solar Charger & AC Charger:

• Type of solar charge controller: PWM
• Maximum PV Array Power: 2400W
• PWM Range @ Operating Voltage: 60-72V DC
• Maximum PV Array Open Circuit Voltage: 105VDC
• Maximum Solar Charge Current: 50A
• Maximum AC Charge Current: 60A
• Maximum Charge Current: 110A

Physical:

• Dimensions: D X W X H 100 X 300 X 440
• Net Weight (kgs): 8.5kg
• Communication Interface: USB/RS232

Environment:

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
