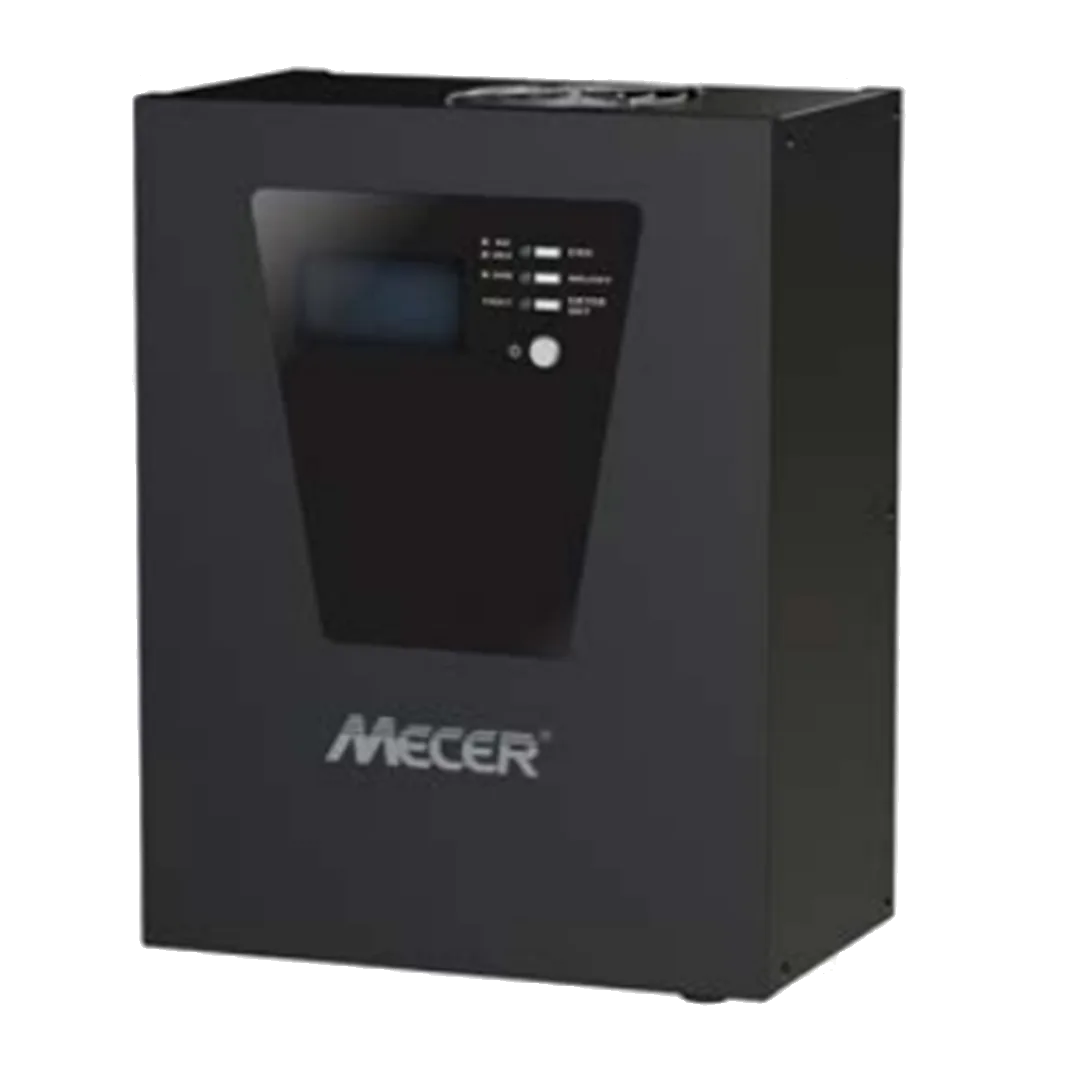

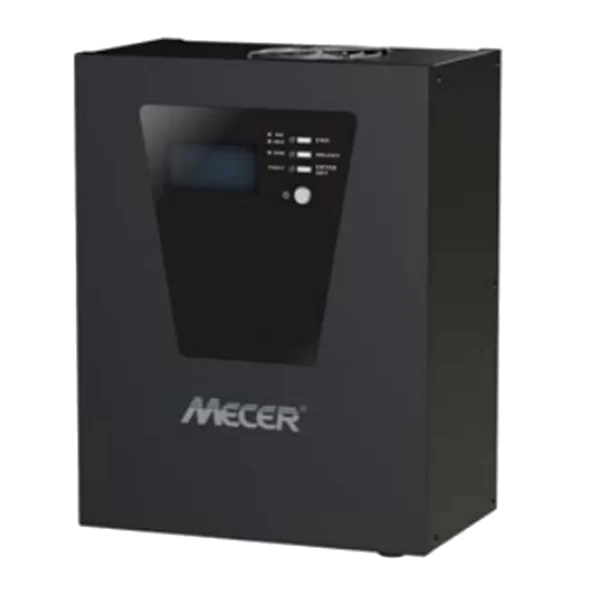

Mecer IVR-1200MPPT 12v Inverter

Mecer IVR-1200MPPT 12v Inverter

Mecer IVR-1200MPPT 1200VA 1000W 12V DC-AC Inverter with LCD Display & MPPT built in, Cables are included to connect to the battery, 1x cable to connect to a South African 3pin wall socket is included, Requires 1x 12V deep cycle battery, Please note of connection: Connect RED cable to (+) on battery and BLACK cable to (-) on battery

Mecer 1200VA / 1000W 12V Inverter With MPPT Solar Charger, Lithium And Lead Acid Battery Controller – IVR-1200MPPT

External Batteries Required

Features

• Simulated sinewave inverter
• Wide input voltage range
• Overload and short circuit protection
• LCD display for comprehensive information
• MPPT

Specifications:

• Model: IVR-1200MPPT
• Capacity: 1200VA / 1000W
• Power Factor: 0.83

Input:

• Voltage 220-240 VAC
• Voltage Range 90-280 VAC
• Nominal Operating Frequency 50/60Hz
• Maximum Input Current 10A

Output:

• Nominal Output Voltage 220-240 VAC
• Voltage Regulation (Batt. Mode) +/-10%
• Output Frequency Range 50/60Hz
• Nominal Output Current 5.2A
• Inrush Current 10A
• Maximum Output Fault Current 6.9A
• Transfer Time 20 ms typical
• Waveform Simulated Sine Wave

Battery:

• Battery Voltage 12 VDC
• Maximum Battery Discharging Current 100A
• Floating Charge Voltage 13.7 VDC +-0.5 VDC

CV Charging Voltage

• Lead Acid Battery 14.3 VDC +-0.5 VDC
• Lithium Battery 14.6 VDC +-0.5 VDC
• Cut Off Voltage 10.5 VDC +-0.5 VDC
• Maximum AC Charging Current 10 A or 25 A

Solar Charger:

• Solar Charger Type MPPT
• Maximum PV Array Open Circuit Voltage 100 VDC
• MPP Range @ Operating Voltage 15 ~ 80 VDC
• Max. PV array Input Power 825W
• Max. PV array Power to support 660W
• Maximum Solar Charging Current 55 A
• Maximum Charging Current (Utility +SCC) 55 A

Physical:

• Dimension (DxWxH) mm 272 x 212 x 127
• Net Weight (kgs) 4.5
• Protective Class I
• Ingress Protection Rating IP20

Environment:

• Humidity 0 ~ 90% RH (No condensing)
• Operating Temperature 0 ~ 55degC
• Altitude 0 ~ 1000 m

What’s in the box

1 x Mecer 1200VA, 12V Inverter With MPPT Solar Charger, Lithium And Lead Acid Battery Controller – IVR-1200MPPT
