37-70 Inch Slim-Sliding Curved/Flat Wall Bracket

37-70 Inch Slim-Sliding Curved/Flat Wall Bracket

The innovative LPA35-462 Sliding full-motion mount places 37″-70″ curved & flat panel TVs just 45 mm from the wall, yet still allows full-motion capabilities. Support up to 40kgs/88lbs, it also passes a four times weight test. This mount slides to extend out up to 680mm from wall and allows large TV to swivel left and right up to 90 degree. Post-installation level adjustment allows the TV to “roll” up to 3º clockwise and counterclockwise to ensure it is perfectly level. The LPA35-462 always has a finished appearance with a decorative cover that conceals assembly and mounting hardware.

FEATURES

• Easy Assembly: Installation is as easy as 1-2-3
• Sliding Long Arm Offers: maximum viewing flexibility
• Built-In Level Adjustment: ensures perfect positioning
• Decorative Covers: for a more elegant look

SPECIFICATION

• Product Category: Full-motion TV Wall Mount
• Rank: Premium
• Material: Steel, Aluminum
• Metal Sheet Thickness: VESA Panel THK=2mm cold-rolled sheet, Wall Plate THK=3mm cold-rolled sheet (VESA Panel THK=0.079″ cold-rolled sheet, Wall Plate THK=0.12″ cold-rolled sheet)
• Pipe Size: 120x30mm (4.7″x1.2″)
• Surface Finish: Powder Coating
• Color: Matte Black

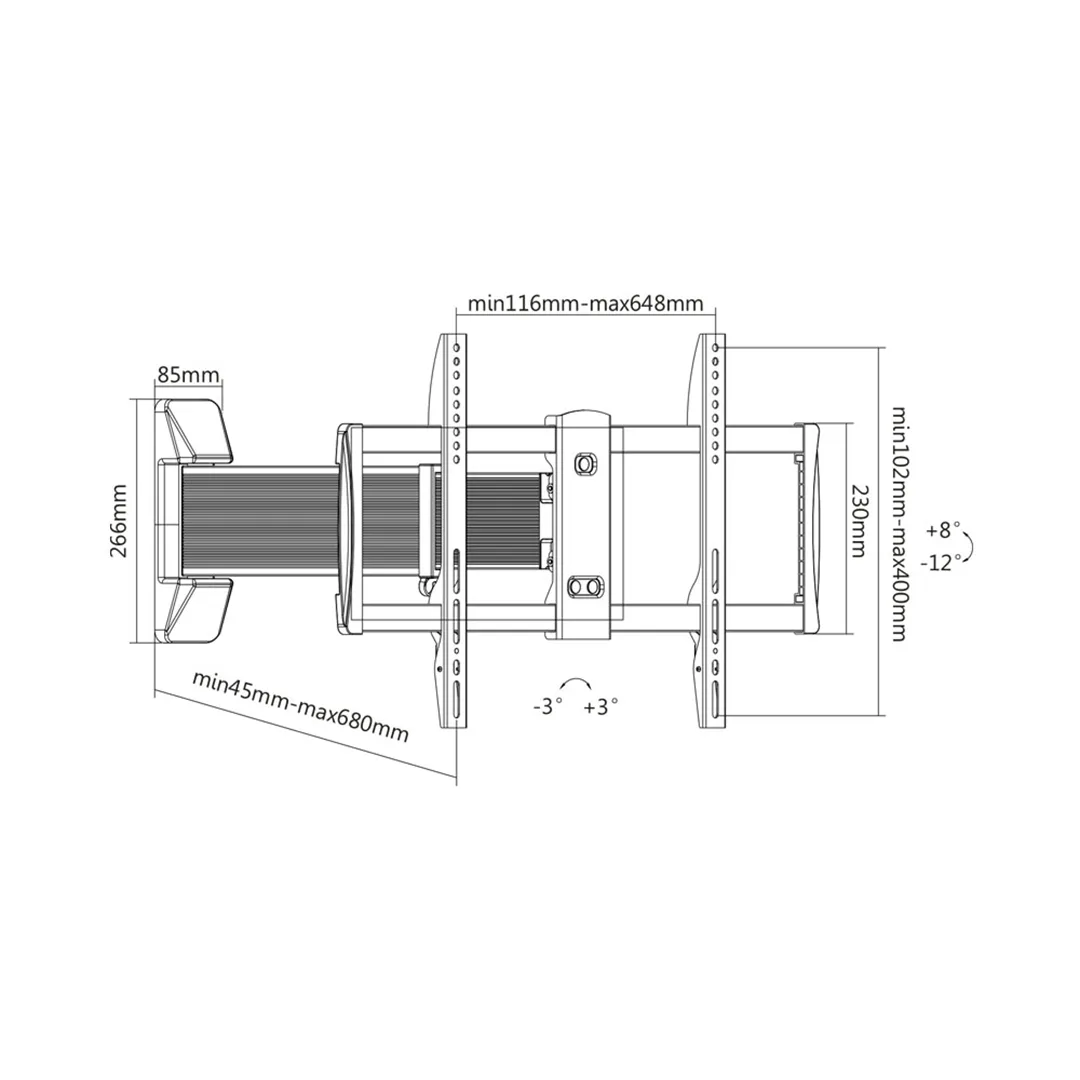

• Dimensions: 680x824X430mm (26.8″x32.4″X16.9″)
• Fit Screen Size: 37″-70″
• Fit Curved TV: Yes
• Mounting Hole Pattern : VESA & Universal
• VESA Compatible: 200×200, 300×300, 400×200, 400×400, 600×400
• Max. VESA: 648x400mmWeigh
• t Capacity: 40kg (88lbs)
• Strength Tested: 4 Times Approved
• Profile: 45~680mm (1.8″~26.8″)
• Tilt Range: +8°~-12°
• Swivel Range: +90°~-90°
• Screen Level: +3°~-3°
• Screen Freely Tilting: Yes
• Installation: Solid Wall, Single Stud
• Panel Type: Detachable Panel
• Wall Plate Type: Fixed Wall Plate
• Cable Management: Yes
• Anti-theft: No
• Bubble Level: No
• Accessory Kit Package: Compartment Polybag
• Instruction Manual Included: Yes
• Certification: GS UL
• Patent: 2015300641665
• By Function: Full motion
