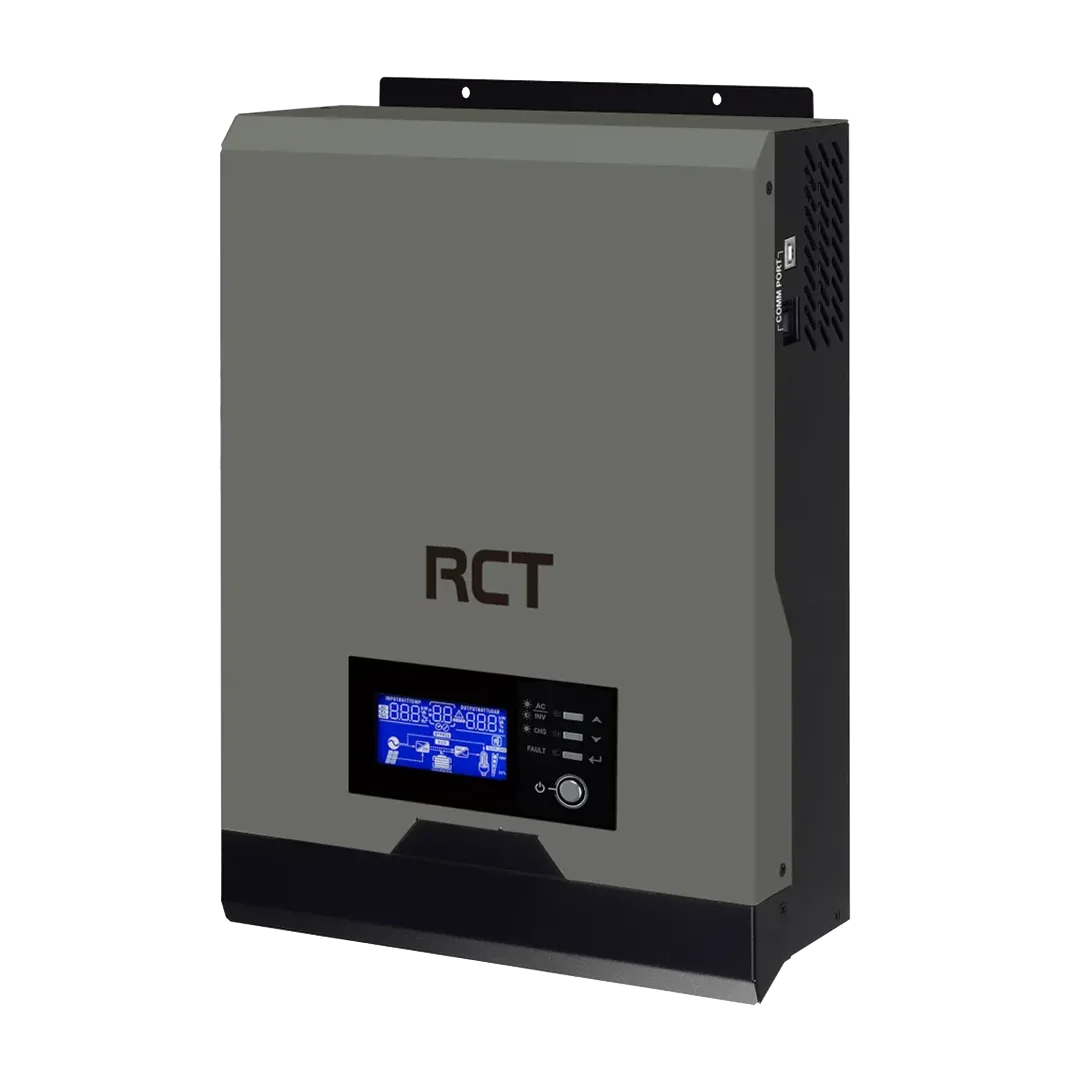

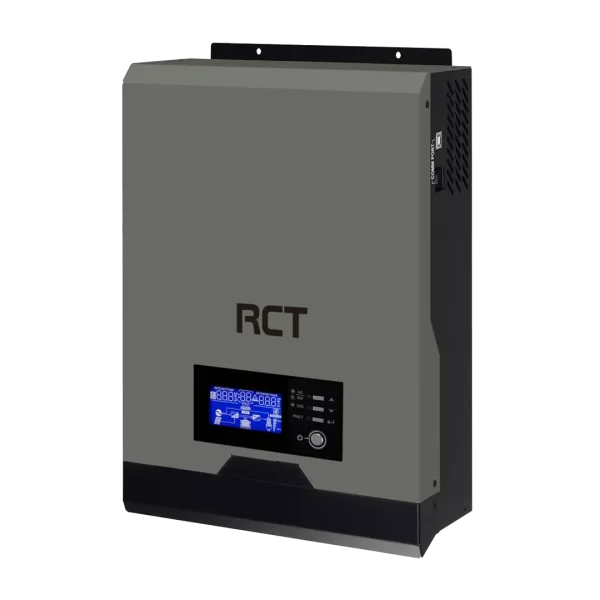

RCT Axpert VM 1K-12V Inverter
1000VA/1000W Inverter Charger -12V 500W PV
Specifications:
- Rated Power: 1000va/1000w
- Waveform: Pure sine
- Input: Voltage 230V AC
- Frequency Range: 50Hz/60Hz (Auto Sensing)
- Output: AC Voltage Regulation(Batt. Mode) 230V AC ± 5%
- Surge Power (5 Seconds): 2000VA
- Efficiency (Peak): 93%
- Transfer Time: 10 ms (PC); 20 ms (Home Appliance)
- Battery: Battery voltage 12 V DC
- Floating Charge: Voltage 13.5V DC
- Over Charge Protection: 16V DC
- Solar and AC Chargers: Maximum PV Array Power 500W
- MPPT Range@ Operating Voltage: 17V DC – 80V DC
- Maximum PV Array Open Voltage: 102V DC
- Maximum Solar Charge Current: 40A
- Maximum AC Charge Current: 20A
- Maximum Charge Current: 60A
- Parallel Capabilities: No
- Build in BMS Communication: No
