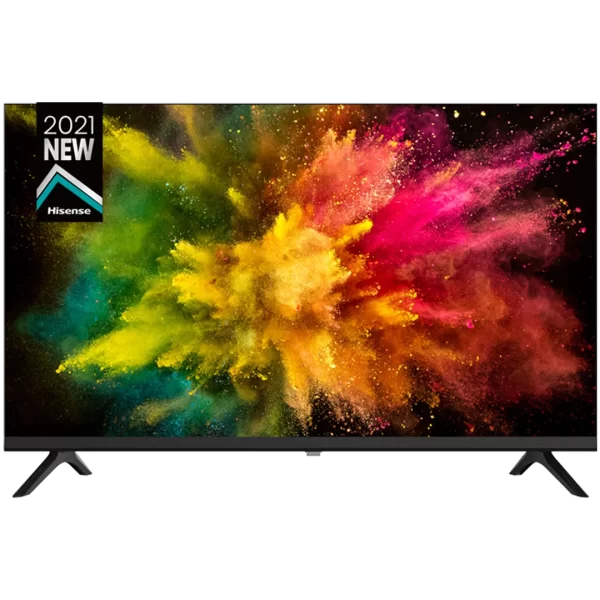

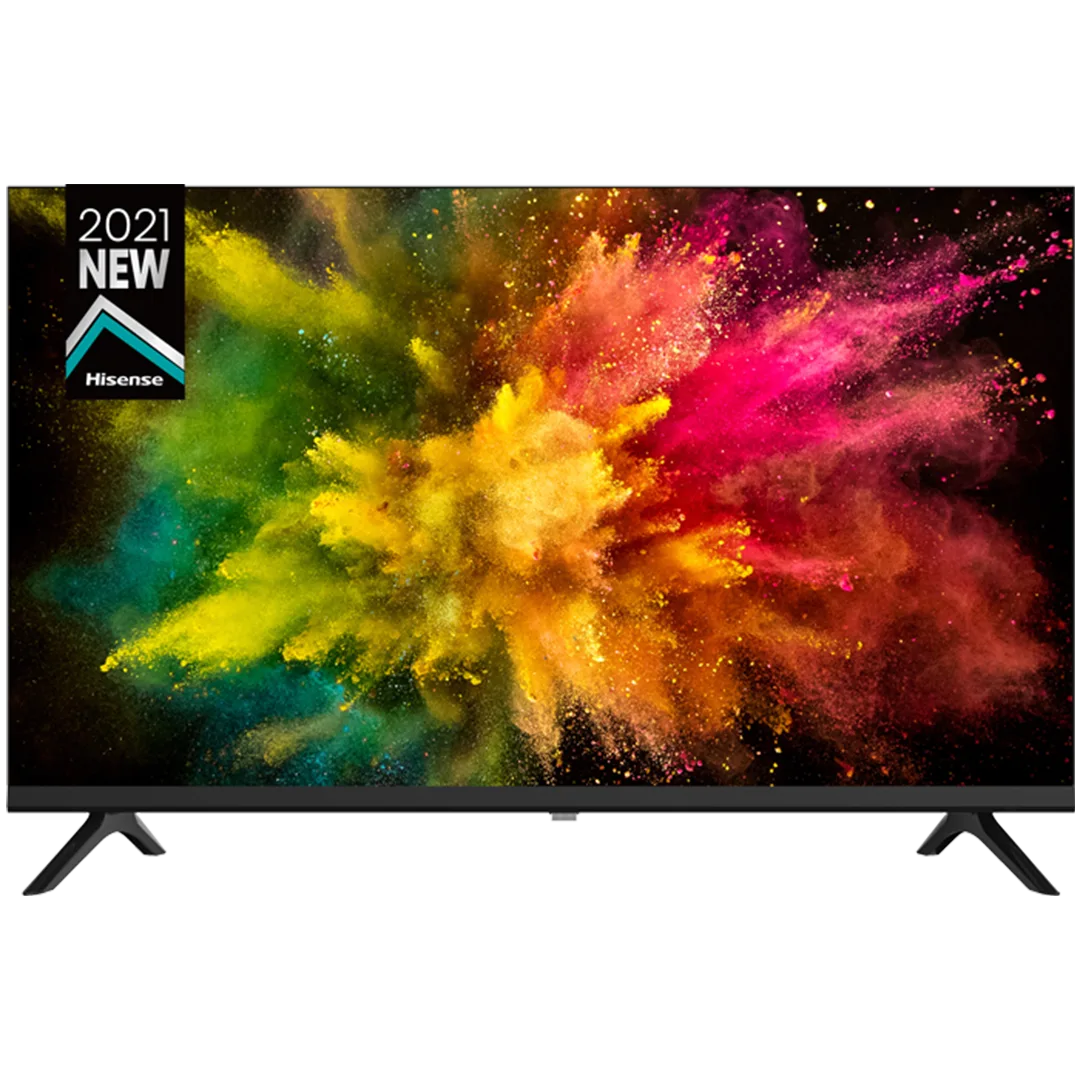

Hisense 80cm (32″) LED Matrix TV

Hisense 80cm (32″) LED Matrix TV

Image display

• Active display area, horizontal dimension
  697,685 mm
• Active display area, vertical dimension
  392,256 mm
• Screen size (rounded to nearest integer)
  80 cm
• Screen size (rounded to nearest integer)
  32 inch
• Display technology
  LCD / LED lit
• Backlight source
  LED Matrix
• Resolution (Horiz x Vert)
  1366 x 768 pixel
• Colour depth
  8bit
• Image refresh frequency
  60 Hz
• Smooth motion rate
  120
• Maximum brightness of white
  300 cd/m2
• Native contrast ratio
  3000 : 1
• Viewing Angle (Horiz / Vert)
  178 / 178 Degrees
• Response Time
  6,5 ms

Connectivity

• RF – Radio frequency input
  1
• AV input
  1
• USB interface type 2.0 (Qty / List ….)
  2 / USB 1, USB 2
• Optical digital audio output (SPDIF)
  1
• Earphone jack
  1

HDMI ports

• HDMI inputs
  2
• HDMI type 1.4 with HDCP version 1.4
  HDMI 1, HDMI 2
• ARC – Audio Return Channel
  HDMI 1
• CEC – Consumer Electronics Control via HDMI
  Yes

Digital TV reception

• Television system (DVB-T / DVB-T2+S2)
  Yes / Yes
• Video decoder (MPEG2 / MPEG 4)
  Yes / Yes
• AC3 Surround sound decoder
  Yes
• Subtitles
  Yes

Analogue TV reception

• Colour-Sound systems in VHF band
  PAL B
• Colour-Sound systems in UHF band
  PAL B
• Stereo sound decoder {A2, Nicam, ….}
  NICAM
• Subtitles
  Yes

Image processing

• Zoom function settings (4:3 / 16:9 / Auto / Zoom 1 / Zoom 2)
  Yes / Yes / Yes / No / No

Sound

• Audio power output per channel
  6 Watt
• Number of speakers (Tweeter / Midrange / Woofer)
  0 / 1 / 0
• Automatic volume level (AVL)
  Yes
• Audio equalizer
  Yes
• Dolby Digital
  Yes
• Features
  On / off timer
  Yes
• Power off if no signal
  Yes
• Sleep timer
  Yes
• Program lock
  Yes
• User interface
  Linux
• Software version OSD indication
  Yes
• Legal requirements: Disclaimer / Acceptance of Terms
  Yes / Yes
• Favourite channels list
  Yes

USB media player

• Personal Video Recorder
  Yes
• Time Shift
  Yes
• DTV Recording (EPG scheduling / start from Standby)
  Yes / Yes
• DMP – Digital media player content (Music / Video / Photos / Text)
  Yes / Yes / Yes / No
• DMP File allocation table (FAT / FAT32 / exFAT / NTFS)
  Yes / Yes / No / Yes
• PVR File allocation table (FAT / FAT32 / exFAT / NTFS)
  Yes / Yes / No / Yes

Hotel lock

• Protected Hotel lock submenu (Password / fixed code)
  No / Yes
• Sub-menu lock, including tuning lock
  Yes
• Power on RF channel selection
  Yes
• Power on mode (On / Standby / Last)
  Yes / Yes / Yes
• Inputs access (Enable / Disable)
  Yes
• Maximum volume lock
  Yes
• Power on volume
  Yes
• Power on, apply default sound / image settings
  Yes
• Power on source selection
  Yes

Hardware

• Processor / Cores
  MSD3666
• Colour (Front bezel, rear, stand)
  Black / Black / Black
• Standby consumption
  < 0.5W
• Compact packaging
  Yes
• Supply range [Voltage / Frequency ]
  100 ~ 240V / 50, 60Hz

Installation

• Power cord length
  155 cm
• Stand area (Width / Depth)
  671 x 160 mm
• Wall mount dimensions (Horiz x Vert)
  100 x 200 mm
• Wall mount, screw thread
  M6
• VESA compliance
  Yes

Accessories

• Remote controller (Technology / Part number )
  IR / EN2T30H
• Battery (size / quantity)
  AAA / 2
• User manual (Available online) / Quick setup guide (Print)
  1 / 1
• Warranty [In User manual | In separate sheet]
  In separate sheet

Dimensions

• Dimensions with stand (W x H x D)
  717 x 469 x 160 mm
• Dimensions without stand (W x H x D)
  717 x 427 x 86 mm
• Carton box dimensions (W x H x D)
  811 x 129 x 515 mm
• Net weight (with stand / without stand)
  3.6 / 3.7 kg
• Gross weight
  5,5 kg
• EMC – Electromagnetic Compatibility
  Yes
• CB – Electrical safety
  Yes
• HDMI
  Yes
• Dolby Digital
  Yes
