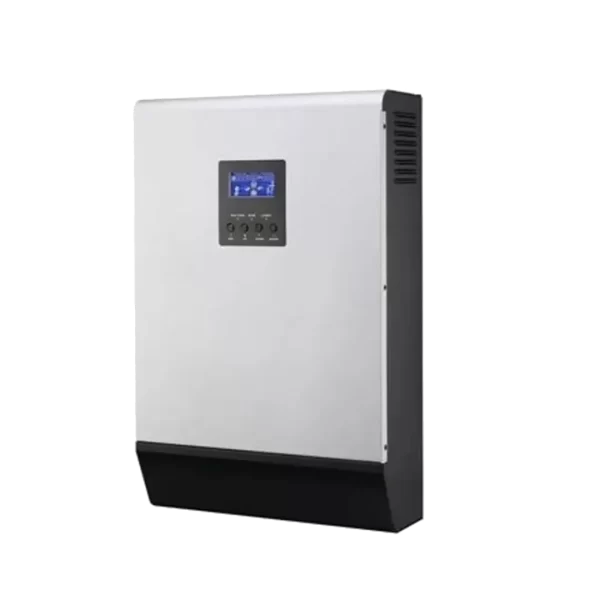

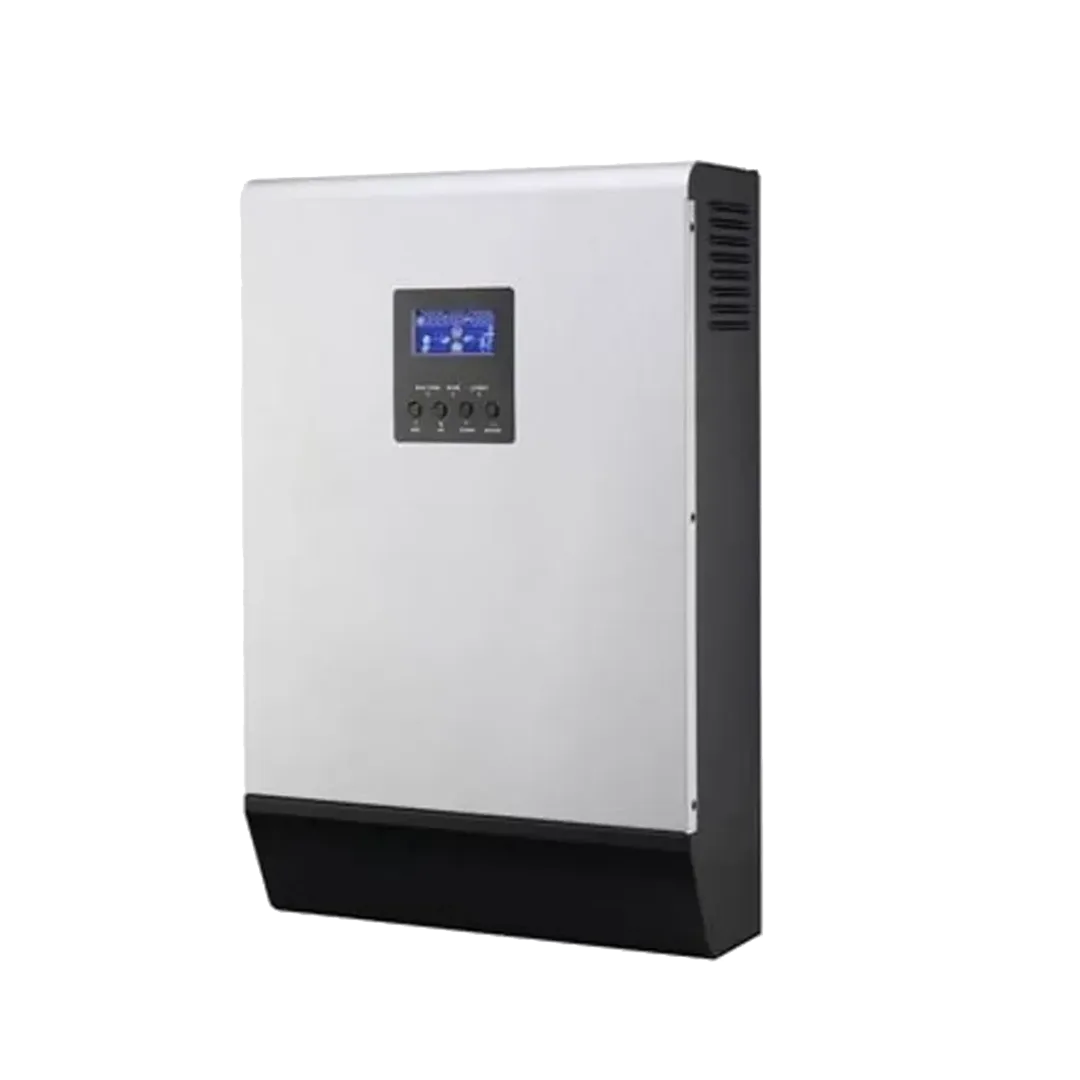

RCT Axpert 3K 24v Inverter
These pure sine wave inverters come with a built-in MMPT solar charge controller with a selectable input voltage range perfect for home appliances and personal computers. The selectable input voltage range is perfect for home appliances and personal computers. You can even select the charging current based on the applications you need to run. You can even select the charging current based on the applications you need to run. The auto restart is available to let your AC recover when dealing with a voltage of any kind.
- Cold start function.
- Pure sine wave inverter.
- Auto restart while AC is recovering.
- Built-in MPPT solar charge controller.
- Overload and short circuit protection.
- Compatible to mains voltage or generator power.
- Selectable charging current based on applications.
- Configurable AC/Solar input priority via LCD setting.
- Smart battery charger design for optimized battery performance.
- Selectable input voltage range for home appliances and personal computers.
- Rated Power 3000va/3000w
- Voltage 230V AC
- Selectable Voltage Range 170-280V AC (PC) 90-280V AC (Home Appliance)
- Frequency Range 50Hz/60Hz (Auto Sensing)
- AC Voltage Regulation(Batt. Mode) 230V AC ± 5%
- Surge Power (5 Seconds) 6000VA
- Efficiency (Peak) 93%
- Wave Form Pure Sine wave
- Transfer Time 10 ms (PC); 20 ms (home Applicance)
- Battery voltage 24 V DC
- Floating Charge Voltage 27 V DC
- Over Charge Protection 31 V DC
Solar and AC Chargers
- Maximum PV Array Power 600W
- MPPT [email protected] Operating Voltage 30V DC to 66V DC
- Maximum PV Array Open Voltage 75V DC
- Maximum Solar Charge Current 25A
- Maximum AC Charge Current 30A
- Maximum Charge Current 55A
Weight & dimensions
- Dimensions DxWxH (cm) 10 x 27.2 x 35.5
- Net Weight (kg) 7.4
- Parallel Capabilitles: No
Build in BMS Communication
- Build in BMS Communication: No
What’s in the box
1 x RCT Axpert 3K Inverter
