37–70 Inch Heavy-Duty Tilt TV Wall Mount Bracket
Easy to use and install, the LP42-46ST is design to fit most 37″-70″ LED, LCD Flat Panel TVs up to 50kg. A tilting mount is recommended when reflections from windows or lighting interfere with TV viewing or when multiple viewing angles are desired. This mount in tilting position and tilts down to a 10° to position the screen for an optimal viewing experience. Lateral shift allows the TV to move left and right on the wall plate so it’s placed exactly where you want it. Compatible with VESA hole up to 600×400.
FEATURES
- Easy-Grip Knobs: for quick tilt and lock
- Easy Assembly: Installation is as easy as 1-2-3
- Lateral Shift Brackets: enable fast alignment
SPECIFICATIONS
- Material: Steel, Plastic
- Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet, Wall Plate THK=1.5mm cold-rolled sheet
- Surface Finish: Powder Coating
- Color: Matte Black

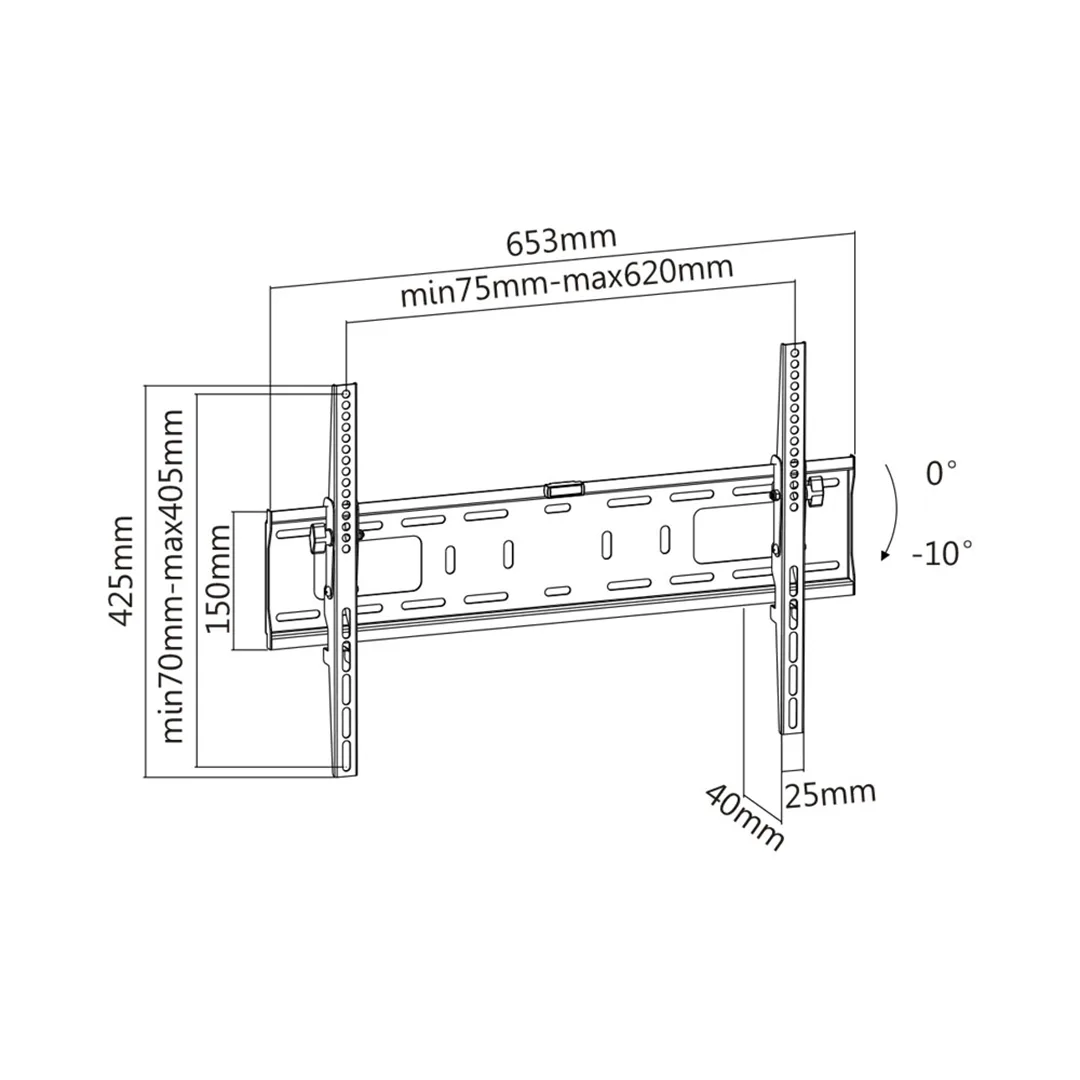

- Dimensions: 653 x 425 x 40mm
- Fit Screen Size: 37″-70″
- Fit Curved TV: Yes
- Mounting Hole Pattern : VESA & Universal
- VESA Compatible: 200×200, 300×300, 400×200, 400×400, 600×400
- Max. VESA: 600×400
- Weight Capacity: 50kg
- Strength Tested: 3 Times Approved
- Profile: 40mm
- Tilt Range: 0°~-10°
- Screen Freely Tilting: No
- Installation: Double Stud(406mm/450mm/600mm), Solid Wall
- Panel Type: Detachable Panel
- Wall Plate Type: Fixed Wall Plate
- Cable Management: No
- Anti-theft: No
- Bubble Level: Hook-on Bubble Level (Included in Components Package)
