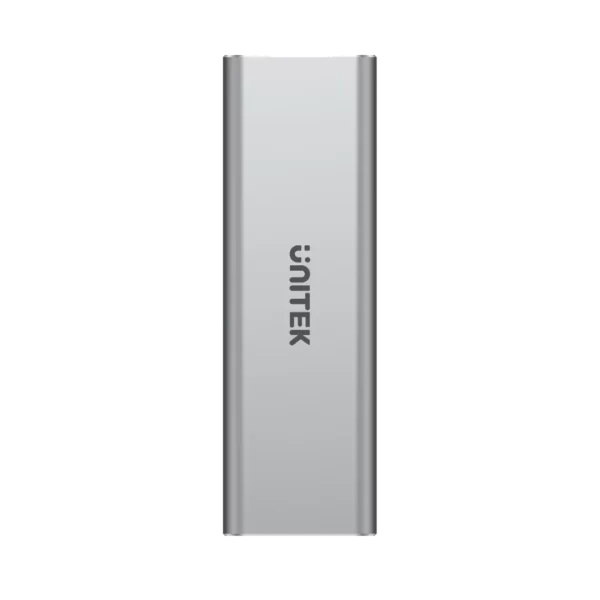

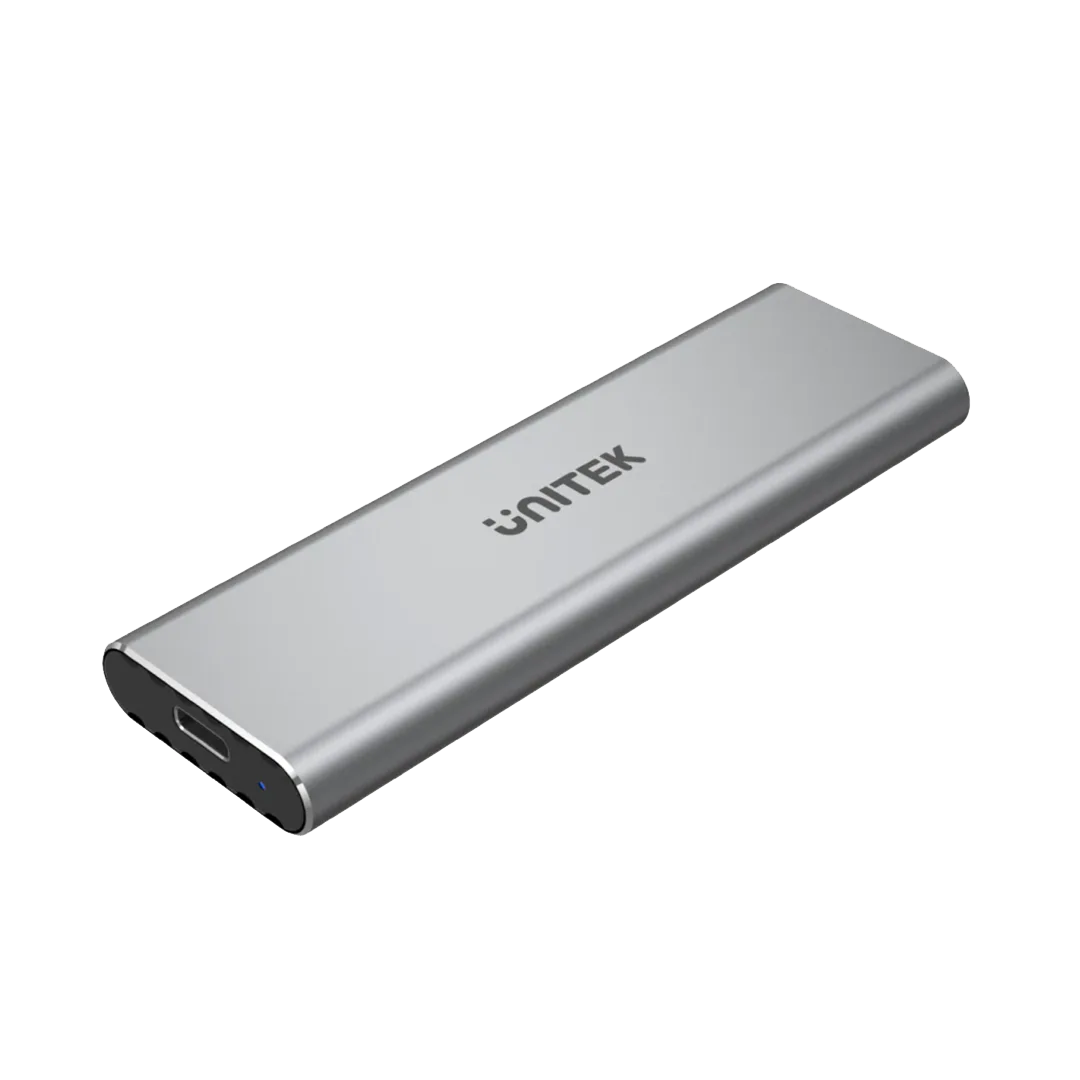

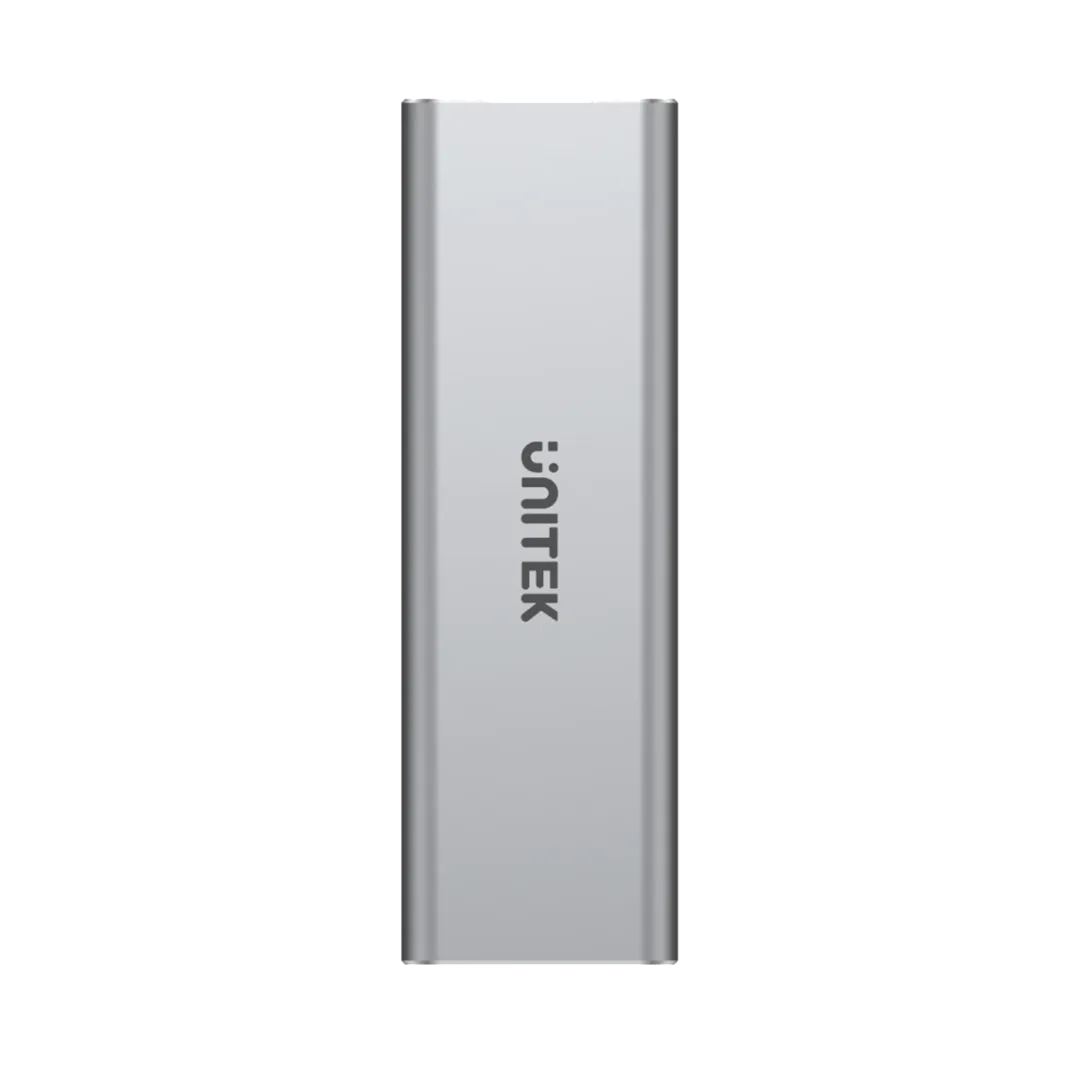

Unitek NVMe M.2 SSD 10Gbps Enclosure
M.2 NVMe SSD enclosure adapter, Unitek aluminum USB 3.2 Gen 2 10Gbps to NVMe PCIe M Key & B+M Key solid-state drive external enclosure supports UASP & Trim, compatible for M.2 M-Key SSD 2230/2242/2260/2280.
This M.2 SSD Enclosure only for M.2 NVMe PCIe M-Key & B+M Key SSD. Applicable to sizes 2230/2242/2260/2280 solid-state drives. Does not support M.2 SATA-based SSDs, M.2 PCIe AHCI SSDs, M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and non-M.2 form factor SSDs.
With USB 3.2 Gen 2 interface, supports up to 10Gbps data transfer speed. It’s a reversible plug connector, easy to plug in and out. Backward compatible with USB 3.0 and USB 2.0.
How to Install M.2 SSD:
- Remove the screw.
- Remove the cover.

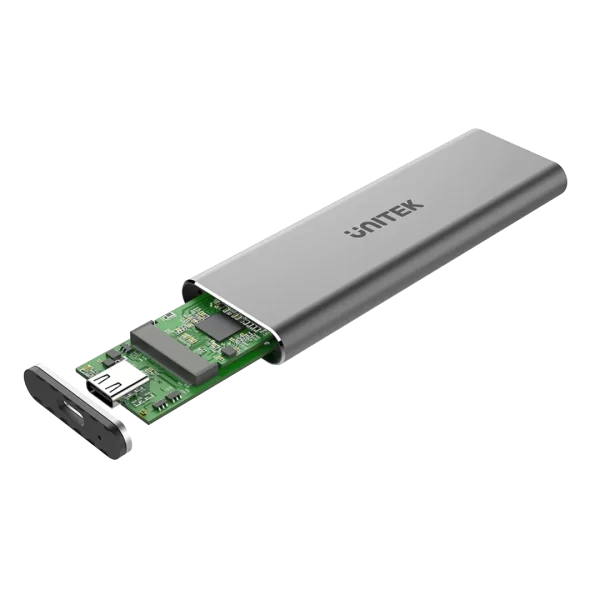

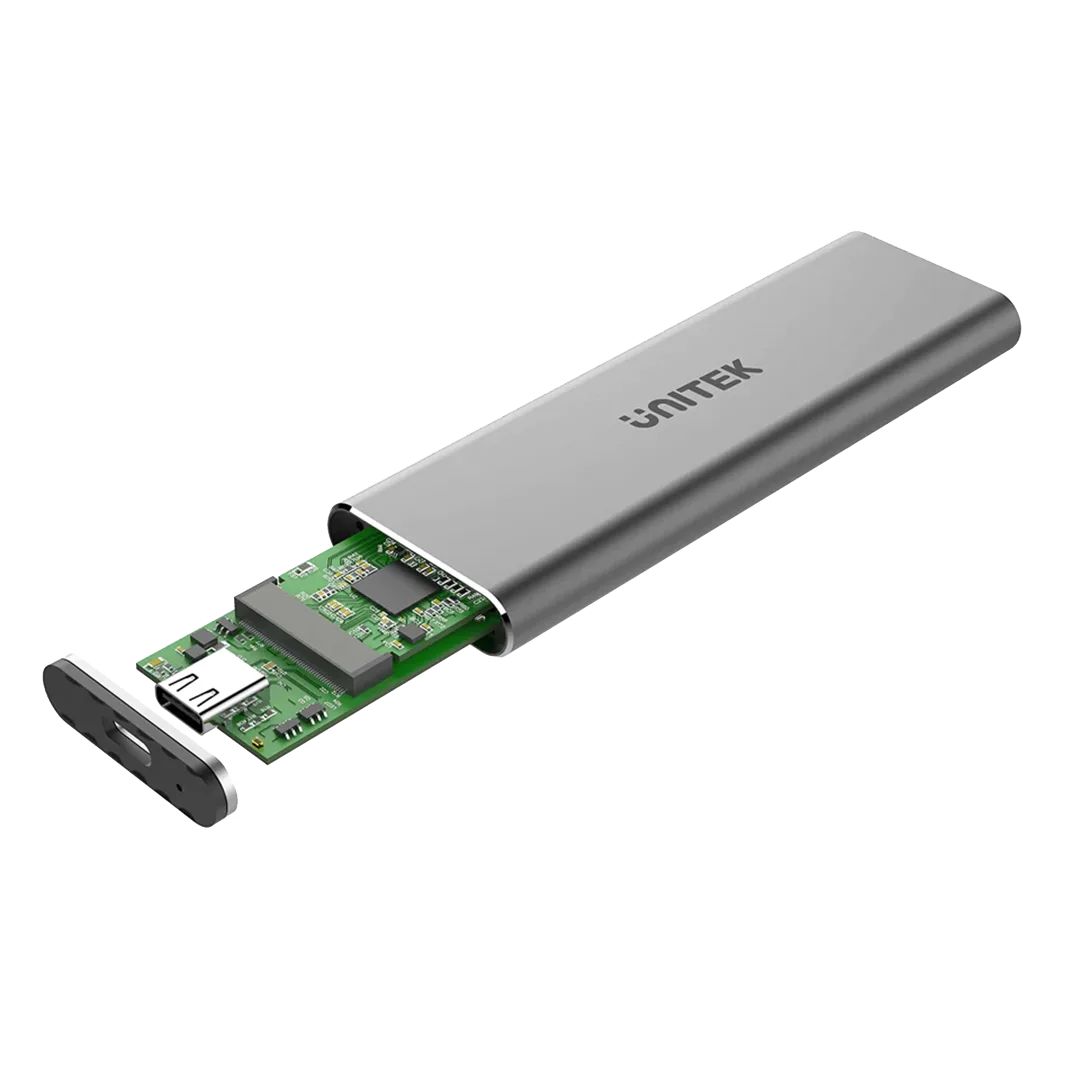

- Remove cover and pull out the PCBA.
- Insert M.2 SSD to PCIe/NVMe slot.
- Press M.2 SSD down and match the screw slot.
- Lock M.2 SSD with the screw.
- Upstream: USB-C (Male)
- Downstream: M.2 (Female)
- Product Color: Space Grey
- Cable Length: 30 cm
- Product Dimension: 108 x 37 x 9mm
1 x USB3.1 Gen2 Type-C to M.2 SSD (PCIe/NVMe) Enclosure
1 x USB-C (M) to USB-C (M) Data Cable
1 x User Manual
1 x Screw (for M.2 SSD)
4 x Screw (for Enclosure)
1 x Mini Screw Driver
