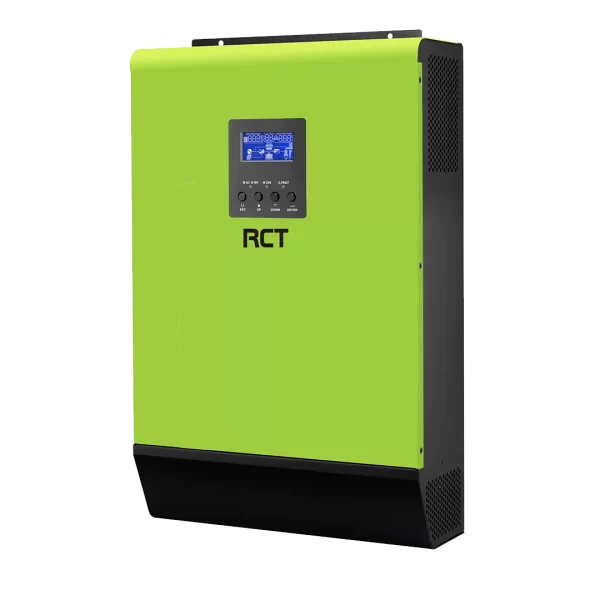

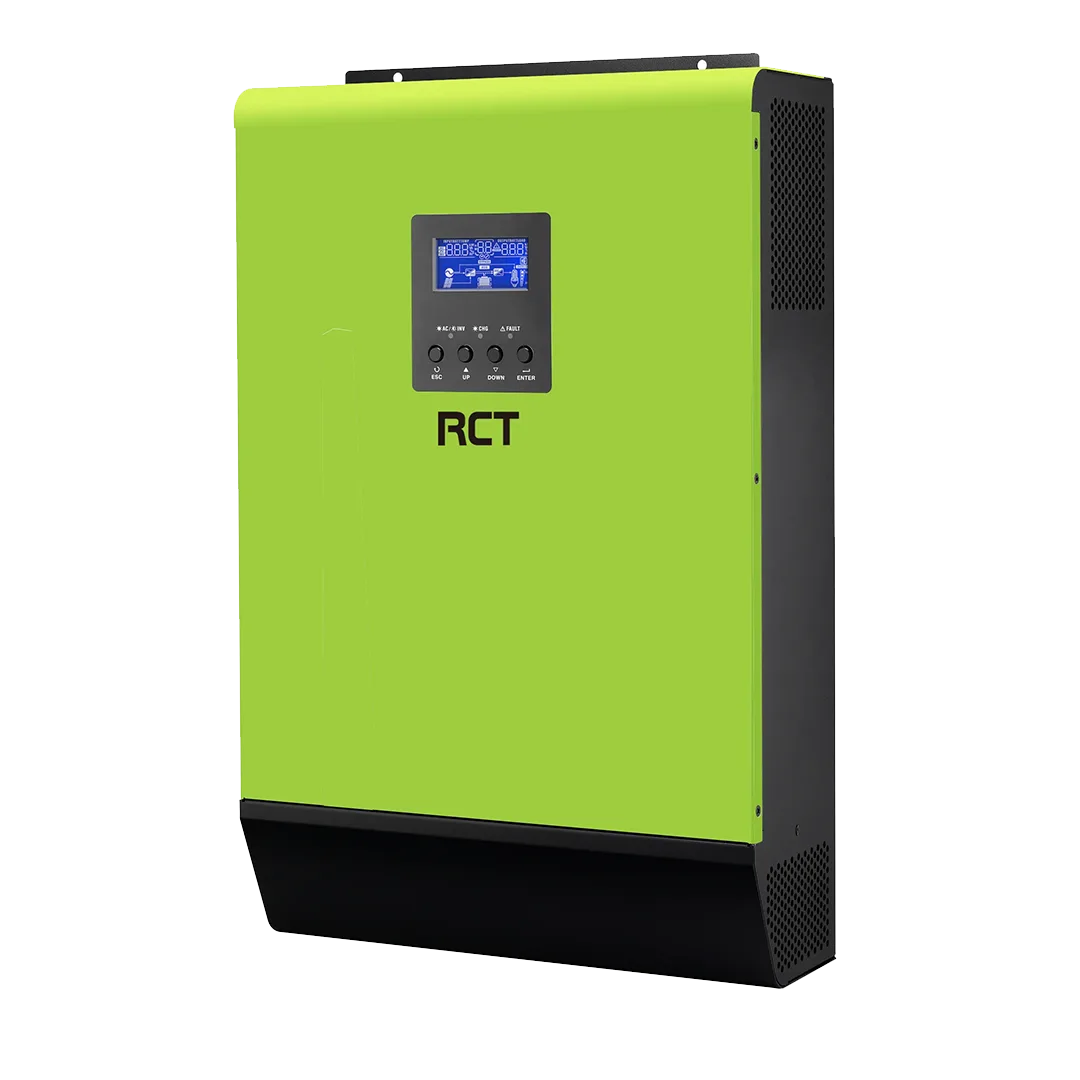

RCT Axpert VM2 2.5K 24V Inverter

RCT
Availability:

Out of stock


FEATURES

  • Pure sine wave solar inverter
  • Output power factor 1
  • High PV input voltage range
  • Battery independent design
  • Built-in 100A MPPT solar charger
  • Battery equalization function to optimize battery performance and extend lifecycle.
  • Built-in anti-dust kit for harsh environment
  • Warranty: 24 months

TECHNICAL SPECIFICATIONS

  • Model: Axpert VM ll 2500-24
  • Rated Power: 2500VA/2500W
  • Parallel Capability: No

R6,916.56 incl. VAT

Out of stock

Compare

RCT Axpert VM2 2.5K 24V Inverter

FEATURES

  • Pure sine wave solar inverter
  • Output power factor 1
  • High PV input voltage range
  • Battery independent design
  • Built-in 100A MPPT solar charger
  • Battery equalization function to optimize battery performance and extend lifecycle.
  • Built-in anti-dust kit for harsh environment
  • Warranty: 24 months

TECHNICAL SPECIFICATIONS

  • Model: Axpert VM ll 2500-24
  • Rated Power: 2500VA/2500W
  • Parallel Capability: No

INPUT

  • Voltage: 230 VAC
  • Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
  • Frequency Range: 50 Hz/60 Hz (Auto sensing)

OUTPUT

  • AC Voltage Regulation: 230 Vac ± 5%.
  • Surge Power: 5000VA
  • Efficiency (Peak): 93 %
  • Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
  • Waveform: Pure sine wave.

BATTERY

  • Battery Voltage: 24 Vdc
  • Floating Charge Voltage: 27 Vdc
  • Overcharge Protection: 32 Vdc
  • Solar Charger & AC Charger
  • Solar Charger Type: MPPT
  • Maximum PV Array Open Circuit Voltage: 450 Vdc
  • Maximum PV Array Power: 3000 W
  • MPP Range @ Operating Voltage: 60 ~ 400 Vdc
  • Maximum Solar Charge Current: 80 A
  • Maximum AC Charge Current: 80 A
  • Maximum Charge Current: 80 A

PHYSICAL

  • Dimension, D x W x H (mm): 90 x 288 x 357
  • Net Weight (kgs): 6.5
  • Communication Interface: RS232

ENVIRONMENT

  • Humidity: 5% to 95% Relative Humidity (non-condensing)
  • Operating temperature: -10°C to 50°C
  • Storage temperature: -15°C to 60°C
Weight 6.5 kg
Dimensions 9 × 28.8 × 35.7 cm
