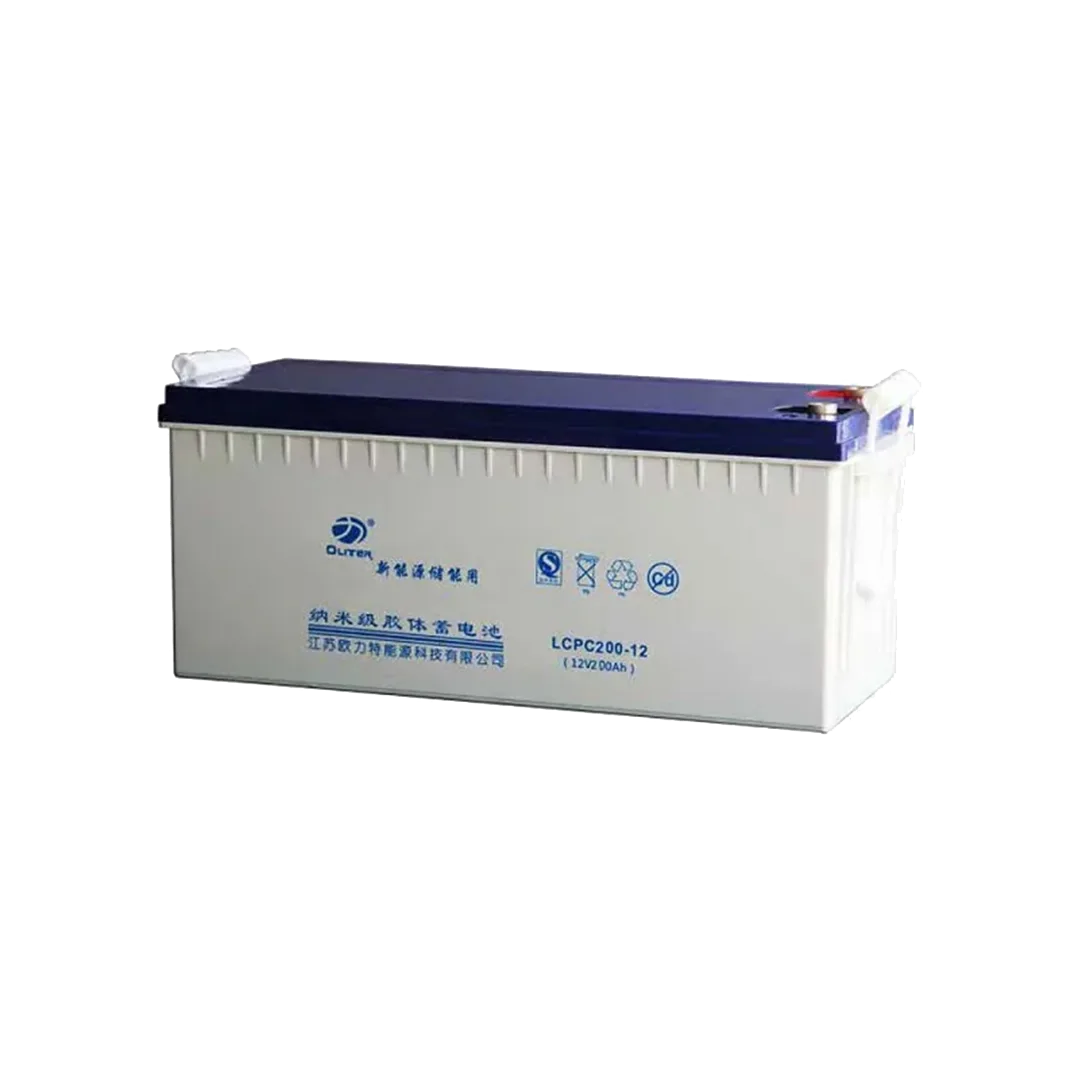

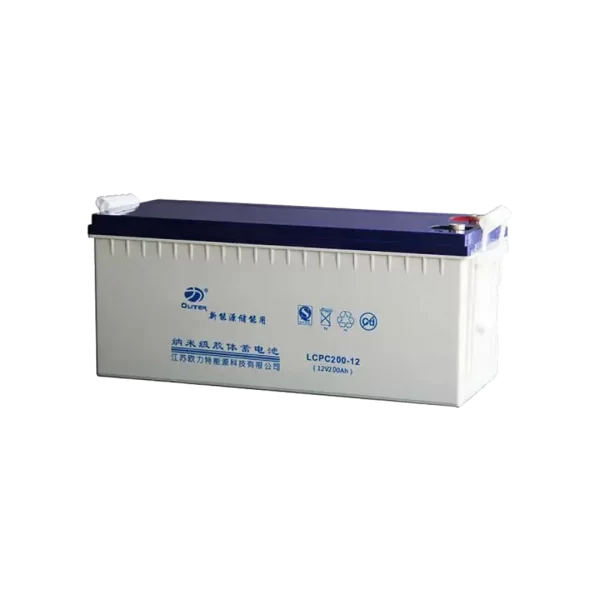

Oliter 200AH 12V Deep Cycle Gel Battery

Oliter 200AH 12V Deep Cycle Gel Battery

Details:

• Maintenance-free and easy to use,
• Contemporary advanced technology research and development of new high-performance batteries,
• It can be widely used in solar energy, wind energy, telecommunication systems, off-grid systems, UPS, and other fields

Specifications

• Rated Voltage: 12V
• Capacity (10hr,1.80V/Cell): 200Ah
• Weight: 59 kg
• Dimensions: 522 x 240 x 224 mm
• Max Discharge Current: 30I10A (3min)
• Max Charge Current: ≤0.25C10
• Self-Discharge (25℃): <3%/month
• Recommended Usage Temperature: 15℃~25℃ ABS
• Cover Material: ABS
• Usage Temperature: Discharge: -45℃～50℃, Charge: -20℃～45℃, Storage: -30℃～40℃
• Charge Voltage (25℃): Float Charge: 13.5V-13.8V, Average Charge: 14.4V-14.7V
• Charge Mode (25℃): Float Charge:2.275±0.025V/Cell Temperature Compensation, Coefficient: ±3 mV/Cell ℃, Cycle Charge: 2.45±0.05V/Cell, Temperature Compensation Coefficient: ±5 mV/Cell ℃
• Capacity Affected by Temperature: 105% @ 40℃, 85% @ 0℃, 60% @ -20℃
