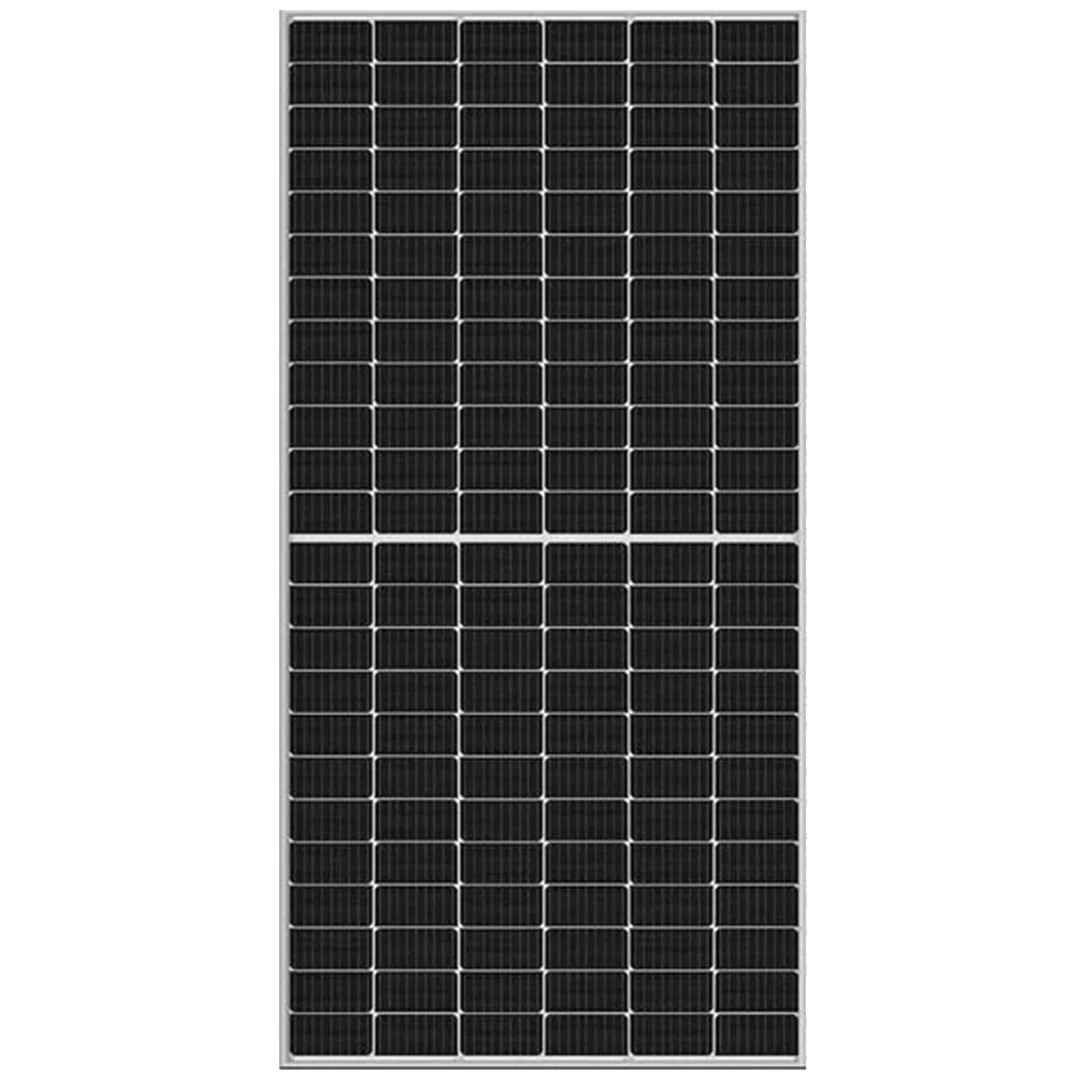

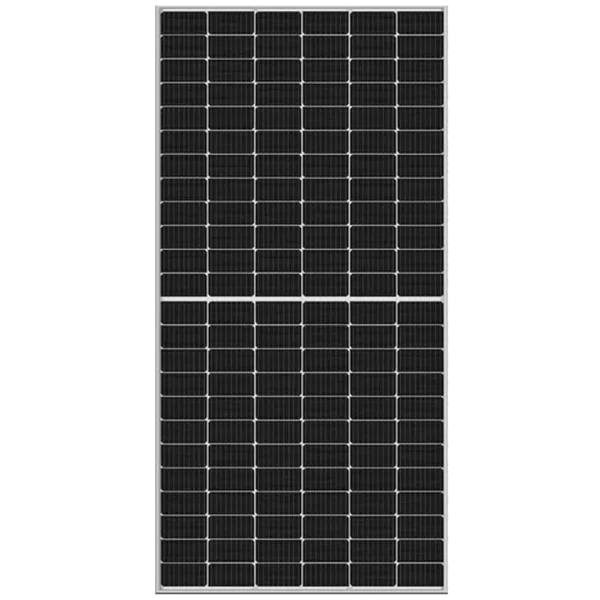

Mecer Solar 545W PV Modules

Mecer Solar 545W PV Modules

Products Characteristics:

• Mecer 545 watt solar pane
•  Mono
• 50 Voc
• 144 Cell
• 2279 x 1134
• 28.4 kg
• 13 Amps @ 41.93 v

Specifications:

* STC: irradiance 1000 W/m2, AM 1.5,Gand cell temperature of 25°C

• Peak Power(Pmax): 545.00
• Maximum Power Voltage(Vmp): 41.93
• Maximum Power Current(Imp): 13.00
• Open Circuit Voltage(Voc): 49.90±3%
• Short Circuit Current(Isc): 13.92±3%
• Cells Efficiency(﹪): 22.85%
• Module Efficiency(﹪): 21.09%

* NOCT: irradiance 800 W/m2, AM 1.5G, ambient temperature 20°C,
wind speed 1 m/s

• Peak Power(Pmax): 405.10
• Maximum Power Voltage(Vmp): 38.93
• Maximum Power Current(Imp): 10.41
• Open Circuit Voltage(Voc): 46.73±3%
• Short Circuit Current(Isc): 11.13±3%
• Maximum System Voltage(V): 1500
• Maximum Series Fuse Rating(A): 25
• Power Tolerance: 0～+3﹪
• Pmax Temperature Coefficients(W/℃): -0.350﹪
• Voc Temperature Coefficients(V/℃): -0.285﹪
• Isc Temperature Coefficients(A/℃): +0.045﹪
• NOCT Nominal Operating Cell Temperature(℃): 45±2
• Operating and Storage Temperature(℃): -40～+85

Mechanical characteristics

• Cell Type: 182×91 Mono
• No. of Cells: 144(12×12)
• Dimensions: 2279*1134*35
• Weight: 28.4kg
• Front Glass: 3.2mm high transmission,low iron,tempered glass
• Frame: Anodized Aluminium Alloy
• Junction box :IP68 3 diodes
• Output cables: 4mm² cable 55cm+mc4
• MaxWind Load/Snow Load: 2400Pa/5400Pa
