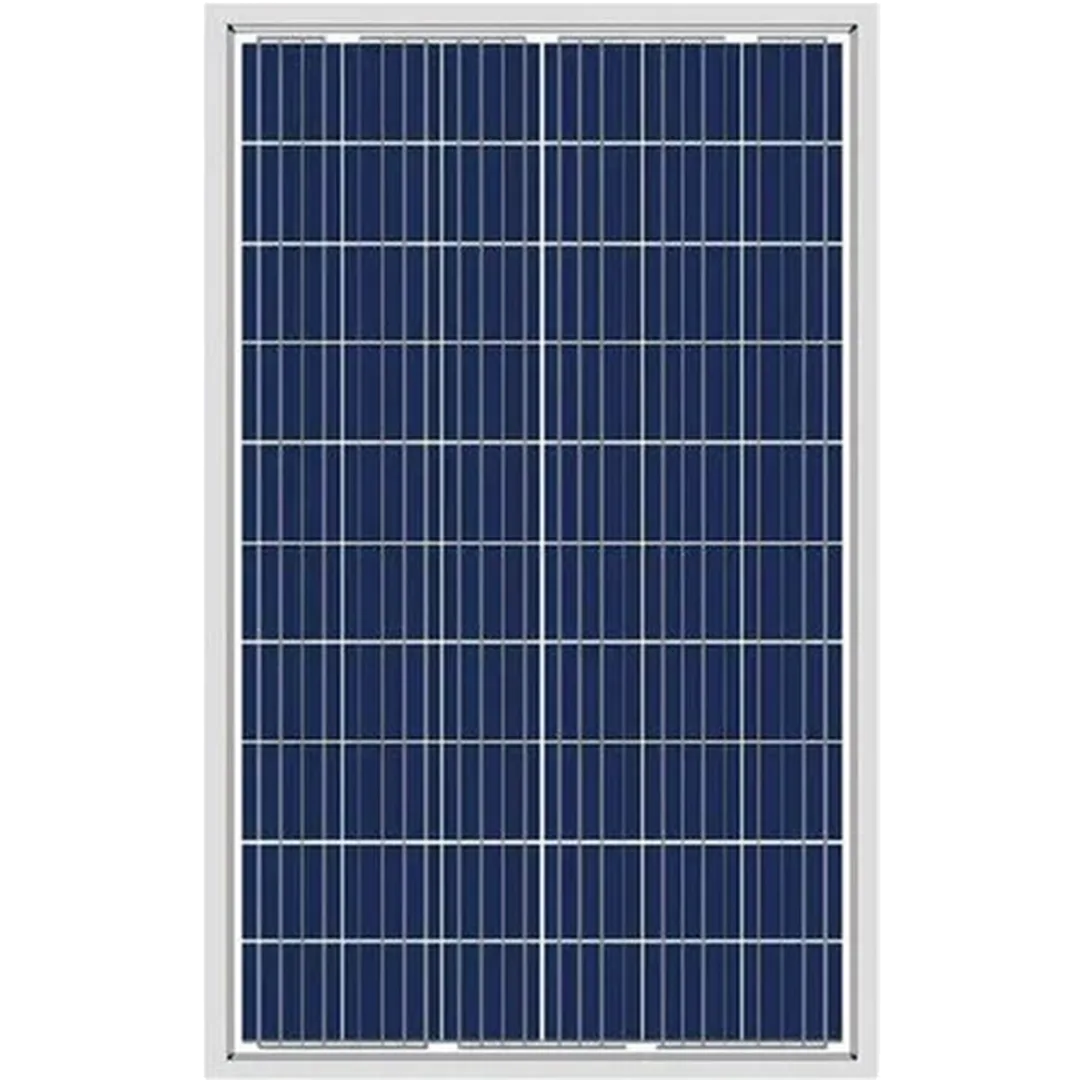

Mecer Solar 330W PV Module

Mecer Solar 330W PV Module

Products Characteristics:

• Widely using the most popular and mature type of modules for on-grid systems.
• Leading manufacturing technology in the PV industry, strictly controlling the quality of raw materials and the process of producing 100% EL inspection, ensures modules are defects free.
• Cells binned by current to improve module performance Anti-reflective glass.
• Not only to increase the light absorption but also to make the module has the function of self-cleaning in water environment, effectively reducing the power loss caused by dust.
• Outstanding performance in low-light irradiance environments.
• Excellent mechanical load resistance: Certified to withstand high wind loads(2400pa) and snow loads(5400pa).
• High salt and ammonia resistance
• Positive power tcierance:0-+Sw

Raw materials and Mechanical Parameters:

• Type of Cells(mm): poly156.75 x 156.75
• NO. of Cells and Connections: 6×12=72
• Dimensions(mm)(L*W*H): 1956 X 992 x40
• Weight(kg): 22.8
• Glass: 3.2mmTempered Glass
• Encapsulation: EVA
• Backsheet: Multilayer Composite
• Aluminium-Frame: Silvery/Black Anodized aluminium alloy
• Junction-Box: IP67/IP68
• Cable: 4mm’,900mm
• Connector: MC4 and MC4 Compatible
• Package Configuration: 26pcs/pallet

SP-330

Performance Parameters:

• Maximum System Voltage: 1000V
• Operating Temperature: -45-+so·c
• Maximum Series Fuse: 20A
• SP-310 SP-315 SP-320 SP-325 SP-330 SP-335
• Maximum Static Load, Front Side (e.x. Snow, Wind): 5400PA
• Maximum Static Load, Back Side (e.x. Wind): 2400PA
• Application Grade: Class A

Electrical Parameters (Standard Test Condition):

• Rated Maximum Power (Mp): 330W
• Power Tolerance: 0-+ 5W
• Cell Efficiency: 18.7%
• Open Circuit Voltage (Voc): 47.0V
• Maximum Power Voltage (Vmp): 37.5V
• Short Circuit Current (lsc): 9.38A
• Maximum Power Current (lmp): B.B9A
• Temperature Coefficient of lsc: +0.06%
• Temperature Coefficient of Voe: -0.33%
• Temperature Coefficient of Pmp: -0.45%
• Standard Test Condition: lrradiance: 1000W/M2, Cell Temperature:25’C, SpectrumAM:1.5

The Electrical Parameters of the module are the average theory figure under the standard test condition, each one exists difference.

Can not be treated as the basis of module delivery.
