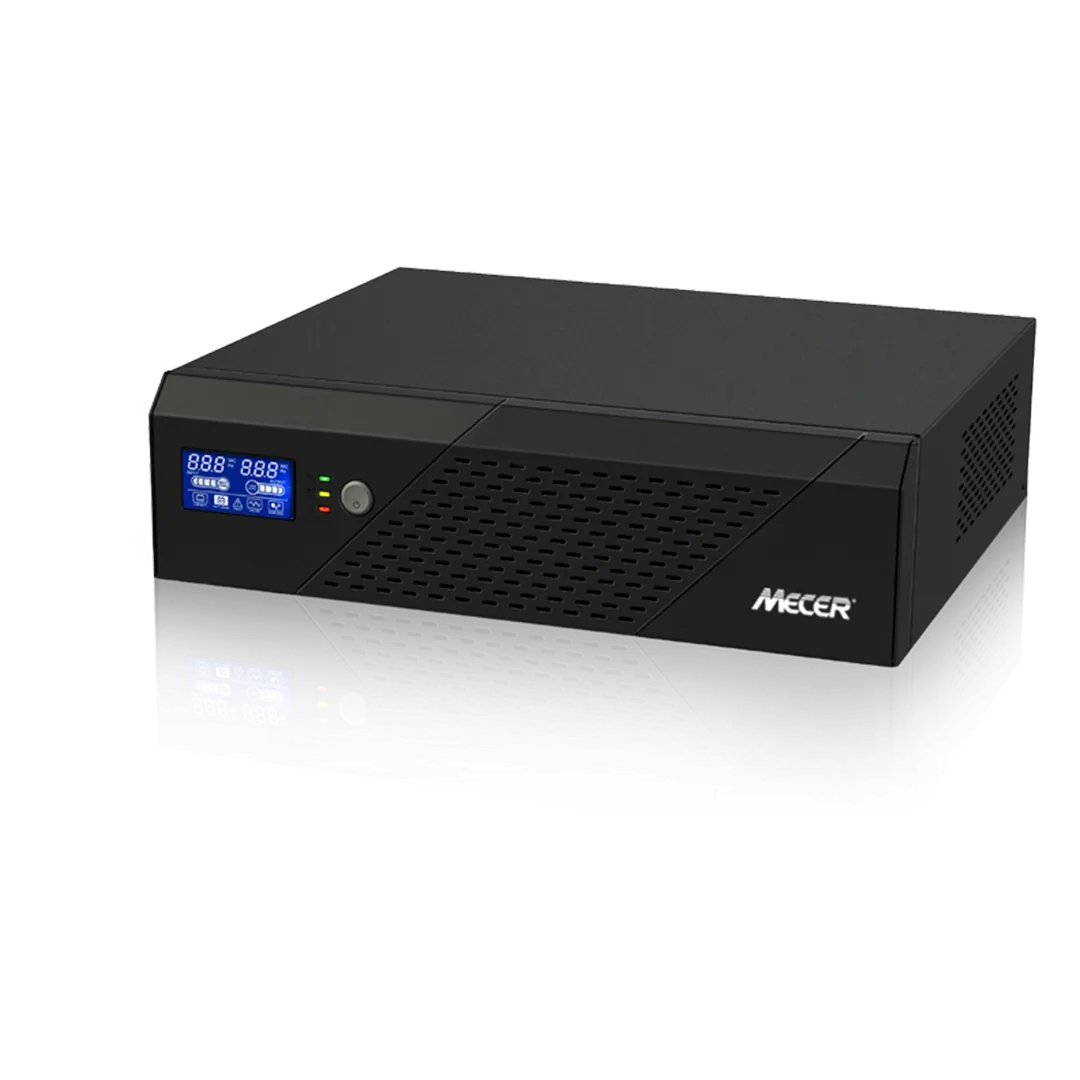

Mecer IVR-1200LBKS 12v Power Inverter

Mecer IVR-1200LBKS 12v Power Inverter

Features:

• Simulated sinewave inverter

• Wide input voltage range

• 12VDC or 24VDC available

• Overload and short circuit protection

• LCD display for comprehensive information

• Optional solar charger

• MODEL: IVR-1200LBKS
• CAPACITY: 1200VA/ 720W
• INPUT
  • Voltage: 230 VAC
  • Acceptable Voltage Range: 90-280 VAC
  • Frequency: 50 Hz/60 Hz (Auto sensing)
• OUTPUT
  • AC Voltage Regulation (Batt. Mode) ± 10%
  • Efficiency (Peak) 82%
  • Transfer Time 20 ms typical
  • Waveform (Batt. Mode) Simulated sine wave
• BATTERY & AC CHARGER
  • Battery Voltage 12 VDC 24 VDC
  • Floating Charge Voltage 13.7 VDC ±2% 27.4 VDC ±2%
  • Low Battery Alarm Voltage 10.2Vdc ±2% 20.4Vdc ±2%
  • Shutdown Voltage 9.9Vdc ±2% 19.8Vdc ±2%
  • Overcharge Protection 15.0Vdc ±2% 30.0Vdc ±2%
  • Maximum Charge Current 10 A or 20 A (Selectable)
• SOLAR CHARGER (Optional) Solar Charge controller not included, will request to purchase separately
  • Maximum PV Array Open Circuit Voltage 40 VDC 60 VDC
  • Operating Voltage Range 15~18 VDC 30~32 VDC
  • Maxmum Solar Charge Current 50 A
• PROTECTION
  • Full Protection Overload, short circuit and polarity reserve protection
• PHYSICAL
  • Dimension, D X W X H (mm) 300 x 360 x 88
  • Net Weight (kgs) 4.6
• OPERATING ENVIRONMENT
  • Humidity 0 to 90% Relative Humidity(Non-condensing)
  • Operating Temperature 0℃ to 40℃
  • Storage Temperature -15℃ to 50℃
