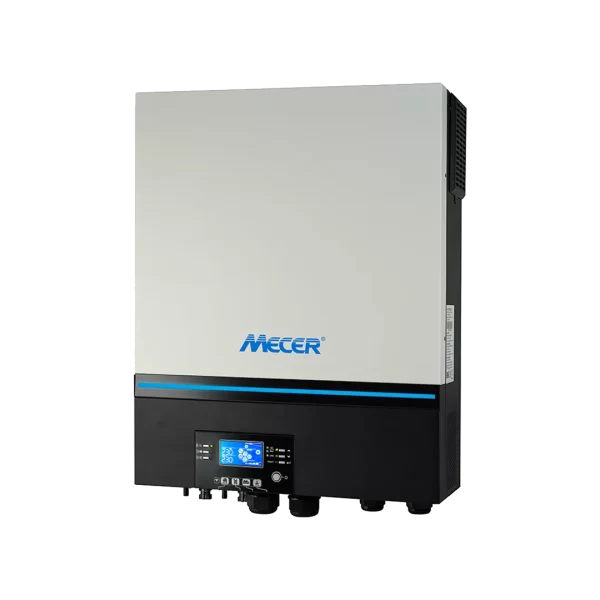

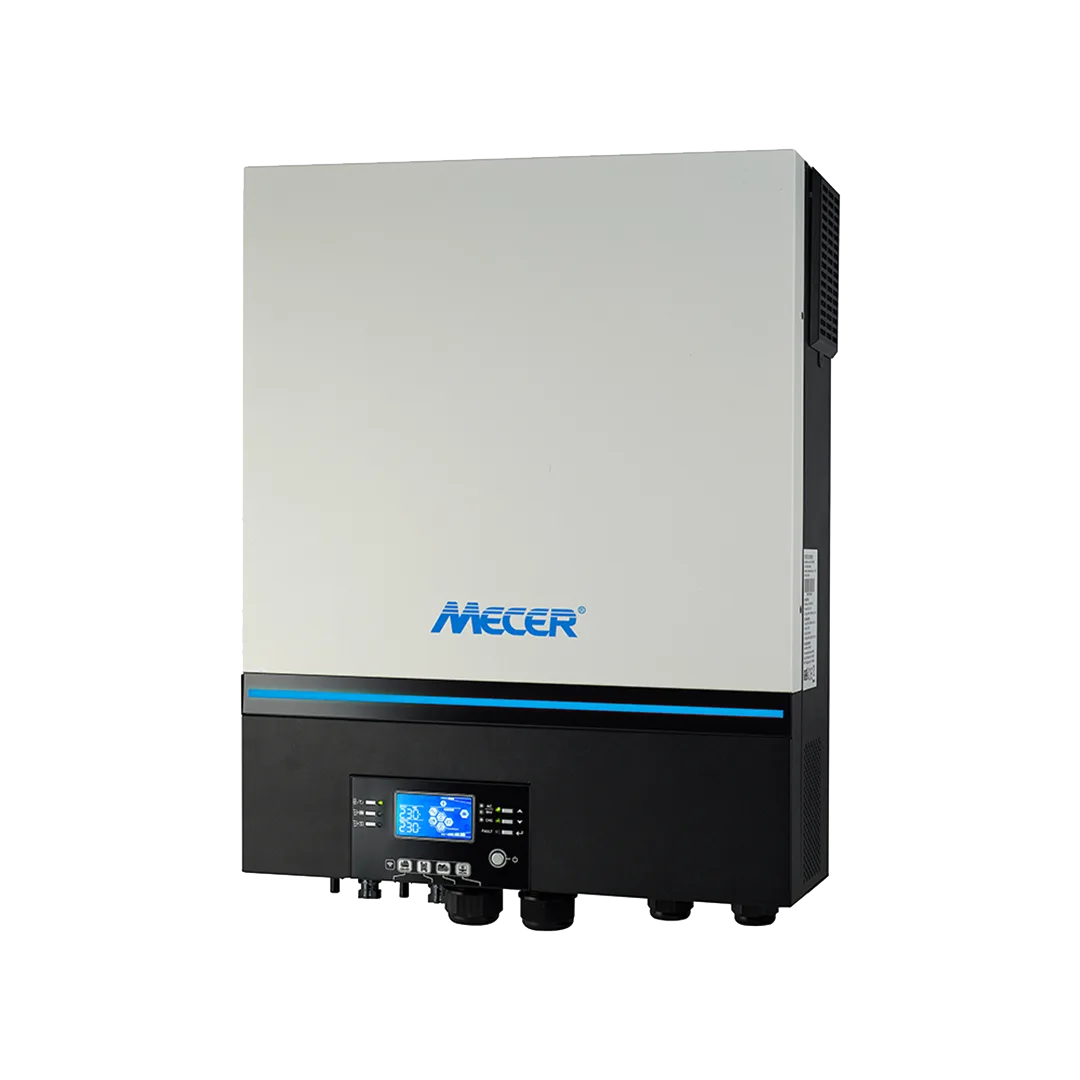

Mecer Axpert MAX Off-Grid 11kVA 11kW 48V MPPT Inverter

Mecer Axpert MAX Off-Grid 11kVA 11kW 48V MPPT Inverter

Features:

• Status indication with RGB lights
• Built-in Wi-Fi for mobile monitoring (Android/iOS Apps are available)
• Supports USB On-the-Go function.
• Reserved communication port for BMS
• Battery independent design
• Configurable AC/PV output usage timer and prioritization
• Selectable high-power charging current
• Compatible to Utility mains or generator input

Specifications:

• Rated Power: 11 000 VA / 11 000 W
• Parallel Capability: Yes, 6 units. Parallel card included.
• Input: Voltage 230V AC
• Selectable Voltage Range:
  • 170-280V AC (For Personal Computers)
  • 90-280V AC (For Home Appliances)
• Frequency Range: 50Hz / 60Hz (Auto sensing)

Output

• AC Voltage Regulation (Line & Batt Mode): 230V AC ±5%
• Surge Power: 22 000VA
• Efficiency (Peak): 93%
• Transfer Time:
  • 10ms (For Personal Computers)
  • 20ms (For Home Appliances)
• Waveform: Pure sine wave
• No Load Power Consumption: <70W
• Dual Outputs: Yes

Battery

• Battery Voltage: 48V DC
• Floating Charge Voltage: 54V DC
• Overcharge Protection: 63V DC

Solar Charger & AC Charger

• Solar Charge Type: MPPT
• Maximum PV Array Power: 11 000W
• Number of MPPTs: 2 X 5 500W
• MPPT Range @ Operating Voltage: 90-450V DC
• Maximum PV Array Open Circuit Voltage 500V DC
• Maximum Solar Charge Current 150A
• Maximum AC Charge Current 150A
• Maximum Charge Current 150A

Physical

• Dimensions D X W X H (mm): 147.4 X 432.5 X 553.6
• Net Weight (kgs): 18.4kg
• Communication Interface: RS232, USB, Dry Contact, Wi-Fi, RS485

Environment

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
