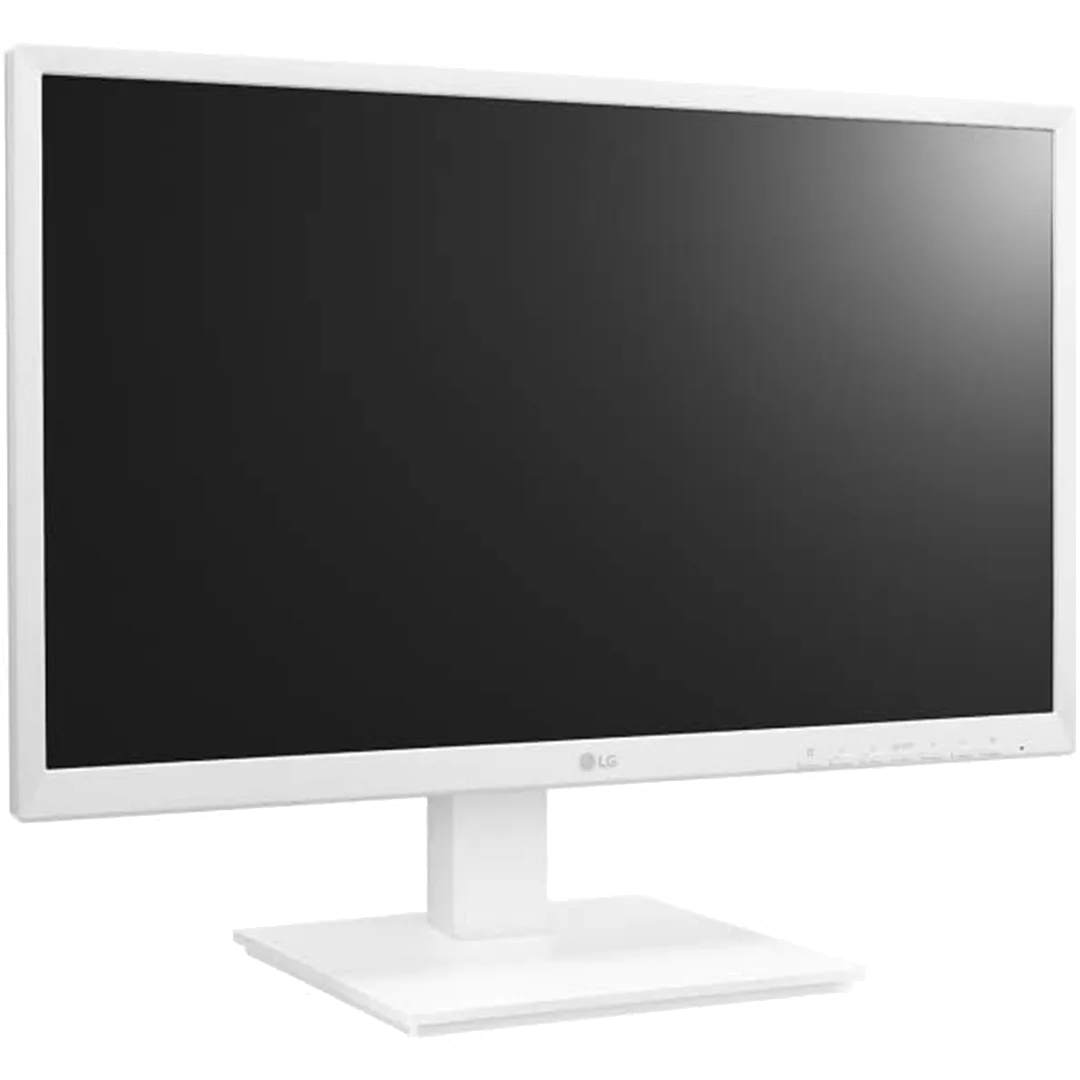

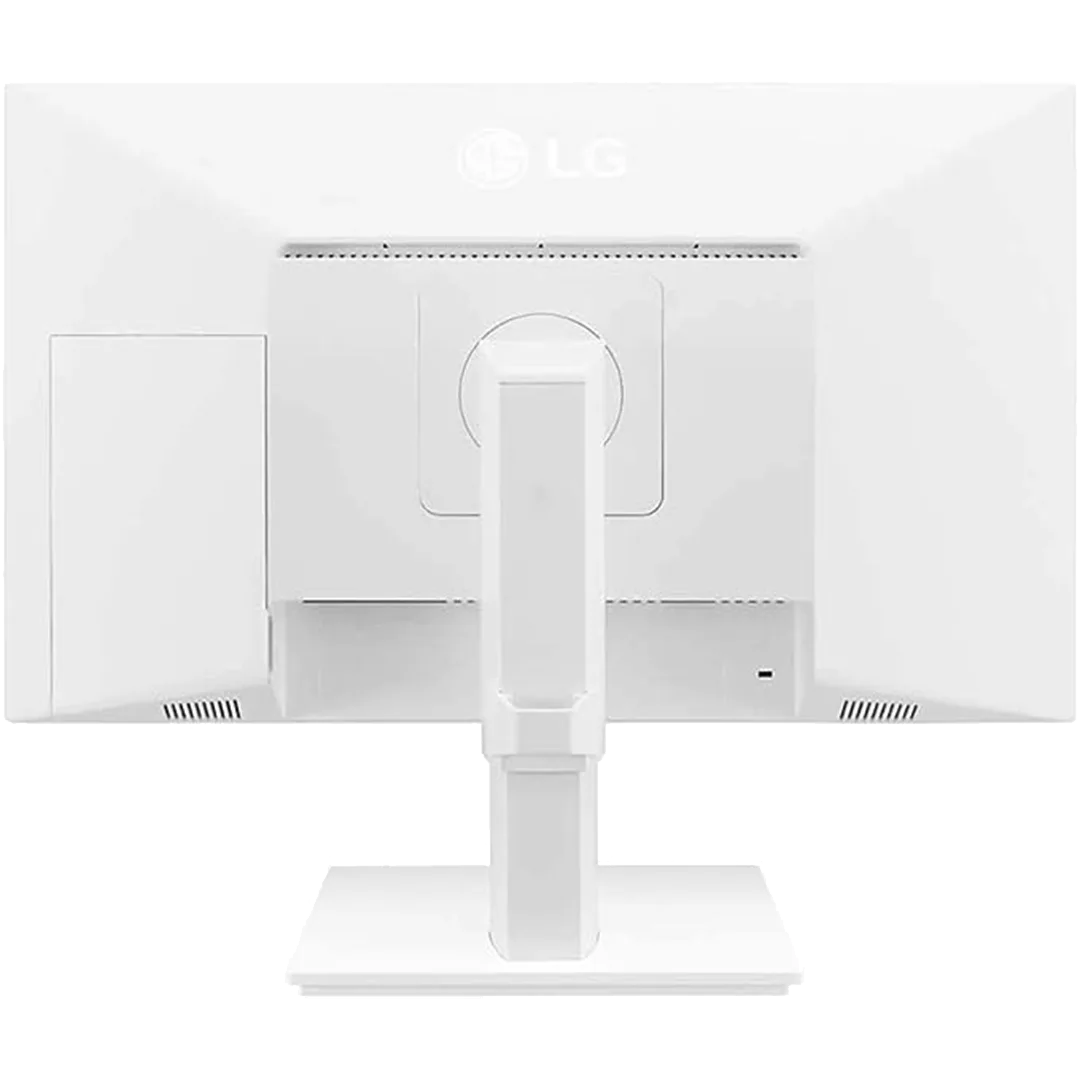

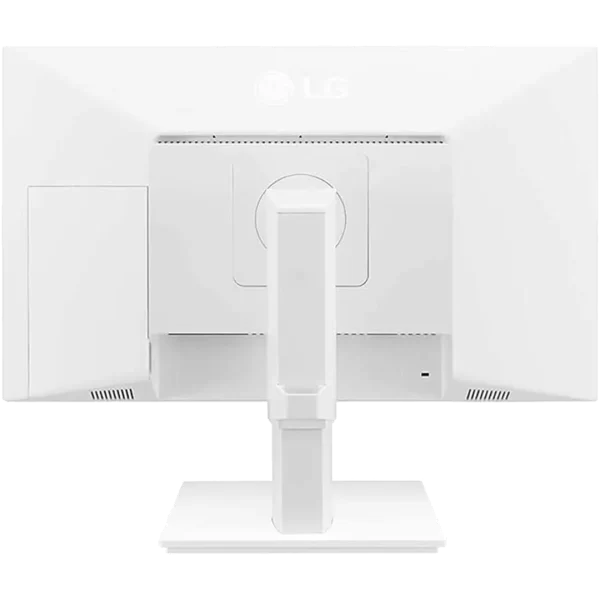

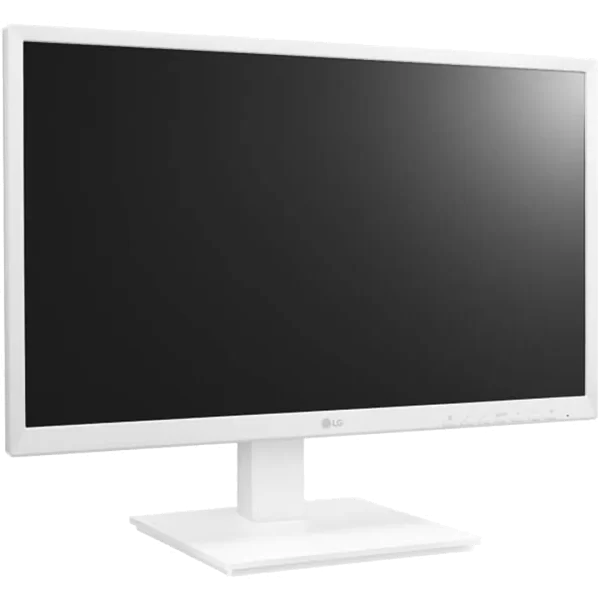

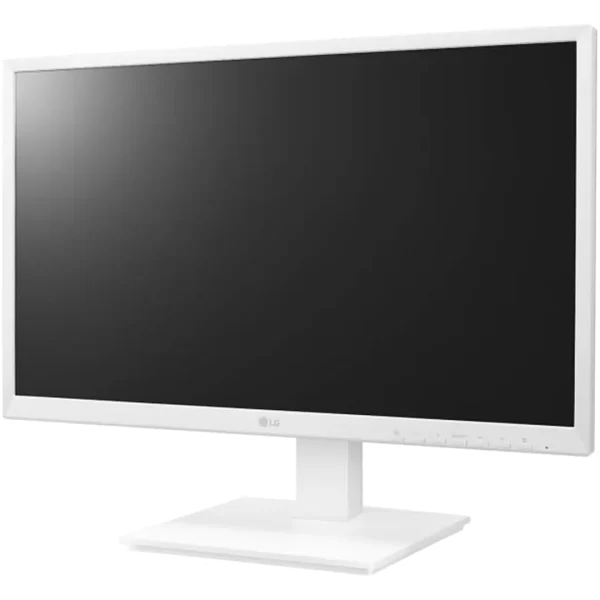

LG 24″ All-in-One Thin Client for Healthcare

LG 24″ All-in-One Thin Client for Healthcare

Easy and Secure

LG Thin Client offers medical facilities an endpoint that delivers end-user performance and strong data protection. It provides a secure, cost-efficient, and reliable virtual desktop experience that’s easy to implement and manage.

Designed for Healthcare

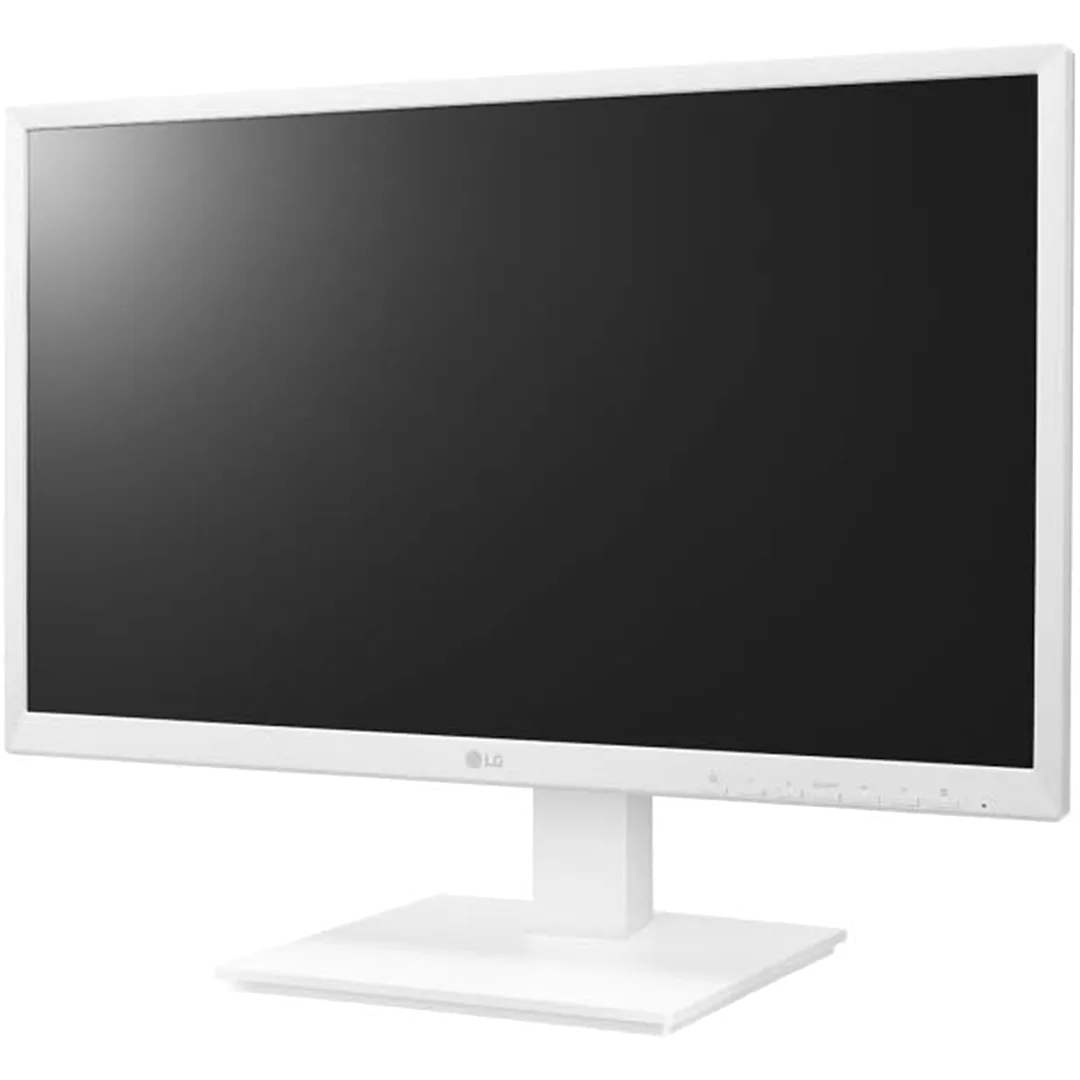

LG’s 24CK560N approved by medical standards (IEC60601*, CE MDD** and FDA Class I***), ensures its reliability at medical environment. Also its white colour body helps to remove substances such as dust and dirt easily and keep it clean. So you can maintain the highest level of cleanliness**** and promote patient safety.

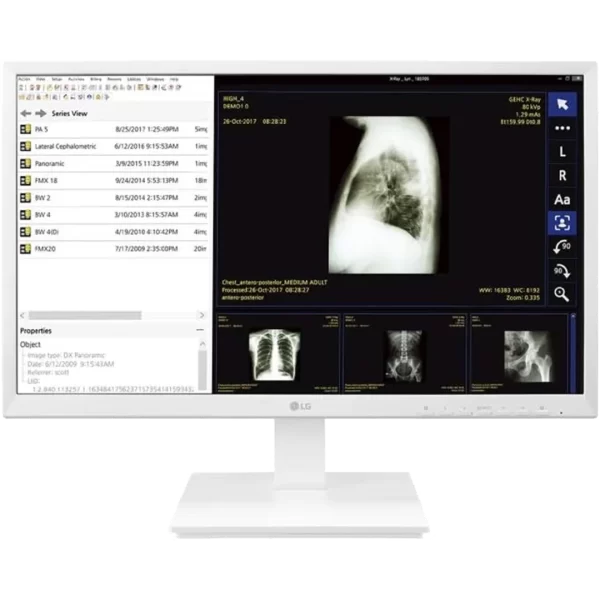

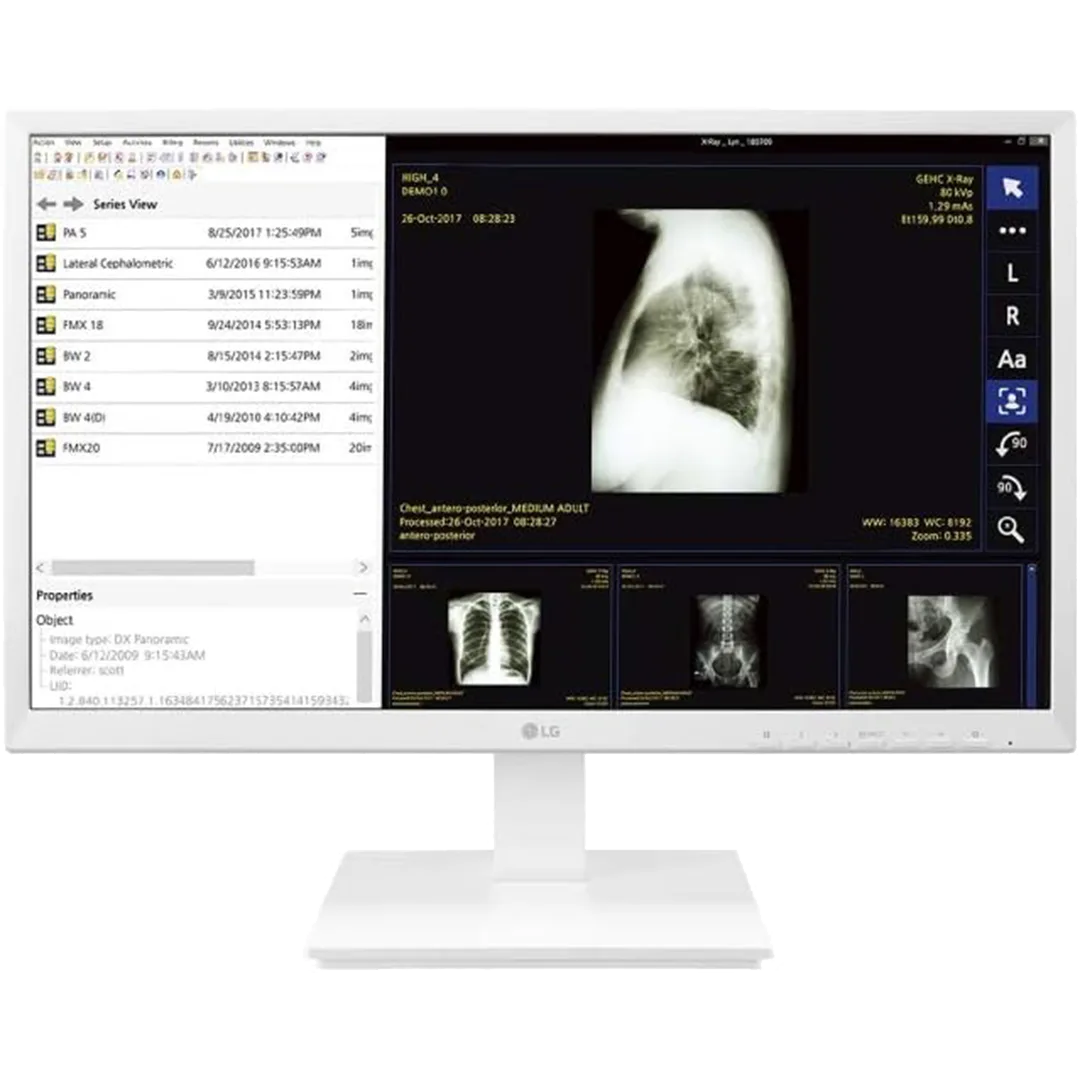

More Accurate at Any Angle

LG All-in-One Thin Client with IPS technology delivers visual comfort especially for sharing charts and medical information with others. Also, when 24CK560N is connected to the LG monitor*, it can provide wider workstation.

Optimised for Medical Workplace

LG 24CK560N supports an external display up to 4K, enhancing work efficiency in medical contexts where precise expression of detailed factors is essential. Also, its low level of noise with fanless design provides pleasant medical environment.

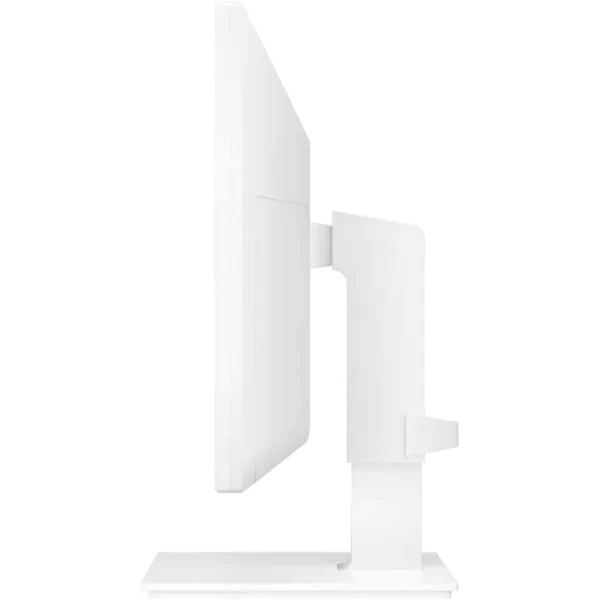

Better Workplace Ergonomics

The 24CK560N supports tilt, swivel, pivot and height adjustment options for the best comfort at work. These ergonomics also make it easier to share content with others and set up the equipment for shift work, leading to user convenience.

SPECIFICATIONS

SYSTEM

Processor: AMD Pairie Falcon, GX-212JJ, Fanless

Graphics: Integrated Graphics

OS: Non OS

Memory: 4GB DDR4

Storage: 32GB (M.2 SSD) M.2 2280/2242 SSD Supported (SATA/PCIe supported)

Display Support

Up to 1 display : 4096×2160@50Hz, 3840×2160@60Hz (via DisplayPort 1.2 out)

Expansion Slot: M.2 Slots x 2 (Slot 1 : 32GB SSD, Slot 2 : WiFi + Bluetooth card)

* Note: Slot 1 should be capable of supporting both SATA and PCIe NVMe SSDs.

SO-DIMM x 1 (Slot 1 : 4GB DDR4)

TPM (Trust Platform Module)

Software TPM

DISPLAY

Size (Inch): 23.8

Size (cm): 60.47 cm

Aspect Ratio: 16:9

Resolution: 1920 x 1080

Panel Type: IPS

Panel Multi: BMS / LGD Module

Backlight Technology: LED

Backlight Type: Edge

Backlight Array: H1B

Backlight Dimming Technology: Global Dimming

Local Dimming Zone: N/A

Pixel Pitch: 0.2745 x 0.2745 mm

Brightness (Min.): 200 cd/m²

Brightness (Typ.): 250 cd/m²

Peak Brightness (Min.): N/A

Peak Brightness (Typ.): N/A

Color Gamut (Min.): N/A

Color Gamut (Typ.): NTSC 72% (CIE1931)

Color Bit: 8bit (6bit+FRC)

Contrast Ratio (Min.): 700:1

Contrast Ratio (Typ.): 1000:1

Contrast Ratio with DFC: Mega

Response Time: 5ms (GtG at Faster)

Viewing Angle (CR≥10): 178º(R/L), 178º(U/D)

Surface Treatment: Anti Glare, 3H

Curvature: N/A

FEATURE

Black Stabilizer: Yes

Color Weakness: YES

Flicker safe: YES

Picture Mode: Custom, Reader1, Reader2, Photo, Cinema, Color, Weakness, Game

Reader Mode: YES

Smart Energy Saving: YES

Super Resolution+: YES

SW APPLICATION

OnScreen Control (LG Screen Manager): YES(HDMI IN Only)

CONNECTIVITY

HDMI: YES(1ea)

HDMI Version: 1.4

HDMI (H-Frequency): 85KHz

HDMI (V Frequency): 75Hz

HDMI (HDCP Version): 1.4

HDMI (Max. Resolution at Hz): 1920X1080 75Hz

DisplayPort: YES(out 1ea)

DP Version: 1.2

DP (Max. Resolution at Hz): 3840X2160 60Hz

Headphone out: YES

Mic In: YES

Thunderbolt (Power Delivery): N/A

Thunderbolt(USB-C Compatiblity): N/A

USB: 4 x USB 2.0 Type-A. 2 x USB 3.1 gen1 (5Gb/s) Type-A

[Location]: Vertical

SOUND

Speaker: YES

Speaker_Channel: 2ch

Speaker_Output (unit): 3W

Speaker_Direction: Down Firing

Maxx Audio: YES

POWER

AC Input: 100-240Vac, 50/60Hz

DC Output: 19V 3.42A

Power Consumption (DC Off): 0.6W

Power Consumption (Typ.): 38.2W

Power Consumption (Sleep Mode): 1.0W

Long Idle (Display Off): 6.0W

Short Idle (Display On): 30W

TEC (kWh): 96.5 kWh

Type: External Power(Adapter)

MECHANICAL

Borderless Design: Normal

Assembly Step: Three-Step

Base Detachable: YES

Color (Front Cabinet): Matt Black

Color (Middle Cabinet): Matt Black

Color (Back Cover): Matt Black

Color (Stand Body): Matt Black

Color (Stand Base): Matt Black

Display Position Adjustments: Tilt/Height/Swivel/Pivot

Tilt: -5º ~ 35º

Swivel: 0°~355° (±5°)

Pivot: Bi-Direction

Height Range: 130mm

Down Height: 70mm

OneClick Stand: YES

Wall Mountable: 100 x 100 mm

DIMENSIONS & WEIGHT

Dimension in Shiping (W x H x D): 626 x 474 x 194

Dimension with Stand (W x H x D): 553.8 x 512.9 x 240

Dimension without Stand (W x H x D): 553.8 x 333.1 x 67.6

Pallet Stuffing (20ft/40ft/40ft HC): 440/924/1,008

Weight in Shipping: 8.25

Weight with Stand: 6.1

Weight without Stand: 3.95

STANDARD

CB: YES (Medical CB)

CE: YES (Medical CE)

FCC-B: YES

IEC60601: YES

KC (for Rep. of Korea): YES

ROHS, REACH: YES

UL(cUL): YES (Medical UL)

VESA wall mount standard: YES

Windows: YES

ACCESSORY

Adapter: YES

Adapter (Color): Black

Power Cord: YES

Power Cord (Color/Length): Black / 2.0m

NETWORK

LAN: 1 x RJ45 : 10/100/1000, Base-T Gigabit Ethernet (Wake on LAN)

Wi-Fi: Intel Dual Band Wireless-AC 3168 1×1 AC (AGN support, BT 4.0 + LE Combo), Internal Antenna

Bluetooth: BT4.0

RESOLUTION

HDMI (PC): 1920X1080 60Hz

HDMI (Video): 1920X1080 60Hz

CONTROL KEY

Key Location: Front

Key Number (Power Key Included): 7

Key Type: Tact

LED Color(On mode): White(AIO PC)

LED Color(Power save mode): Blinking (AIO PC)

LED Color(Standby): OFF(AIO PC)

OSD

Country: English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(brazil), Hindi, Tranditional Chinese

Number of Language: 18

BOX COSMETIC

Box Printing Type: Flexo

Handle: Hand Hole

Packing Material: EPS

Stacking Type: Face Down

Stand Packing Type: Detached

ETC

Humidity Range: Operating : 20%~80%, Storage : 10%~85%

Temperature Range: Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C

Power cable, D-Sub, and DVI-D cables are not included.
