Lenovo ThinkCentre 10AX M73 (Tiny Form Factor)
Tiny desktops are the first 1L desktop in the industry. Complete with flexible mounting solutions including support for standard VESA mounts, tiny desktops fit just about anywhere, yet they provide a reliable, enterprise-level performance that you can depend on.
Advanced Thermal Design
Architecture:
System board / Form factor / Processor
- Intel H81 Express Chipset for ThinkCentre M73 – Tiny Form Factor
- Intel Core i5-4570T Processor (2 cores / 4 threads, 2.9GHz, 4MB cache), Turbo Boost 2.0 (3.6GHz)
- Intel HD Graphics 4600, 1600MHz DDR3 memory controller
- Implementation Processor in LGA1150 socket
Chipset:
- Intel H81 Express Chipset for ThinkCentre M73
Memory:
- 4GB PC3-12800 1600MHz DDR3, two 204-pin SODIMM sockets (Notebook)
- System automatically clocks down for processors with 1333MHz DDR3 memory controller
Audio:
- High Definition (HD) Audio, Realtek® ALC283 codec
Keyboard and mouse:
- Preferred Pro USB Keyboard (USB connector), black
- Mouse Enhanced Optical USB Mouse, black, Lenovo logo
Communication:
- Ethernet Gigabit ethernet port, Intel I217-V, Wake on LAN®
- PCIe WLAN Some: 11b/g/n wireless, PCIe Half Mini Card, Intel Centrino® Wireless-N 2230, Wi-Fi + Bluetooth combo adapter, 2×2
- Some: 11b/g/n wireless, PCIe Half Mini Card, Intel Centrino® Wireless-N 105, 1×1
Expansion Bays:
- None
Standard I/O ports:

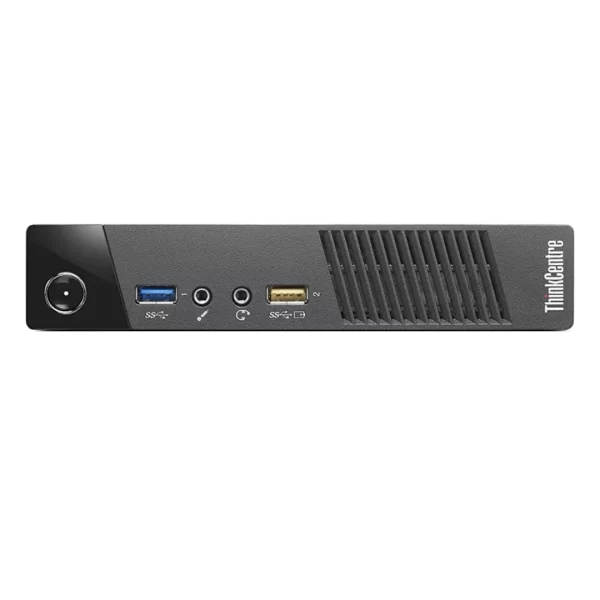

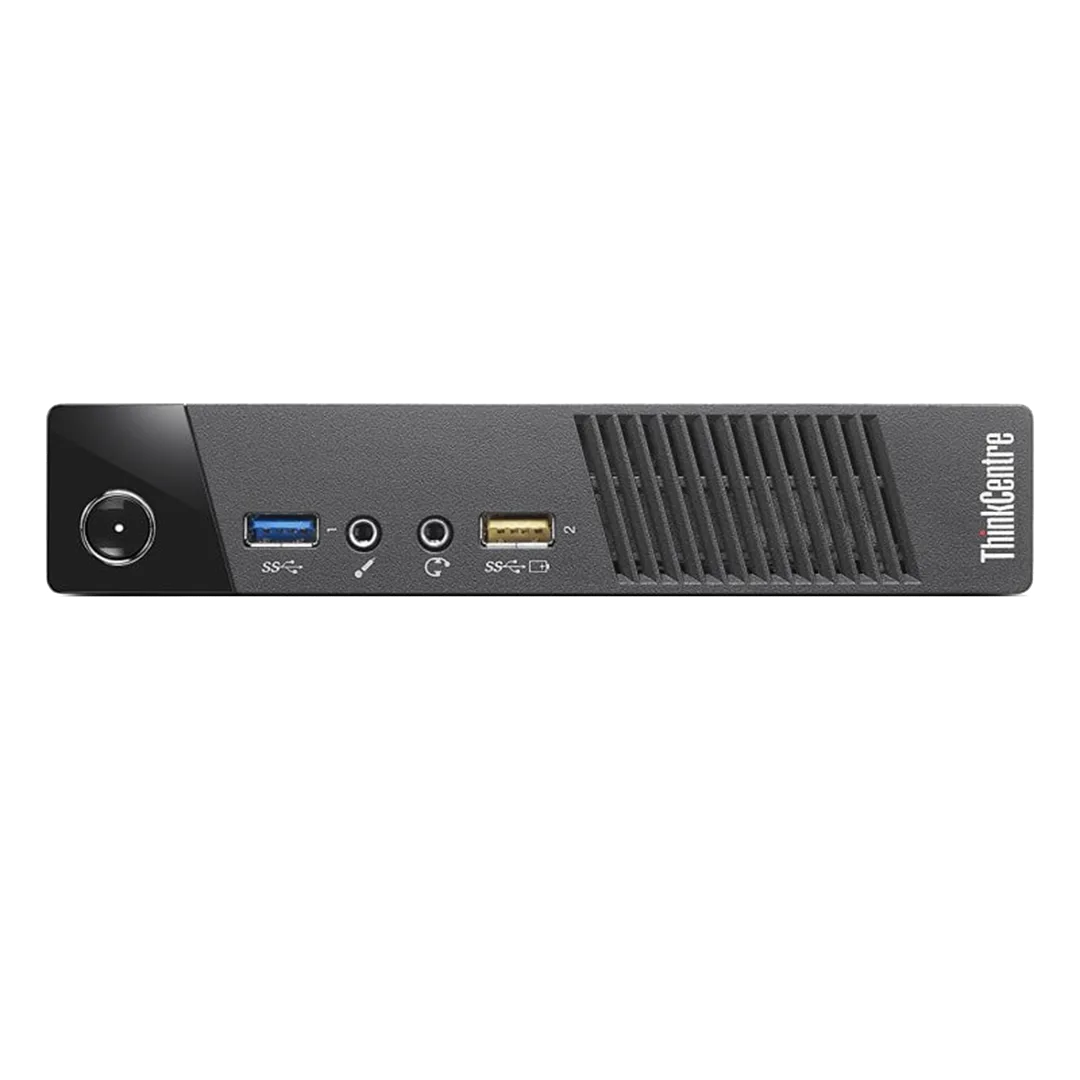

Front ports:
- Two USB 3.0 (one Always On / Powered)
- One microphone (stereo, 3.5mm)
- One headphone / microphone combo jack (stereo, 3.5mm)

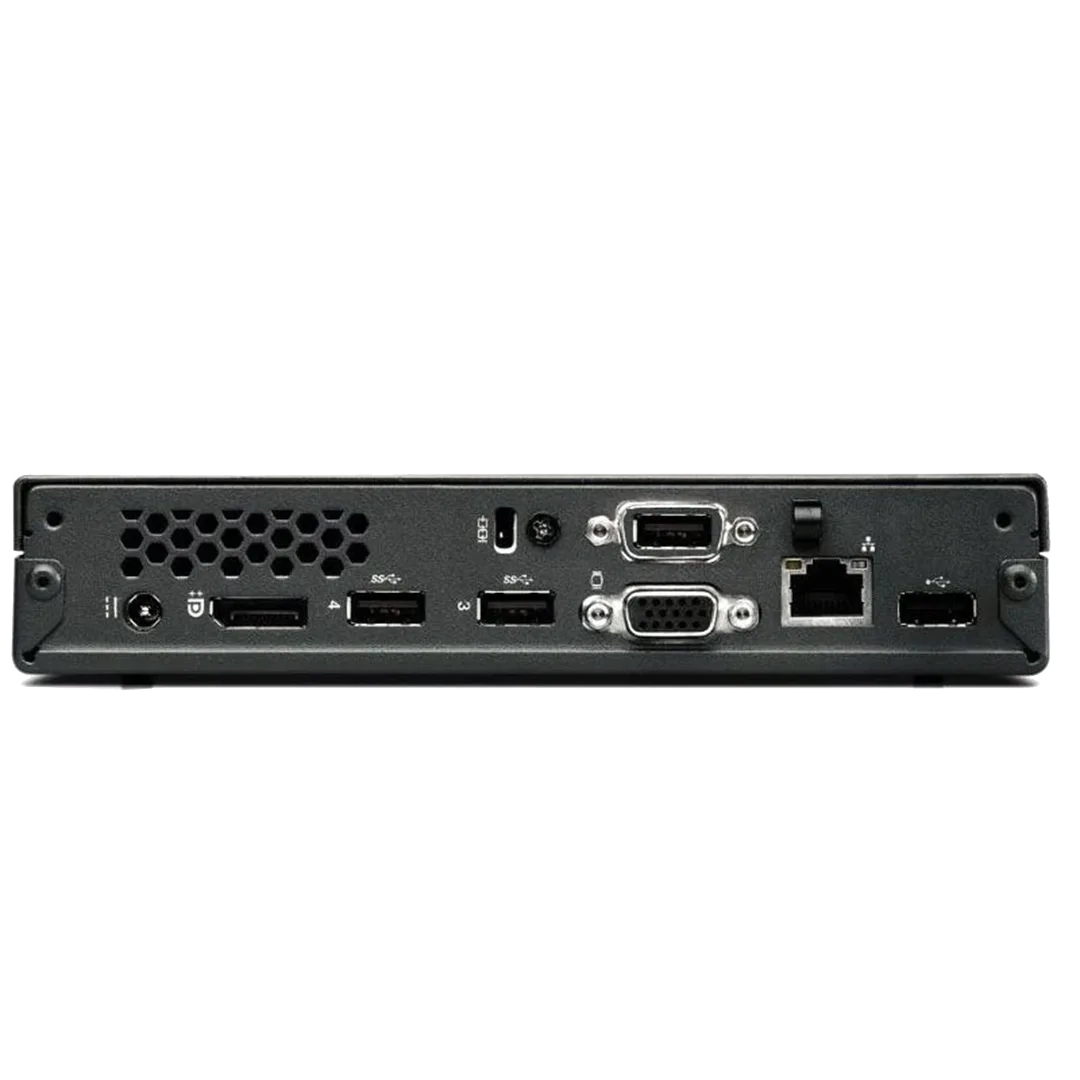

Rear ports:
- Three USB 2.0 (optional external optical box or
- external I/O box occupies one specific USB 2.0 on some models)
- Ethernet (RJ-45)
- VGA DB-15, DisplayPort connector
- One optional port (USB 2.0 / serial on selected models)
- I/O box Optional external I/O box, extends four USB 2.0 (two on front and two on rear), one serial, and two PS/2 (for keyboard and mouse), via USB 2.0 port
- PCIe Mini: One PCI Express® Mini Card slot
- Bluetooth: Bluetooth 4.0 wireless, integrated in Intel 2230 Wi-Fi + Bluetooth combo adapter (Selected models)
- Speaker Internal speaker for business audio (1.5 watt)
- Ethernet Gigabit: ethernet port, Intel I217-V, Wake on LAN®
- Intel AMT: None
- Modem: None
- Security chip: None
Slots:
- None
Power:
- Power management
- Advanced Configuration and Power Interface (ACPI) support
- 65 watts AC/DC adapter, autosensing, 88% PSU
Security:
- Security slot (in rear for attachment of optional Kensington® MicroSaver® cable)
- Power-on password
- Administrator password
- Hard disk password
- Boot sequence control
- Boot without keyboard and mouse
- Individual USB port disablement
- Chassis intrusion switch on selected model(s)
Software:
- Operating system: N/A
Storage:
- Optical drive
- Slim DVD-ROM
- Slim DVD Reorderable
- Hard drive features
- SATA 6.0Gb/s, 2.5″ Wide, 7200 rpm
- 500GB (5400 rpm) hybrid hard disk / with 8GB MLC NAND flash memory, SATA 6.0Gb/s, 2.5″ wide
- Solid State Drive (SSD) / SATA 6.0Gb/s, 2.5″ Wide
- SATA controller Serial ATA, SATA 6.0Gb/s support, integrated in chipset
- Onboard SATA One SATA cable (1-drop to device), one SATA 6.0Gb/s connector on planar
- eSATA port: None
