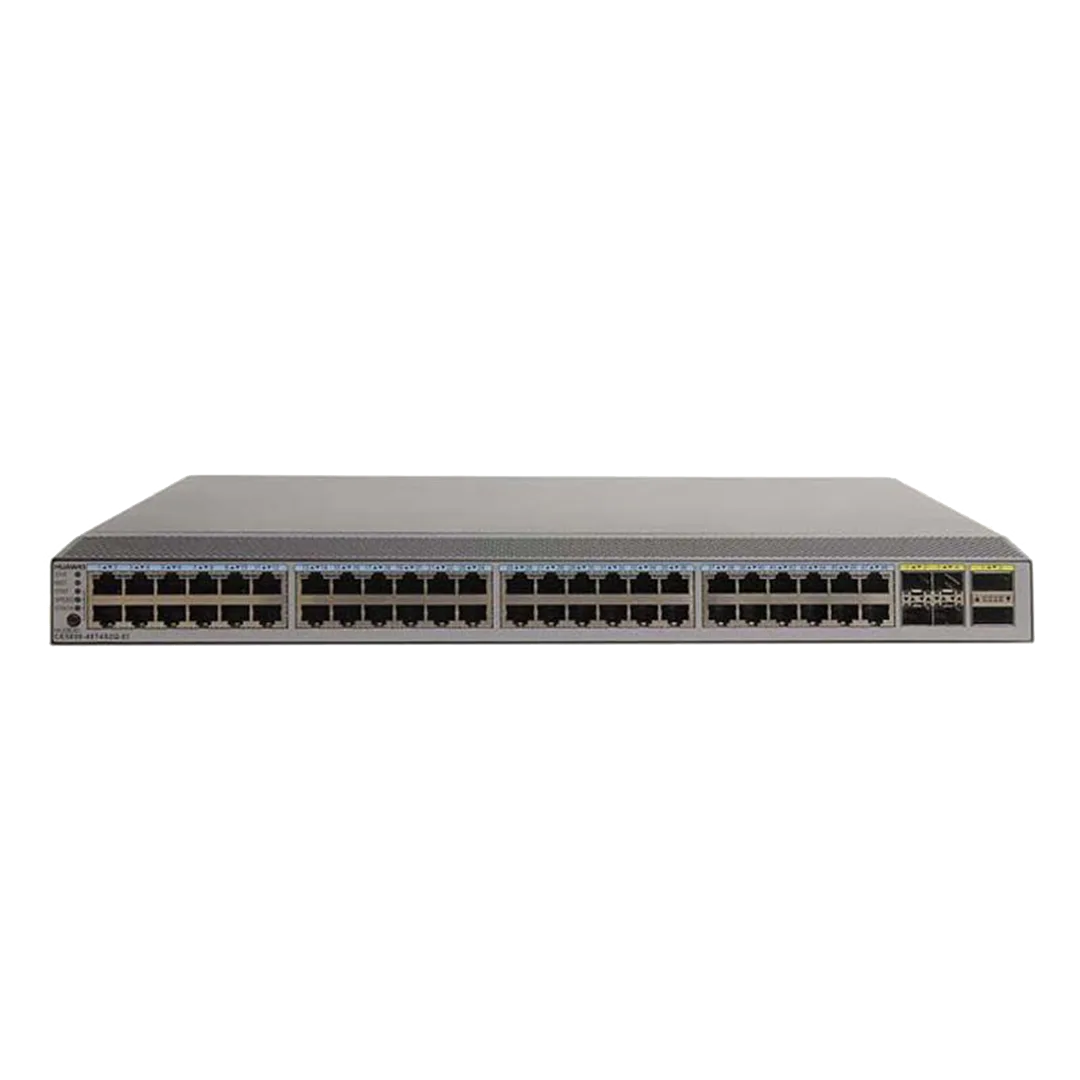

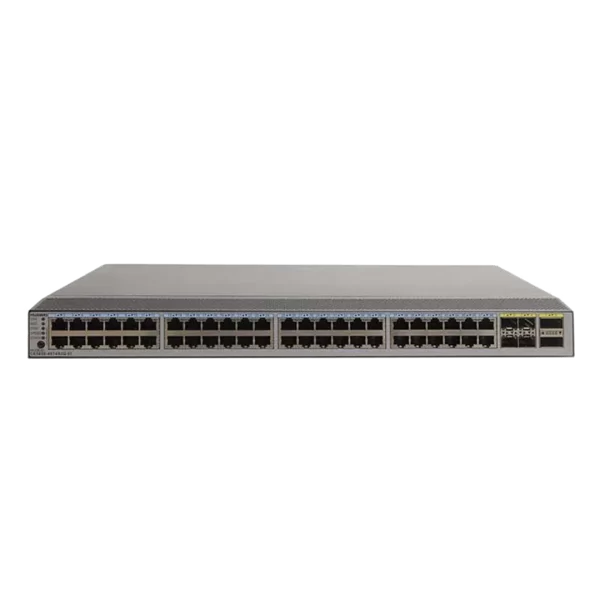

Huawei CE5850-48T4S2Q-EI 48-Port Switch

Huawei CE5850-48T4S2Q-EI 48-Port Switch

CE5850-48T4S2Q-EI-B is one of the Huawei Huawei CE5850-48T4S2Q-EI switches. Huawei CE5850-48T4S2Q-EI provides 48 * GE line-speed ports plus 4 * 10 GE and 2 * 40G upstream ports for stacking up to 16 switches. 10 GE and 40G ports enable creation of a non-blocking stack that can extend across geographical distances between data centers. Using the Huawei VRP8 software platform, CE5800 switches support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system). In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. CE5800 switches provide high-density GE access to help enterprises build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches for enterprise campus networks.

Features:

Part Number: 02350EXY

Software Version: V100R001C00 and later

Base-T Ports: 48

SFP+ Ports: 4

QSFP+ Ports: 2

Switching Capacity: 336 Gbit/s

Forwarding Rate: 252 Mpps

Rated voltage range (with Power module)

• 100 V AC to 240 V AC, 50/60 Hz
• -48 V DC to -60 V DC

Maximum power consumption: 131W

Airflow: Front-to-back or back-to-front

Dimensions (W x D x H): 442 mm x 420 mm x 43.6 mm

Weight (fully loaded): 8.8 kg (19.4 lb)
