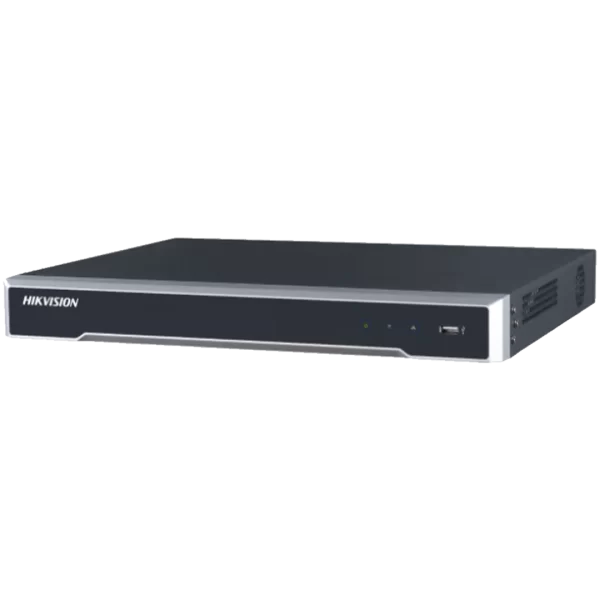

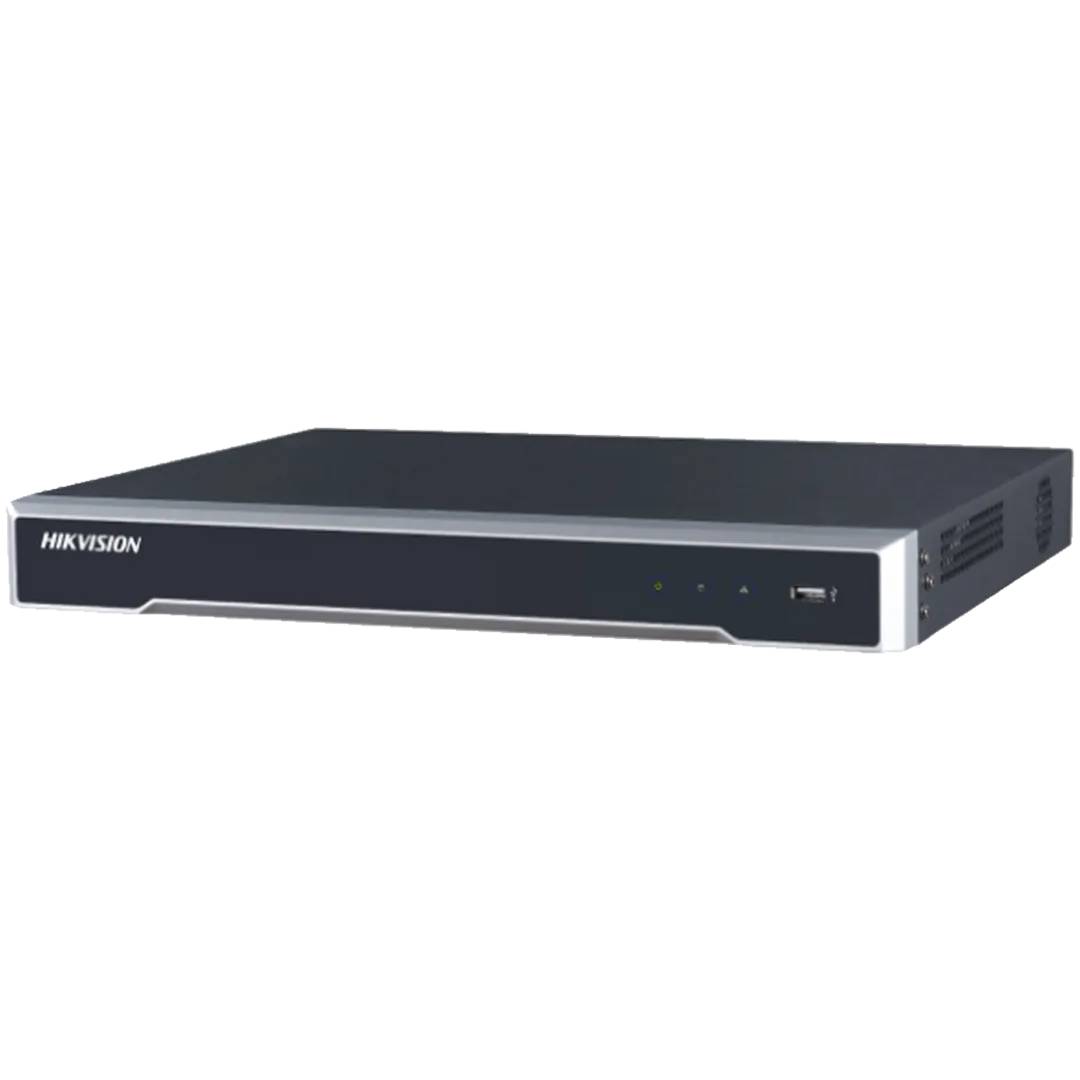

Hikvision 16-ch 1U 4K NVR
Video And Audio
- IP Video Input: 16-ch
- Incoming Bandwidth: 160 Mbps
- HDMI Output: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Outgoing Bandwidth: 160 Mbps
- VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
- Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
- Decoding Capability: 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
- Synchronous Playback: 16-ch
- Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
- Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Network Protocol: TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP,SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Auxiliary Interface
- SATA: 2 SATA interfaces
- Capacity: Up to 6 TB capacity for each HDD
- USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out: 4/1
General
- Power Supply: 12 VDC
- Consumption: ≤15 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10 to 90 %
- Dimension (W × D × H):
- 385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″)
- ≤ 1 kg (2.2 lb)
