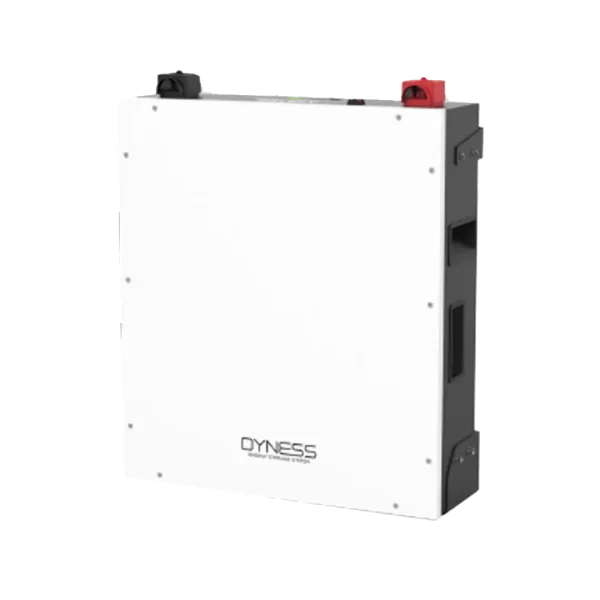

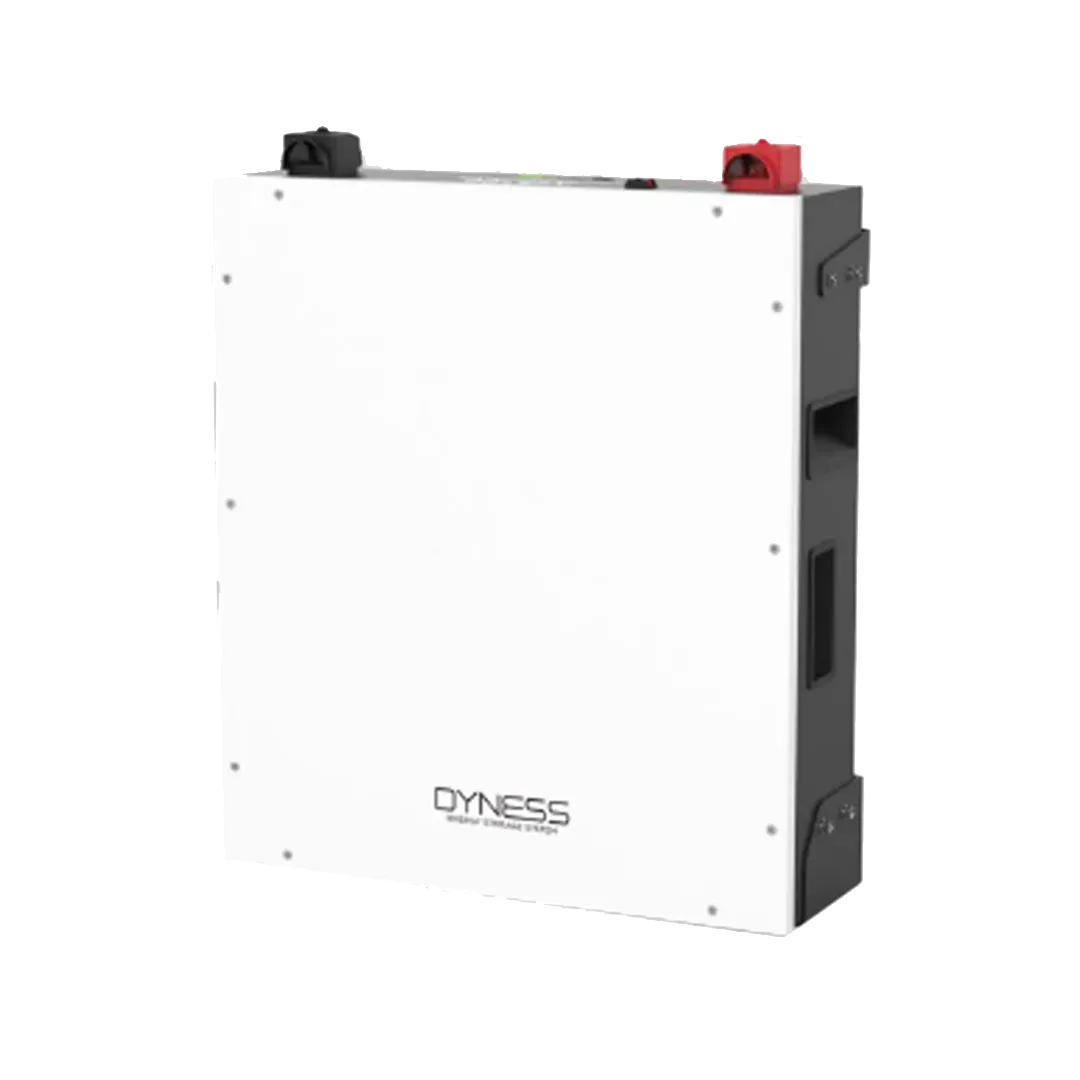

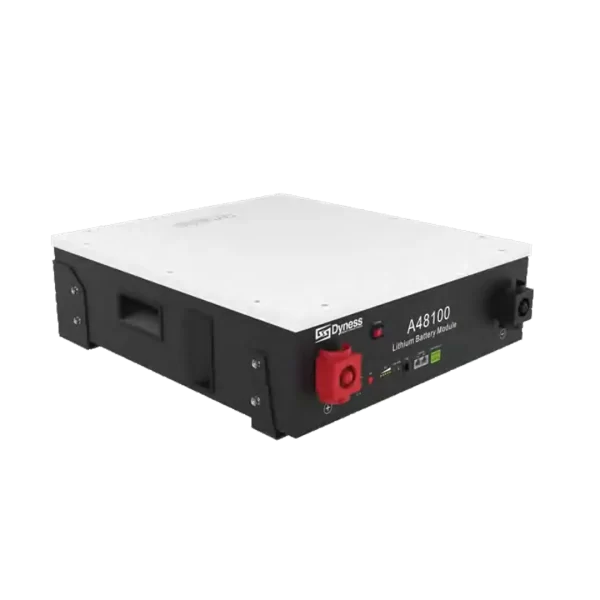

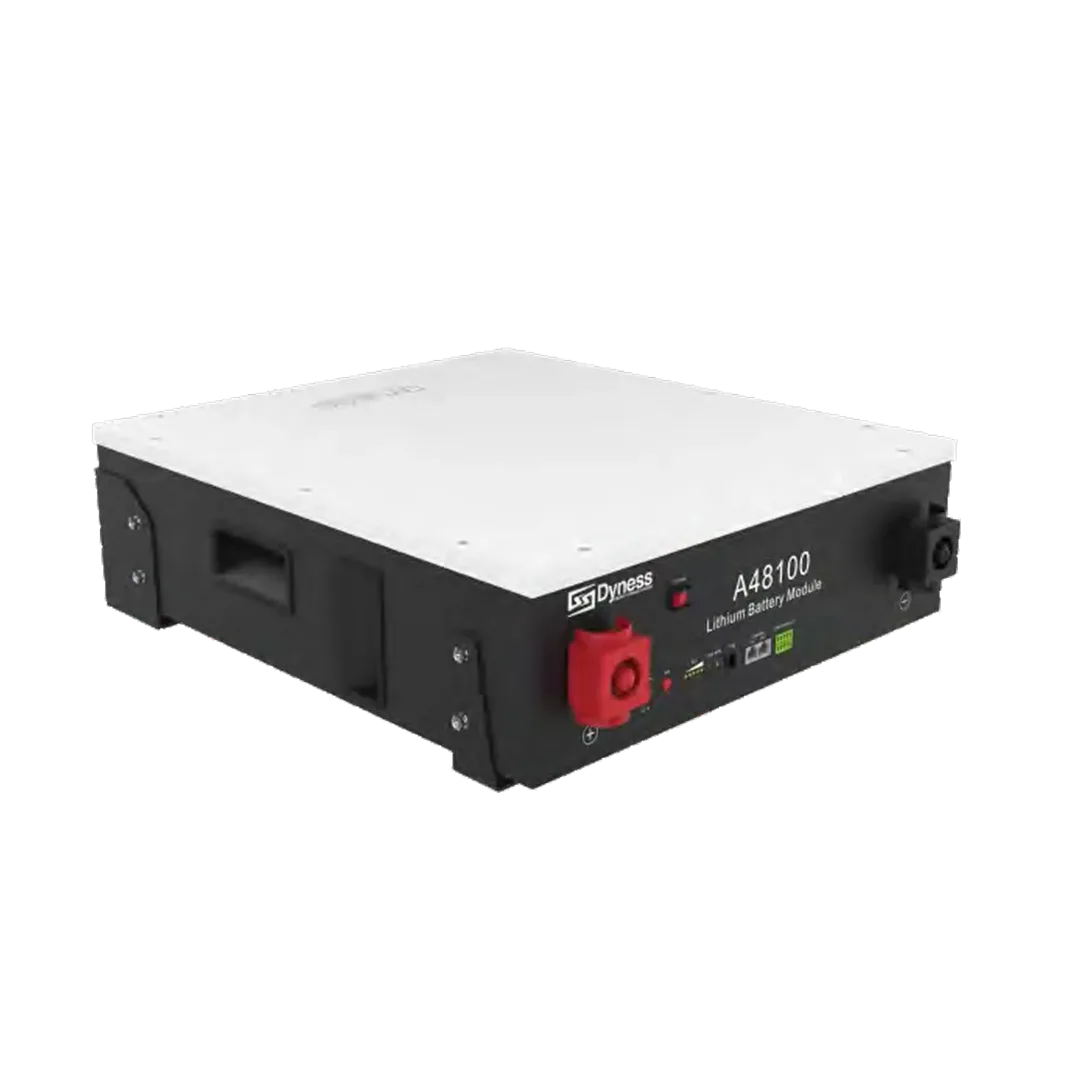

Dyness AX48100 Lithium 48V 4.8KWh Battery

Dyness AX48100 Lithium 48V 4.8KWh Battery

A48100 lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of a48100 according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user’s long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited installation space, long power backup time and long service life.

Features:

• Battery Technology Lithium
• Voltage 48V
• Capacity 4.8KWh

Specifications:

• Product Code RCT BAT DYNESS AX48100
• Voltage 48V
• Nominal capacity 100Ah
• Rated energy 4800Wh
• Cycle life 6000 Cycles (25°C, 0.5C RATE, 90%DOD, EOL60%)
• Rated discharge current 30A
• Maximum continuous discharge current 100A
• Maximum discharge current 120A 3S
• Rated charging current 30A
• Maximum continuous charging current 100A
• Lower limit of discharge voltage 42±0.1V

Operating temperature:

• Recharge 0°C~+55°C
• Discharge -20°C~+55°C
• Working humidity 5%~85% RH
• Storage temperature -10°C~+35°C
