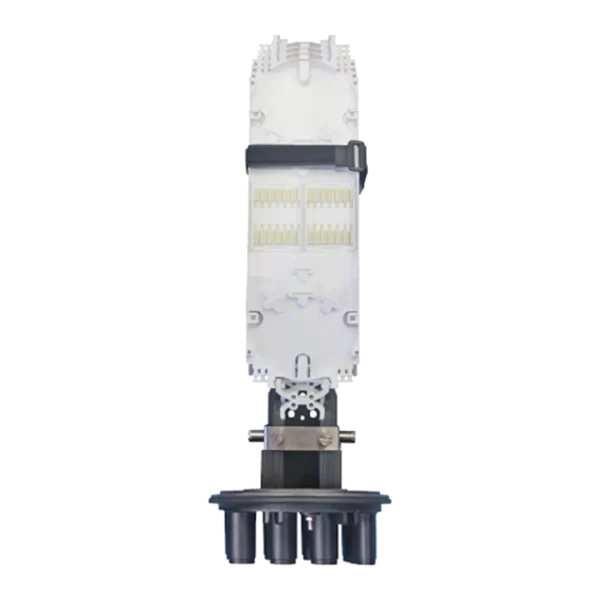

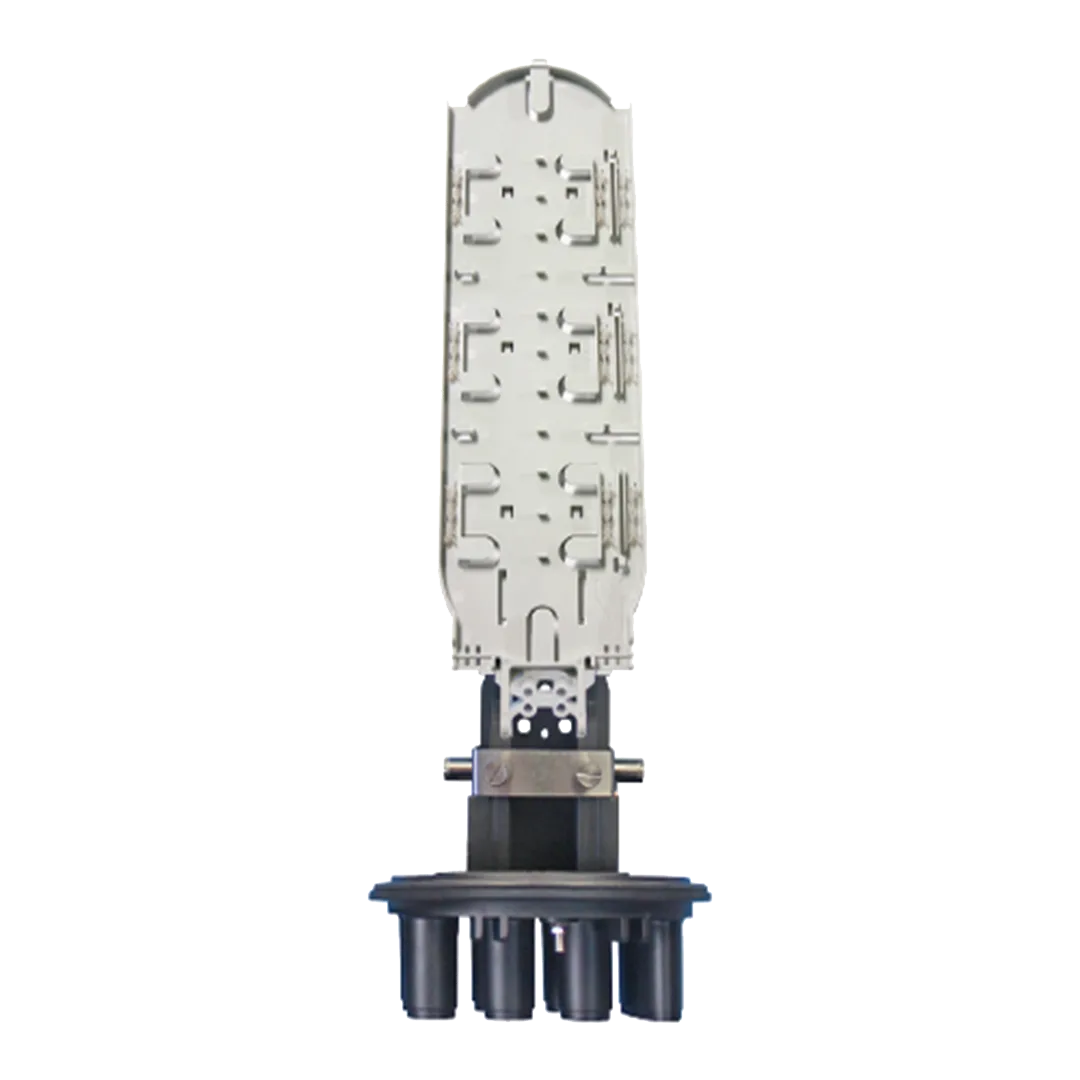

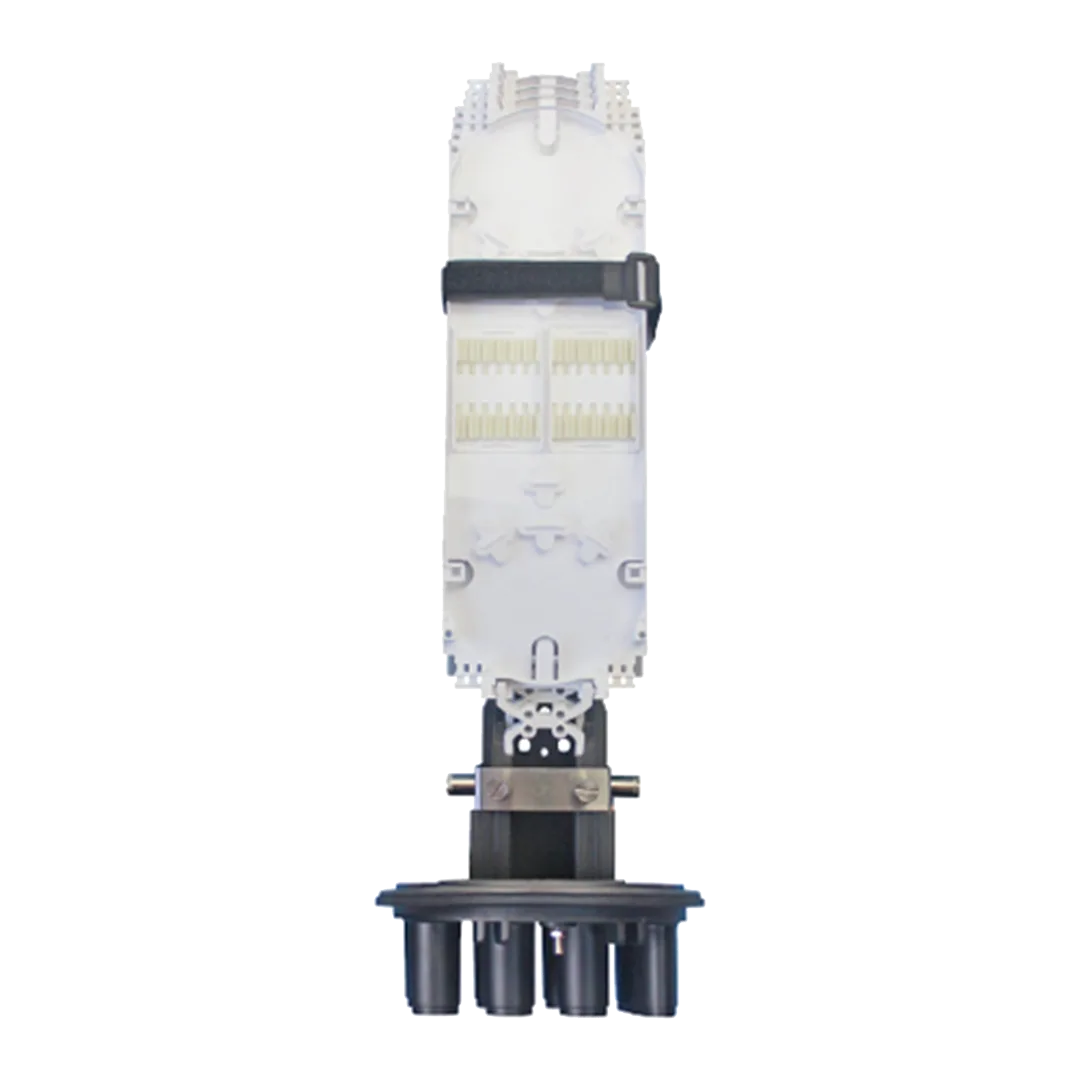

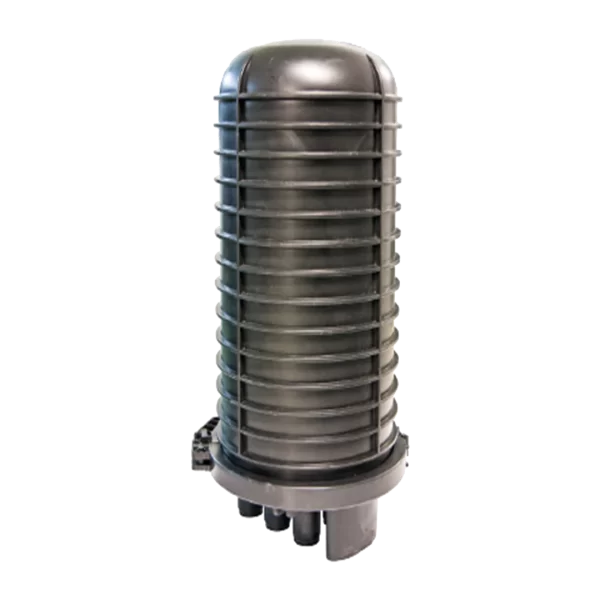

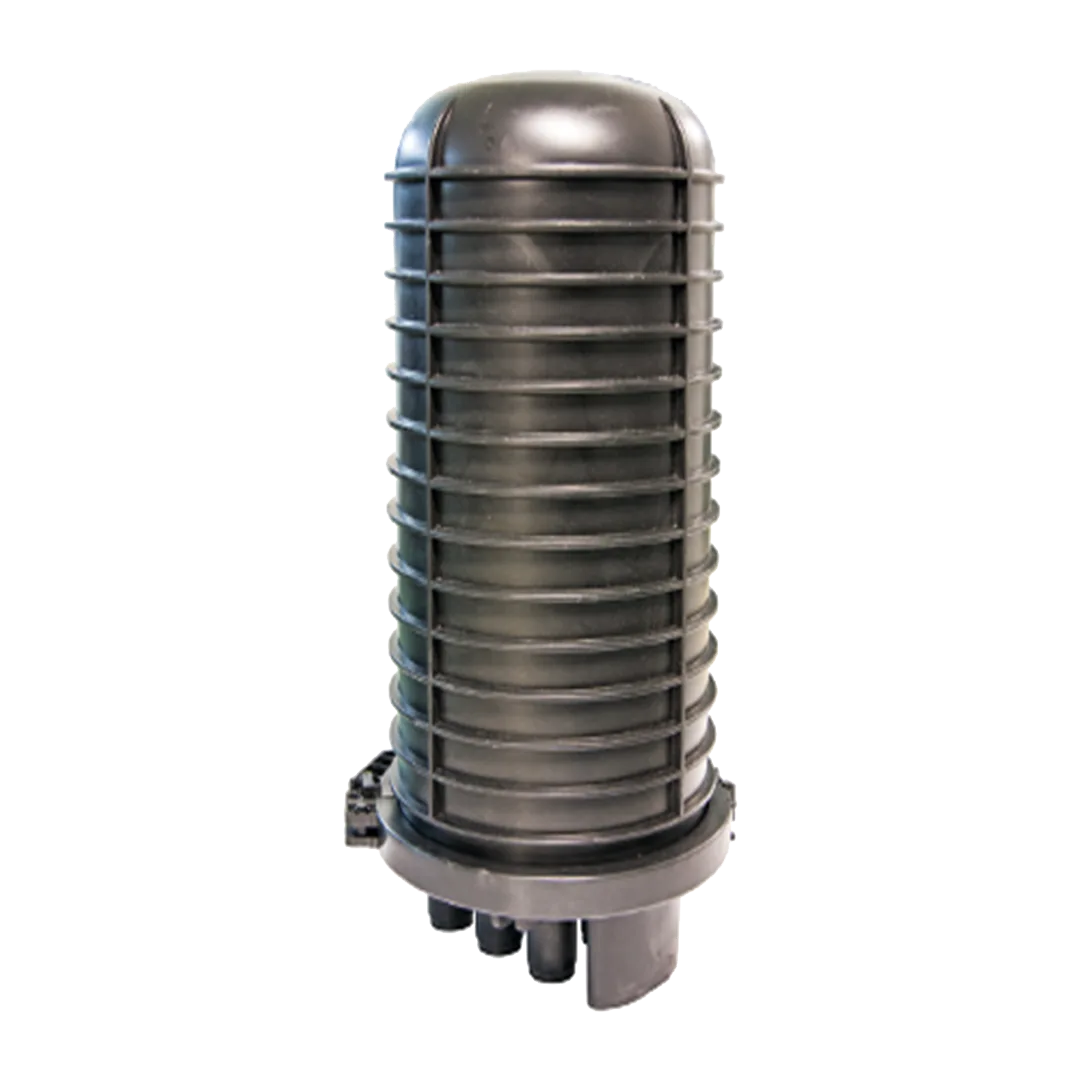

Canovate Splice Closure Dome, IP68, 144 Fibers
- Protection class: IP68

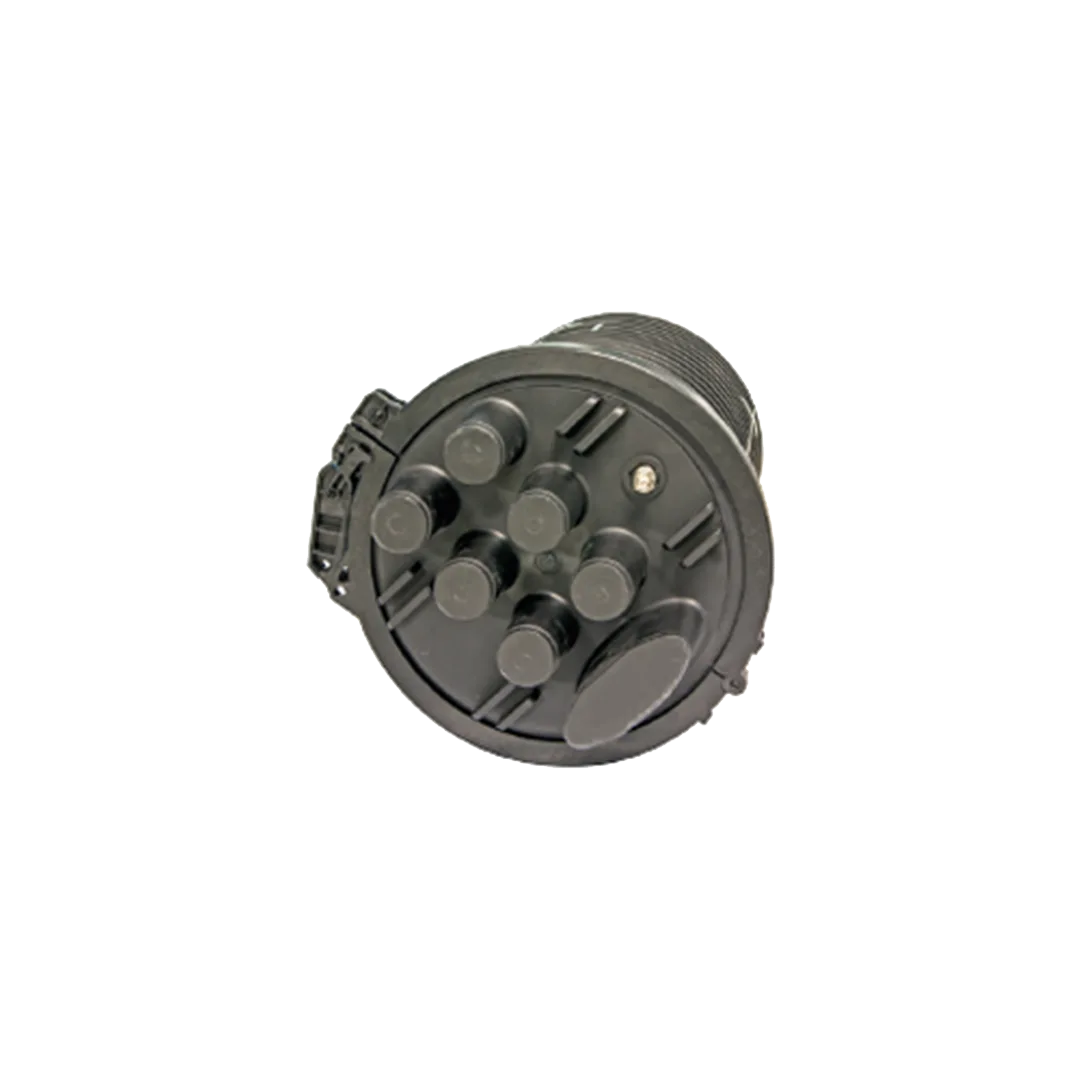

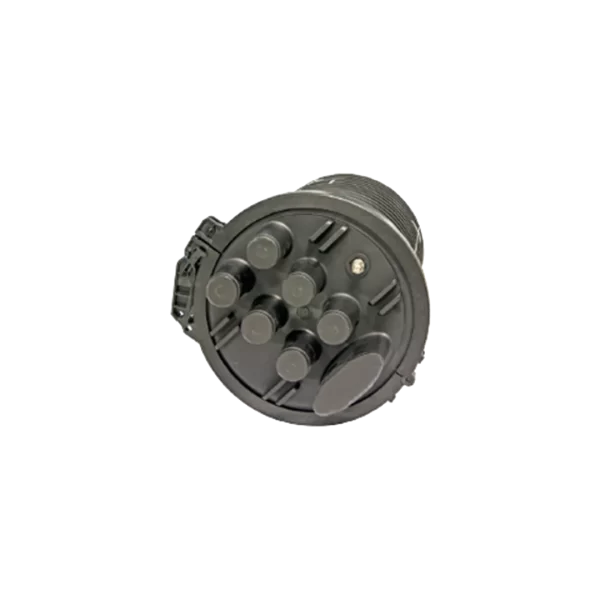

- Total 7 inlet/outlet ports
- Diameter of 6 ports is 21 mm
- Diameter of the oval port is 30 mm
- All installation accessories are included with good, sealed performance.
- Quick installation type, easy to install and maintain.
- Widely used for aerial and underground.
- Earthing deriving device

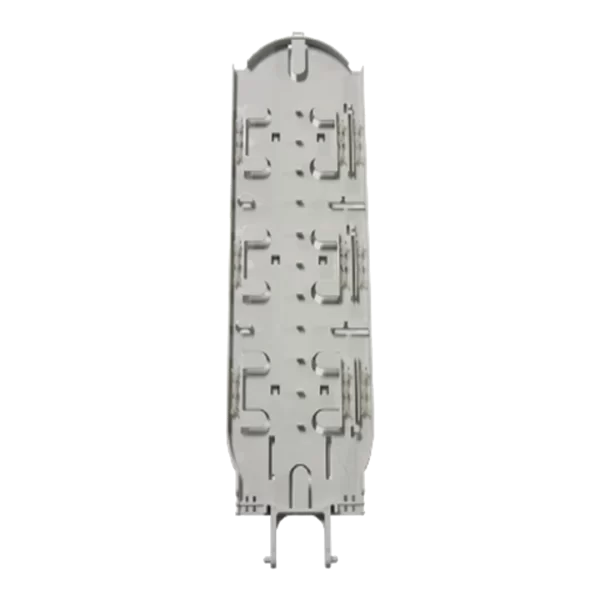

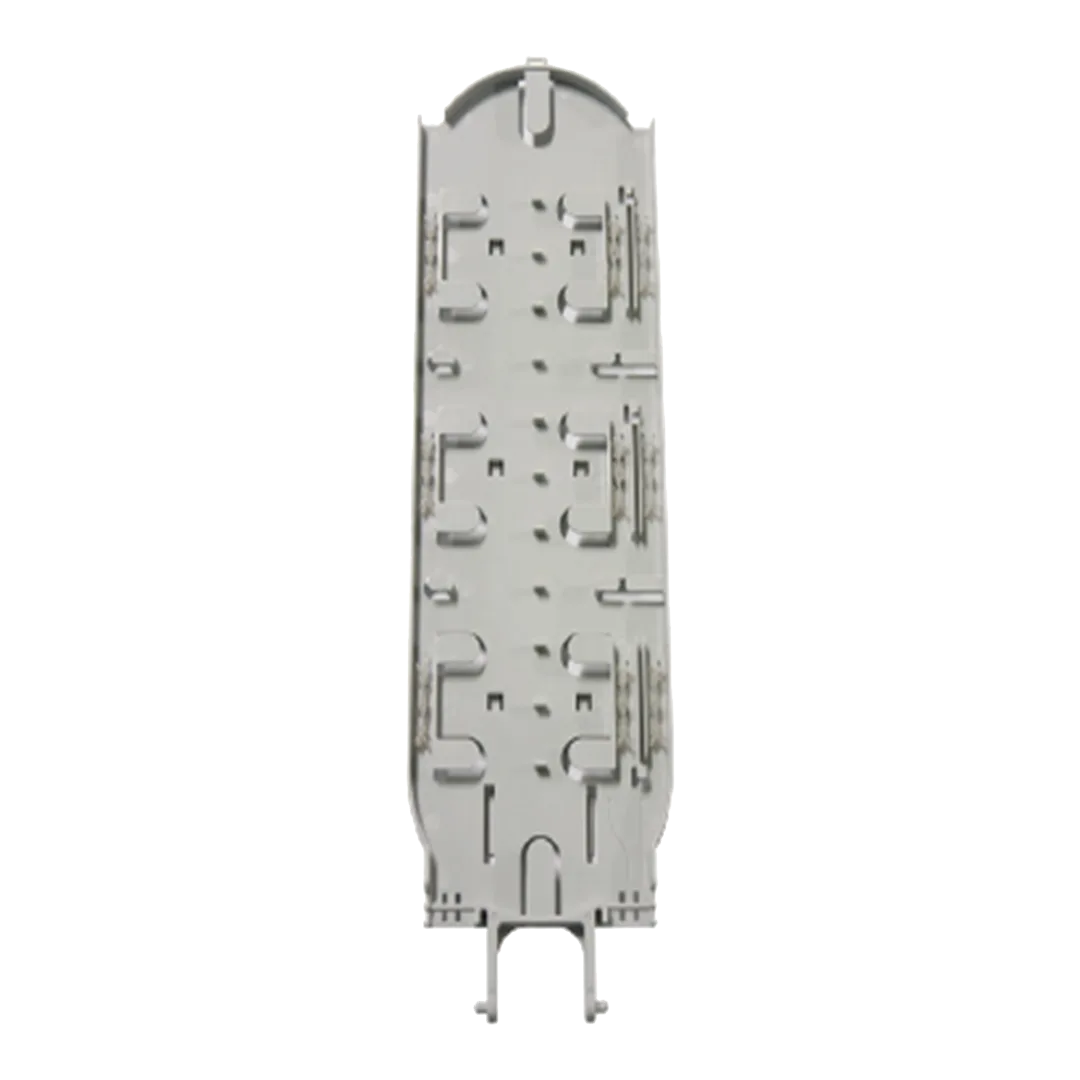

- Buffer tube for bunchy and ribbon fiber
- Pressure testing valve
- Heat shrinkable fixing sleeve
- Metal hoop
- Dimensions: 488 mm x 285 mm (H x D)
- Material: Polypropylene
- Weight: 2,5 kg
- Capacity: 144 fibers

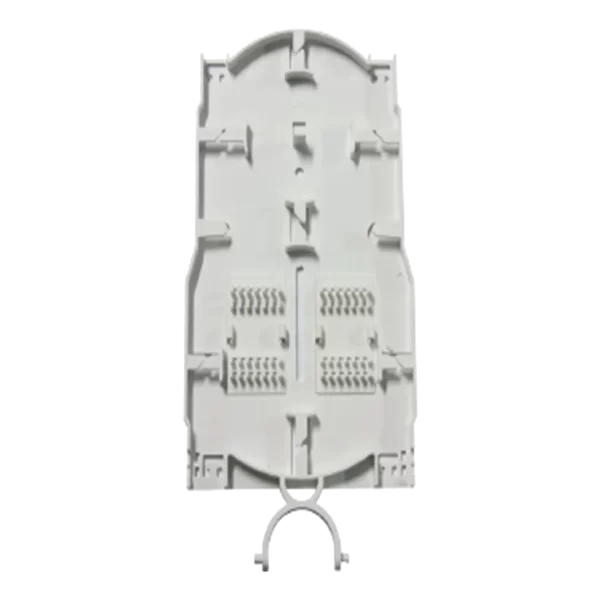

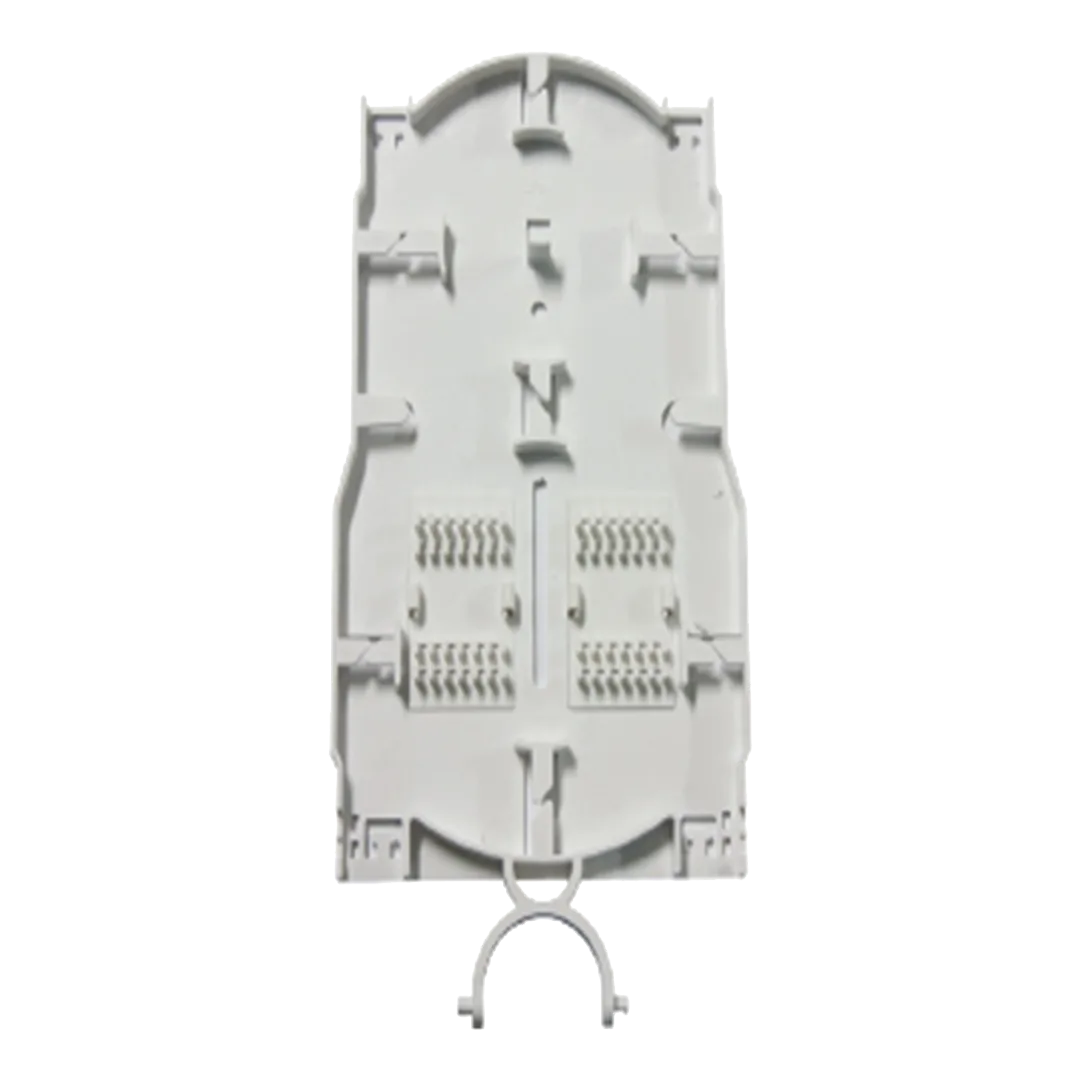

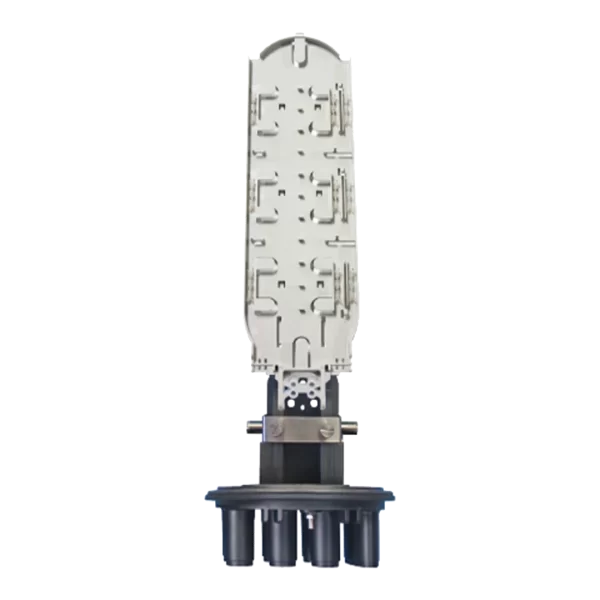

- Maximum: Port Capacity 288 fibers with 6 pcs of 48 port bunchy tray
