23-42 Inch Full-Motion TV Wall Mount Bracket

23-42 Inch Full-Motion TV Wall Mount Bracket

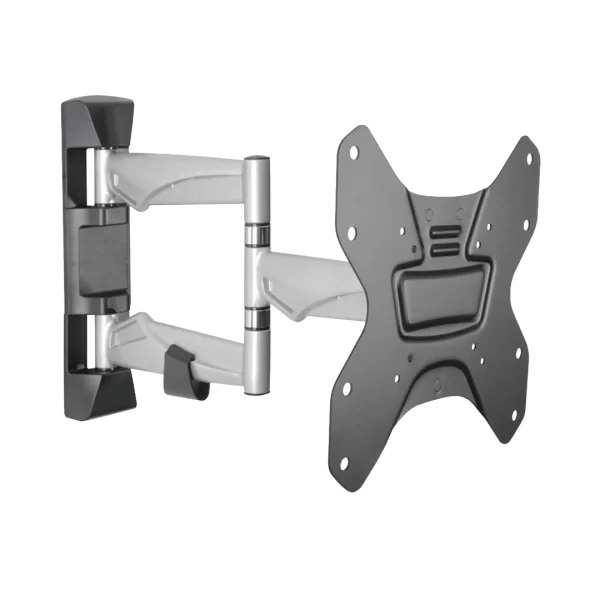

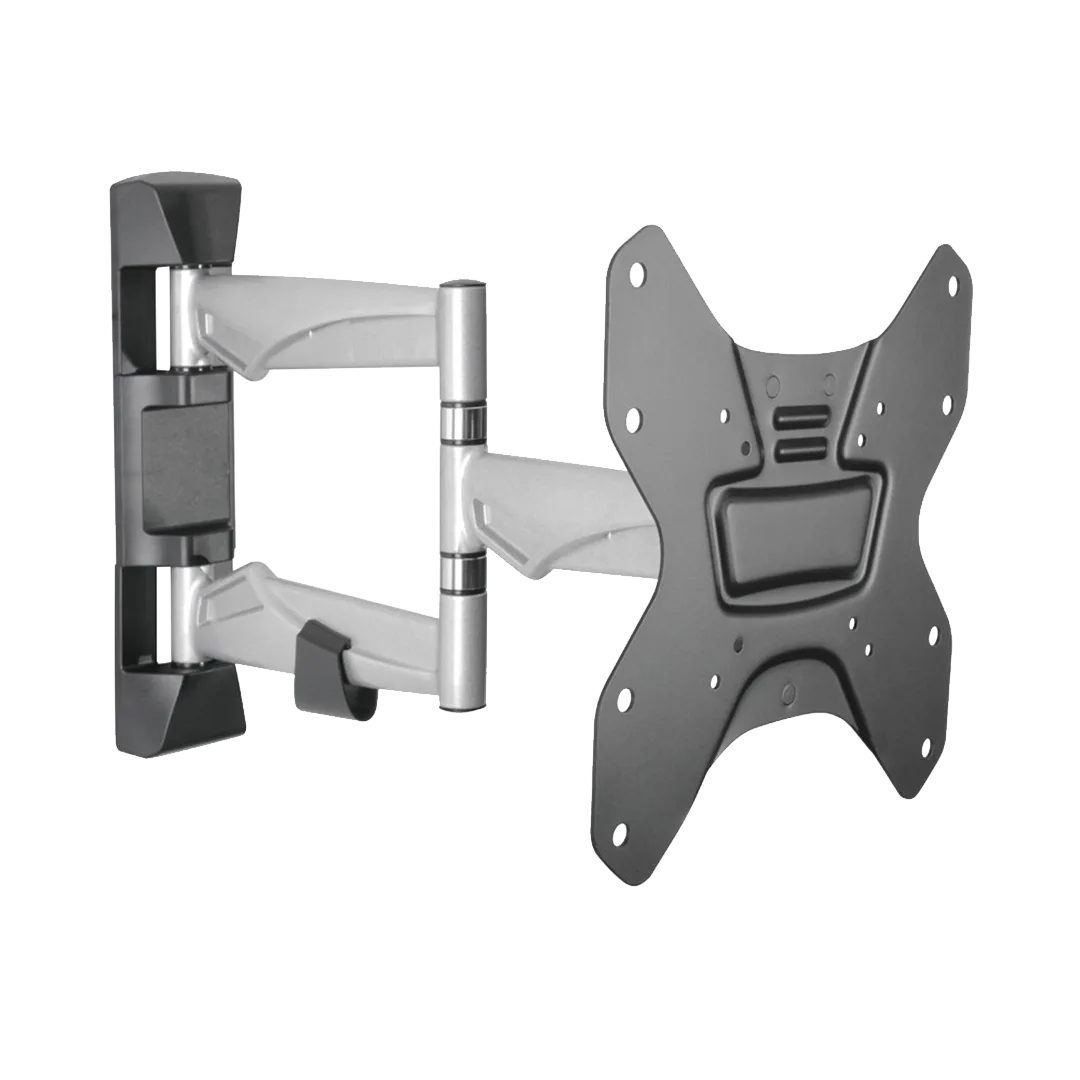

The LDA20-223 is a full-motion wall mount for most 23”-42” LED, LCD flat panel TVs up to 30kg/66lbs. The arm can be stretched up to 410mm for a full range of movement to perfectly position your screen display – swivel up to 90° left or right and -8°~+12°tilt. This pre-assembled arm comes complete with integrated cable management and decorative covers to ensure an elegant and tidy look. Its built-in level adjustment offers 3° clockwise and counterclockwise turning to ensure it is perfectly level. Strength has been tested for a minimum of four times its stated load capacity. Compatible with VESA hole up to 200×200.

FEATURES

• Free-Tilting Design: for multiple monitor viewing angles
• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
• Built-In Level Adjustment: ensures perfect positioning
• Cable Management: keeps everything organized

SPECIFICATION

• Product Category: Full-motion TV Wall Mount
• Rank: Standard
• Material: Steel, Aluminum
• Metal Sheet Thickness: VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=3mm cold-rolled sheet (VESA Panel THK=0.079″ cold-rolled sheet,Wall Plate THK=0.12″ cold-rolled sheet)
• Surface Finish: Powder Coating
• Color: Metallic Grey, Matte Black

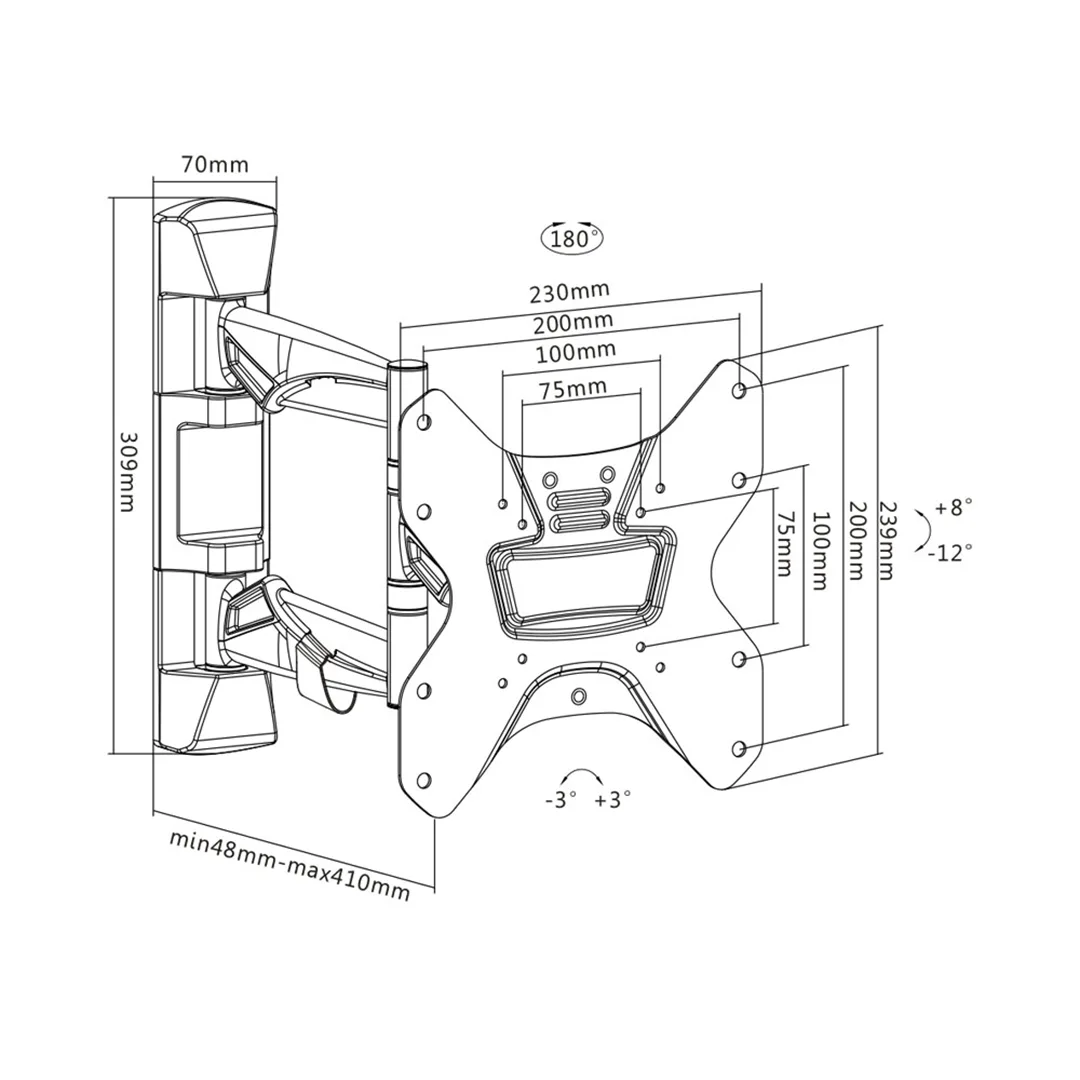

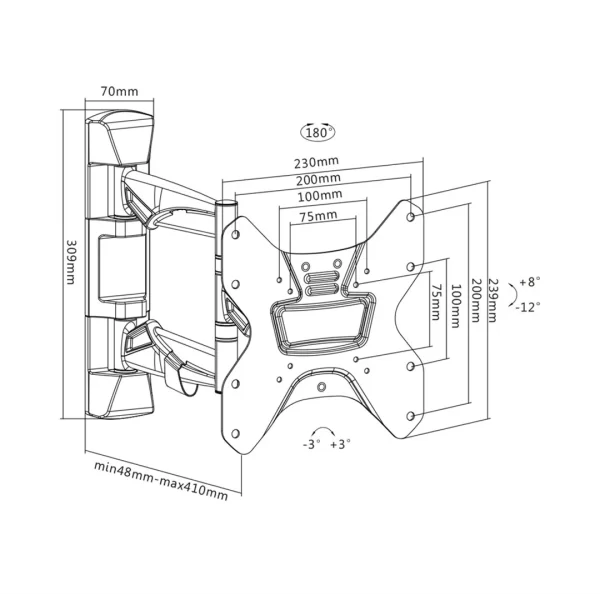

• Dimensions: 410x240x230mm (16.1″x9.4″x9.1″)
• Fit Screen Size: 23″-42″
• Mounting Hole Pattern : VESA Only
• VESA Compatible: 75×75,100×100,200×100,200×200
• Max. VESA: 200x200mm
• Weight Capacity: 30kg (66lbs)
• Strength Tested: 4 Times Approved
• Profile: 48~410mm (1.9″~16.1″)
• Tilt Range: +8°～-12°
• Swivel Range: +90°~-90°
• Screen Level: +3°~-3°
• Screen Freely Tilting: Yes
• Installation: Solid Wall, Single Stud
• Panel Type: Detachable Panel
• Wall Plate Type: Fixed Wall Plate
• Cable Management: Yes
• Accessory Kit Package: Normal/Ziplock Polybag, Compartment Polybag
• Instruction Manual Included: Yes
• By Function: Full motion
