TP-Link Archer AX20 AX1800 Dual Band Wifi 6 Router

TP-Link Archer AX20 AX1800 Dual Band Wifi 6 Router

FEATURES:

• Dual-Band Wi-Fi 6: Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion
• Next-Gen 1.8Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8Gbps
• Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag
• Quad-Core Processing: The 1.5GHz quad-core CPU ensures communications between your router and all connected devices are smooth
• Extensive Coverage: Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away
• Increased Battery Life: Target Wake Time technology reduces your devices’ power consumption to extend their battery life
• USB Easy Sharing: A USB 2.0 Port enables easy file sharing within your network or building private Cloud Storage
• Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App
• Backward Compatible: Supports all previous 802.11 standards and all Wi-Fi devices

WIRELESS

• Standards Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
• WiFi Speeds AX1800
• 5 GHz: 1201 Mbps (802.11ax)
• 2.4 GHz: 574 Mbps (802.11ax)
• WiFi Range 3 Bedroom Houses

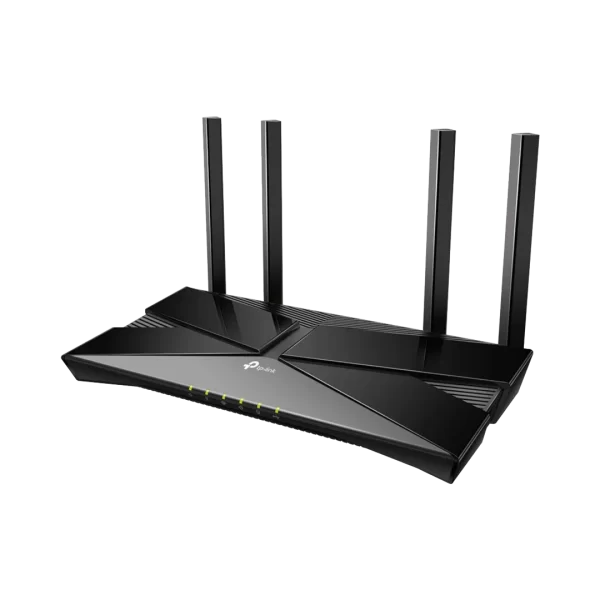

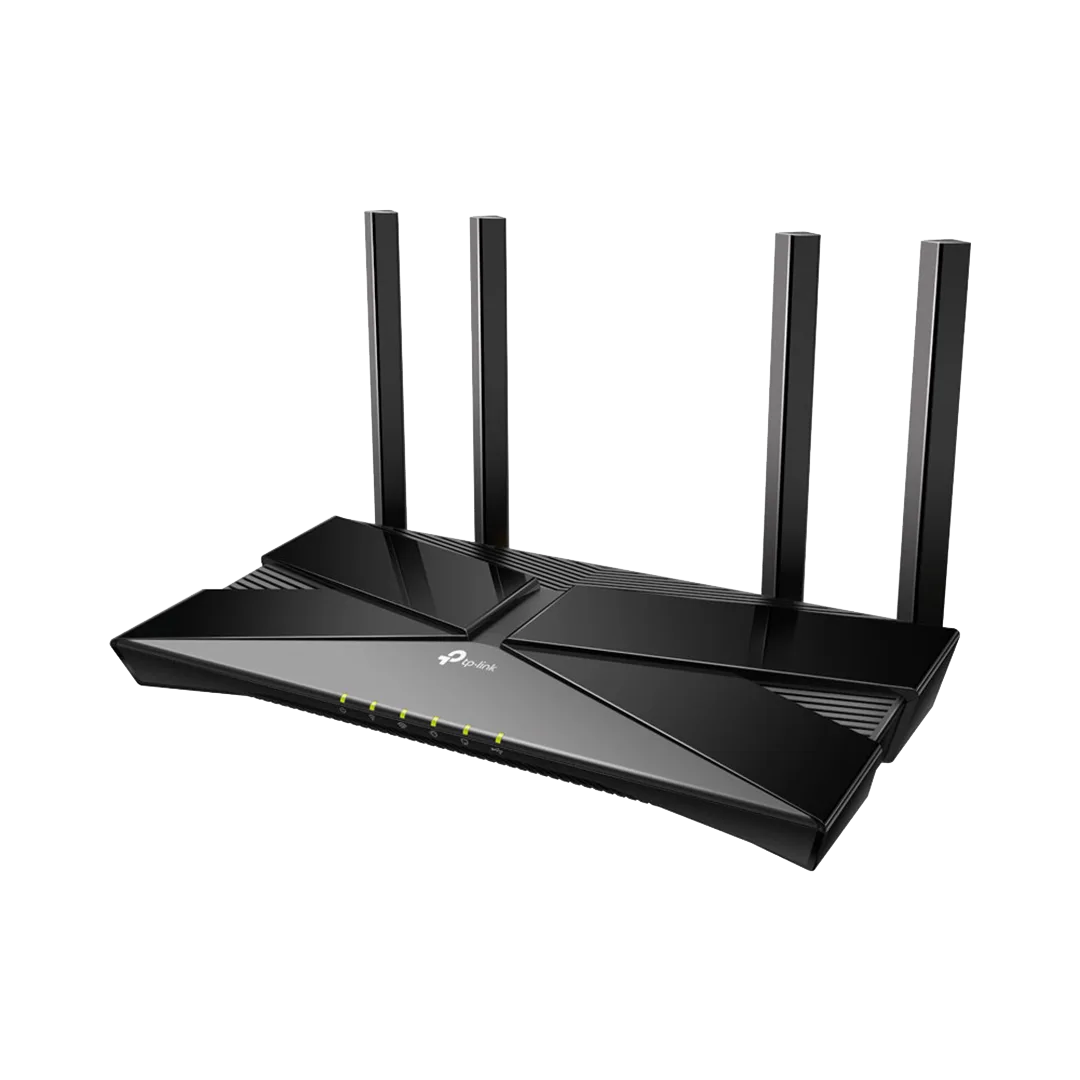

• 4× Fixed High-Performance Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming
• Concentrates wireless signal strength towards clients to expand WiFi range
• High-Power FEM
• Improves transmission power to strengthen signal coverage
• WiFi Capacity High
• Dual-Band
• Allocate devices to different bands for optimal performance
• OFDMA
• Simultaneously communicates with multiple Wi-Fi 6 clients
• Airtime Fairness
• Improves network efficiency by limiting excessive occupation
• 4 Streams
• Connect your devices to more bandwidth
• Working Modes Router Mode
• Access Point Mode

HARDWARE

• Processor 1.5 GHz Quad-Core CPU

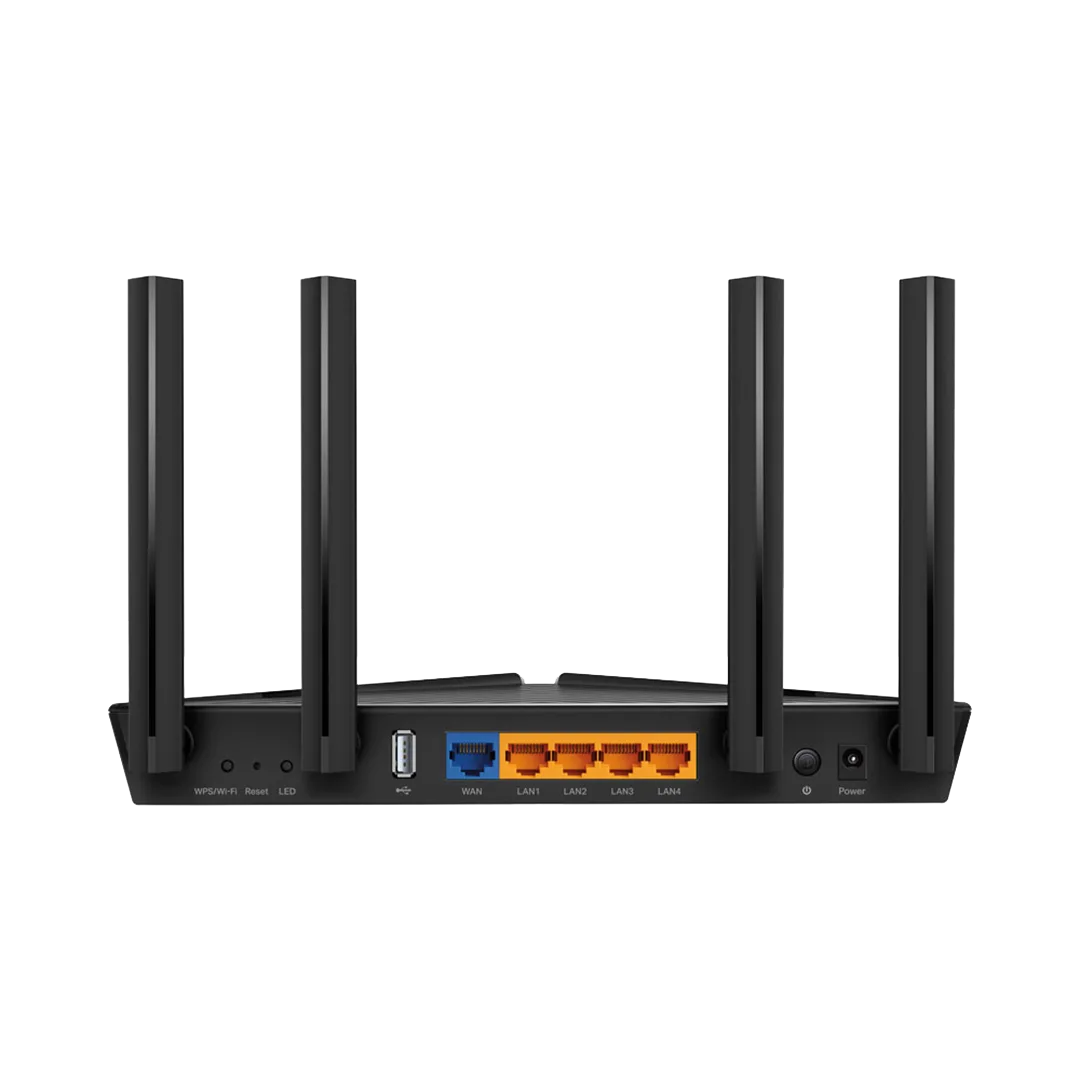

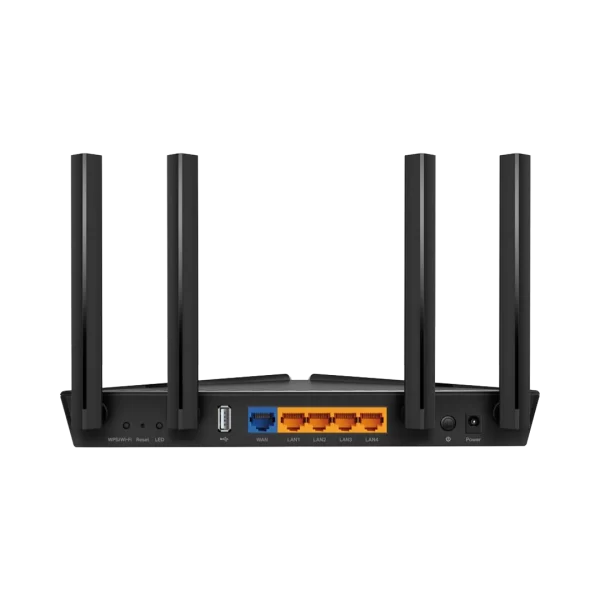

• Ethernet Ports 1× Gigabit WAN Port
• 4× Gigabit LAN Ports
• USB Support 1× USB 2.0 Port
• Supported Partition Formats:
• NTFS, exFAT, HFS+, FAT32
• Supported Functions:
• Apple Time Machine
• FTP Server
• Media Server
• Samba Server
• Buttons WPS/Wi-Fi Button
• Power On/Off Button
• LED On/Off Button
• Reset Button
• Power 12 V ⎓ 1.5 A
• SECURITY
• WiFi Encryption WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)
• Network Security SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• Guest Network 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
• VPN Server OpenVPN
• PPTP

SOFTWARE

• Protocols IPv4
• IPv6
• Parental Controls URL Filtering
• Time Controls
• WAN Types Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
• Quality of Service QoS by Device
• Cloud Service Auto Firmware Upgrade
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
• NAT Forwarding Port Forwarding
• Port Triggering
• DMZ
• UPnP
• IPTV IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
• DHCP Address Reservation
• DHCP Client List
• Server
• DDNS TP-Link
• NO-IP
• DynDNS
• Management Tether App
• Webpage

PHYSICAL

• Dimensions (W×D×H) 10.2 × 5.3 ×1.5 in
• (260.2 × 135.0 × 38.6 mm)
• Package Contents Wi-Fi Router Archer AX20
• Power Adapter
• RJ45 Ethernet Cable

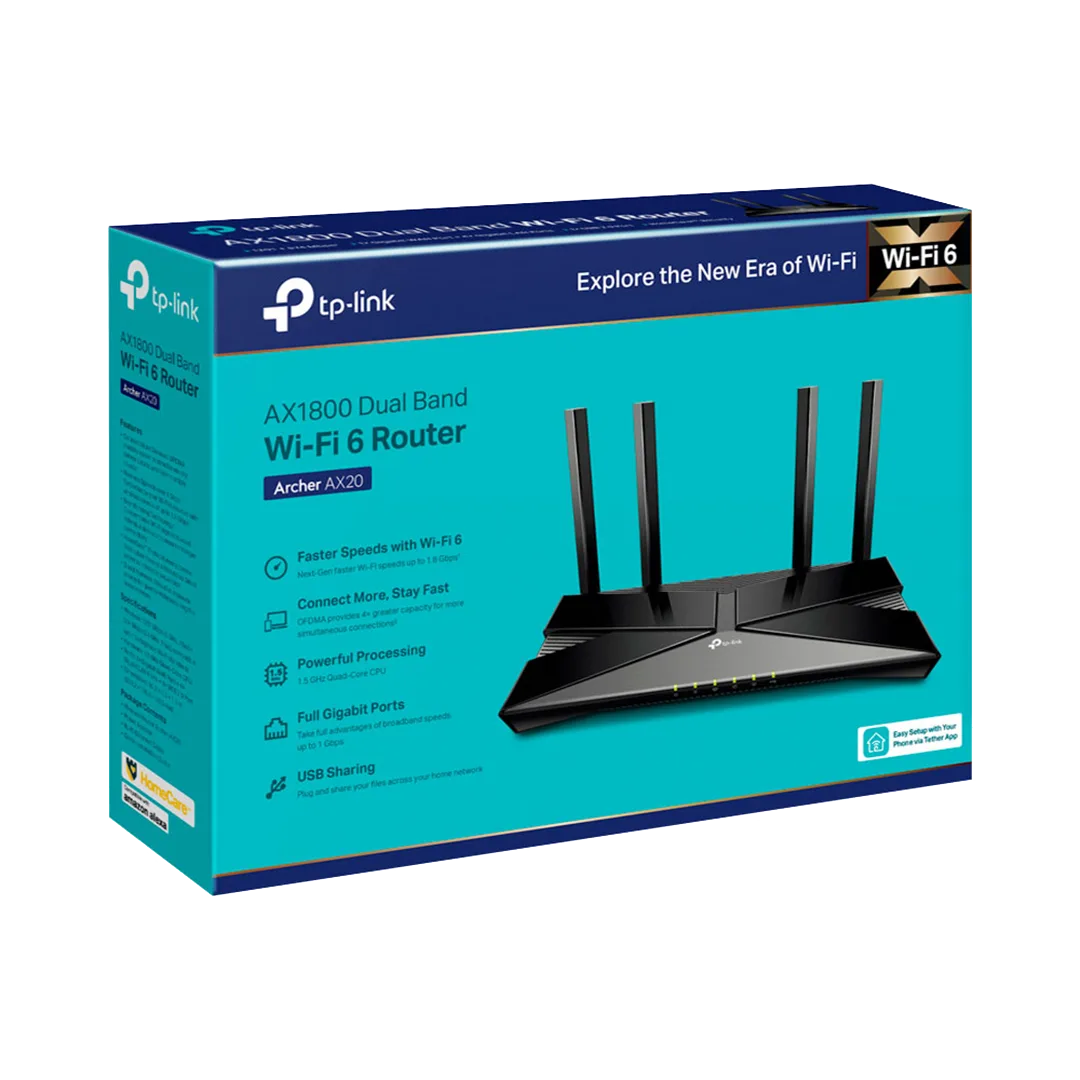

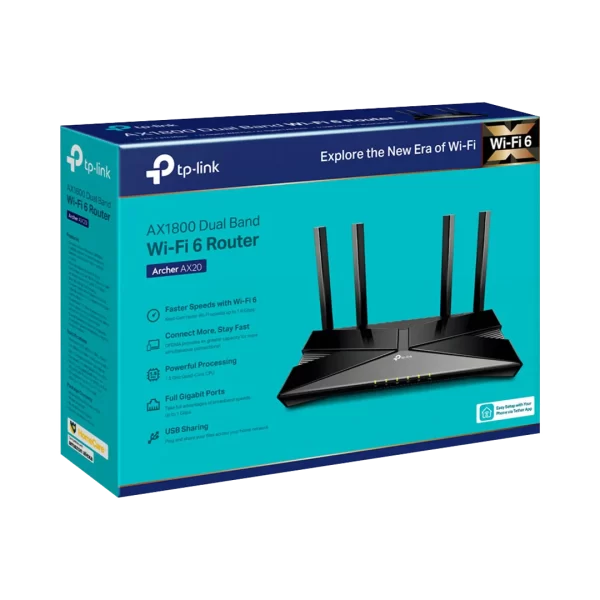

• Quick Installation Guide

OTHER

• System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)
• Certifications FCC, CE, RoHS
• Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• TEST DATA
• WiFi Transmission Power CE:
• <20dBm(2.4 GHz)
• <23dBm(5.15 GHz~5.25 GHz)
• FCC:
• <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
