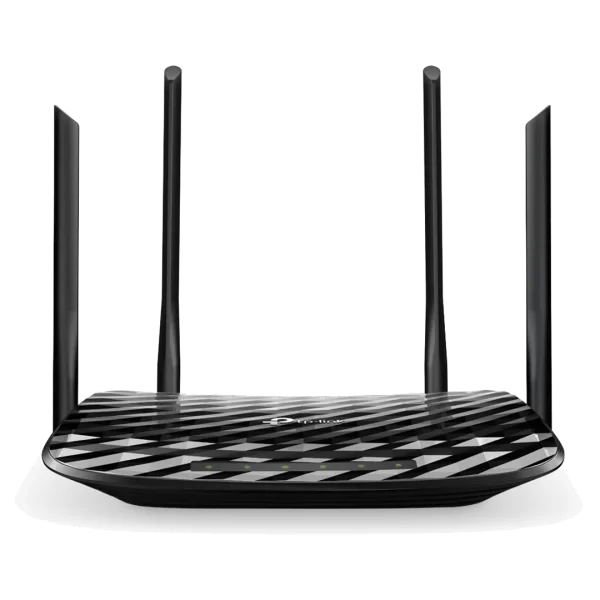

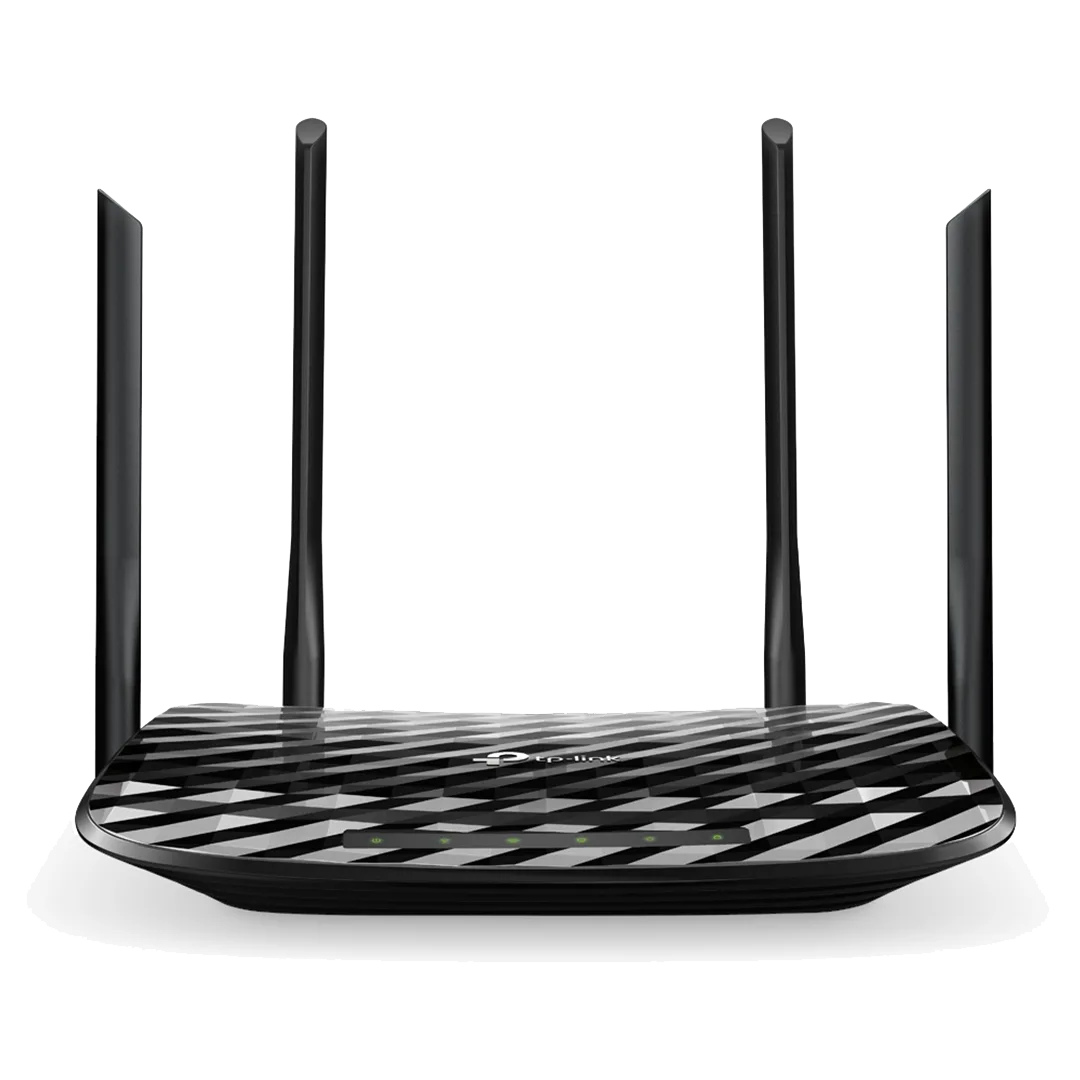

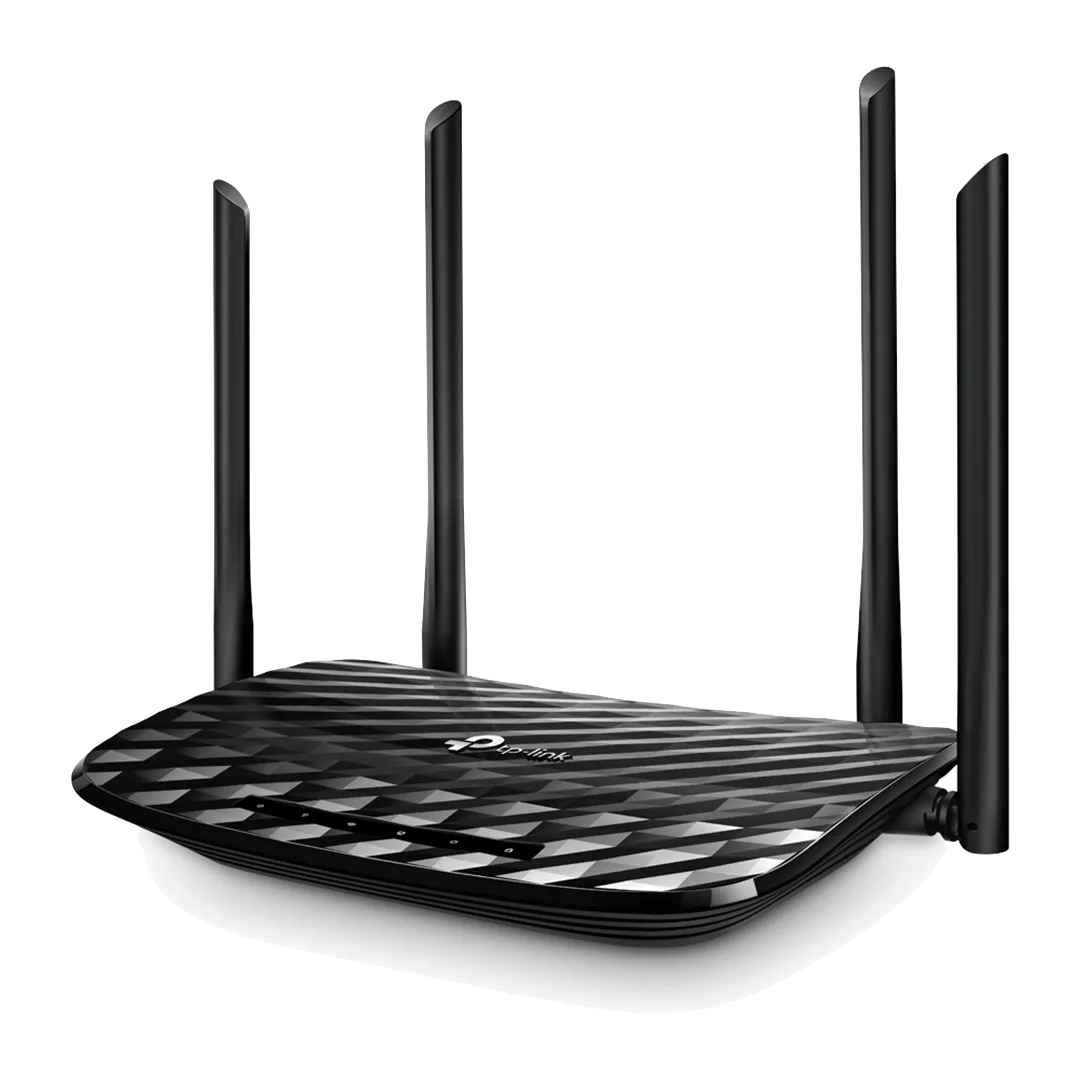

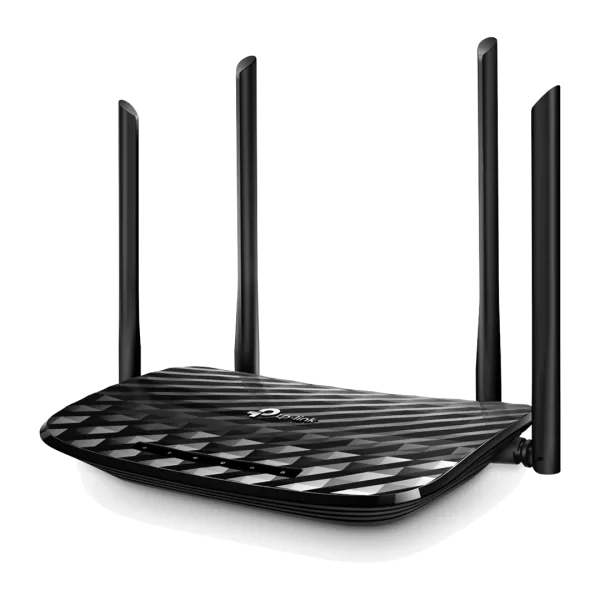

TP-Link Archer A6 AC1200 Dual Band Router

FEATURES:

• Supports 802.11ac standard
• Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1200 Mbps of total available bandwidth
• 4 external antennas and one internal antenna provide stable wireless connections and optimal coverage
• Easy network management at your fingertips with TP-Link Tether
• MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once
• Beamforming technology delivers wider wireless coverage
• Supports Access Point mode to create a new Wi-Fi access point

SYSTEM

• System Requirements Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Cable or DSL Modem
• Subscription with an internet service provider (for internet access)

ENVIRONMENT

• Operating Temperature 0°C~40°C
• Storage Temperature -40°C~70°C
• Operating Humidity 10%~90% non-condensing
• Storage Humidity 5%~90% non-condensing

PACKAGE CONTENTS

• Package Contents Wireless Router Archer A6
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

HARDWARE FEATURES

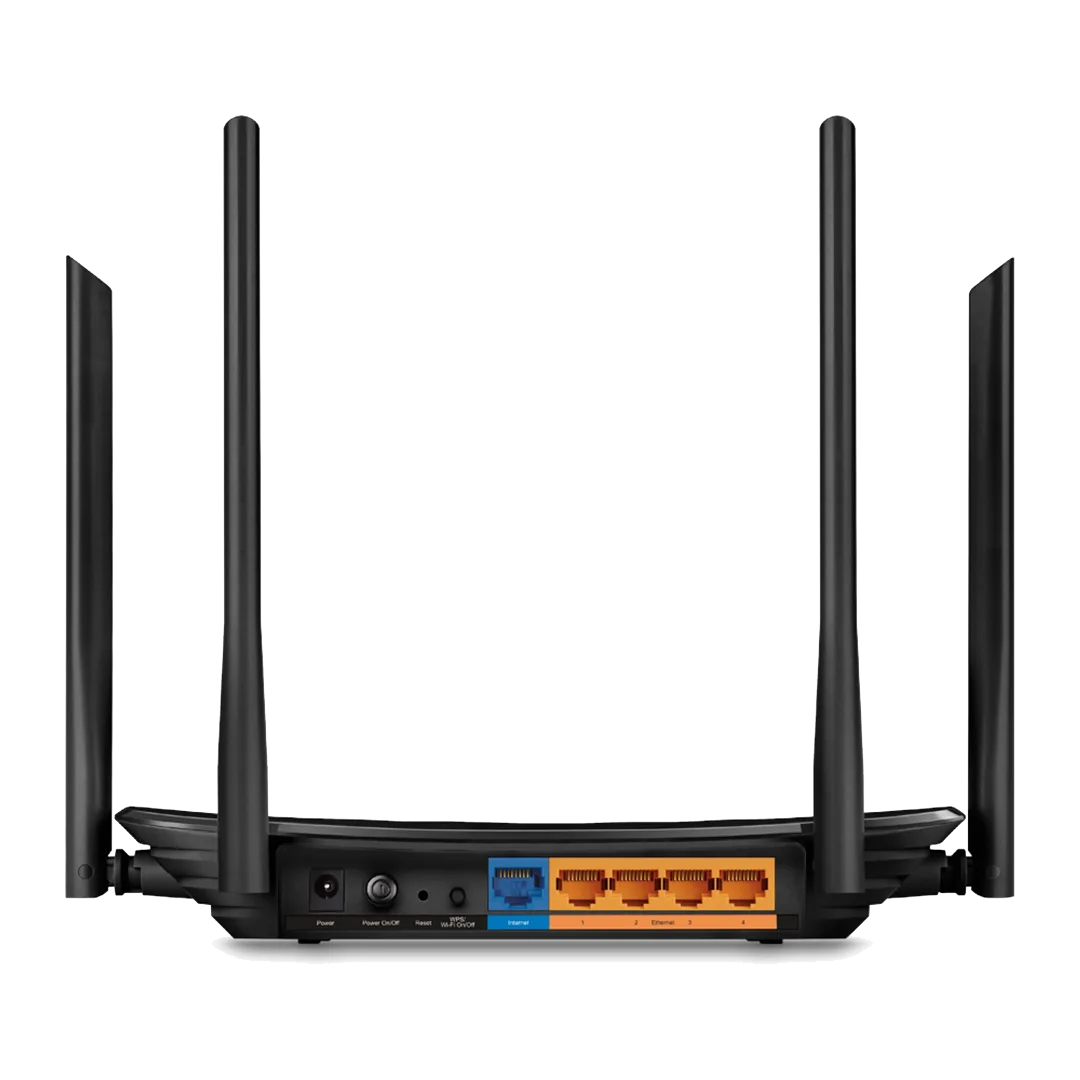

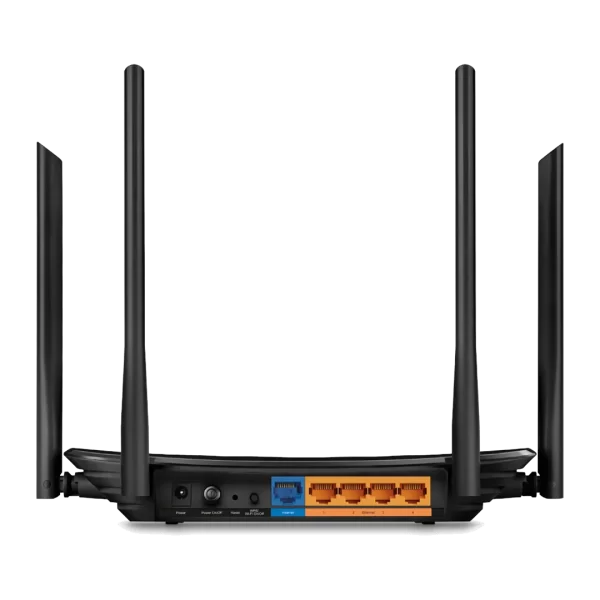

• Ports 4*10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port
• Button Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button
• Power Supply 12V/1A
• Dimensions ( W x D x H ) 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)
• Antenna 4 Fixed External Antennas and 1 Internal Antenna

WIRELESS FEATURES

• Wireless Standards IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency 2.4GHz and 5GHz
• Signal Rate 5GHz: Up to 867Mbps
• 2.4GHz: Up to 300Mbps
• Reception Sensitivity
  •  5GHz:
    • 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm；
    • 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
    • 11ac HT80 mcs9:-62dBm;
  • 2.4GHz:
    • 11g 54Mbps:-78dBm;
    • 11n HT20 mcs7:-74dBm;
    • 11n HT40 mcs7:-71dbm；
• Transmit Power CE EIRP: <20dBm(2.4GHz); <23dBm(5GHz)
• FCC EIRP: <30dBm(2.4GHz); <30dBm(5GHz)
• Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,
• Wireless Statistics
• Wireless Security 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption

SOFTWARE FEATURES

• WAN Type Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), BigPond
• Management Access Control, Local Management, Remote Management
• DHCP Server, DHCP Client List, Address Reservation
• Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS DynDns, NO-IP
• Access Control Parental Controls, Local Management Control, Host List, White List, Black List
• Firewall Security DoS, SPI Firewall, IP and MAC Address Binding
• Protocols IPv4, IPv6
• Guest Network 2.4GHz guest network, 5GHz guest network
• VPN Server OpenVPN，PPTP VPN
