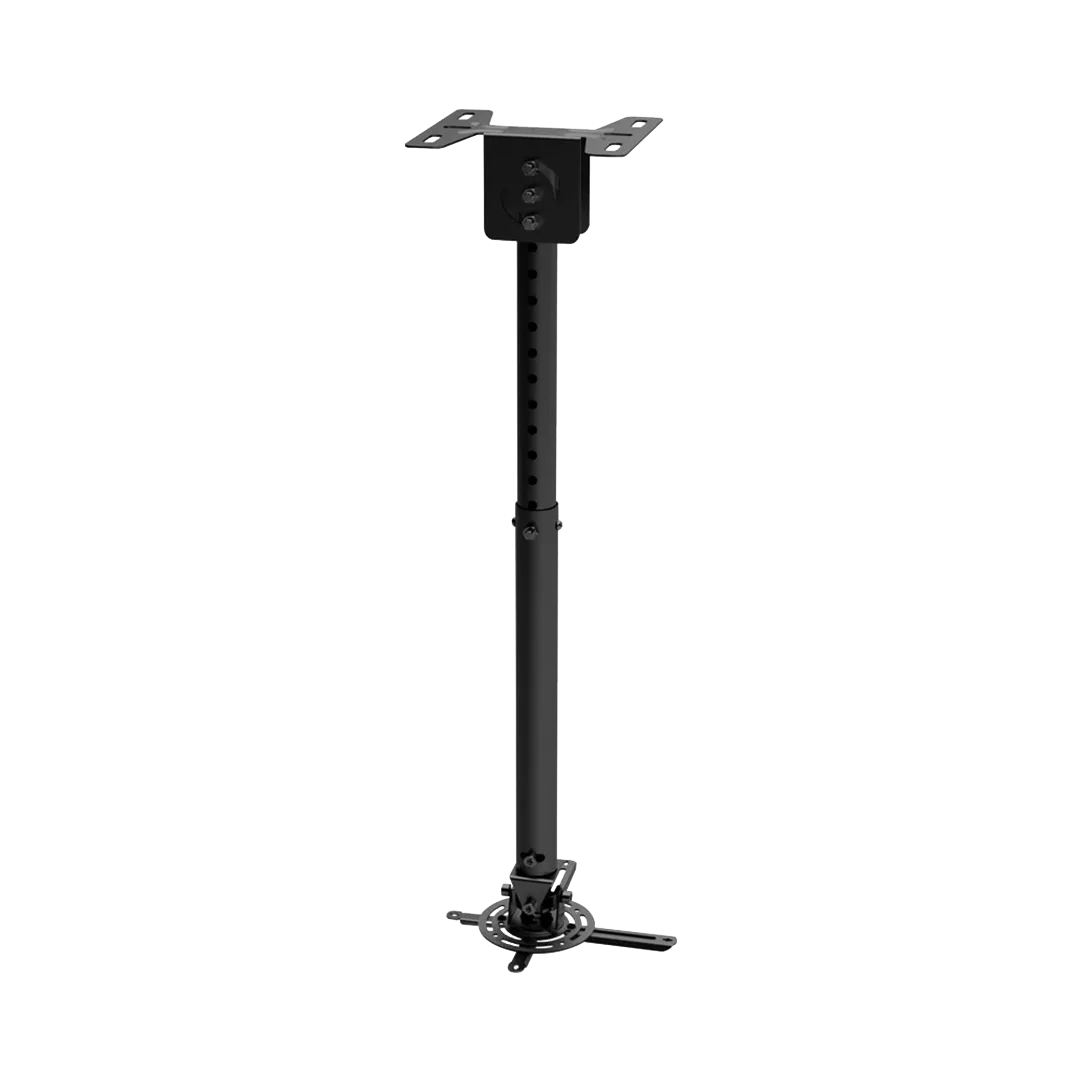

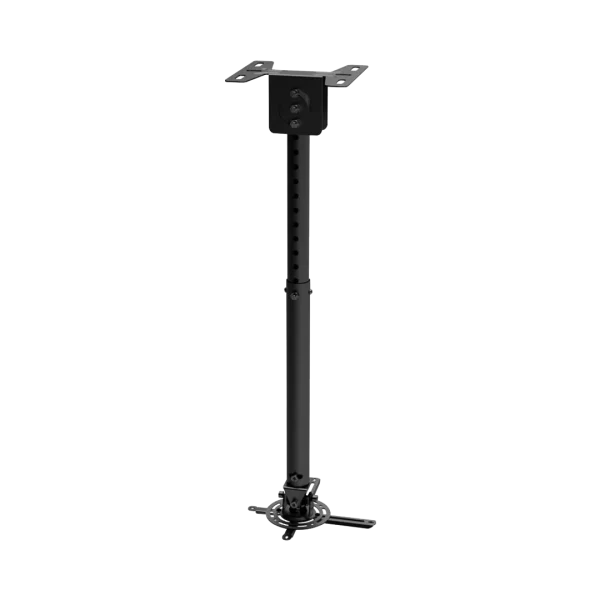

Steel Ceiling Projector Bracket

Steel Ceiling Projector Bracket

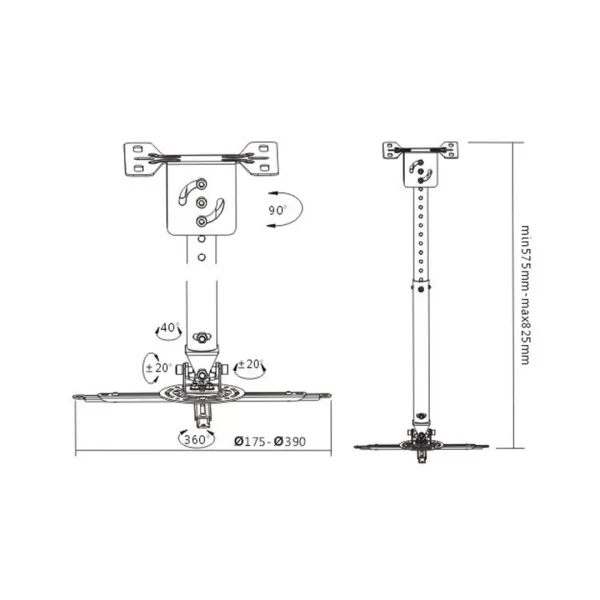

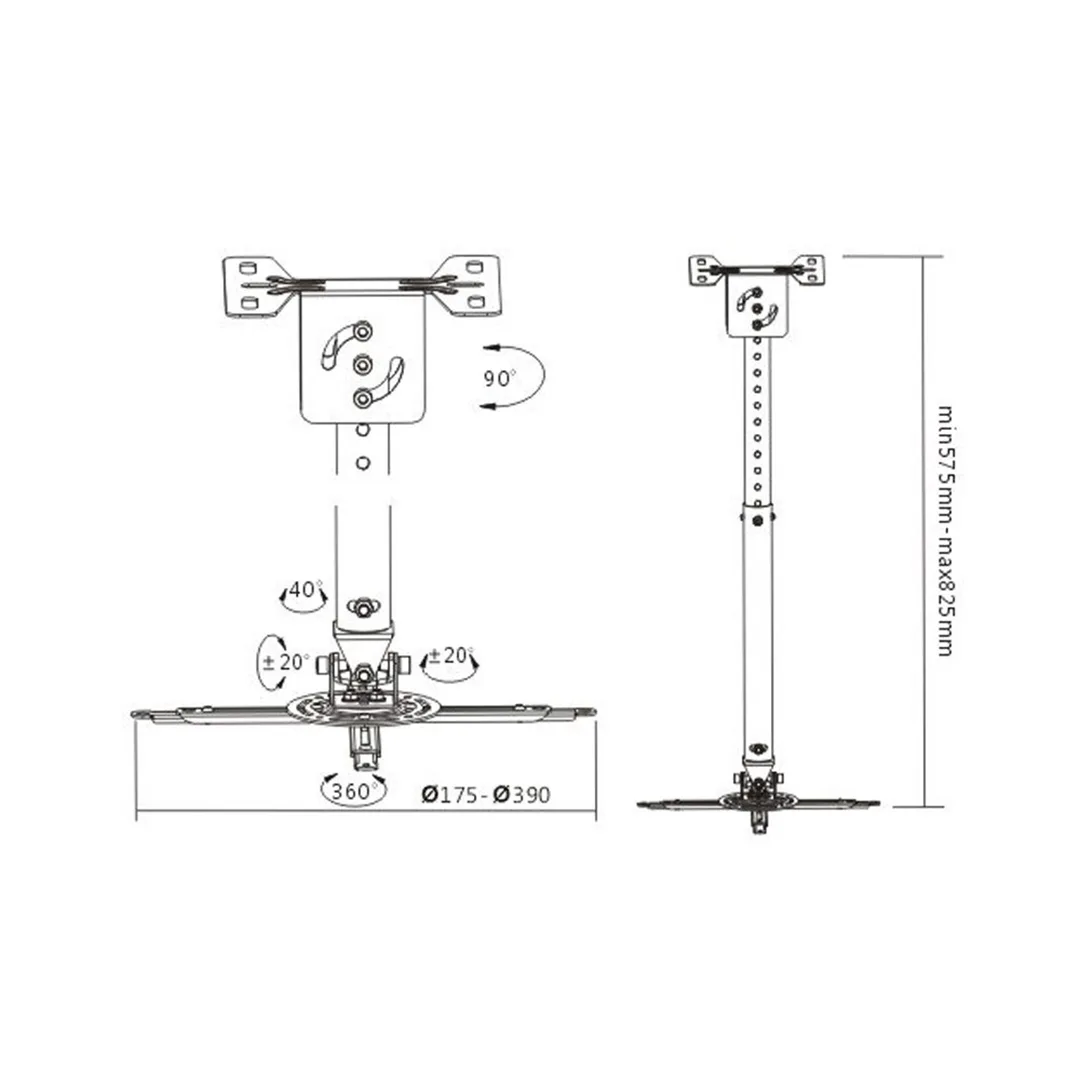

The PRB-10 is a height adjustable ceiling mount for most projectors up to 20kgs/44Ibs. 360° rotation and 20°tilting allows maximum viewing ability. It offers flexible projector positioning with four adjustable support arms that can fit a wide range of mounting holes. It features an adjustable height extension channel and a versatile ceiling plate that can mount to traditional or beveled ceilings. The quick release connector allows the projector to be installed quickly and then easily released for maintenance, without re-alignment. The sliding rail can adjust length to meet different needs. Decorative plastic cover presents a nice look.

FEATURES

• Adjustable Length: for your different choices
• Adjustable Ceiling Plate: for mounting in flat or sloping ceiling

SPECIFICATION

• Product Category: Projector Mount
• Rank: Standard
• Material: Steel
• Surface Finish: Powder Coating
• Color: Matte Black, Metallic Grey
• Dimensions: 390x390x825mm (15.4″x15.4″x32.5″)
• Weight Capacity: 20kg (44lbs)
• Mounting Range: 175~390mm (6.9″~15.4″)
• Tilt Range: +20°~-20°
• Swivel Range: +20°~-20°
• Rotation: 360°
• Profile: 575~825mm (22.6″~32.5″)
• Installation: Ceiling Mounted
• Accessory Kit Package: Normal/Ziplock Polybag
• Instruction Manual Included: Yes
