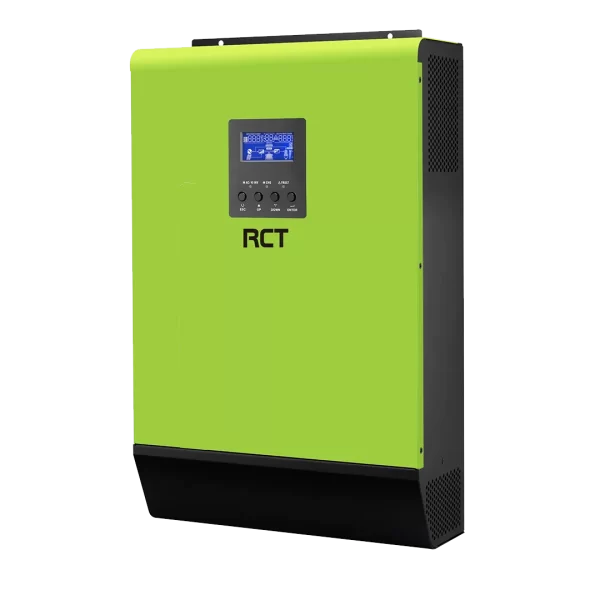

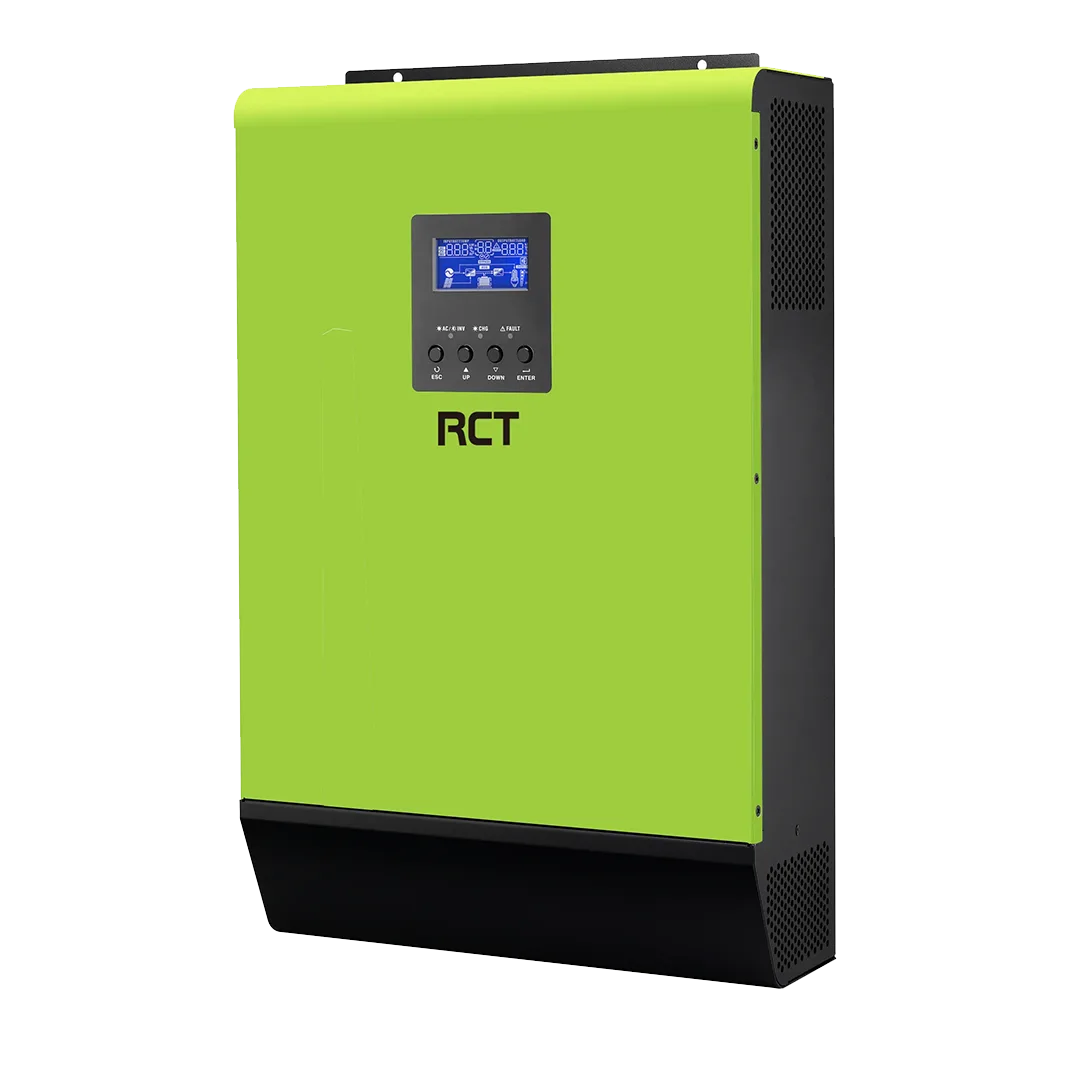

RCT Axpert VM2 1.2K 12V Inverter

RCT Axpert VM2 1.2K 12V Inverter

FEATURES

• Pure sine wave solar inverter
• Output power factor 1
• High PV input voltage range
• Battery independent design
• Built-in 100A MPPT solar charger
• Battery equalization function to optimize battery performance and extend the lifecycle
• Built-it in anti-dust kit for harsh environment

RATED POWER

• 1200VA/ 1200W

INPUT

• Voltage 230 VAC
• Selectable Voltage Range 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
• Frequency Range 50 Hz/60 Hz (Auto sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
• Surge Power 2400VA
• Efficiency (Peak) 93%
• Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances)
• Waveform Pure sine wave

BATTERY

• Battery Voltage 12 VDC
• Floating Charge Voltage 13.5 VDC
• Overcharge Protection 16 VDC

SOLAR CHARGER & AC CHARGER

• Maximum PV Array Power 2000 W
• MPPT Range @ Operating Voltage6 60VDC ~ 300VDC
• Maximum PV Array Open Circuit Voltage 350VDC
• Maximum Solar Charge Current 80A
• Maximum AC Charge Current 80A
• Maximum Charge Current 80A

PHYSICAL

• Dimension, D x W x H (mm) 90 x 288 x 357
• Net Weight (kgs) 6.5
• Communication Interface RS232

OPERATING ENVIRONMENT

• Humidity 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature -10°C to 50°C
• Storage Temperature -15°C to 60°C

Product specifications are subject to change without further notice.
