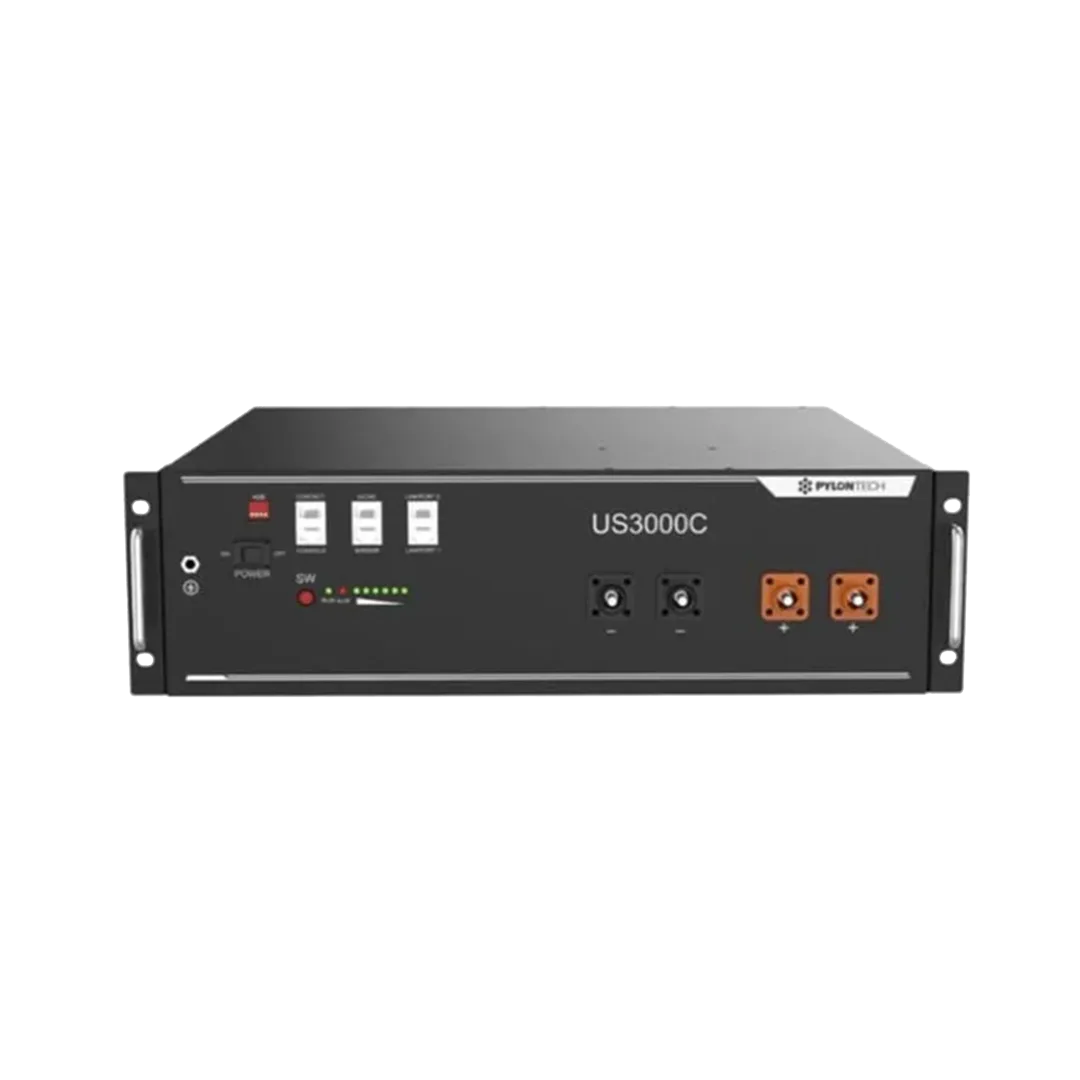

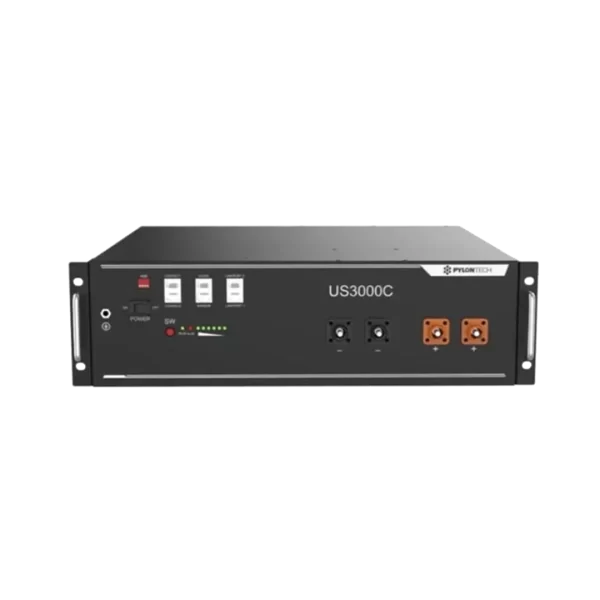

Pylontech 3.5kWh 48V US3000C Rack Lithium Battery
As the leading vertically integrated manufacturer of lithium iron phosphate battery systems, Pylontech has provided various battery solutions for nearly all kinds of ESS applications. Thanks to our self-developed core technology in cells/BMS/system design, Pylontech has delivered more than 2.0GWH batteries serving 120,000+ users.
Features:
- Developed with our own LFP (lithium iron phosphate) cell to ensure the highest safety.
- Self-designed BMS protects the cell in all angels such as abnormal temperature, current, voltage, SoC, SoH.
- Vertical industry integration ensures more than 6000 cycles with 95% DoD.
- Modular design gives the end customers the power of choice of capacity.
- Compatible with most of the available Hybrid inverters.
- Simple buckle fixing minimizes the installation time and cost.
- Backward compatibility with existing US series product.
- Pre-charge function to protect ESS system from surge current.
Specification
- Nominal Voltage (V): 48
- Nominal Capacity (Wh): 3552
- Usable Capacity (Wh): 3374.4
- Dimension (mm): 44.2 x 42 x 13.2
- Weight(Kg): 32
- Discharge Voltage(V): 44.5 ~ 53.5
- Charge Voltage(V): 52.5~53.5
- Charge / Discharge Current (A):
- 37 (Recommend)
- 74 (Max@60s)
- 90 (Peak@15s)
- Communication Port: RS485,CAN
- Single string quantity(pcs): 16
- Working Temperature/℃: 0~50
- Shelf Temperature/℃: -20~60
- Humidity: 5%~95%
- Altitude (m): <2000
- Design life: 15 Years(25℃/77℉)
- Cycle Life: >6000, 25℃
- Authentication Level: VDE2510-50/IEC62619/UL1973/UL9540A/CE/UN38.3
- Feature:
- Pre-Charge
- Dual-active protection
- Flexible current steps
- Dry contact wake up
