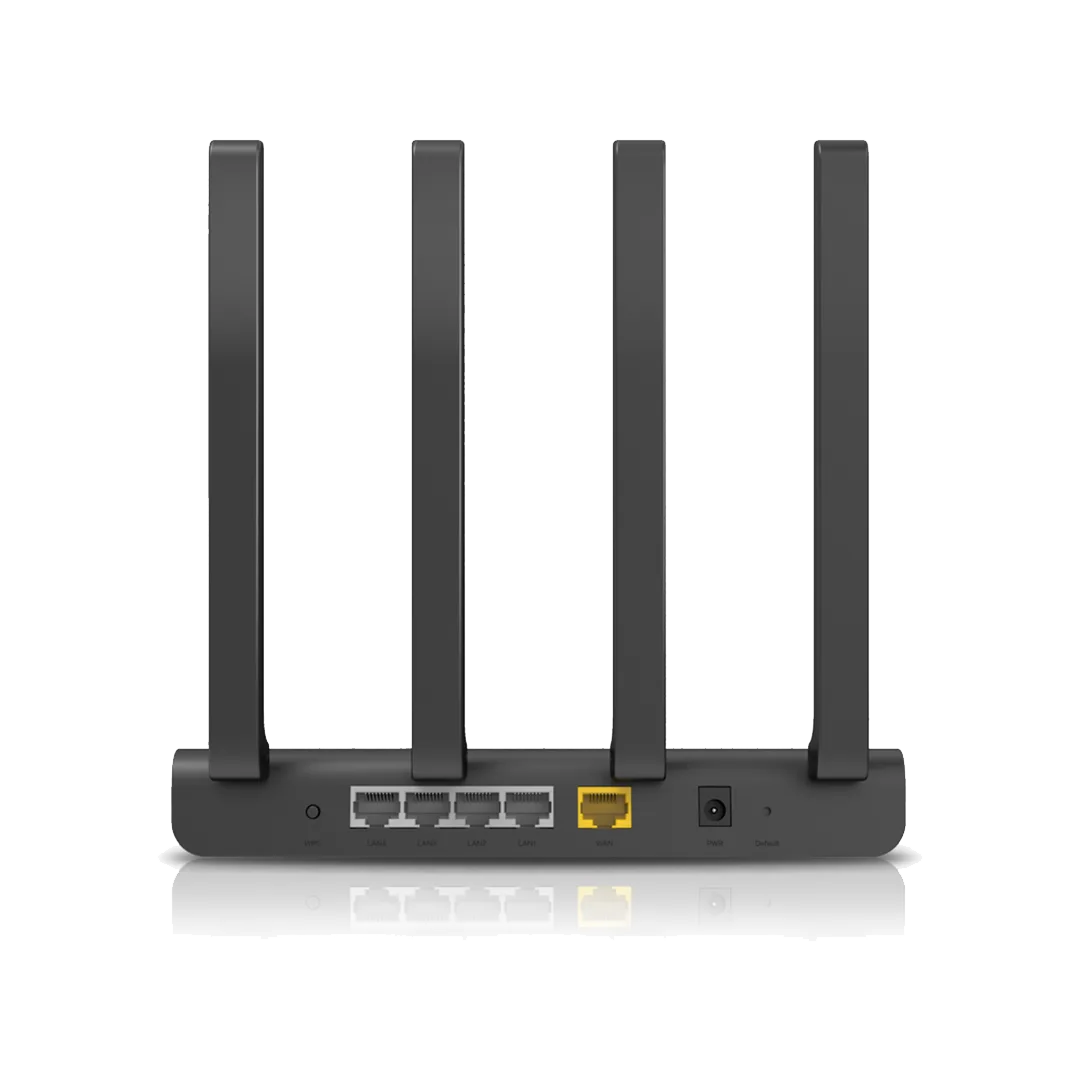

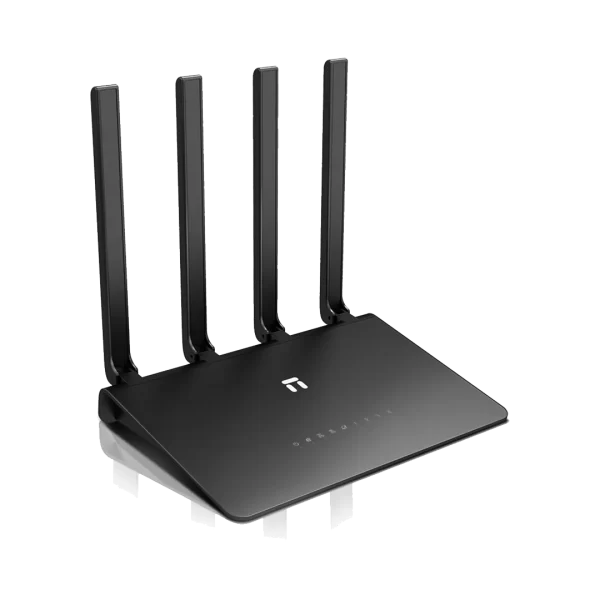

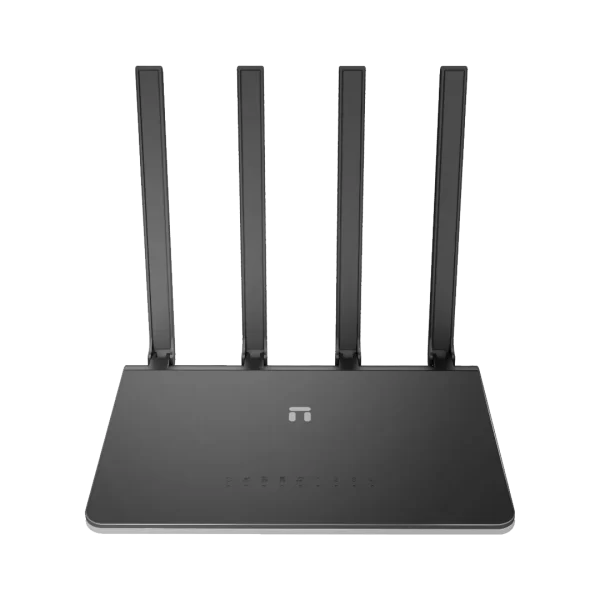

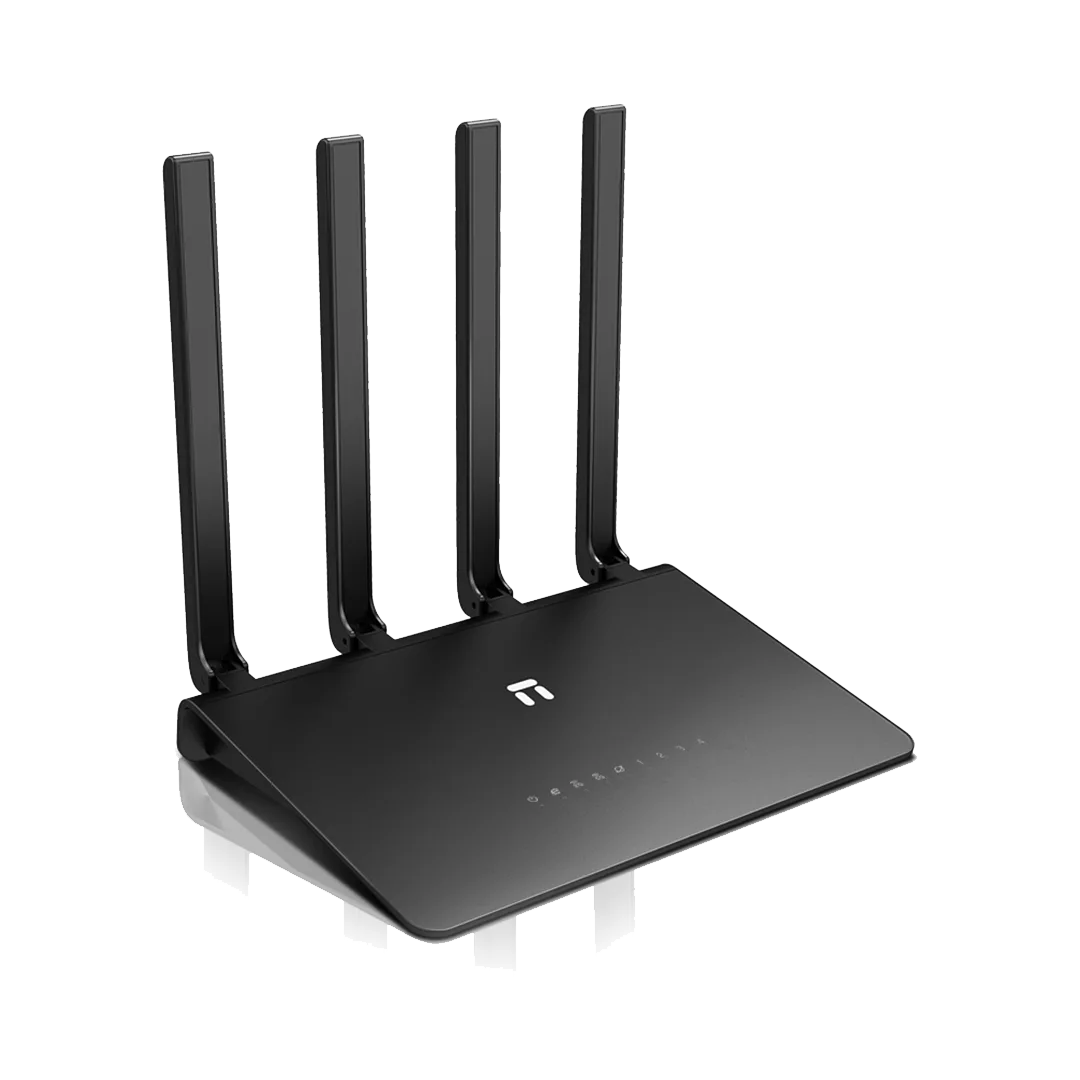

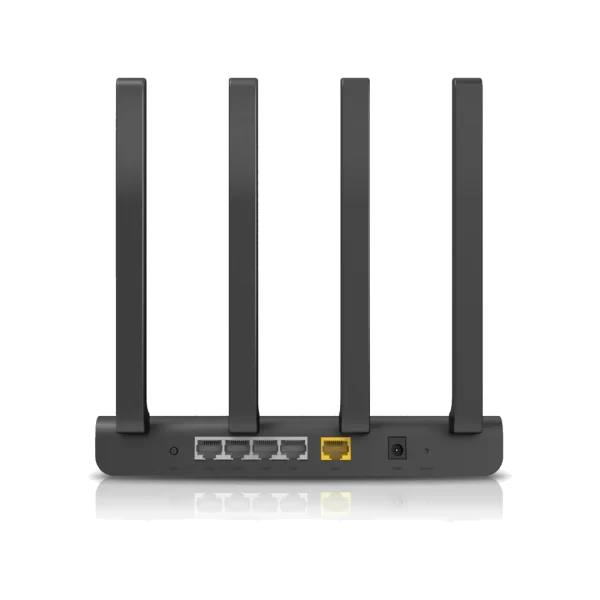

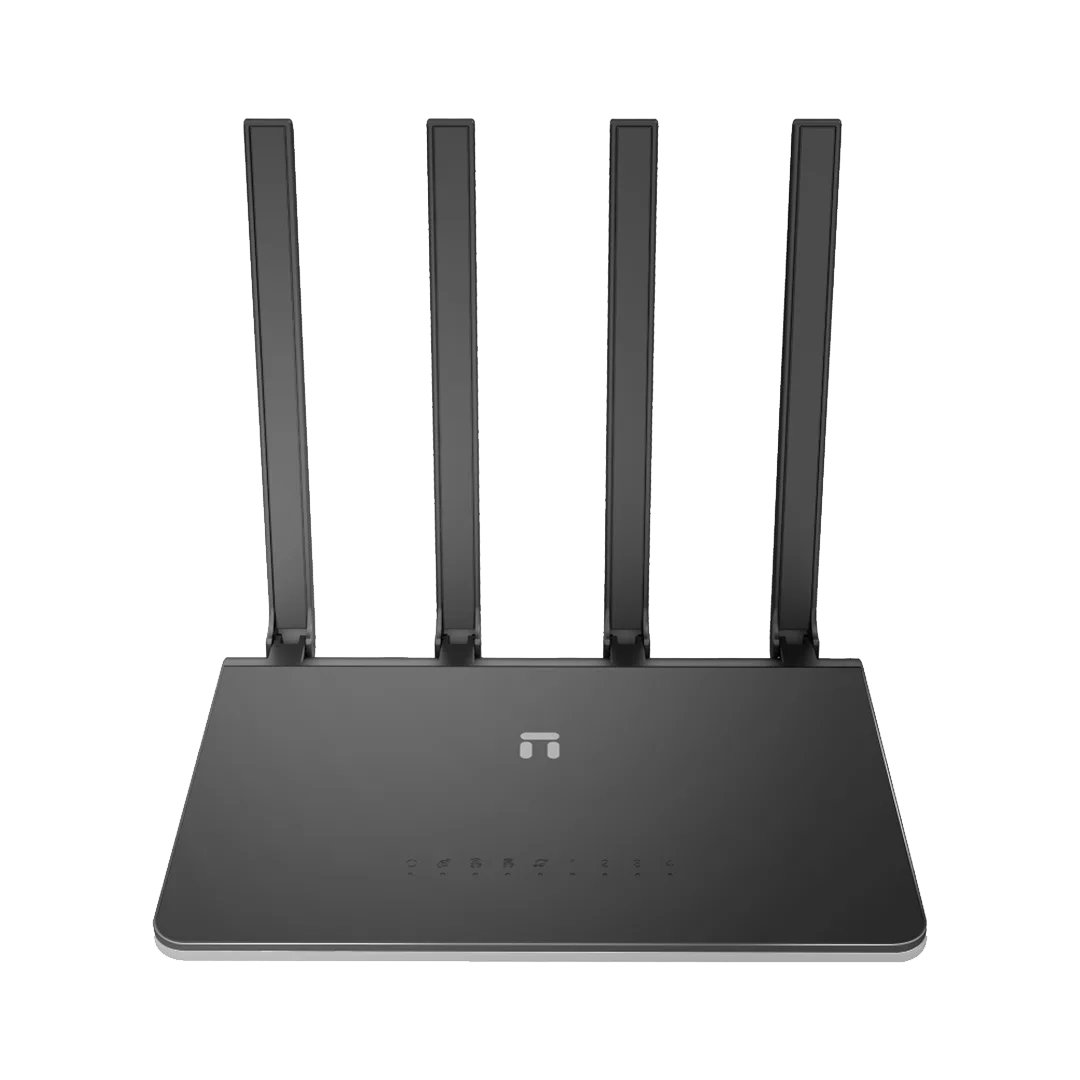

Netis N2 AC1200 Wireless Dual Band Gigabit Router

The netis router N2 equipped with the next generation 802.11AC Wi-Fi technology, will offer you simultaneous dual band connection with 867Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, ideal for faster downloading, online gaming, Internet calling and HD video streaming. Also, it provides with full gigabit ports which are 10 times faster than conventional Fast Ethernet connections.

Features:

Standards

• IEEE 802.11b/g/n 2.4GHz
• IEEE 802.11a/n/ac 5GHz

Signal Rate

• Up to 300Mbps2.4GHz
• UP to 867Mbps 5GHz

Frequency Range

• 2.4-2.4835GHz;5.180-5.825GHZ

Transmit Power

• 20dBm(MAX)

Data Transfer Rate

• 802.11ac: 80MHZ(433Mbps, 867Mbps)
• 802.11n:
  • 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
  • 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
• 802.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
• 802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

Wireless Modes

AP, Repeater, Client, Multi-SSID

Wireless Security

• WEP/WPA-PSK/WPA2-PSK Encryption
• Wireless MAC Filtering
• Hardware

Standards

• IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T

Interface

• 1*10/100/1000Mbps Auto MDI/MDIX RJ45 WAN port
• 4*10/100/1000Mbps Auto MDI/MDIX RJ45 LAN port

LED Indicators

• SYS, WPS, 5G, 2.4G, WAN, LAN1~LAN4

Buttons

• Default, WPS

Antenna

• 4* external fixed 5dBi antenna

Power Supply

• DC 12V/1.0A(Output)

Dimensions (L x W x H )

• 212 x 145 x 40 mm

Software

• WAN Type
• DHCP, Static IP, PPPoE, L2TP, PPTP, WISP

Others

• Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ,
  VPN Pass-through, Dynamic DNS, Static Routing, Backup & Restore

Certification

• FCC, CE, EAC

Environment

• Operating Temperature: 0℃~40℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Package

• 1* N2
• 1* 12V/1.0A Power Adapter
• 1* Ethernet Cable
• 1* Quick Installation Guide (Multilingual)
