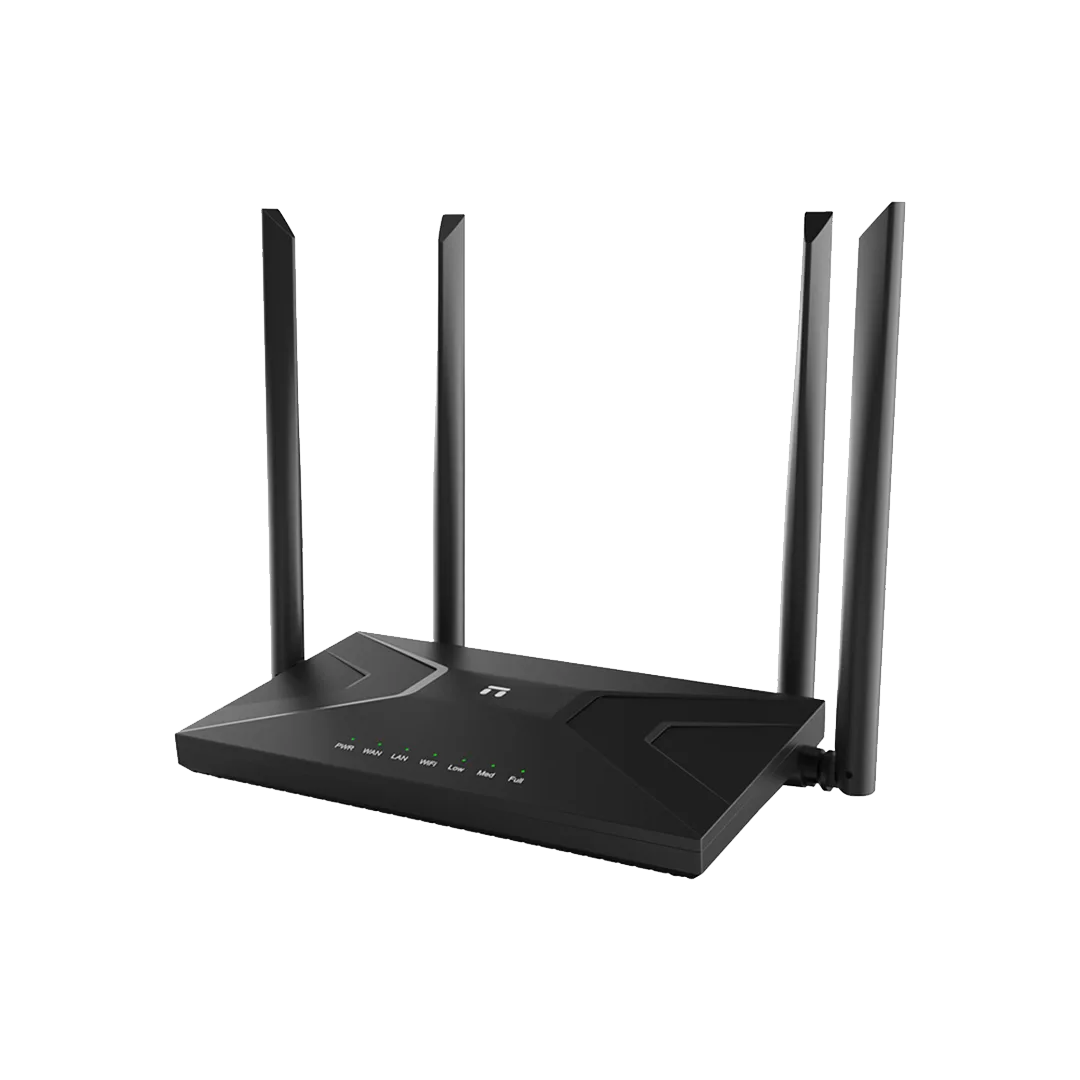

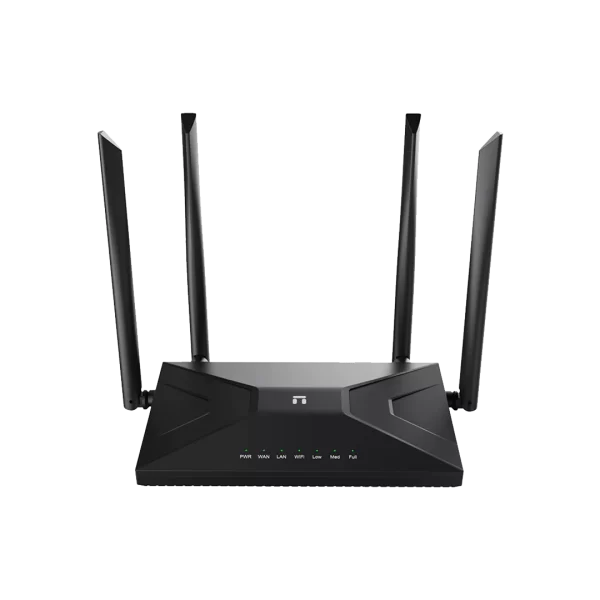

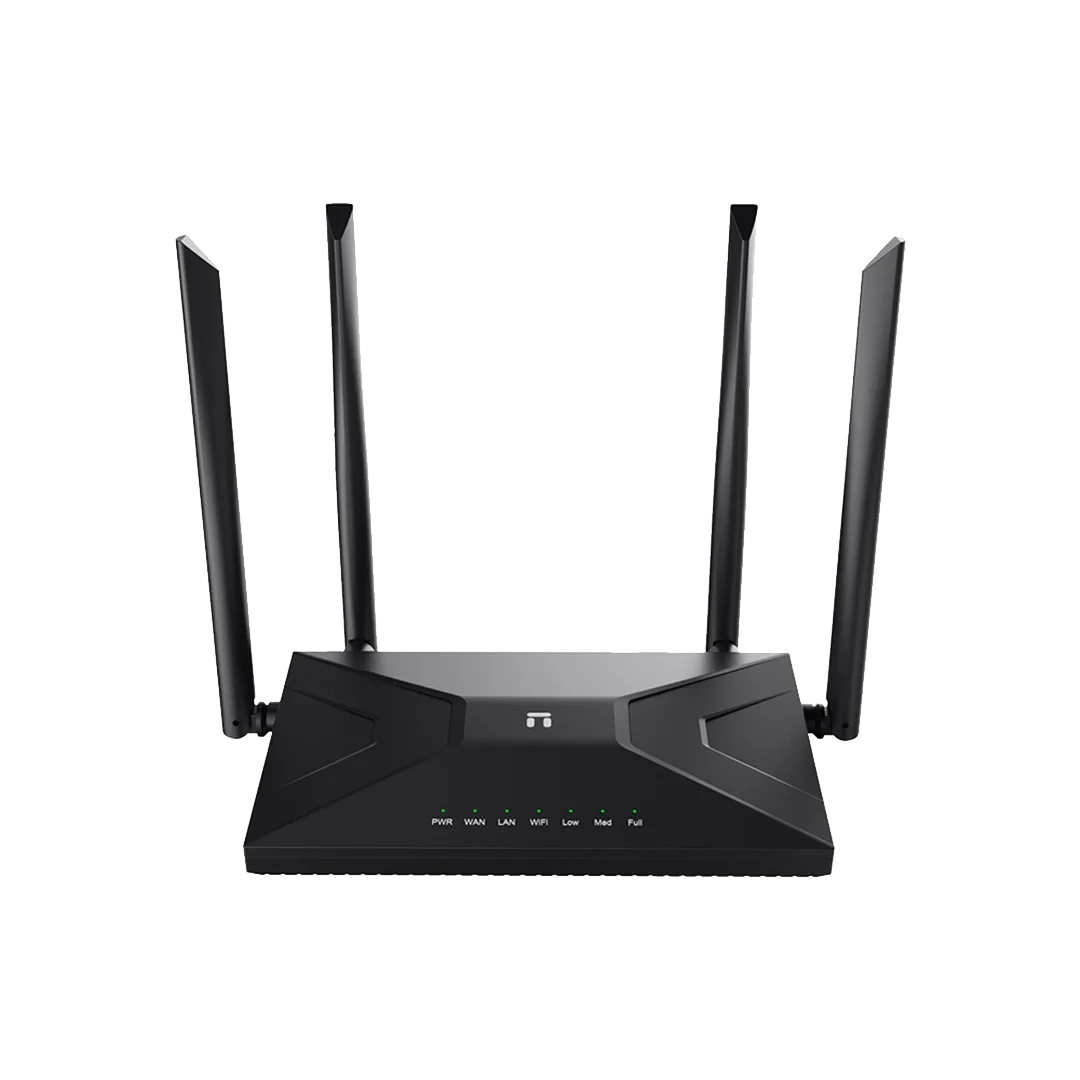

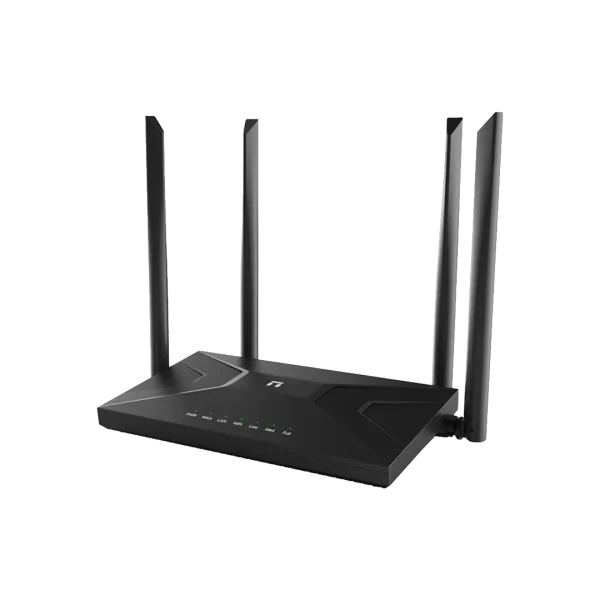

Netis MW5360 4G LTE Router
The Netis 4G LTE router MW5360 is equipped with a 4G LTE module, which allows you to access the Internet with a SIM card. With the separate WiFi antenna systems and unique detachable 4G antenna ports design, it allows you to put the 4G antennas anywhere inside or outside of your house, which brings you a better 4G speed and better WiFi performance. MW5360 also offers a wired WAN port to be used as a common wireless router.
Features:
Wireless
Standards
- IEEE 802.11b/g/n 2.4GHz
Signal Rate
- Up to 300Mbps 2.4GHz
Frequency Range
- 2.4-2.4835GHz;
Transmit Power
- 20dBm(MAX)
Data Transfer Rate
- 802.11n:
- 40MHz (300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
- 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
- 802.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
- 802.11b: (11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Wireless Mode
- AP/APR, Multi-SSID
Wireless Security
- None / WEP /WPA-PSK/WPA2-PSK (TKIP/AES)
4G LTE
- Band for LTE
- FDD-LTE:B1/B3/B5/B8
- TDD-LTE: B38/B39/B40/B41
- HSPA/UMTS:B1/B5/B8
- GSM/GPRS/EDGE:B3/B8
- TD-SCDMA:B34/B39
- EVDO/CDMA:BC0
Mode
- FDD-LTE、TDD-LTE、TD-SCDMA、HSPA+、HSUPA
- HSDPA、UMTS、EVDO、EDGE、GPRS、GSM、CDMA1x
Card Speed
- FDD-LTE: 150 Mbps DL, 50 Mbps UL
- TDD-LTE: 132 Mbps DL, 30 Mbps UL
- TD-HSUPA:2.8Mbps DL
- TD-HSUPA:2.2Mbps UL
- DC-HSPA+:42 Mbps DL
- HSPA+:21 Mbps DL
- HSUPA:5.76Mbps UL
- WCDMA: 384 Kbps DL, 384Kbps UL
- CDMA2000 EVDO: 3.1Mbps DL, 1.8Mbps UL
- EDGE: 237 Kbps DL, 118Kbps UL
Hardware
Standards
- IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

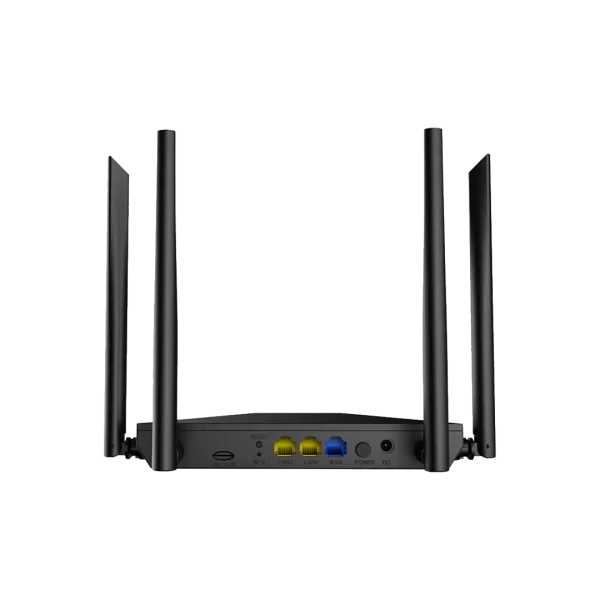

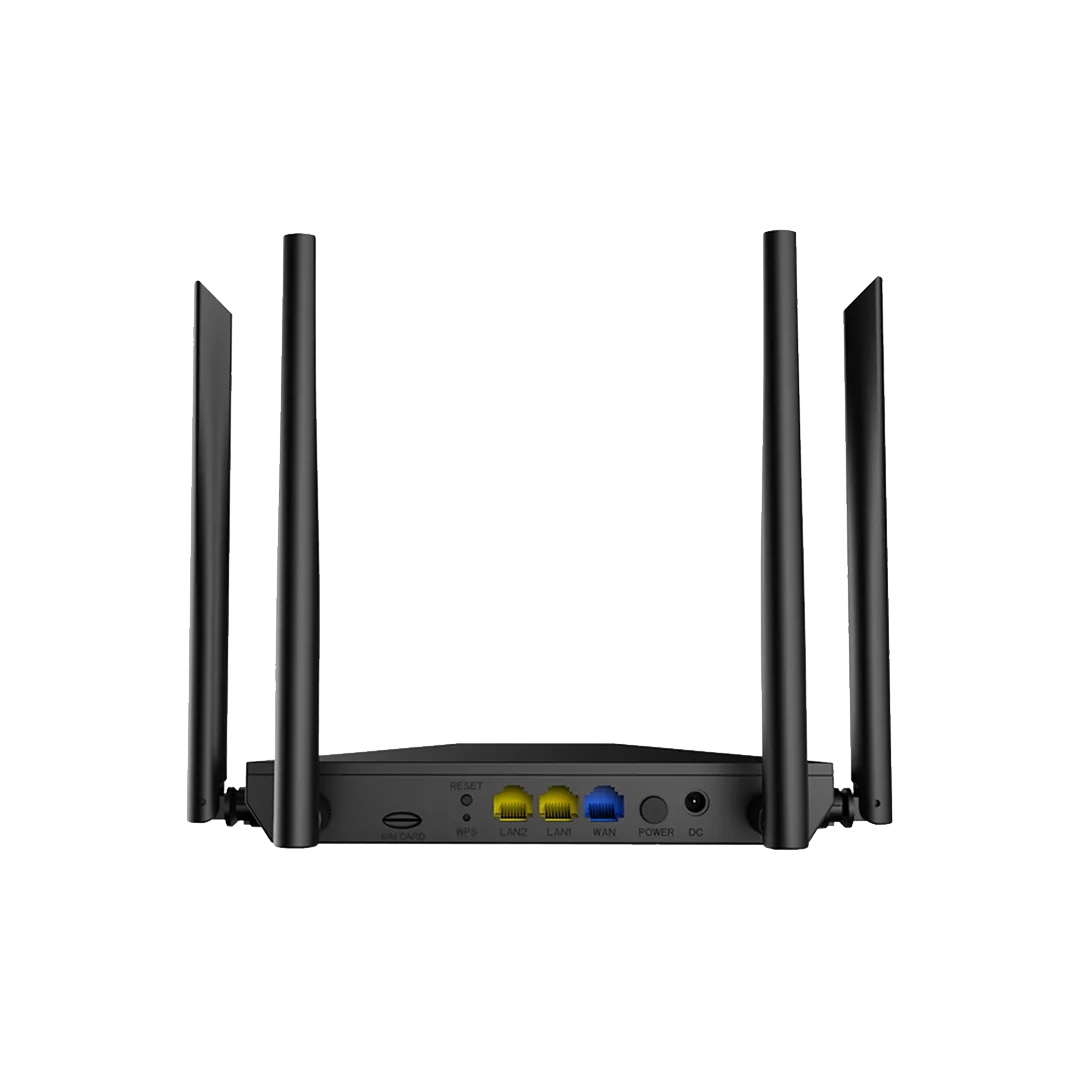

Interface
- 1*10/100Mbps Auto MDI/MDIX RJ45 WAN port
- 2*10/100Mbps Auto MDI/MDIX RJ45 LAN port
- SIM card slot
LED Indicators
- Power, LAN All, WiFi/WPS,EWAN, LTE Strong, LTE Middle, LTE
- Weak
Buttons
- Default, WPS
Antenna
- 2* 5dBi WiFi antennas, 2 SMA detachable 4G antennas
Power Supply
- DC 12V/1.0A(Output)
Dimensions
(L x W x H )
- 182mm*108mm*25mm
WAN Type
- WAN: DHCP / Static IP / PPPoE / Russia PPPoE / L2TP / PPTP / 3G&4G
Others
- Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ,
- VPN Pass-through, Dynamic DNS, Static Routing
Others
Certification
- FCC, CE, EAC
Environment
- Operating Temperature: 0℃~40℃
- Storage Temperature: -40℃~70℃
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Package
- 1* MW5360
- 1* 12V/1A Power Adapter
- 1* Quick Installation Guide (Multilingual)
