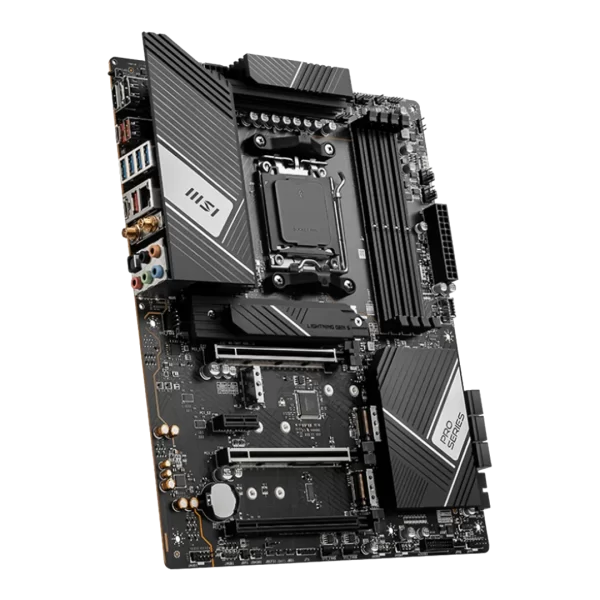

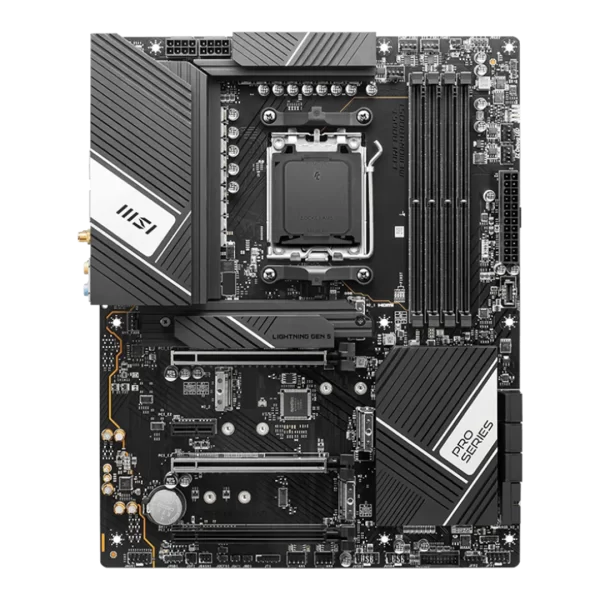

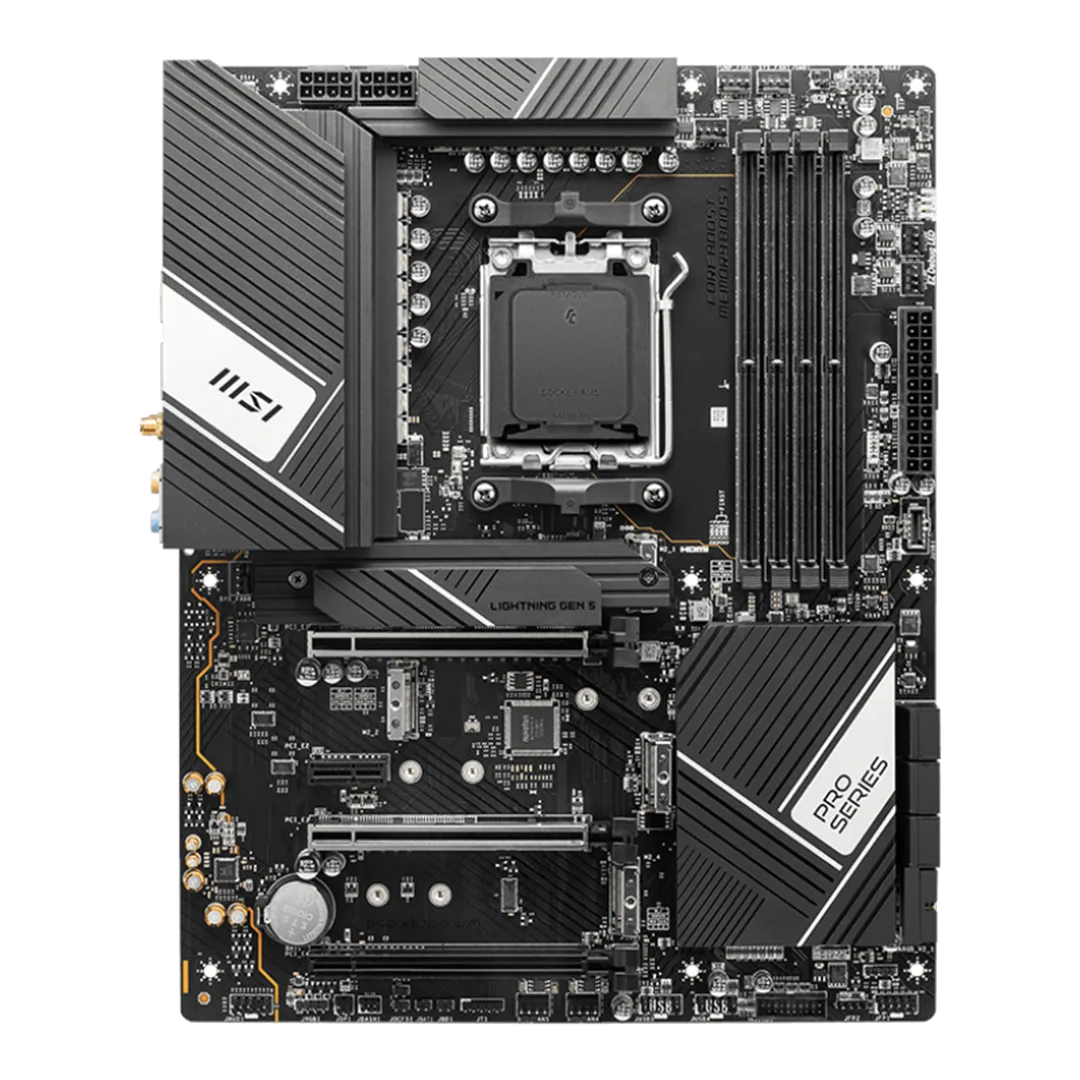

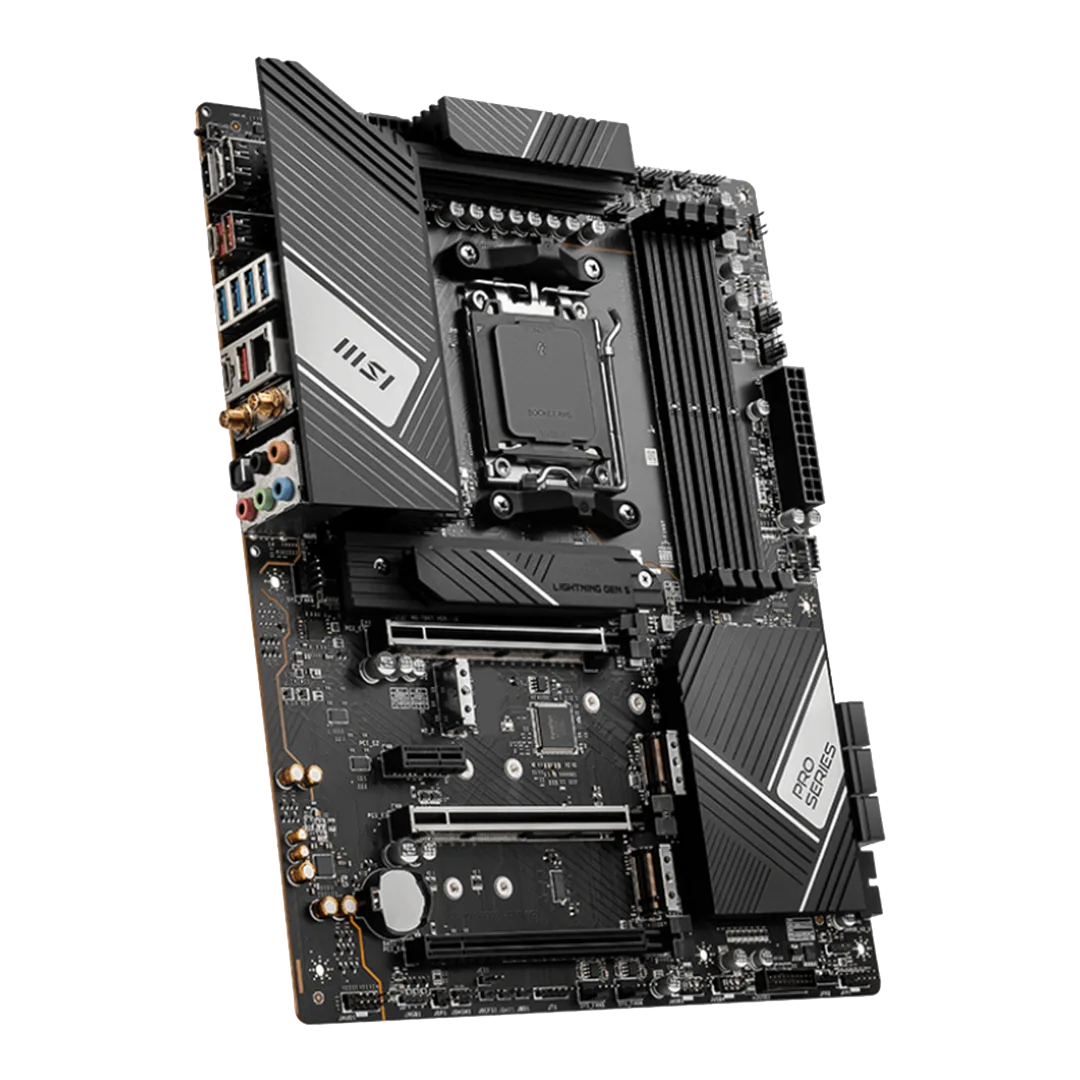

MSI Pro X670-P WiFi AMD AM5 ATX Gaming Motherboard
The MSI PRO X670-P WIFI AM5 ATX Motherboard supports the latest AM5 platform from AMD, giving you highly efficient and competitive performance. The MSI PRO X670-P WIFI is designed with tons of flexible tools as well as a convenient Wi-Fi solution with DDR5 memory support. It also supports MSI lightning Gen 4 PCI-E which represents the bandwidth of an x16 interface to 64GB/s that has doubled compared to its previous generation.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality while aiming to provide users with an incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series motherboards to assist you with multitasking and increasing efficiency.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up 4 temperature targets, which will adjust the fan speeds automatically. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
Using USB 3.2 devices has never been faster! MSI PRO Series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
For additional protection, MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
FEATURES:
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory
- Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr
- High-Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost 5: Reward your ears with the studio-grade sound quality for the most immersive gaming experience
SPECIFICATIONS:
- Socket: AM5
- CPU (Max Support): AMD Ryzen™ 7000 Series up to Ryzen 9
- Chipset: AMD X670
- DDR5 Memory: DDR5 6600+(OC)/6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 6600+ MHz
- 1DPC 2R Max speed up to 6000+ MHz
- 2DPC 1R Max speed up to 6400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Memory Channel: Dual Channel DDR5
- DIMM Slots: 4
- Max Memory (GB): 128
- PCI-E x16: 3
- PCI-E x1: 1
- SATAIII: 6
- M.2 Slot: 4
- RAID: 0/1/10
- LAN: 1x Realtek® RTL8125BG 2.5G LAN
- Wi-Fi and Bluetooth: Intel® Wi-Fi 6E module
- USB 3.2 ports (Front): 1(Gen 2, Type-C), 4(Gen 1, Type A)

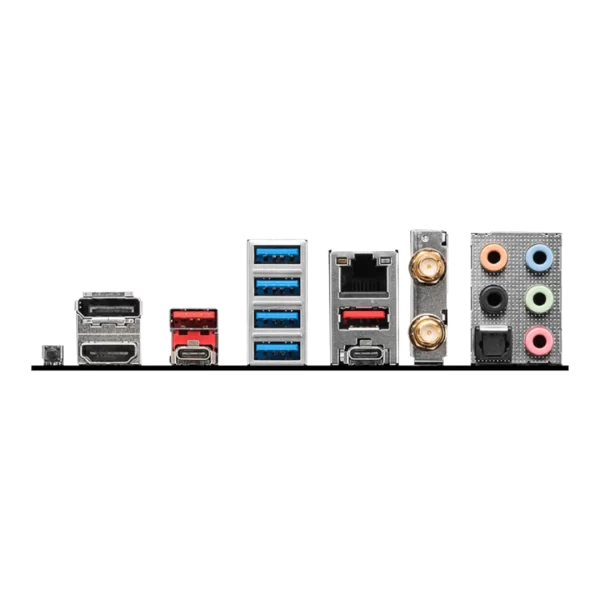

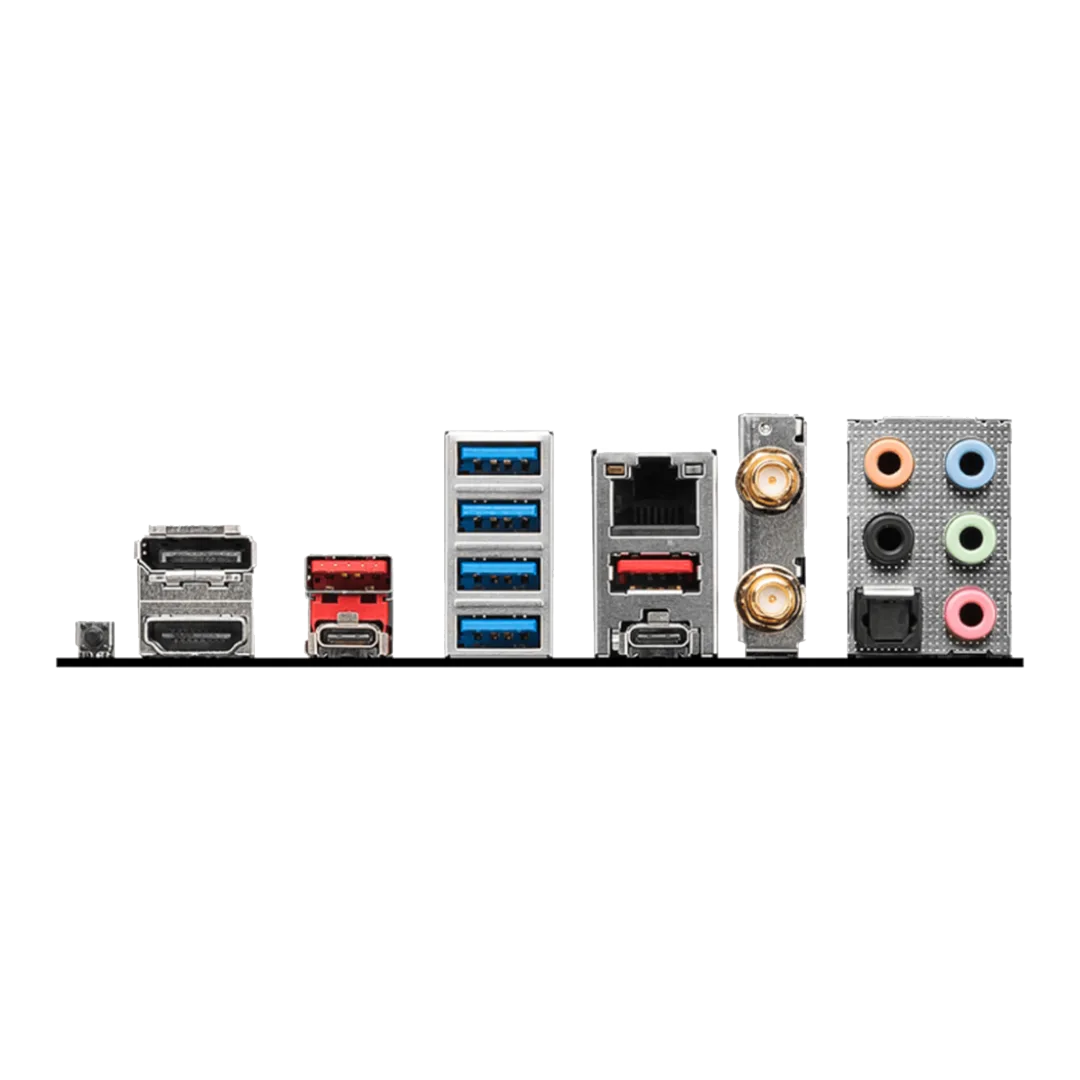

- USB 3.2 ports (Rear): 1(Gen 2×2, Type-C), 1(Gen 2, Type-C), 2(Gen 2, Type A), 4(Gen 1, Type A)
- USB 2.0 ports (Front): 4
- Audio ports (Rear): 7.1 Channel HD Audio (Realtek® ALC4080 Codec)
- Type-C Display Port: 1
- DisplayPort: 1
- HDMI: 1
- DirectX: 12
- Form Factor: ATX
- Operating System: Support for Windows® 11 64-bit and Windows® 10 64-bit
WHAT’S IN THE BOX:

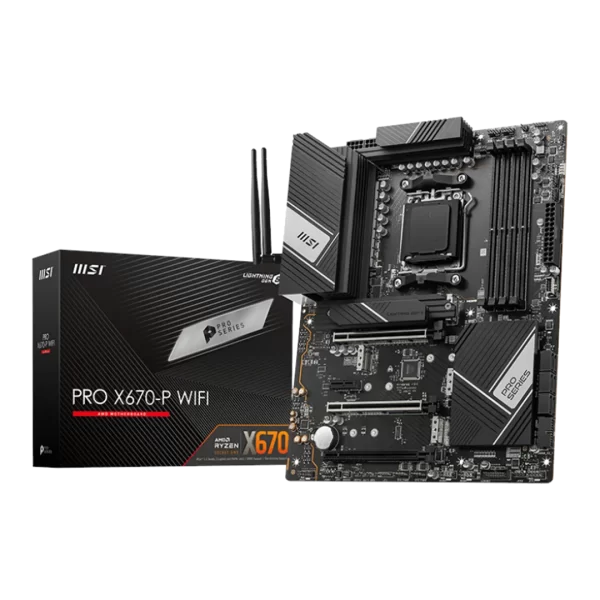

- MSI PRO X670-P WIFI AMD AM5 ATX Motherboard – Black x1
- Wi-Fi Antenna x2
- SATA cables x2
- EZ M.2 Clip x3
- M.2 Plate Screw x1
- I/O Shield x1
- Quick Install Guide x1
