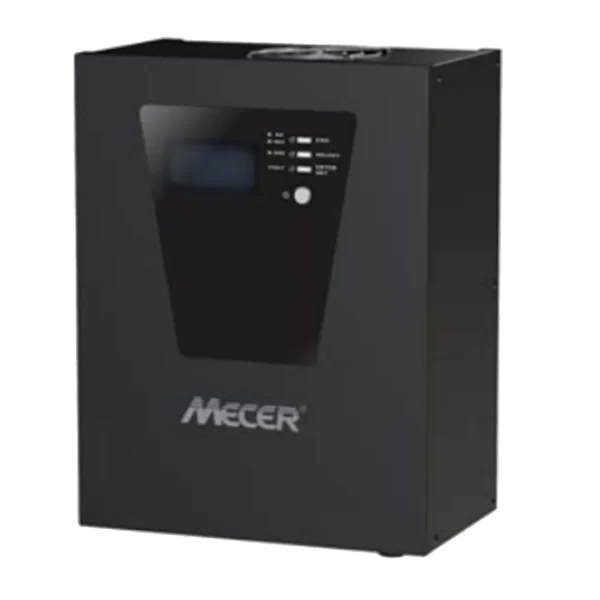

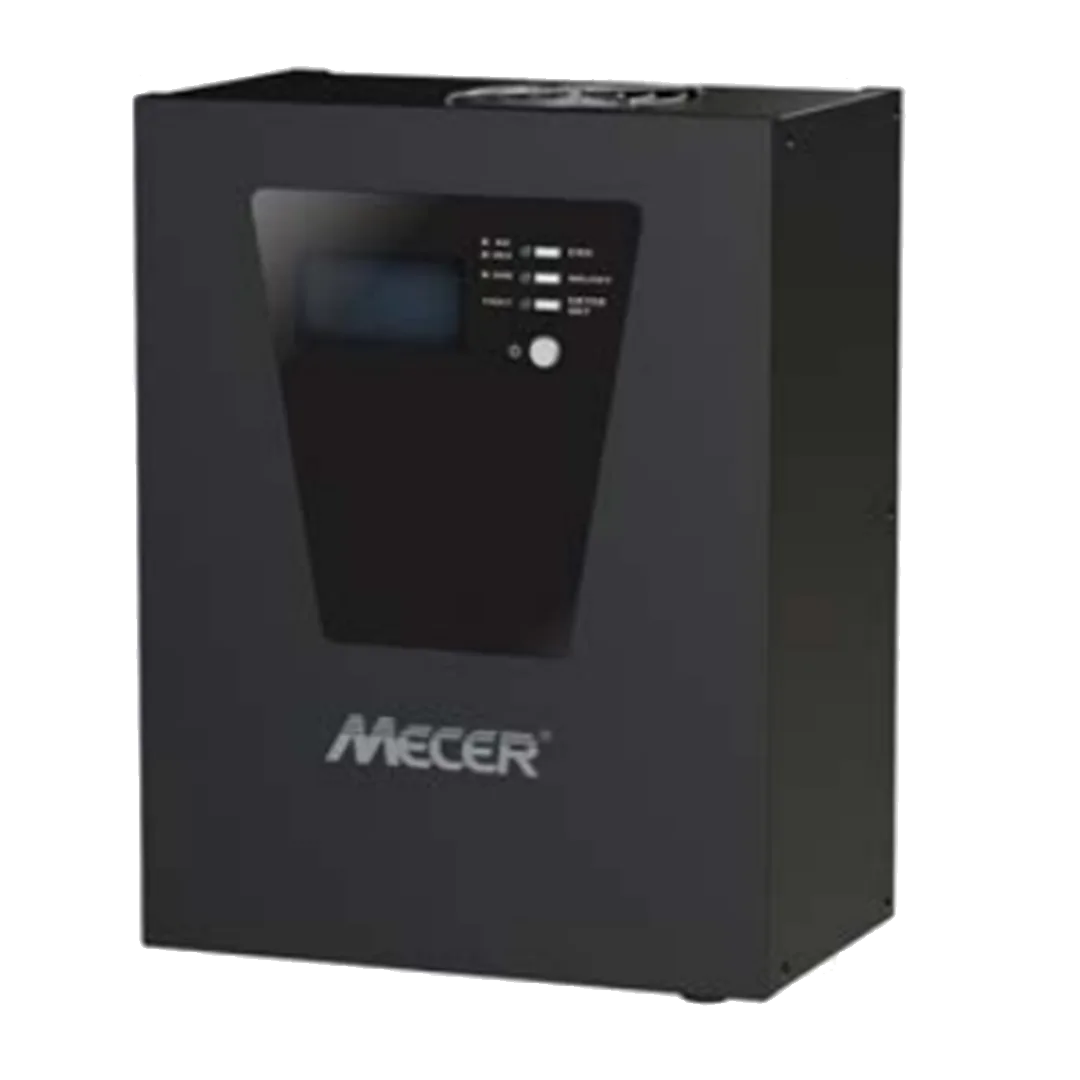

Mecer IVR-2400MPPT 24v Inverter

Mecer IVR-2400MPPT 24v Inverter

• Simulated sinewave inverter
• Wide input voltage range
• Overload and short circuit protection
• LCD display for comprehensive information
• MPPT

• Model: IVR-2400MPPT
• Capacity: 2400VA / 1800W
• Power Factor: 0.75

• Voltage 220-240 VAC
• Voltage Range 90-280 VAC
• Nominal Operating Frequency 50/60Hz
• Maximum Input Current 13A

• Nominal Output Voltage 220-240 VAC
• Voltage Regulation (Batt. Mode) +/-10%
• Output Frequency Range 50/60Hz
• Nominal Output Current 10.4A
• Inrush Current 13A
• Maximum Output Fault Current 13.6A
• Transfer Time 20 ms typical
• Waveform Simulated Sine Wave

• Battery Voltage 24 VDC
• Maximum Battery Discharging Current 90A
• Floating Charge Voltage 27.4 VDC +-1 VDC

• Lead Acid Battery 28.6VDC +-1VDC
• Lithium Battery 29.2 VDC +-1 VDC
• Cut Off Voltage 21.0 VDC +-1 VDC
• Maximum AC Charging Current 10 A or 25 A

• Solar Charger Type MPPT
• Maximum PV Array Open Circuit Voltage 100 VDC
• MPP Range @ Operating Voltage 30 ~ 80 VDC
• Max. PV array Input Power 1650W
• Max. PV array Power to support 1320W
• Maximum Solar Charging Current 55 A
• Maximum Charging Current (Utility +SCC) 55 A

• Dimension (DxWxH) mm 272 x 212 x 127
• Net Weight (kgs) 4.8
• Protective Class I
• Ingress Protection Rating IP20

• Humidity 0 ~ 90% RH (No condensing)
• Operating Temperature 0 ~ 55degC
• Altitude 0 ~ 1000 m
