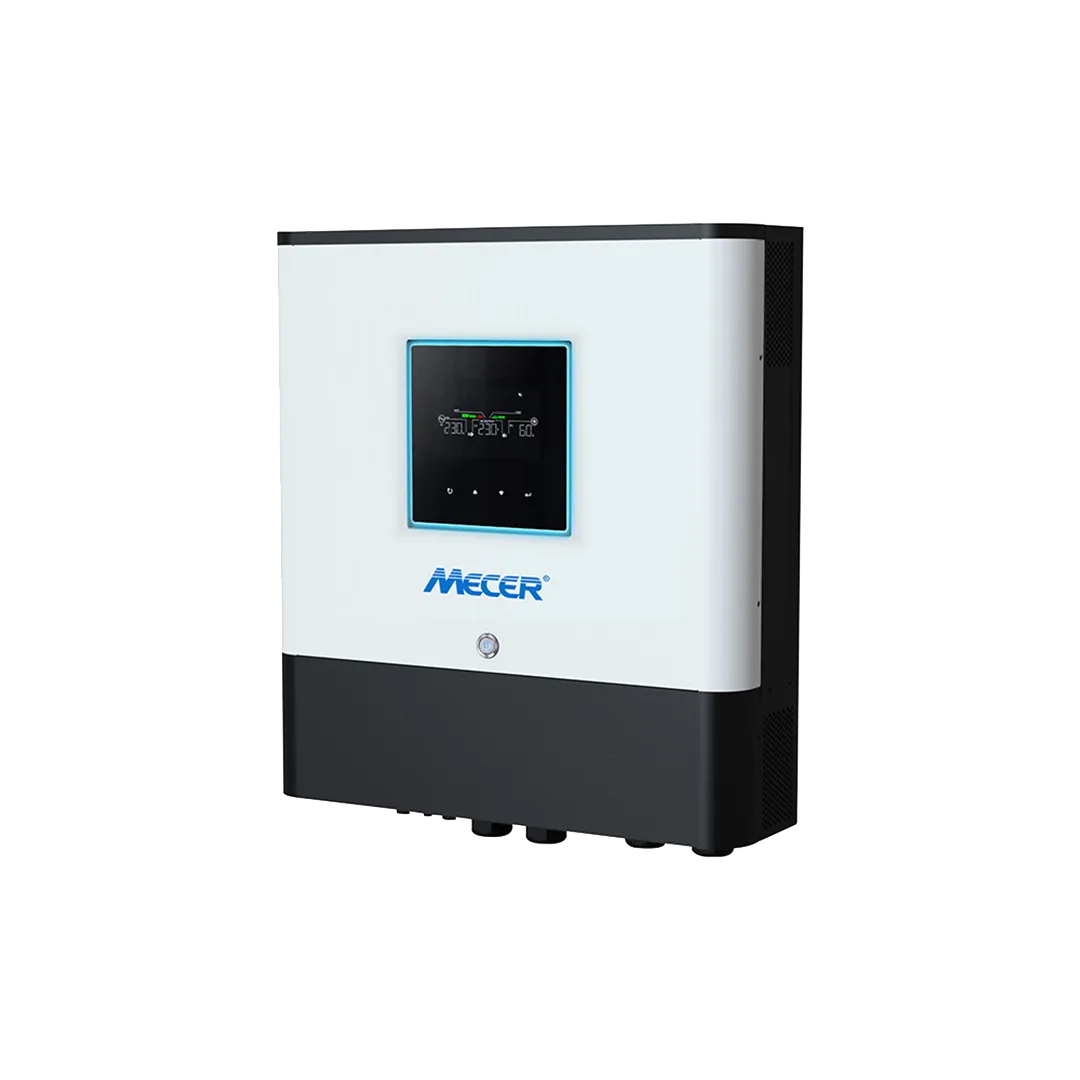

Mecer Axpert MAX 2 8kW 8kW MPPT Inverter

Mecer Axpert MAX 2 8kW 8kW MPPT Inverter

Features:

• Customizable status LED bar with RGB light
• Touchable buttons with large 5’’ coloured LCD display
• Built-in Wi-Fi for mobile monitoring (Android/iOS Apps are available)
• Supports USB On-the-Go function
• Data log events stored in the inverter
• Reserved communication port for BMS
• Battery independent function
• Configurable AC/PV output usage timer and prioritization
• Selectable high-power charging current
• Compatible to Utility mains or generator input
• Built-in DC output for DC fan, LED bulb, router etc.

Specifications:

• Rated Power: 8 000VA / 8 000W
• Parallel Capability: Yes, 6 units. Parallel card included

Input:

• Voltage: 230V AC
• Selectable Voltage Range:
• 170-280V AC (For Personal Computers)
• 90-280V AC (For Home Appliances)
• Frequency Range: 50Hz / 60Hz (Auto sensing)

Output:

• AC Voltage Regulation (Line & Batt Mode): 230V AC ±5%
• Surge Power: 16 000VA
• Efficiency (Peak): 93%
• Transfer Time:
  • 15ms (For Personal Computers)
  • 20ms (For Home Appliances)
• Waveform: Pure sine wave
• No Load Power Consumption: <70W
• DC Voltage: 12V DC +-5%, 100W

Battery:

• Battery Voltage: 48V DC
• Floating Charge Voltage: 54V DC
• Overcharge Protection: 66V DC

Solar Charger & AC Charger:

• Solar Charge Type: MPPT
• Maximum PV Array Power: 8 000W
• Number of MPPTs: 2 X 4 000W
• MPPT Range @ Operating Voltage: 90-430V DC
• Maximum PV Array Open Circuit Voltage: 500V DC
• Maximum Solar Charge Current: 150A
• Maximum AC Charge Current: 120A
• Maximum Charge Current: 150A

Physical:

• Dimensions D X W X H (mm): 158.4 X 503.6 X 530.8
• Net Weight (kgs): 20kg
• Communication Interface: RS232, USB, Dry Contact, Wi-Fi, RS485

Environment:

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
