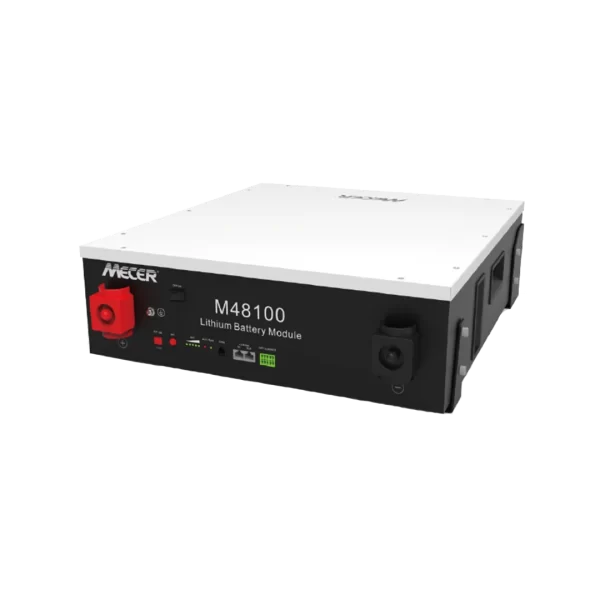

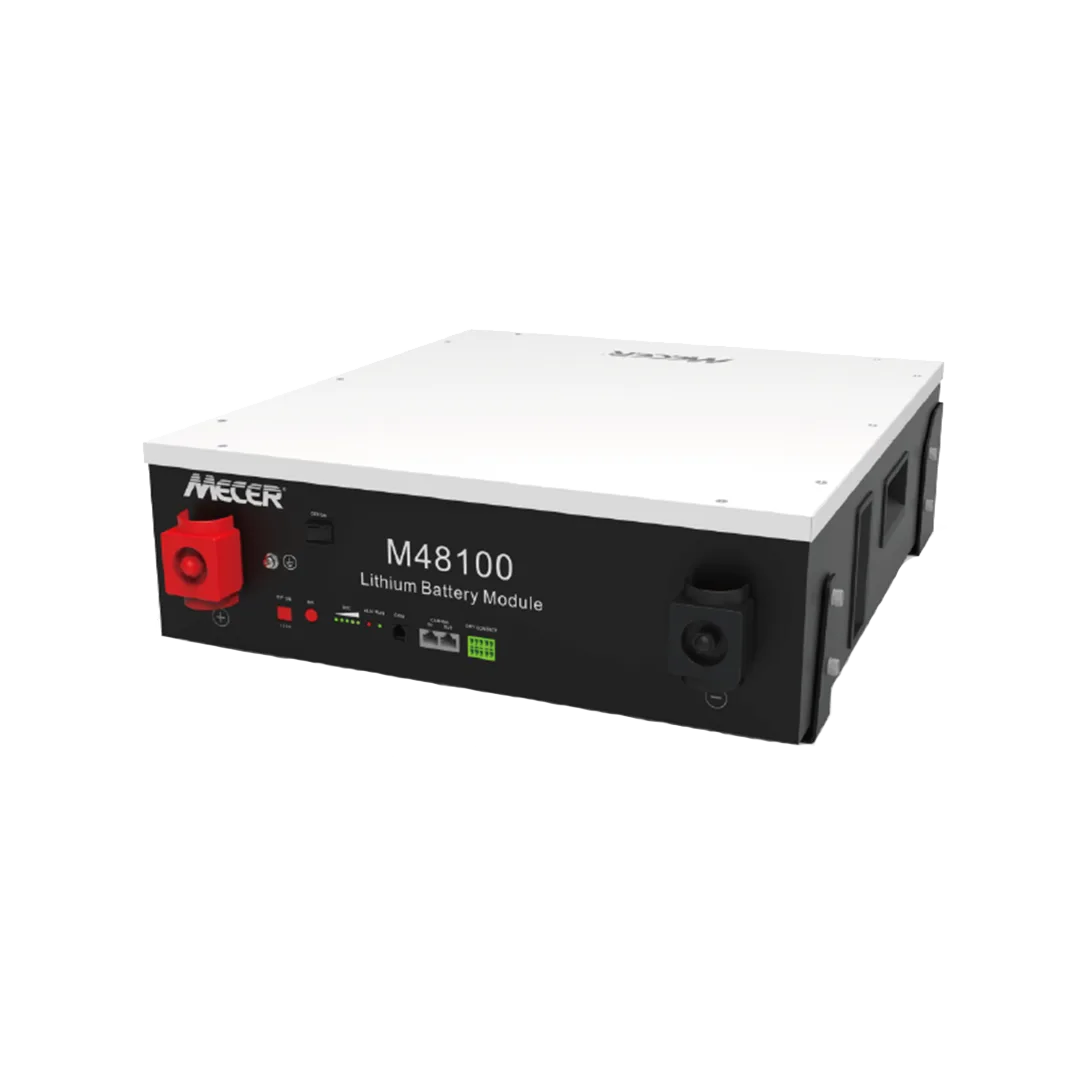

Mecer 4.8kWh Lithium Battery 48V (M5)
Mecer M48100 48V DC 4.8kWh Lithium Battery, 6000 cycles at 90% DOD, 100A Maximum continuous discharge current, 100A Maximum continuous charging current
Overview:
4.8kWh Lithium-ion Battery BX48100 LFP Module pack comes with a battery management system that protects against overcharging, over-discharging and short circuits. The BX48100 4.8kwh lithium battery provides 48V of continuous output power for superior performance and reliability.
M48100 ENERGY STORAGE SOLUTIONS
- Safe and Reliable
- Higher Efficiency
- Floor and Wall Mount
- Flexible Expansion
- M48100 adopts an economical design tailor-made for residential and light commercial
Features and advantages:
- Expandable: Up to 40 units in parallel
- Larger Capacity Base: 4.8kWh per unit
- Wide Temperature Range: – 20 ~ 50℃
- High Safety: Cell level monitoring and balancing
- Various Installation Options: Floor-standing, wall-mounted and stack
- Wide Compatibility: Matching leading inverter brands
Specifications:
- Model M48100
- Battery Type LiFePO4
- Nominal Battery Energy 4.8 kWh
- Battery Capacity 100 Ah
- Nominal Voltage 48 V
- Charging Cut-off vol. 54V
- Discharging End-of vol. 42V
- Recommended C Rate 0.5C
- Recommended Charge/Discharge Current 50A
- Max.Charge/Discharge Current 75A
- Peak Power Charge/Discharge Current 100A (15s)
- Net Weight 45kg
- Dimension (WxDxH) 504x597x155mm
- Charging Temp. Range 0-50℃
- Discharging Temp. Range -20-50℃
- Communication CAN / RS485
- Warranty 5 Years
- Warranty Document Supplied Yes
- Calendar Life [1] ≥6000 Cycles
- Protection Level IP20
- Scalability Up to 40 units in parallel
- Pros Can be used in both off-grid and hybrid setups,compact design
- Compatible Inverters Victron/SMA/Goodwe/ Imeon /Solis/SAJ / Growatt/Luxpower/Voltronic/Deye etc.
- Certification & Safety Standard CE/UN38.3
