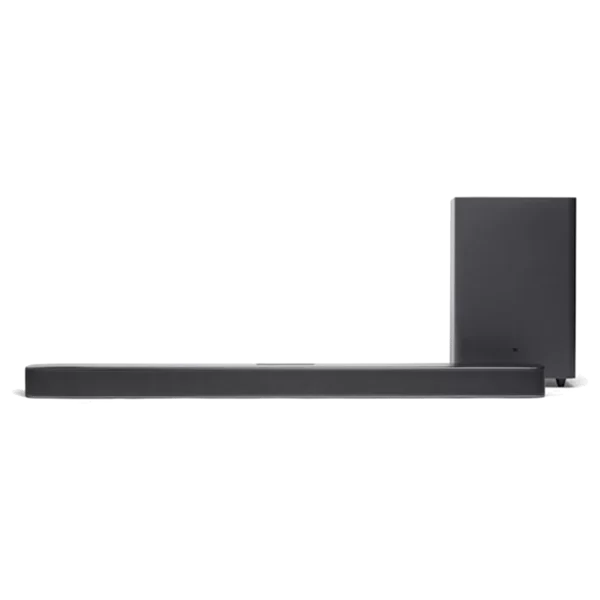

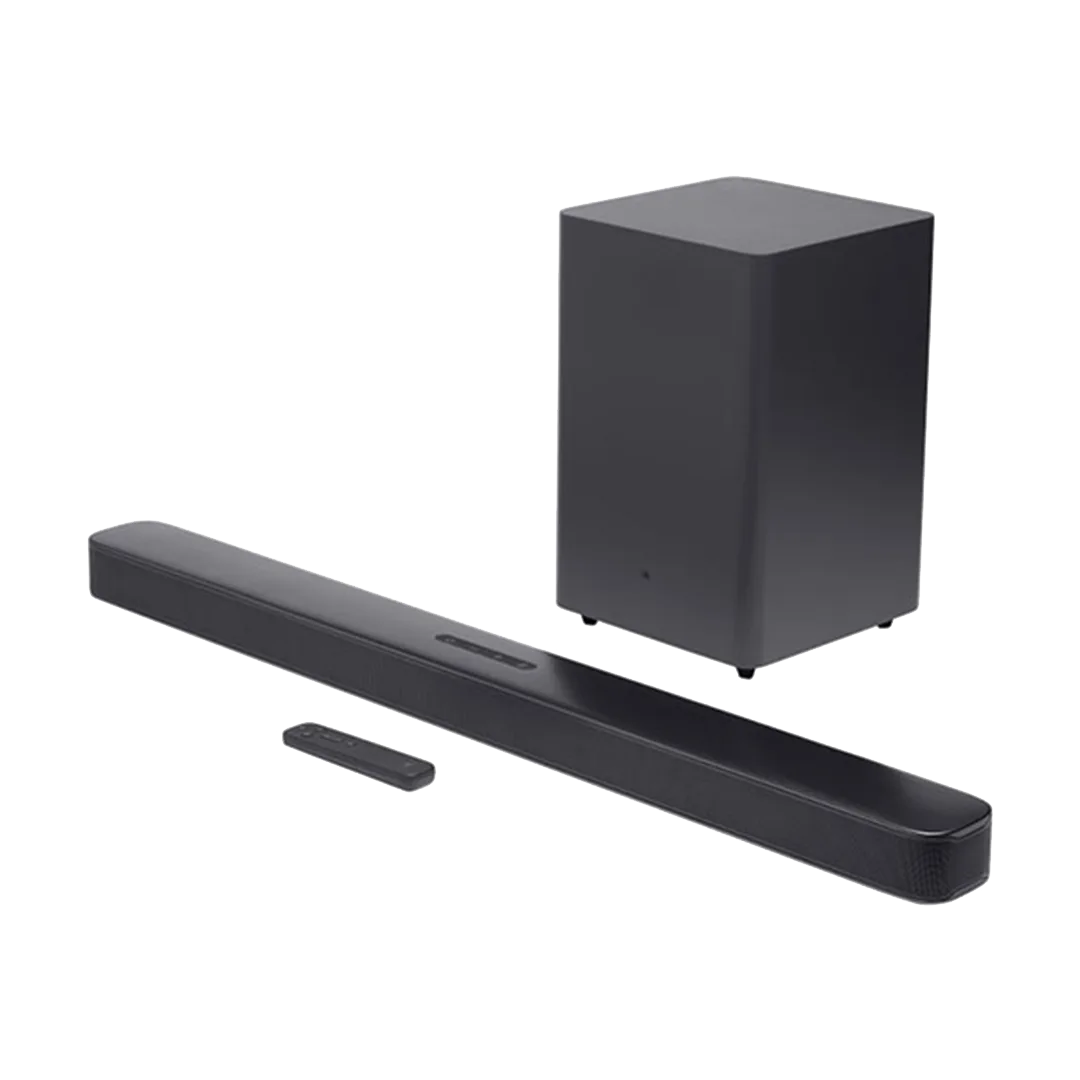

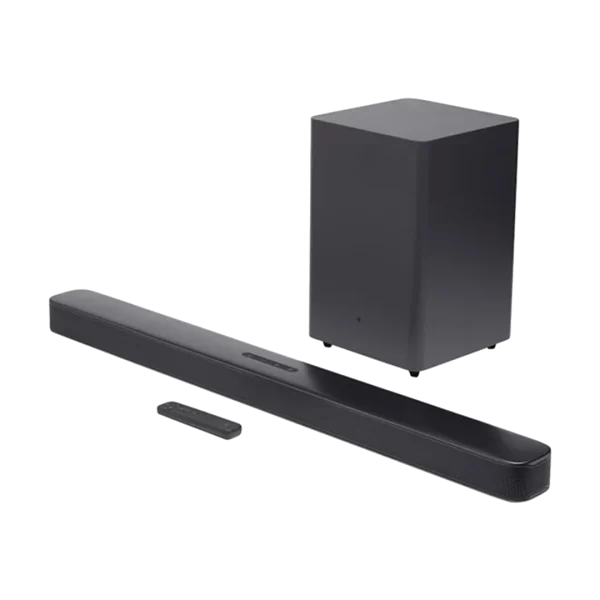

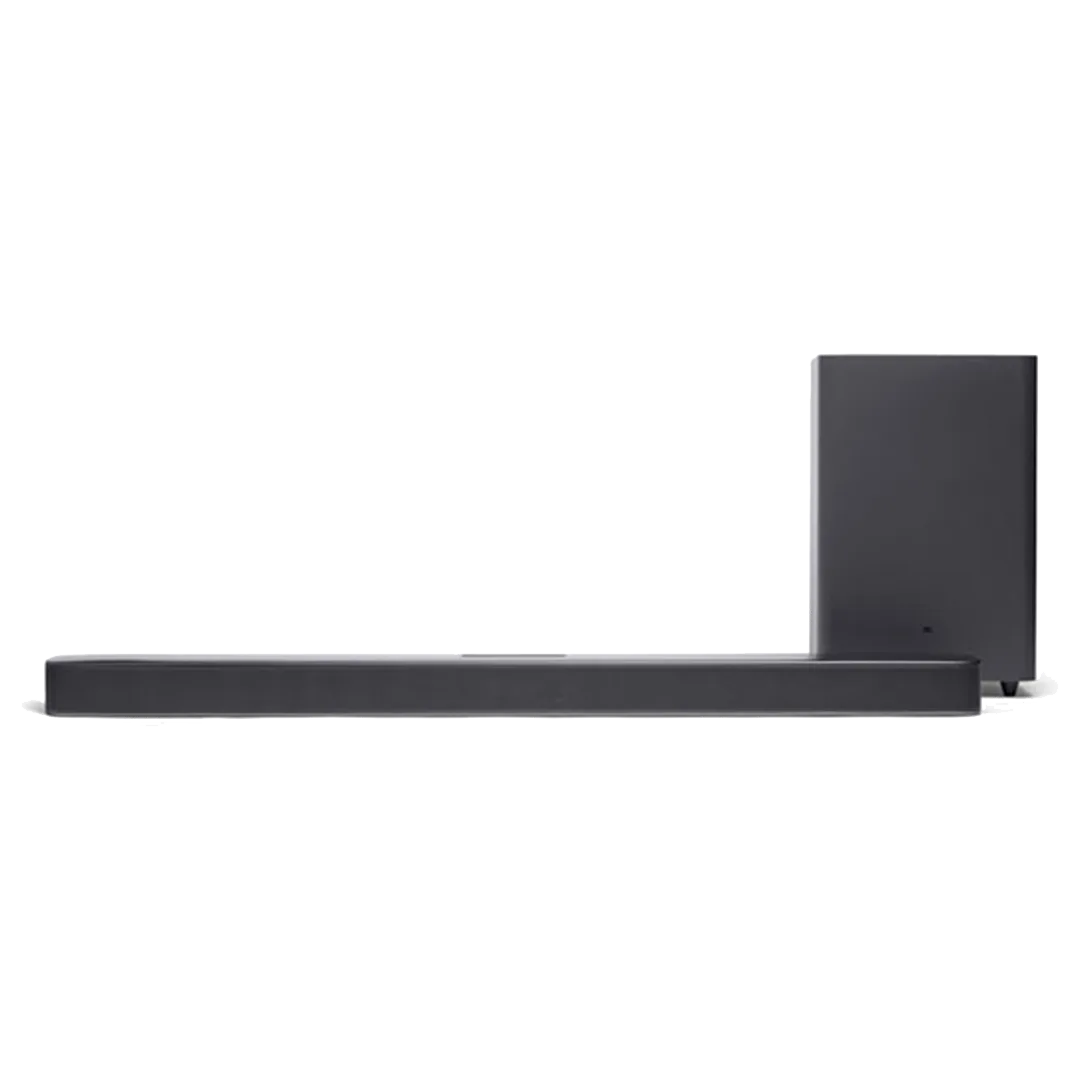

JBL Bar 2.1 Deep Bass Soundbar

Big Thrilling Bass.

Immerse your living room in sound. The JBL Bar 2.1 Deep Bass soundbar turns your living room into a cinema or stadium. JBL Bar 2.1 Deep Bass might be compact, but it delivers 300 Watts of incredible JBL signature sound. Connect to your TV with just one optical or HDMI cable or stream music from your phone with built-in Bluetooth. Dolby Digital and JBL Surround Sound bring a real cinematic experience to your home, making anything you watch or listen to, more epic, more thrilling and more powerful.

Bring the power
Fill your whole room with sound. An impressive 300W of total system power puts you in control. Your movies and music have never sounded so good.

Surround yourself with sound
JBL Surround Sound instantly brings movies, sports and music to life. Upgrade to an immersive sound experience for your TV without any extra wires or speakers.

All about the bass

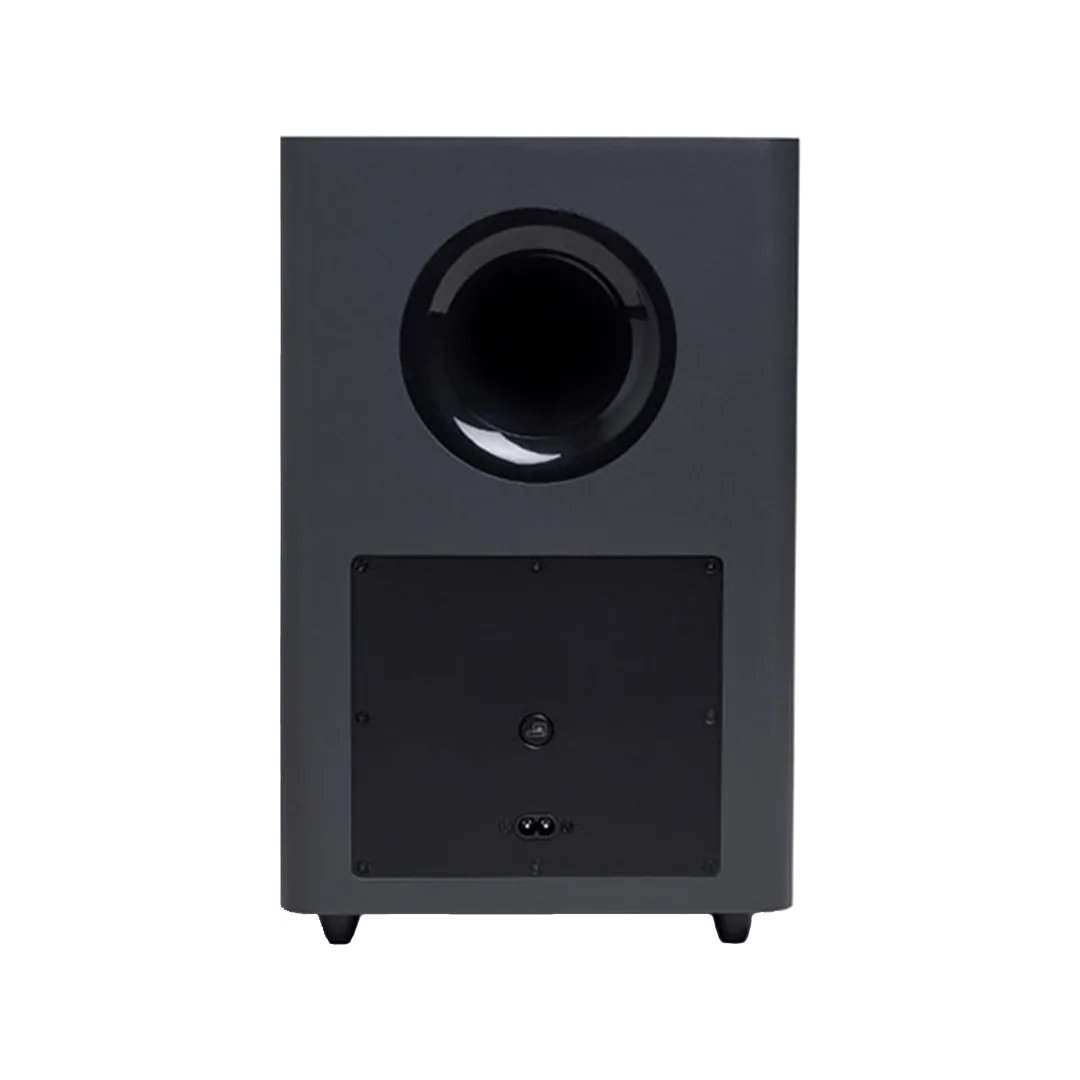

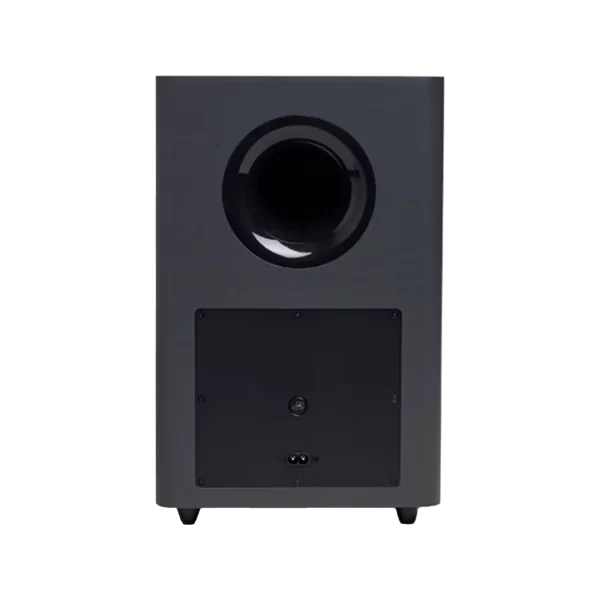

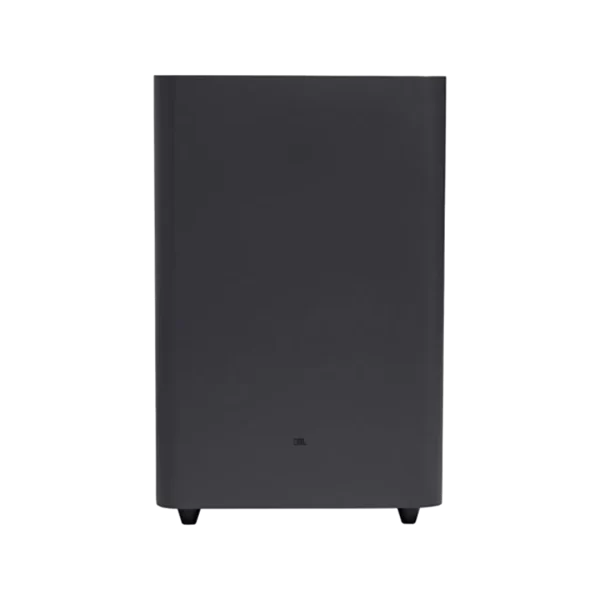

Why just listen to the bass when you can experience it? The 6.5″ wireless subwoofer delivers deep, thrilling sound.

Visit the movies, from your sofa
Get the popcorn ready. Built-in Dolby Digital gives you an authentic cinematic experience in your home.

Stream it all
Not in the mood for a film? No problem. With the JBL Bar 2.1 Deep Bass, you can also enjoy wireless music streaming via Bluetooth from your mobile or tablet.

Make a connection
Connecting JBL Surround Sound could not be easier. The HDMI or Optical cable connection is super simple to set up and use.

Technical Specifications:

General specification:

• Model:

  • Bar 2.1 Deep Bass CNTR (Soundbar Unit)
  • Bar 2.1 Deep Bass SUB (Subwoofer Unit)
  • Power supply: 100 – 240V AC, ~ 50/60Hz
  • Total speaker power output (Max. @THD 1%): 300W
  • Output power (Max. @THD 1%): 2 x 50W (Soundbar); 200W (Subwoofer)
  • Transducer: 4 x race-track drivers + 2 x 1″ tweeter (Soundbar); 6.5″ (Subwoofer)
  • Soundbar and Subwoofer standby power: <0.5W
  • Operating temperature: 0°C – 45°C

Video specification:

• HDMI Video input: 1
• HDMI Video output (With Audio return channel): 1
• HDMI version: 1.4

Audio specification:

• Frequency response: 40Hz – 20kHz
• Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for service only.)

USB specification:

• USB port: Type A
• USB rating: 5V DC/0.5A
• Supporting file format: mp3, wav
• MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 sampling rate: 16kHz – 48kHz
• MP3 bitrate: 80kbps – 320kbps
• WAV sample rate: 16kHz – 48kHz
• WAV bitrate: Up to 3000kbps

Wireless specification:

• Bluetooth version: 4.2
• Bluetooth profile: A2DP V1.3, AVRCP V1.5
• Bluetooth frequency range:
• 2402MHz–2480MHz
• Bluetooth Max. transmitting power: <10dBm (EIRP)
• Modulation type: GFSK, π/4 DQPSK, 8DPSK
• 5G Wireless frequency range: 5736.35 – 5820.35MHz
• 5G Max. transmitting power: <9dBm (EIRP)
• Modulation Type: π/4 DQPSK

Dimensions:

• Dimensions (W x H x D): 9.65 x 0.58 x 0.85 (cm) / 38″ x 2.28″ x 3.35″ (Soundbar); 2.40 x 2.40 x 3.79 (cm) / 8.9″ x 8.9″ x 14.6″ (Subwoofer)
• Weight: 2.16kg (Soundbar); 5.67kg (Subwoofer)
• Packaging dimensions (W x H x D): 10.45 x 3.10 x 4.05 cm
• Packaging weight (Gross weight): 10.4kg
