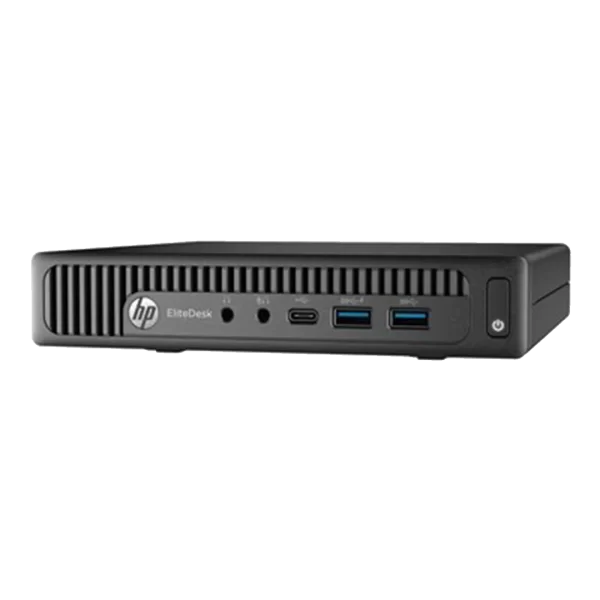

HP EliteDesk 800 G2 Mini Intel Core i5 6th 65W
Blast through your most demanding challenges with the uncompromising performance of 6th Gen Intel® Core™ processors,[2] Intel® HD 530 Graphics, and optional high-end discrete graphics and HP Turbo Drive.[3]
Help protect your PC and maintain maximum uptime with a suite of solutions that help stop security breaches, including HP BIOSphere[4] with SureStart.
Get the reassurance of a PC that goes through 120,000 hours of HP Total Test Process and is designed to pass MIL-STD testing.[5] Add an optional Dust Management Solution for enhanced reliability in dusty environments.
Extend the life of your investment with a toolless chassis and a range of expansion slots, bays, ports, and connectors for the most demanding business needs.
SPECIFICATIONS:
- Platform Technology Intel vPro Platform
- Type Personal computer
- Product Form Factor Mini desktop
- Built-in Devices Speaker, hood sensor
- Embedded Security Trusted Platform Module (TPM 1.2) Security Chip
- Localization Language: English / region: United States
Processor / Chipset
- CPU Intel Core i5 (6th Gen) 6500T
- Clock Speed 2.5 GHz
- Max Turbo Speed 3.1 GHz
- Number of Cores Quad-Core
- CPU Upgradability: Upgradable
- Processor Main Features: Intel Turbo Boost Technology 2
- CPU Socket: LGA1151 Socket
- Chipset Type: Intel Q170
Cache Memory
- Installed Size: 6 MB
- Cache Per Processor: 6 MB
RAM
- Installed Size: 8 GB
- Technology: DDR4 SDRAM – non-ECC
- Effective Memory Speed: 2133 MHz
- Rated Memory Speed: 2133 MHz
- Memory Specification Compliance PC4-17000
- Form Factor: SO-DIMM 260-pin
- Slots 2 (total) / 1 (empty)
- Features Unbuffered, dual channel memory architecture
- Configuration Features: 1 x 8 GB
Hard Drive
- Type: HDD
- Capacity: 1 x 500 GB
- Interface Type: SATA 6Gb/s
- Spindle Speed: 7200 rpm
Storage Controller
- Type: 1 x SATA
- Controller Interface Type: SATA 6Gb/s
Optical Storage
- Type: No optical drive
Graphics Controller
- Graphics Processor: Intel HD Graphics 530 Dynamic Video Memory Technology
- Video Interfaces: VGA, DisplayPort
- HDCP Compatible: Yes
- Max Monitors Supported: 3
Audio Output
- Sound Output Mode Stereo
- Max Sampling Rate 192 kHz
- Compliant Standards High-Definition Audio, DTS Studio Sound
Input Device
Type Mouse, keyboard
- Keyboard
- Keyboard Name HP Business Slim Keyboard
- Interface USB
- Localization & Layout US
- Mouse
- Interface USB
Networking
- Ethernet Controller Intel I219-LM
- Wireless LAN Supported Yes
- Wireless NIC Intel Dual Band Wireless-AC 8260
- Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 2.1 EDR, IEEE 802.11ac, Bluetooth 4.1
- Remote Management Protocol DMI
- Features Wake on LAN (WoL), PXE support, auto-uplink (auto MDI/MDI-X)
- Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3az
Expansion / Connectivity
- Bays 1 (total) / 0 (free) x internal 2.5″ x 1/8H
- Slots 1 (total) / 0 (free) x CPU | 2 (total) / 1 (free) x SO-DIMM 260-pin | 1 (total) / 0 (free) x M.2 Card (x1 mode) | 1 (total) / 1 (free) x M.2 Card (x4 mode)

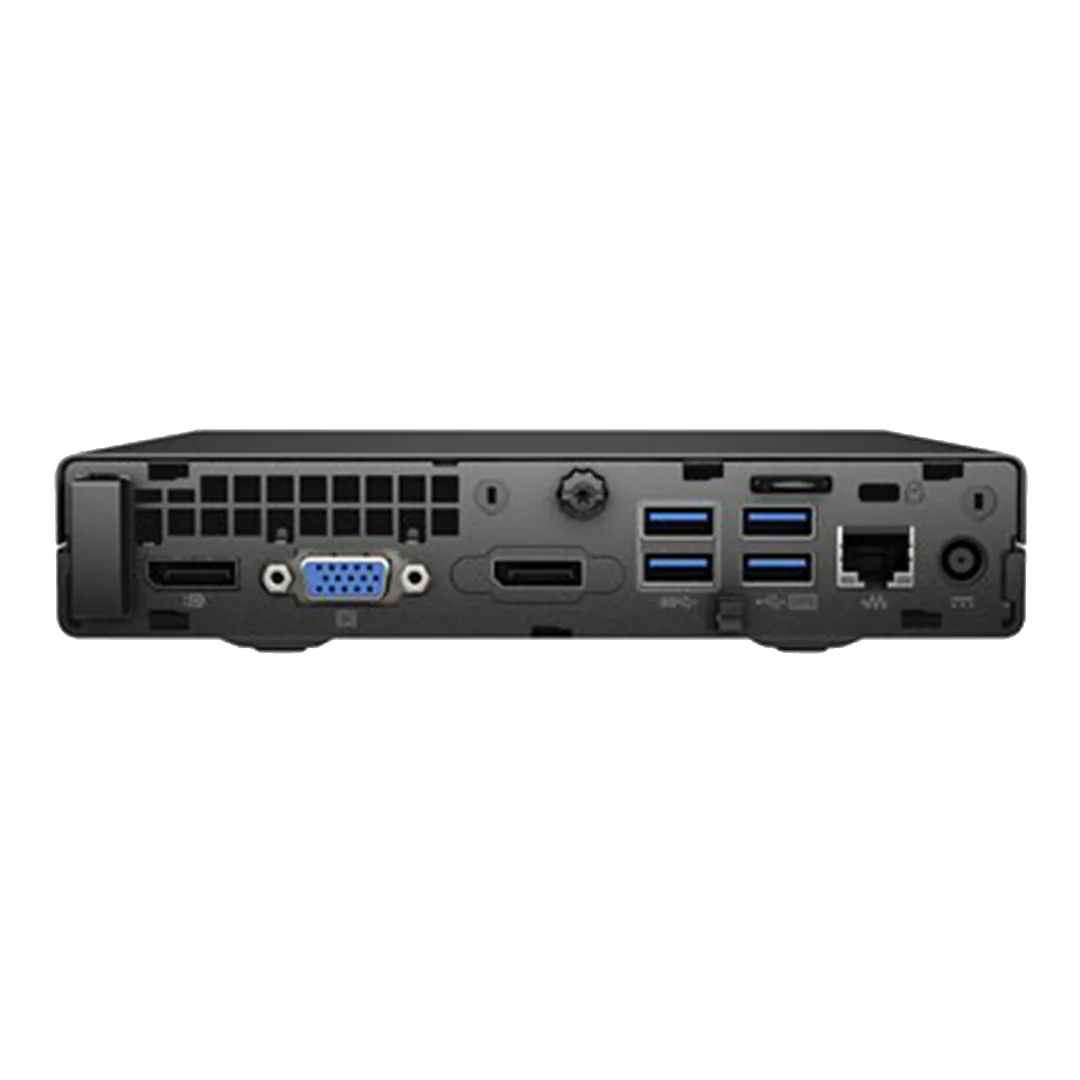

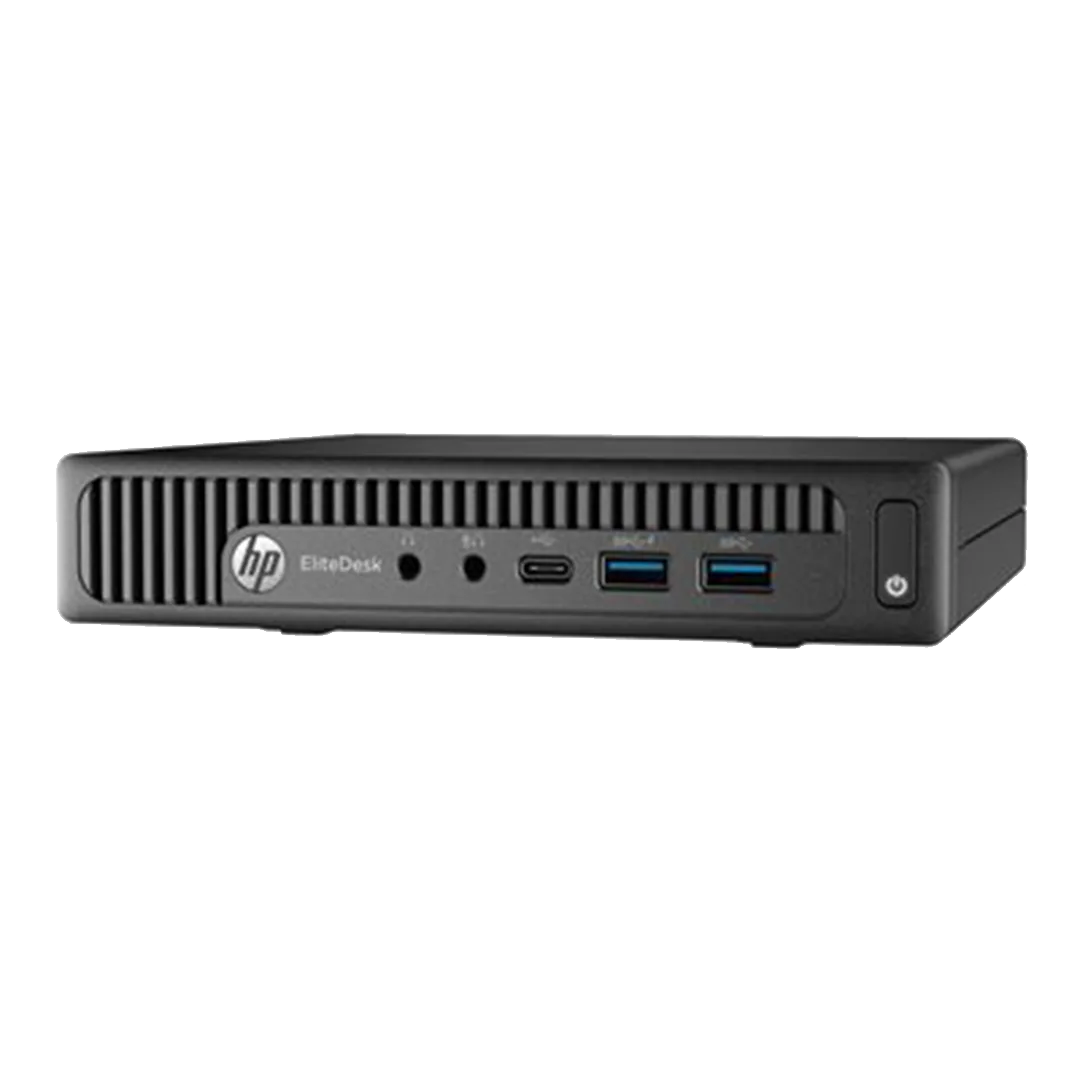

- Interfaces 1 x headphones – mini-jack (1 in front) | 1 x headphones/microphone – mini-jack (1 in front) | 1 x USB-C 3.0 (1 in front) | 6 x USB 3.0 (2 front, 4 rear) | 1 x VGA | 2 x DisplayPort | 1 x LAN (Gigabit Ethernet) – RJ-45
Miscellaneous
- Theft/Intrusion Protection Security lock slot (cable lock sold separately)
- Security Slot Type Kensington security slot
- VESA Mounting Interface 100 x 100 mm
- Compliant Standards ACPI, CCC, CECP, SEPA, low halogen
- Manufacturer Selling Program HP Smart Buy
Power
- Device Type Power adapter
- Voltage Required AC 120/230 V (50/60 Hz)
- Power Provided 65 Watt
- Efficiency 89%
- Power Factor Correction Yes (active)
Operating System / Software
- OS not provided
Environmental Standards
- ENERGY STAR Certified Yes
