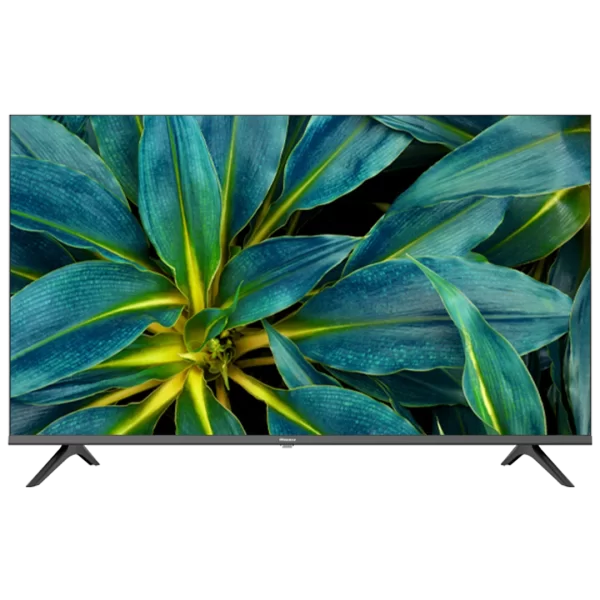

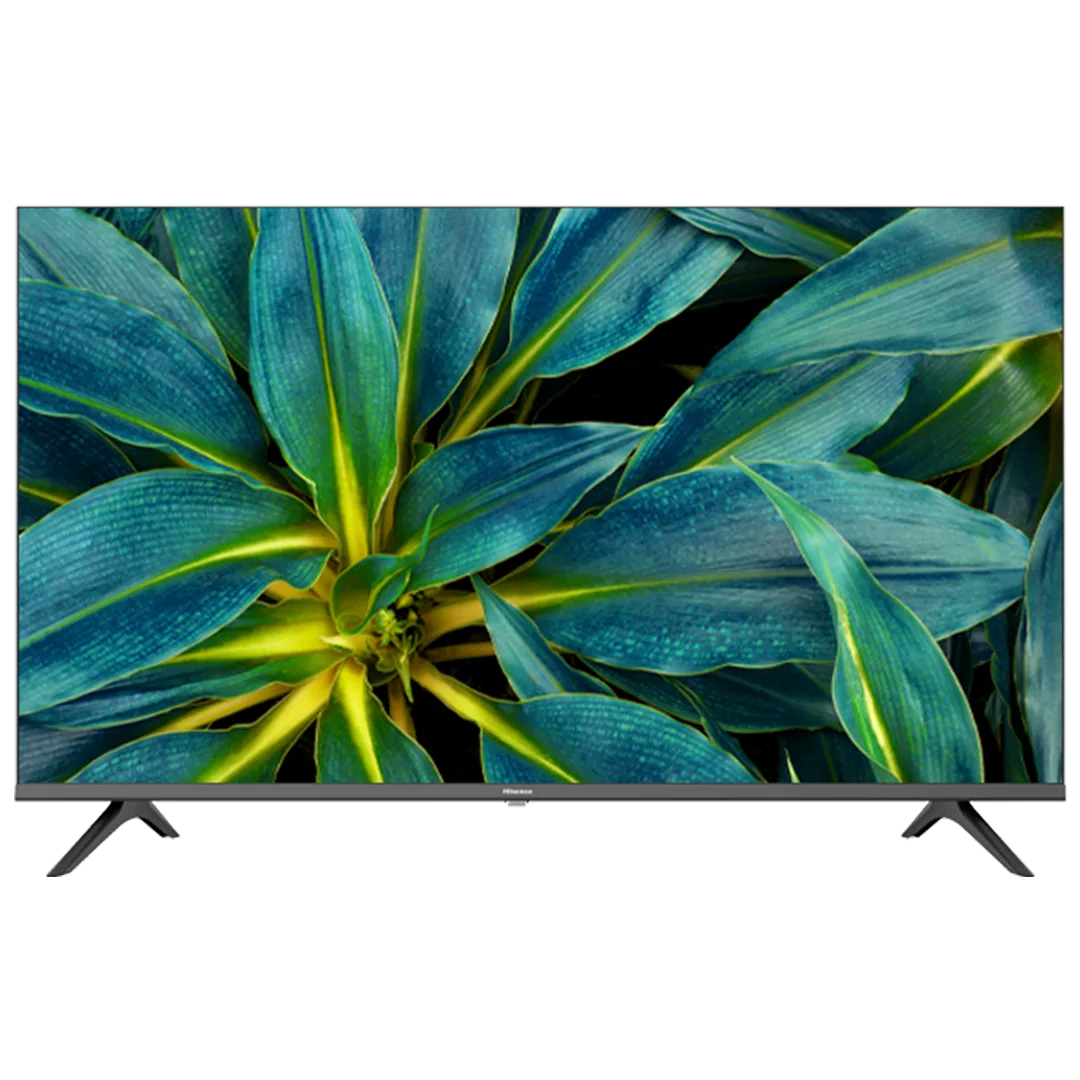

Hisense 32″ LED Matrix TV 32A5200F

Hisense 32″ LED Matrix TV 32A5200F

Image Display

• Panel Manufacturer
  BOE
• Active Display Area, Horizontal Dimension
  697,685mm
• Active Display Area, Vertical Dimension
  392,256mm
• Screen Size (Rounded to nearest integer)
  80cm
• Screen Size (Rounded to nearest integer)
  32inch
• Display Technology
  LCD / LED lit
• Backlight Source
  LED Matrix
• Resolution (Horiz x Vert)
  1366 x 768pixel
• Screen Curvature Radius
  -mm
• Colour Depth
  8bit
• Image Refresh Frequency
  60Hz
• Smooth Motion Rate
  120
• Maximum Brightness of White
  300cd / m2
• Native Contrast Ratio
  3000:1
• Viewing Angle (Horiz / Vert)
  178 / 178 Degrees
• Response Time
  6,5ms

Connectivity

• RF- Radio Frequency Input
  1
• AV Input
  1
• USB Interface Type 2.0 (Qty / List ….)
  2 / USB 1, USB 2
• Optical Digital Audio Output (SPDIF)
  1
• Earphone Jack
  1

HDMI Ports

• HDMI Inputs
  2
• HDMI Type 1.4 with HDCP Version 1.4
  HDMI 1, HDMI 2
• ARC – Audio Return Channel
  HDMI 1
• CEC – Consumer Electronics Control via HDMI
  Yes
• Digital TV Reception
• Television System (DVB-T / DVB-T2)
  Yes / Yes
• Video Decoder (MPEG2 / MPEG 4)
  Yes / Yes
• AC3 Surround Sound Decoder
  Yes
• Subtitles
  Yes

Analogue TV Reception

• Colour – Sound Systems in VHF Band
  PAL B
• Colour – Sound Systems in UHF Band
  PAL B
• Stereo Sound Decoder {A2, Nicam, ….}
  NICAM
• Teletext / Teletext Signal Interruption (TAB Compliant) / 16:9 TLTX
  No
• Subtitles
  Yes

Image Processing

• Zoom Function Settings (4:3 / 16:9 / Auto / Zoom 1 / Zoom 2)
  Yes / Yes / Yes / No / No
• Sound
  Audio Power Output per Channel
  6 Watt
• Number of Speakers (Tweeter / Midrange / Woofer)
  0 / 1 / 0
• Automatic Volume Level (AVL)
  Yes
• Audio Equalizer
  Yes
• Dolby Digital
  Yes
• Features
  On / Off Timer
  Yes
• Power Off if No Signal
  Yes
• Sleep Timer
  Yes
• Program Lock
  Yes
• User Interface
  Linux
• Software Version OSD Indication
  Yes
• Legal Requirements: Disclaimer / Acceptance of Terms
  Yes / Yes
• Favourite Channels List
  Yes

USB Media Player

• Personal Video Recorder
  Yes
• Time Shift
  Yes
• DTV Recording (EPG Scheduling / Start from Standby)
  Yes / Yes
• DMP – Digital Media Player Content (Music / Video / Photos / Text)
  Yes / Yes / Yes / No
• DMP File Allocation Table (FAT / FAT32 / exFAT / NTFS)
  Yes / Yes / No / Yes
• PVR File Allocation Table (FAT / FAT32 / exFAT / NTFS)
  Yes / Yes / No / Yes
• Hotel Lock
  Protected Hotel Lock Submenu (Password / Fixed Code)
  No / Yes
• Sub-Menu Lock, Including Tuning Lock
  Yes
• Maximum Volume Lock
  Yes
• Power On Volume
  Yes
• Power On, Apply Default Sound / Image Settings
  Yes
• Power On Source Selection
  Yes
• Power On RF Channel Selection
  Yes
• Power On Mode (On / Standby / Last)
  Yes / Yes / Yes
• Inputs Access (Enable / Disable)
  Yes

Hardware

• Processor / Cores
  MSD3663LSAT – SW
• Colour (Front Bezel, Rear, Stand)
  Black / Black / Black
• Compact Packaging
  Yes
• Supply Range [Voltage / Frequency]
  100 ~ 240V / 50, 60Hz Volt / Hz
• Standby Consumption
  < 0.5Watt
• Maximum Time Delay Power On to Sound an Image
  sec
• Installation
  Stand Area (Width / Depth)
  671 × 160mm
• Wall Mount Dimensions (Horiz x Vert)
  100 x 200mm
• Wall Mount, Screw Thread
  M6mm
• VESA Compliance
  Yes
• Power Cord Length
  155cm
• Accessories
  Remote Controller (Technology / Part number)
  IR / ER-22601A
• Battery (Size / Quantity)
  AAA / 2
• User Manual (Available Online) / Quick Setup Guide (Print)
  1 / 1
• Warranty [In User Manual | In Separate Sheet]
  In separate sheet

Dimensions

• Dimensions with Stand (WxHxD)
  717 × 469 × 160mm
• Dimensions without Stand (WxHxD)
  717 × 427 × 86mm
• Carton Box Dimensions (WxHxD)
  811 × 515 × 129mm
• Net Weight (with Stand / without Stand)
  3.6 / 3.7kg
• Gross Weight
  5,5kg
• Licensing and Certification
  EMC – Electromagnetic Compatibility
  Yes
• CB – Electrical Safety
  Yes
• Dolby Digital
  Yes
