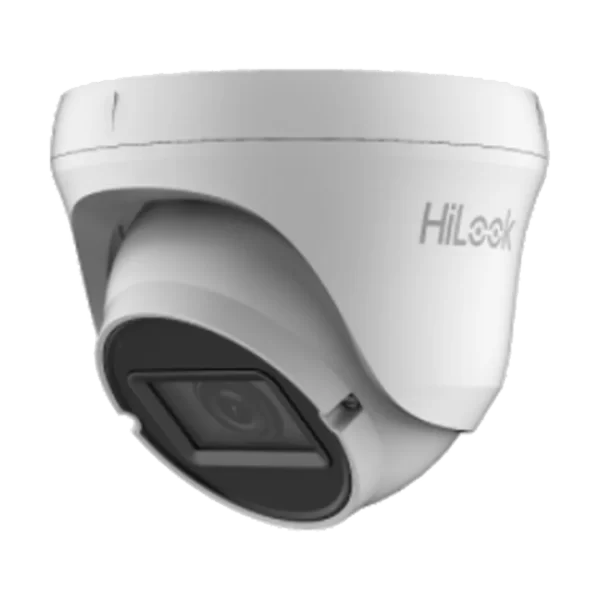

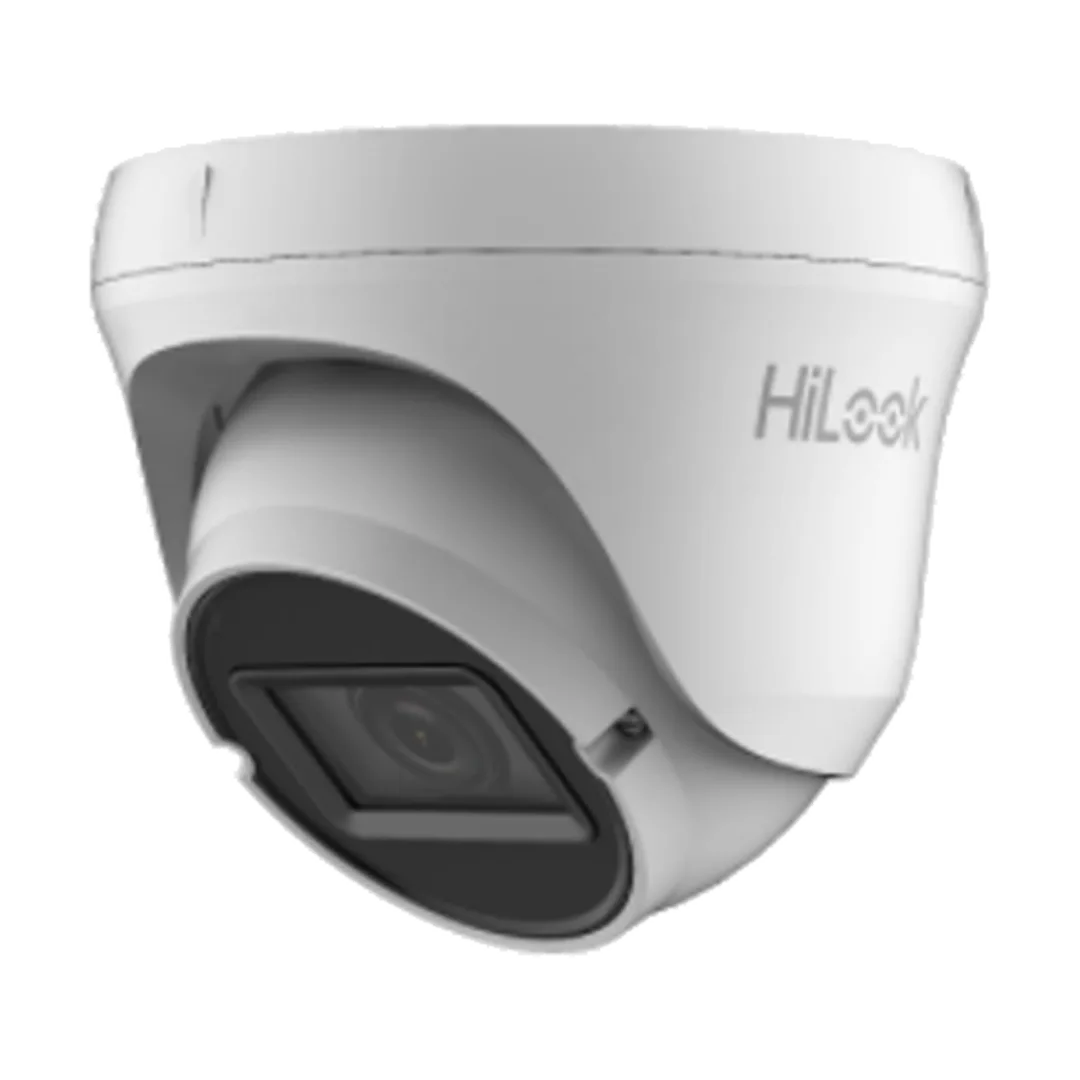

HiLook 2MP Manual Varifocal Turret Camera
Specifications:
Camera
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: Color: 0.01 Lux@(F1.2, AGC ON), B/W: 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & Night: IR Cut Filter
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm to 12 mm
- Focal Length & FOV: Horizontal FOV 111.5° to 33.4°
- Lens Mount: Φ14
- Illuminator
- Supplement Light Range: IR Distance: Up to 40 m
- Smart Supplement Light: Yes
- Image Settings: Brightness; Mirror; Sharpness; AGC
- Frame Rate: PAL:1080p@25fps, NTSC: 1080p@30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: BLC
- Noise Reduction: 2D DNR
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS;1 HD analog output
General
- Power: 12 VDC ± 15%, Max. 5 W
- Material: Main body: Metal, Enclosure: Plastic
- Dimension:
- Φ 120 mm × 105.06 mm (Φ 4.72″ × 4.16″)
- Approx. 450 g (0.99 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
- Language: English
Approval
- Protection: IP66
