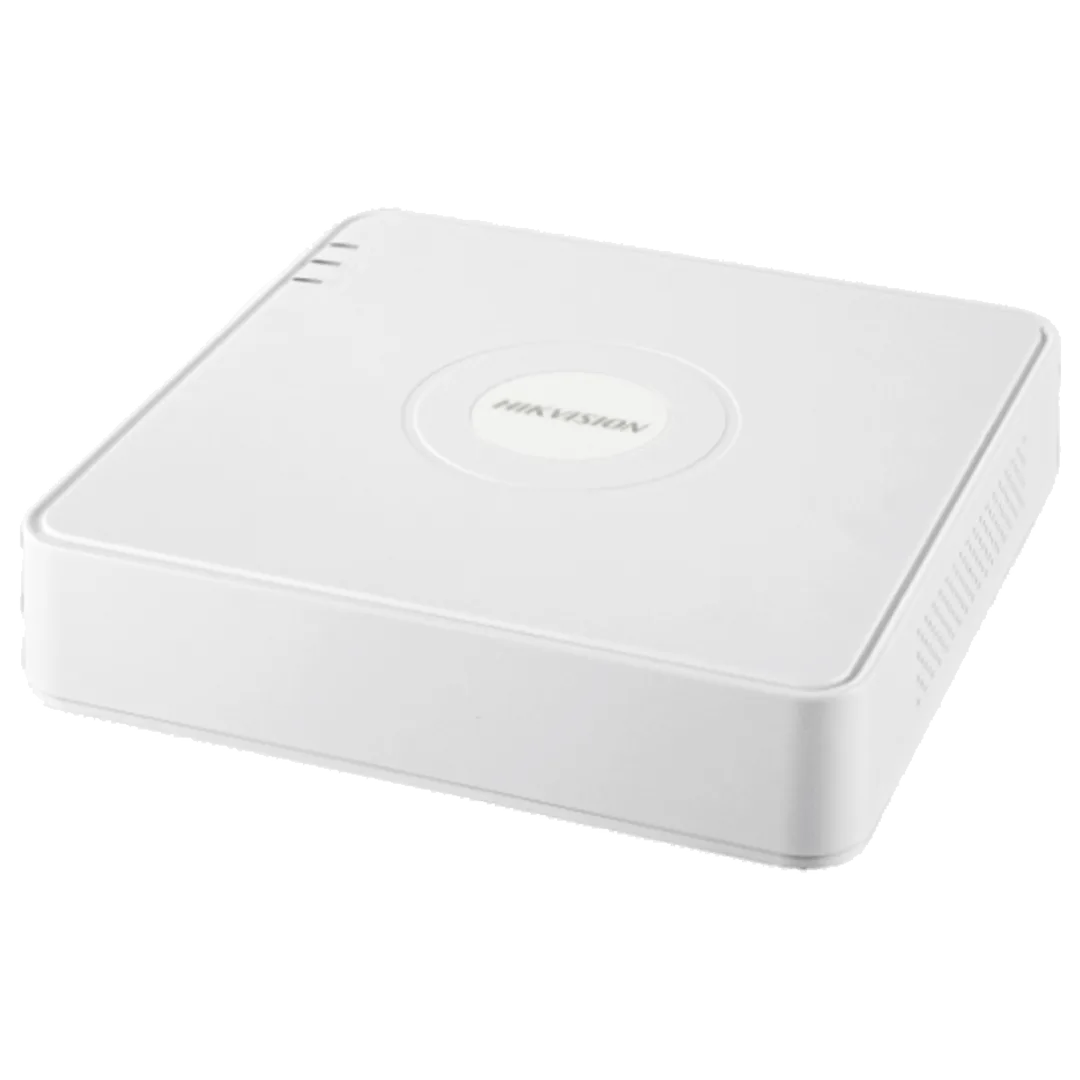

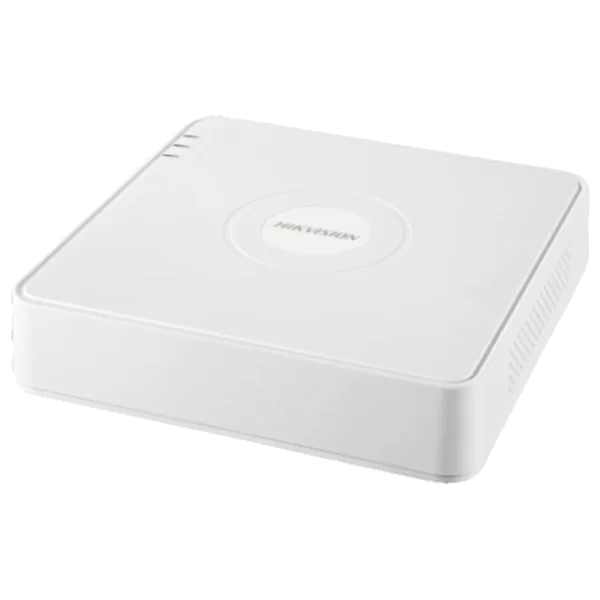

Hikvision 4-ch Mini 4 PoE 1U NVR

Hikvision
Availability:

5 in stock


  • H.265+/H.265/H.264+/H.264 video compression
  • Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
  • Up to 4-ch network camera inputs
  • Up to 4-ch 1080p decoding capability
  • HDMI and VGA simultaneous output

R1,869.90 incl. VAT

5 in stock

Hikvision 4-ch Mini 4 PoE 1U NVR

Video And Audio

  • IP Video Input:
    • 4-ch
    • Up to 4 MP resolution
  • Incoming Bandwidth: 40 Mbps
  • Outgoing Bandwidth: 60 Mbps
  • HDMI Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output Mode: HDMI/VGA simultaneous output

Decoding

  • Decoding Format: H.265+/H.265/ H.264+/H.264
  • Recording Resolution: 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous Playback: 4-ch
  • Decoding Capability: [email protected] (25 fps), [email protected] MP (25 fps)
  • Stream Type: Video, Video & Audio

Network

  • Remote Connection: 16
  • Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
  • Network Interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

  • Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ≤ 36 W
  • Standard: IEEE 802.3 af/at
  • Auxiliary Interface
  • SATA: 1 SATA interface
  • Capacity: Up to 6TB capacity for each disk
  • Alarm In/Out: N/A
  • USB Interface: Rear panel: 2 × USB 2.0

General

  • Power Supply: 48 VDC, 1 A
  • Consumption: ≤ 10 W
  • Working Temperature: -10 to +55º C (+14 to +131º F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H):
    • 200 × 200 × 48 mm (7.9″ × 8.1″ × 1.9″)
    • ≤ 1 kg (2.2 lb)

Certification

  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN50130-4, EN 61000-3-2,EN 61000-3-3
SKU: DS-7104NI-Q1/4P Categories: , Tags: , , , ,
Weight1 kg
Dimensions4.8 × 20.0 × 20.0 cm
