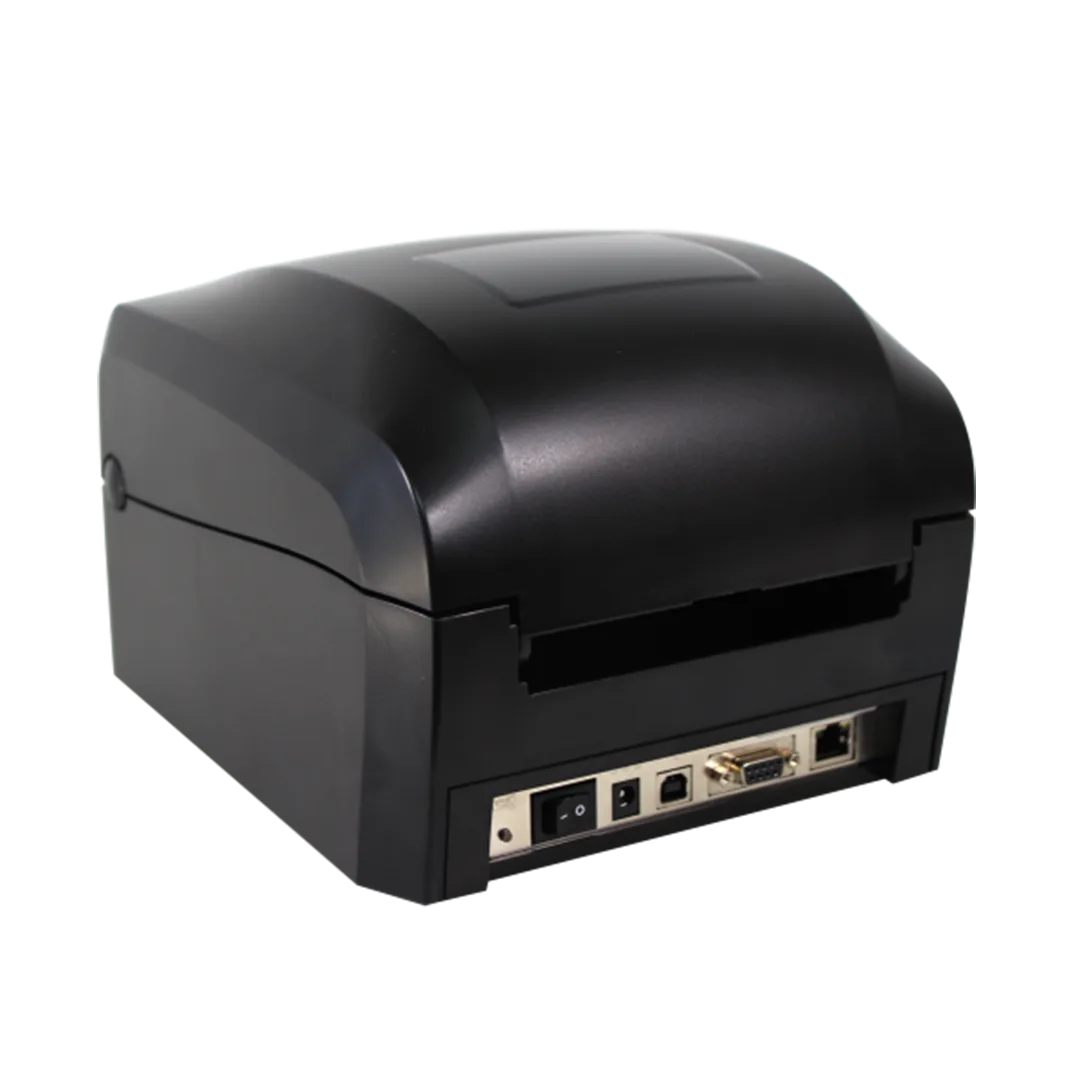

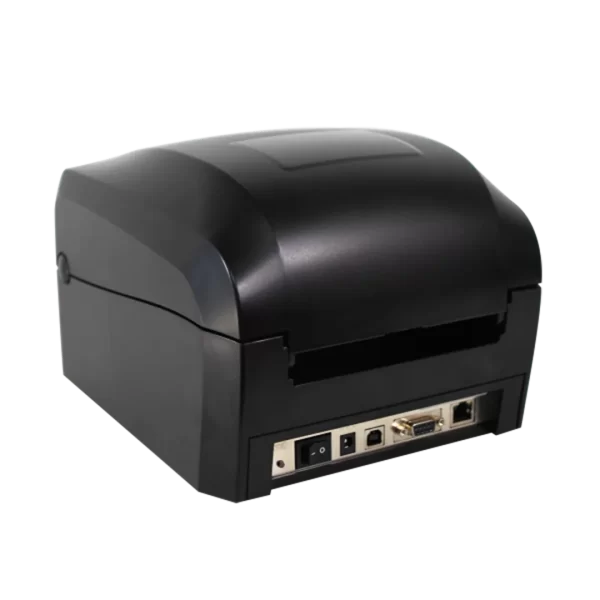

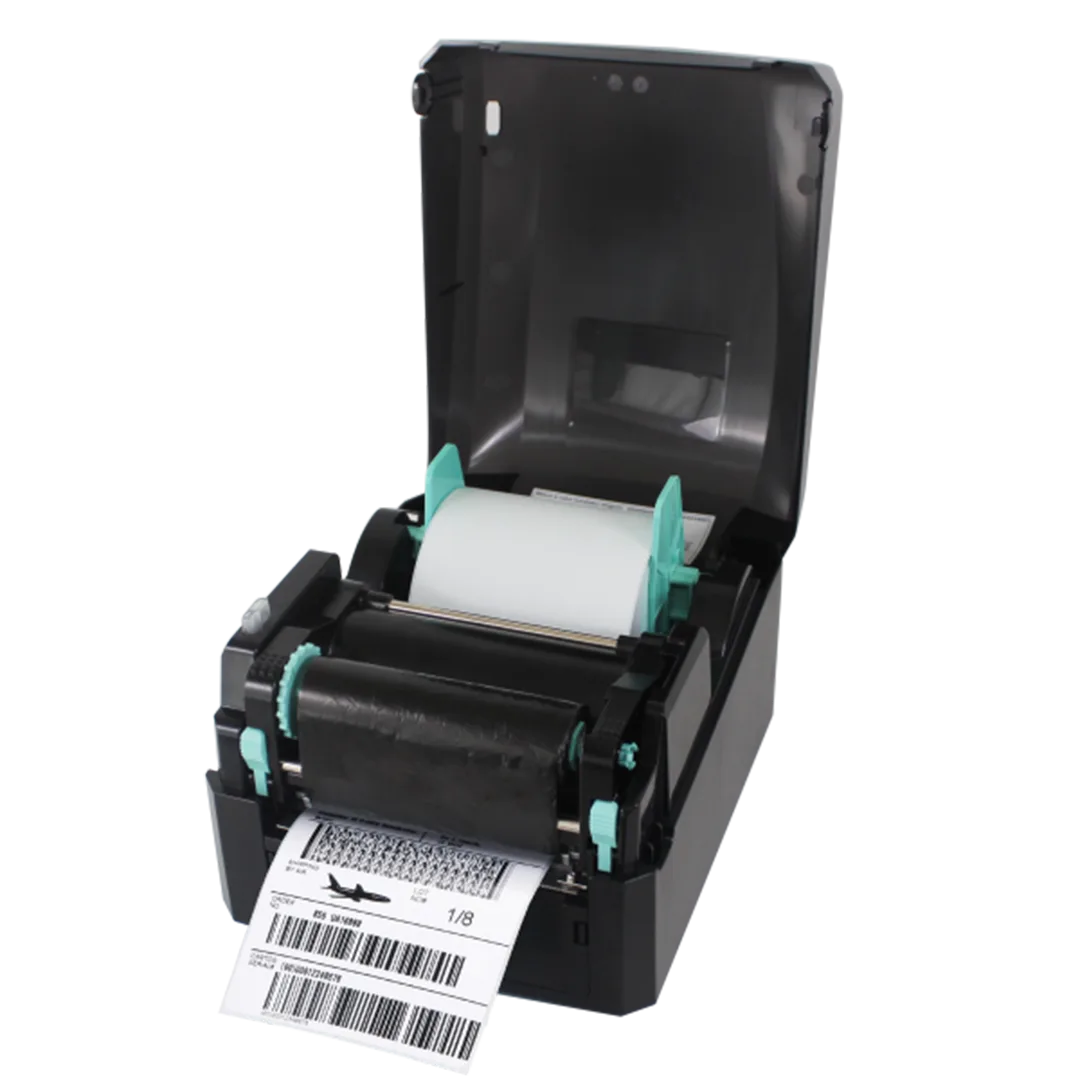

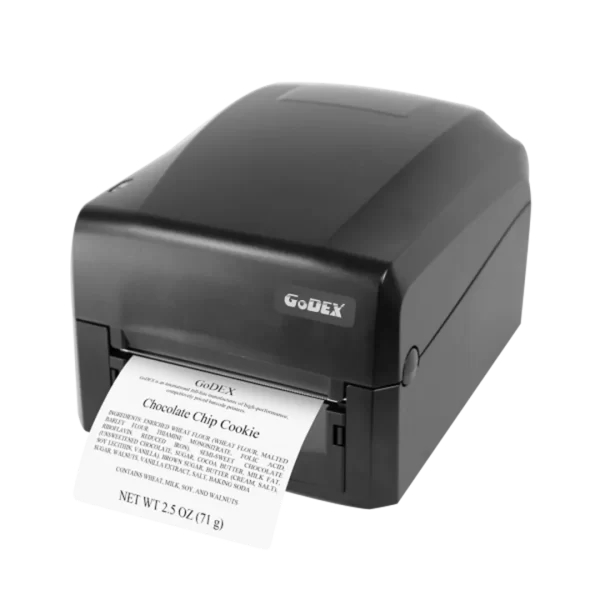

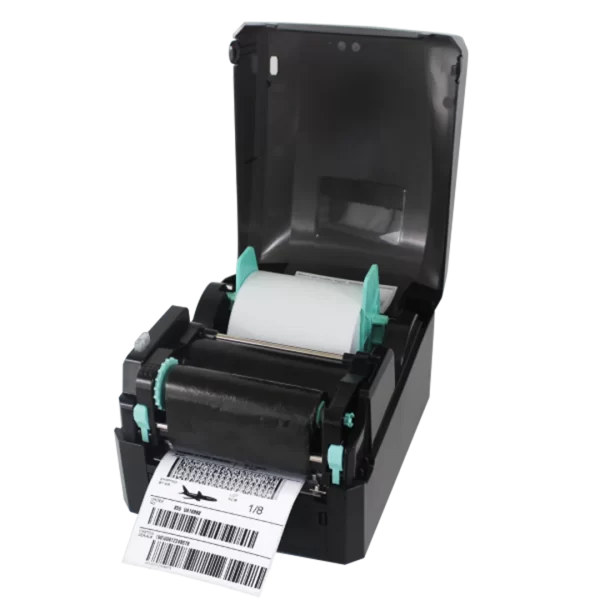

GoDex GE300U Thermal Transfer Desktop Printer

Use the G300 for all you light to medium duty thermal transfer barcode printing applications.

• Ethernet, Serial and USB ports included
• Uses standard low-cost labels and ribbons
• High cost-effectiveness for large amount printing
• Free labeling software GoLabel / QLabel for easy printing

Specs:

Print Method

• Thermal Transfer / Direct Thermal

Resolution

• 203 dpi (8 dot/mm) / 300 dpi (12 dots/mm)

Print Speed

• 5 IPS (127 mm/s) / 4 IPS (102 mm/s)

Print Width

• 4.25” (108 mm) / 4.16” (105.7 mm)

Print Length

• Min. 0.16” (4 mm)** ; Max. 68” (1727 mm) / Min. 0.16” (4 mm)**; Max. 30” (762 mm)

Processor

• 32 Bit RISC CPU

Memory

• Flash 8 MB Flash (4 MB for user storage) SDRAM 16 MB

Interfaces

• USB 2.0
• Serial port: RS-232 (DB-9)
• Ethernet 10/100 MbpsRibbon
• Types Wax, Wax / Resin, Resin Length 360’ (110 m) Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Ribbon Roll Diameter 1.57” (40 mm) Core Diameter 0.5” (12.7 mm)

Control Panel

• One Tri-color LED: Power (Green, Orange and Red)
• Function Key: FEED
• Calibration Button
