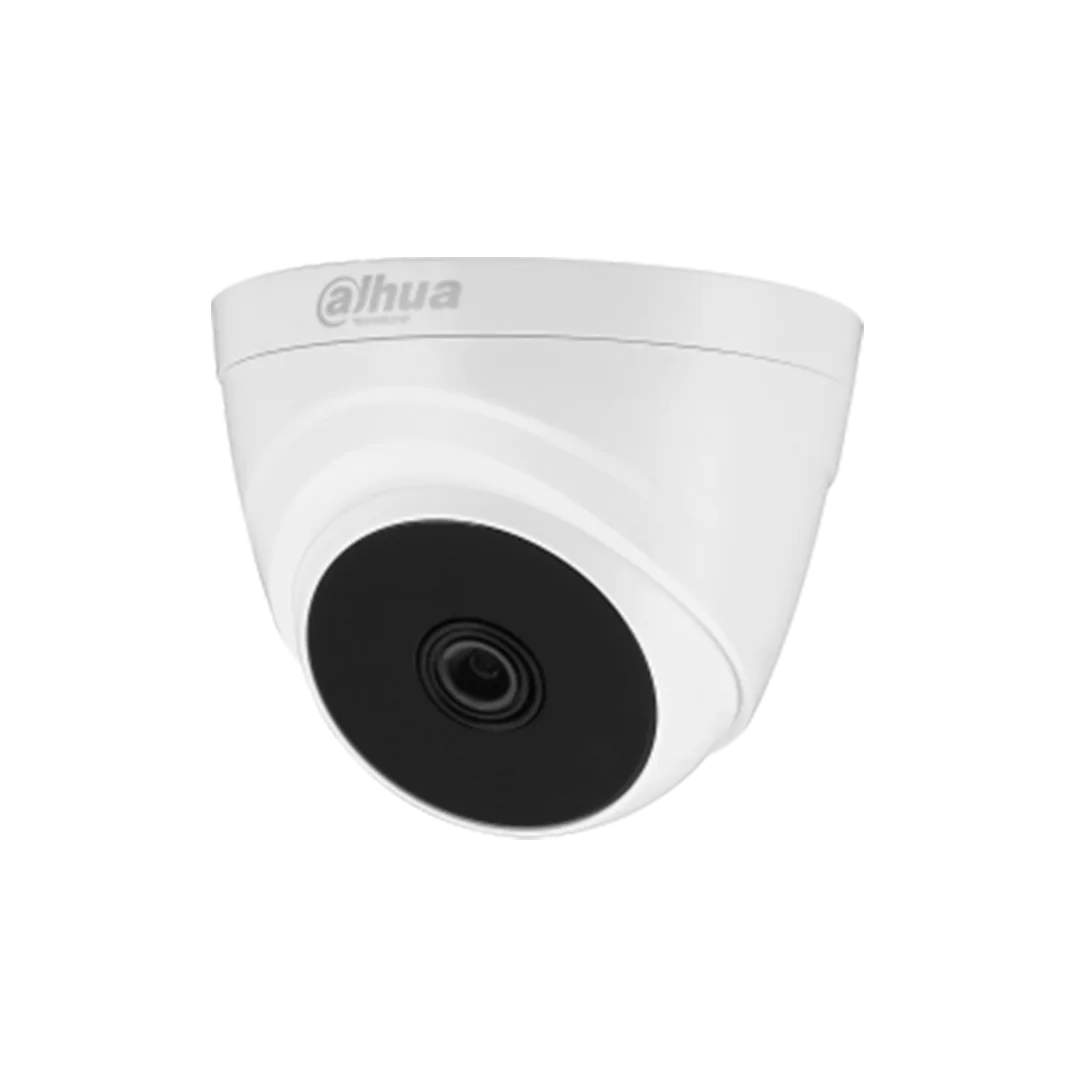

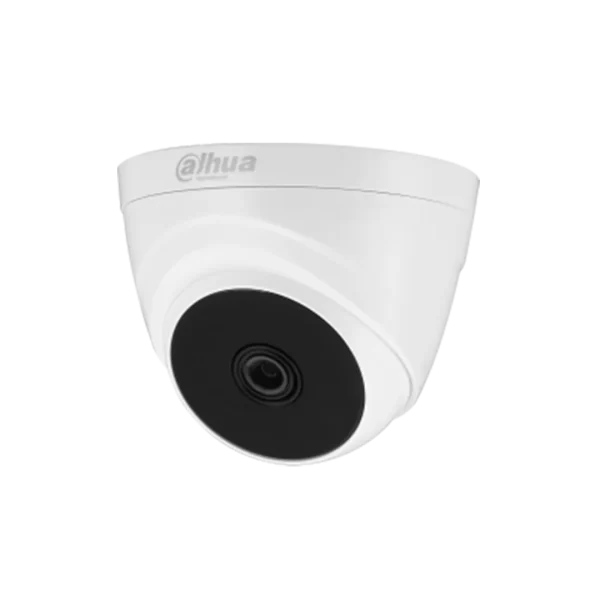

Dahua 2MP 1080p Dome IR Eyeball Camera

Dahua 2MP 1080p Dome IR Eyeball Camera

Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI.

The Cooper series 1080P HDCVI camera features a compact design and offers a high-quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high-cost performance make the camera an ideal choice for SMB solutions.

Specifications:

• Max. [email protected]
• 3.6mm fixed lens
• Image Sensor 1/2.7″ CMOS
• Effective Pixels 1920(H)×1080(V), 2MP
• Scanning System Progressive
• Electronic Shutter Speed PAL: 1/25~1/100000s
• NTSC: 1/30~1/100000s
• Minimum Illumination 0.04Lux/F1.85, 30IRE, 0Lux IR on
• S/N Ratio More than 65dB
• IR Distance Up to 20m (66feet)
• IR On/Off Control Auto / Manual

Lens:

• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 3.6 mm
• Max. Aperture: F2.0
• Field of View: 3.6 mm: H: 82°; V: 42°; D: 98°
• Iris Control: Fixed
• Close Focus Distance: 3.6 mm: 1.0 m (3.28 ft)
• DORI Distance
  • Lens: 3.6 mm
  • Detect: 60.9 m (199.80 ft)
  • Observe: 24.3 m (79.72 ft)
  • Recognize: 12.2 m (40.03 ft)
  • Identify: 6.1 m (20.01 ft)

Video:

• Video Frame Rate
  • CVI:
    • PAL: [email protected] fps; [email protected] fps
    • NTSC: [email protected] fps; [email protected] fps
  • TVI:
    • PAL: [email protected] fps; [email protected] fps
    • NTSC: [email protected] fps; [email protected] fps
  • AHD:
    • PAL: [email protected] fps; [email protected] fps
    • NTSC: [email protected] fps; [email protected] fps
  • CVBS:
    • PAL: 960H
    • NTSC: 960H
  • Resolution:
    • 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)
  • Day/Night:
    • Auto(ICR)/Color/B/W
  • BLC:
    • BLC; HLC; DWDR
  • WDR:
    • DWDR
  • White Balance:
    • Auto; Area white balance
  • Gain Control:
    • Auto/Manual
  • Noise Reduction:
    • 2D NR
  • Smart Illumination:
    • Yes
  • Mirror:
    • Yes
  • Privacy Masking:
    • Off/On (8 areas, rectangle)

Casing:

• Plastic

What’s in the box:

• 1 x IR Eyeball Camera
• 1 x Installation Guide
• 1 x QR Code
• 1 x Legal and Regulatory Information Manual
