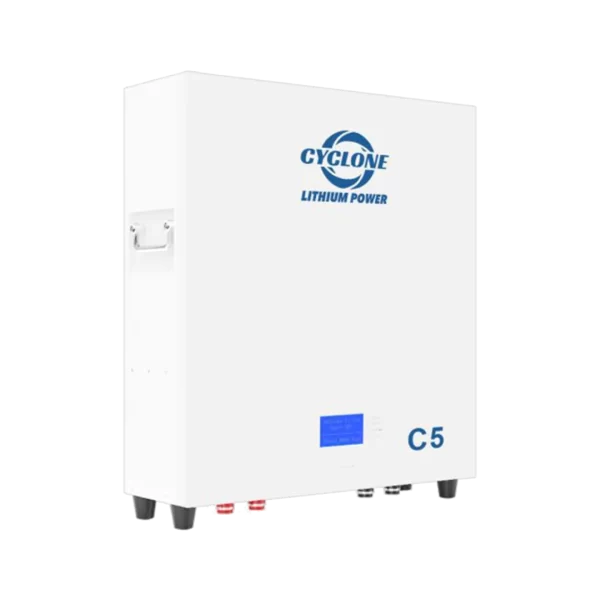

Cyclone 5KWH LifeP04 Battery


Out of stock


  • Model: LES100-51.2
  • Rated Voltage (V): 48V
  • Rated Capacity (Ah): 100Ah
  • C-Rating (Cell): 2C
  • Cell Life: >=6000 Cycles @ 80% DOD, >=3800Cycles @100%
  • Parallel Connections: 15 Units
  • Approx Dimension (mm): 50*55*16.2 cm
  • Approx Weight (Kg): 52Kg
  • Inverter Compatibility: All Inverters
  • Warranty: 5 Years


Out of stock

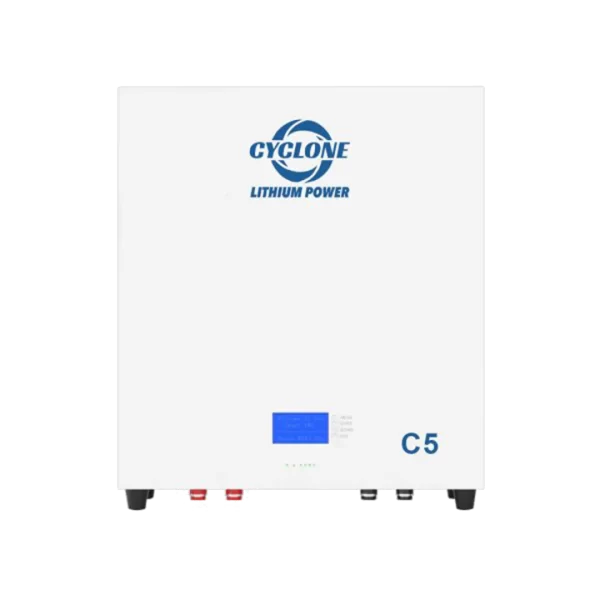

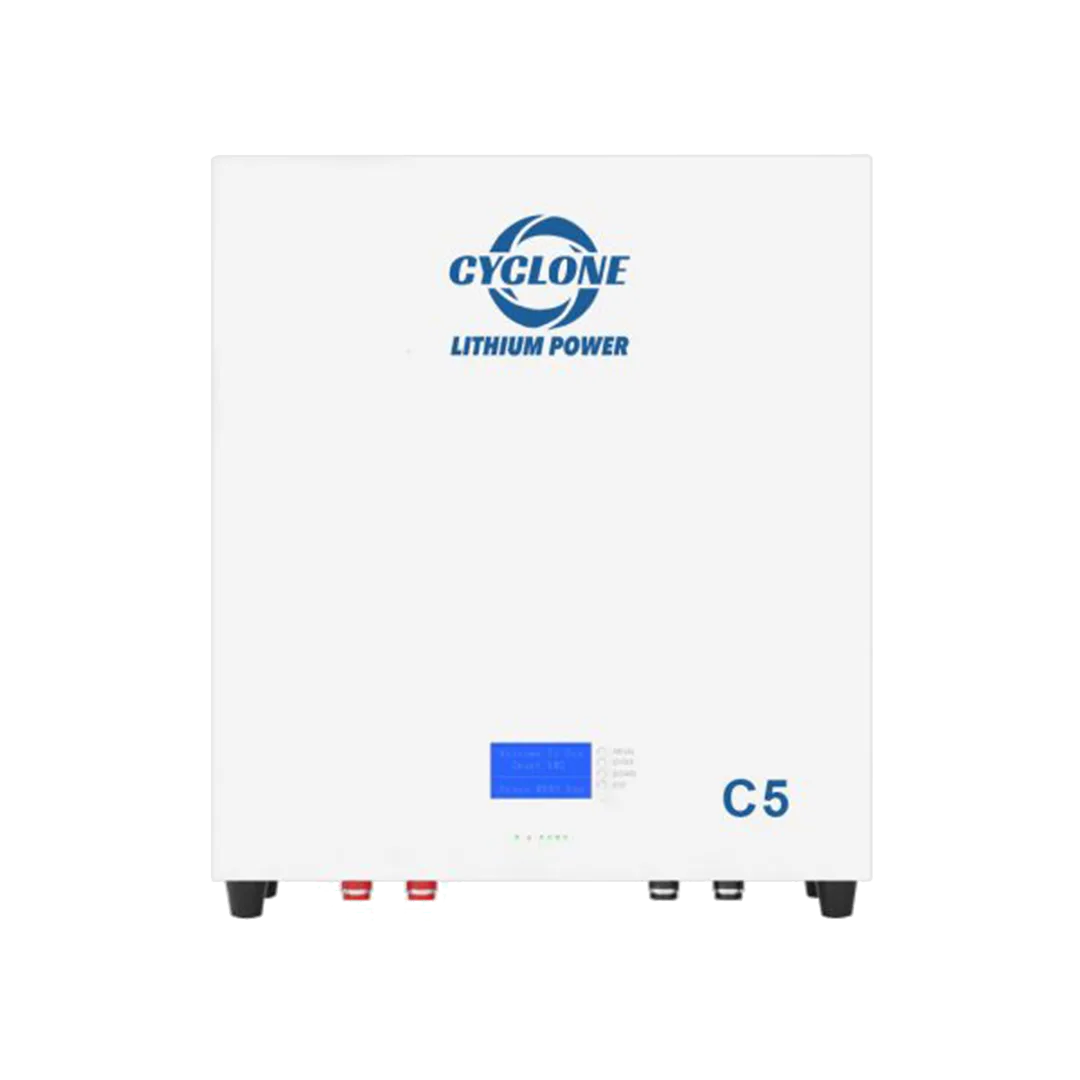

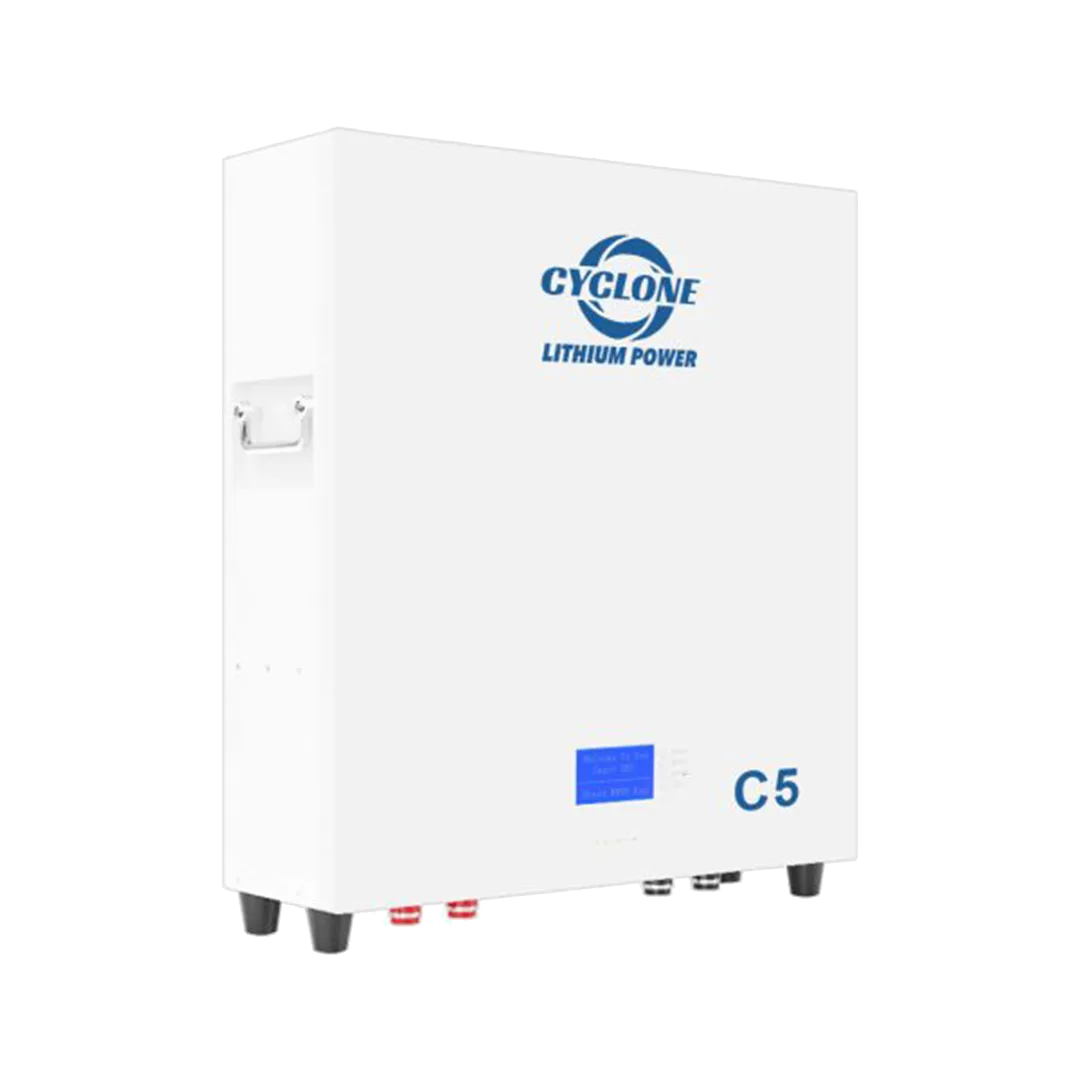

Cyclone 5KWH LifeP04 Battery

OEM Design

Cyclone Lithium battery has OEM design, LCD screen, convenient setting buttons, Bluetooth Monitor on your smartphones, and cables & accessories ready for installation.

Wide Application

Cyclone Lithium Ion Battery series are widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle, up to 90% DOD and Lithium iron phosphate battery Cell, Cyclone Battery has won global approval!

Integrated Function

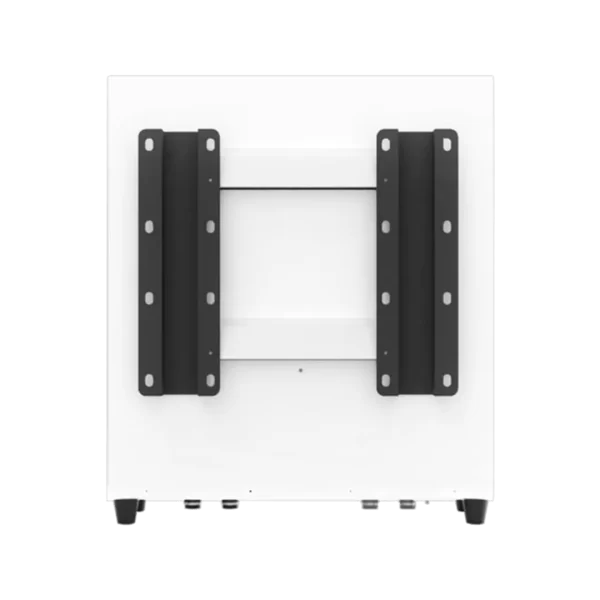

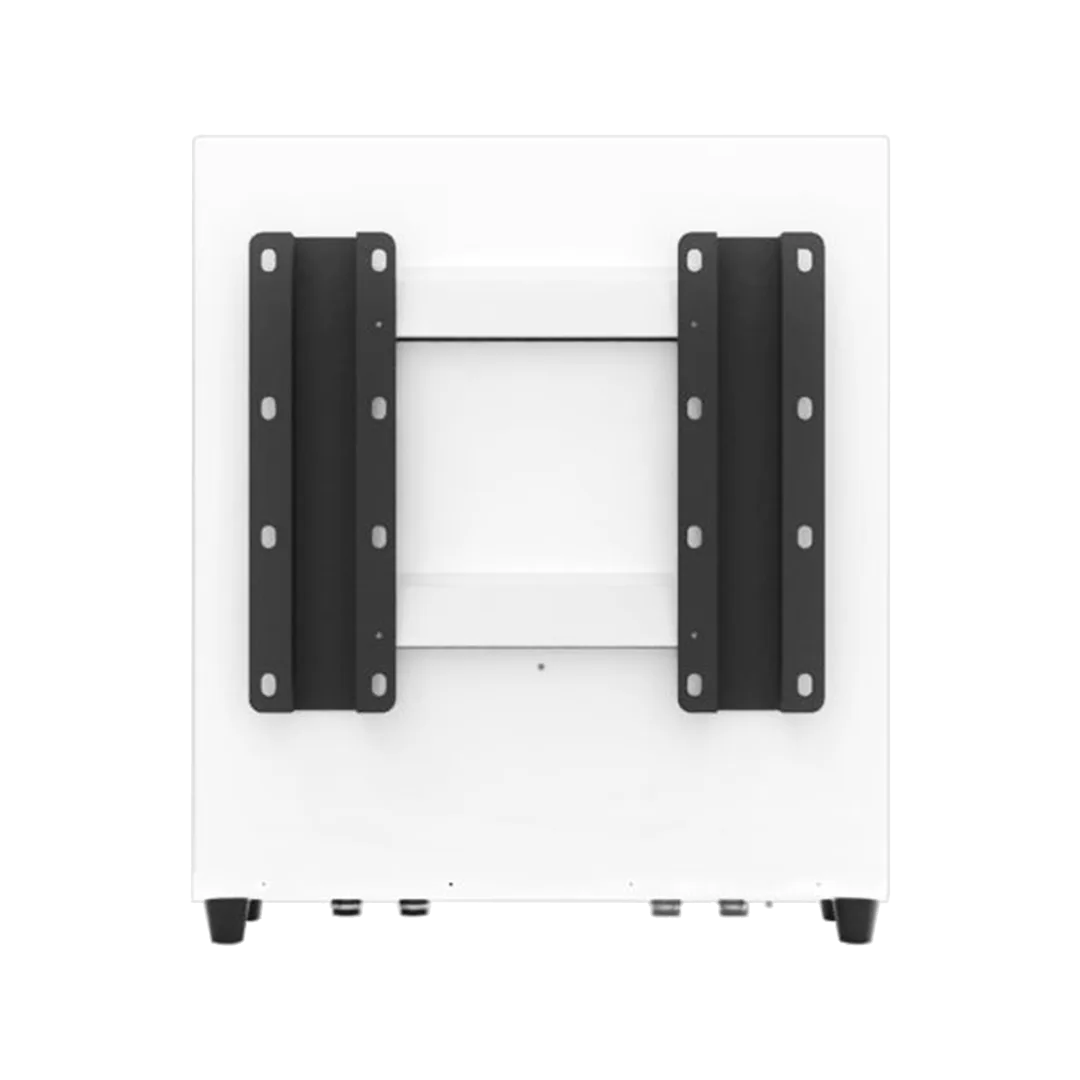

Cyclone Wall Mounted Battery can be installed in parallel with combiner box for protection, with it’s integrated BMS
communication protocol to comprehensive hybrid and off grid inverters!


  • Model: CYCLONE LES100-51.2
  • Rated Capacity(5HR): 100Ah
  • System voltage: 48V
  • Discharge Cutoff Voltage: 43.2V
  • Equilized Charge Voltage: 57.6V
  • Max Continuous Charging Current: 100A
  • Max Continuous discharging Current: 100A
  • C Rating(Cell): 2C
  • Weight: 52KG
  • Display Smart: LCD
  • Parallel: Parallel connection up to 15 packs with full communications more than 40pcs without communication
  • Dimensions(W*D*H):  50*55*16.2 cm

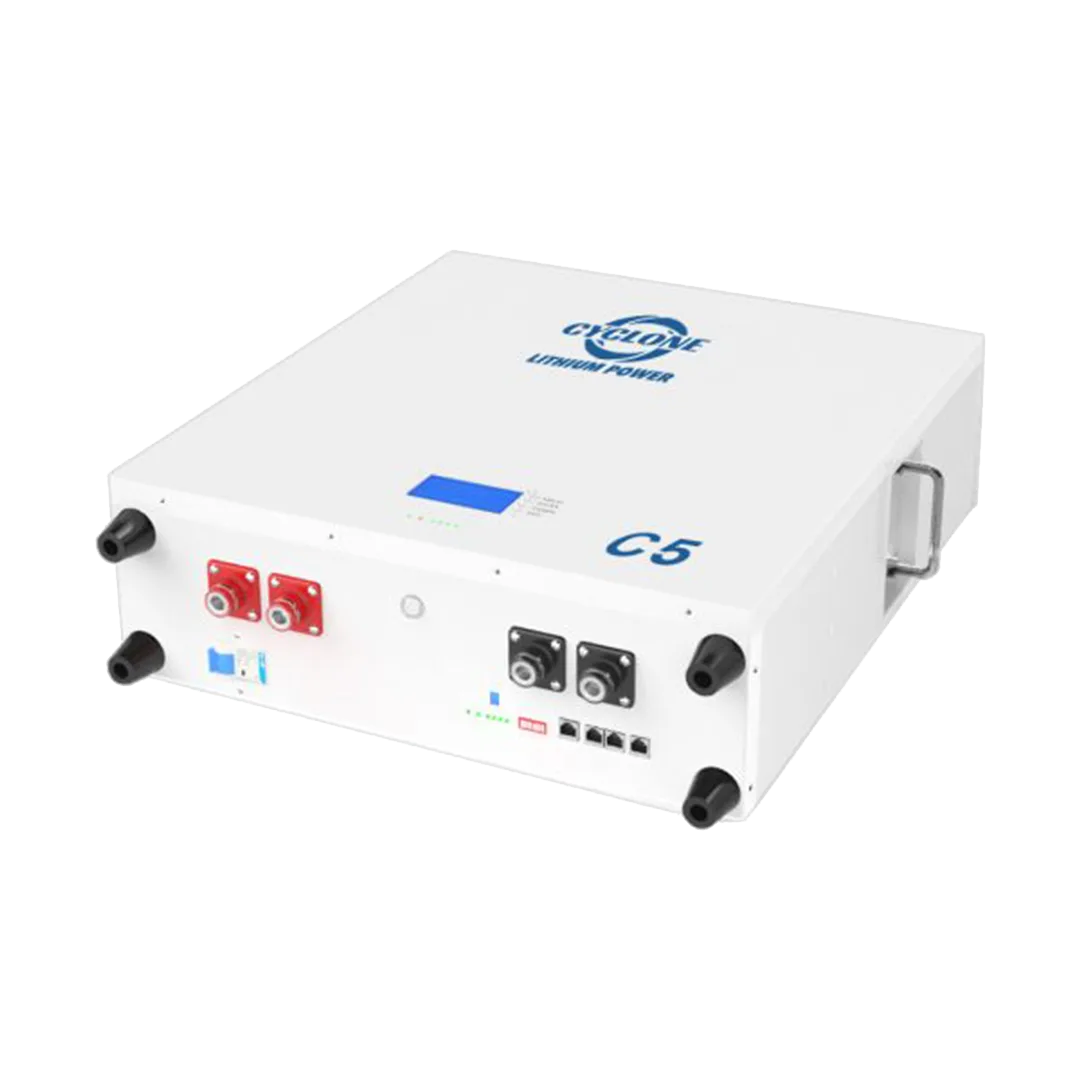

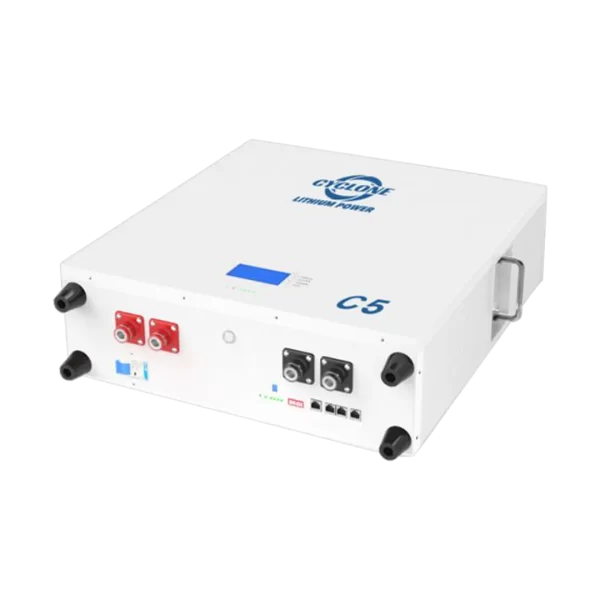

  • Ports: 1*CAN-bus, 2*RS-485, 1*RS232
  • Cells: Grade A lifepo4 Prismatic cell
  • Design life: 20 years
  • Cycle life: @1C ≧6000 cycles @80% DOD, ≧3800cycles @100% DOD
  • Certification: ISO9001, ISO14001, ISO18001, CE-EMC, IEC, ROHS, UN38.3,UL1642
  • Outer Package Material: White bake lacquer steel case
  • Operating Temperature: -20 to +60℃
  • Storage Temperature: 0 to +45℃
  • Protection: Electronic Circuit Breaker, BMS Voltage Protection, Short Circuit protection
  • Compatible Inverter Brand: Schneider, SMA, Victron, Voltronic, Deye, Goodwe, Sofar, Growatt, Luxpower, Must, Sunsynk etc.
Weight 52 kg
Dimensions 55 × 50 × 16.2 cm
