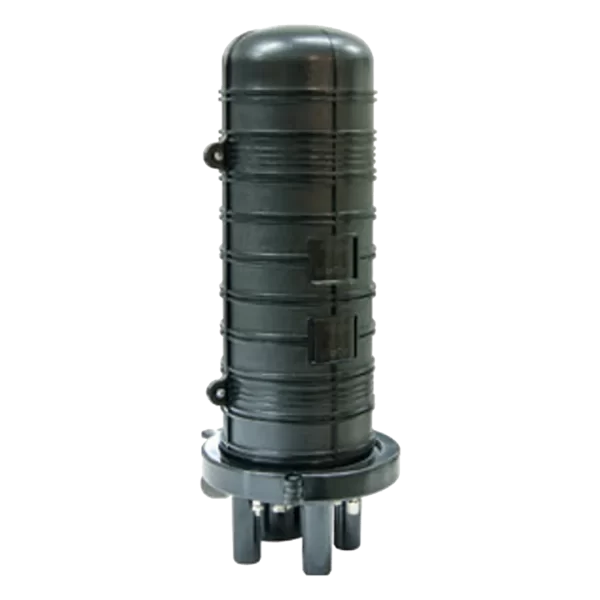

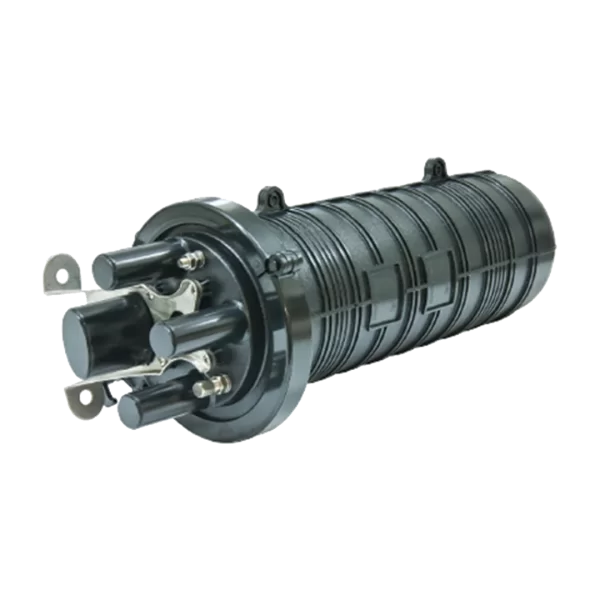

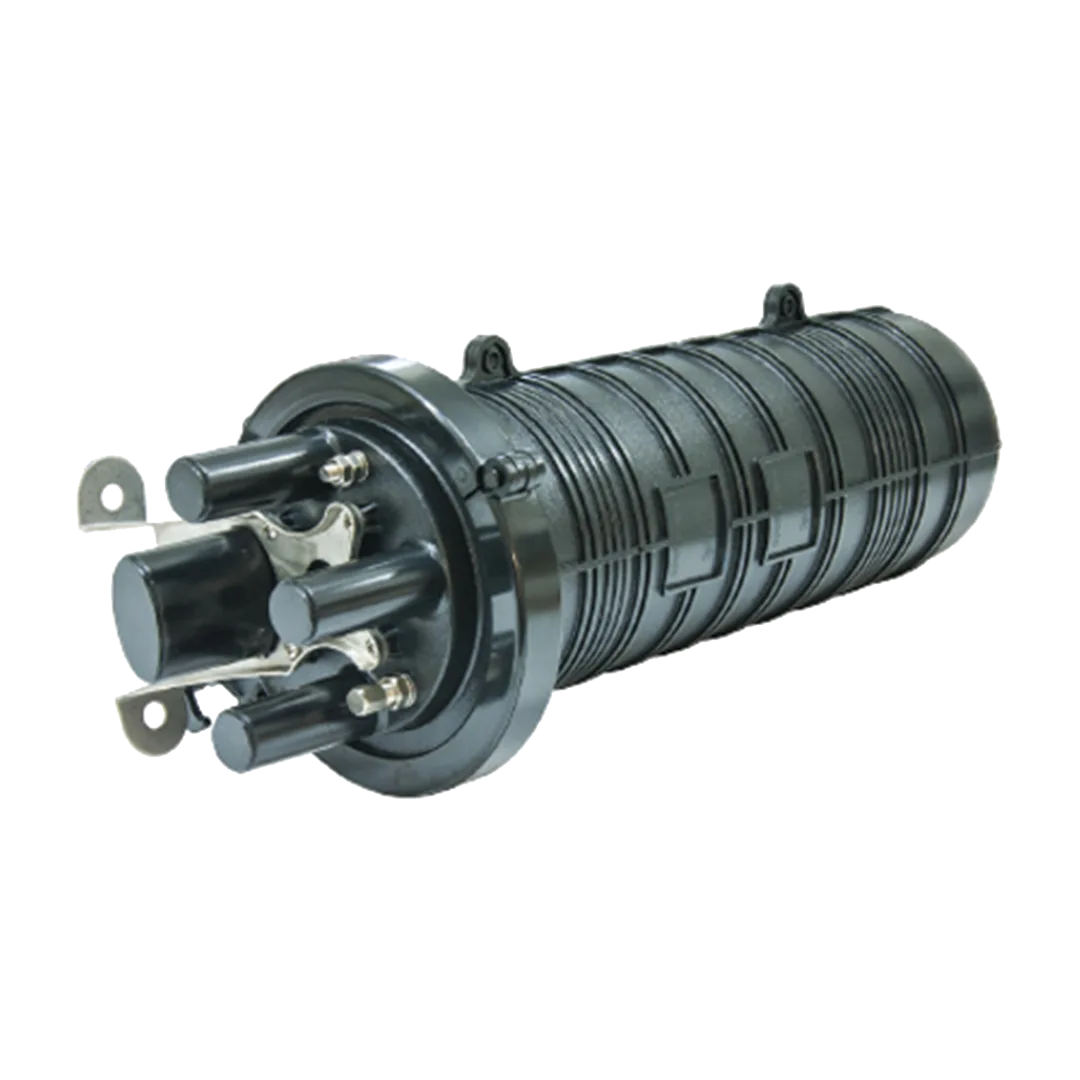

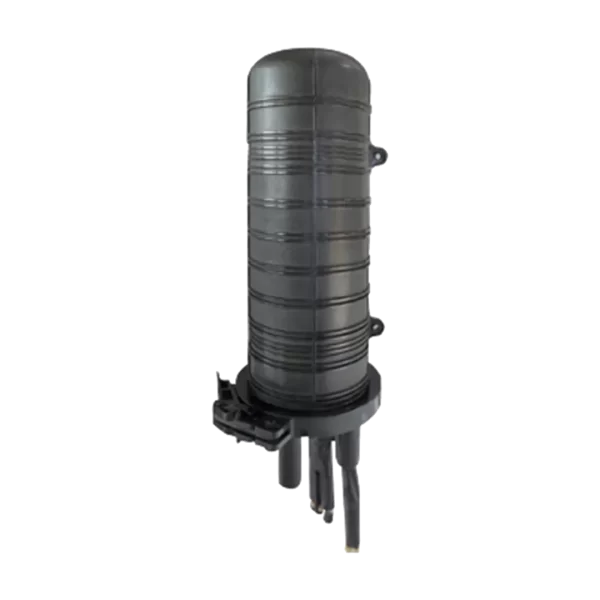

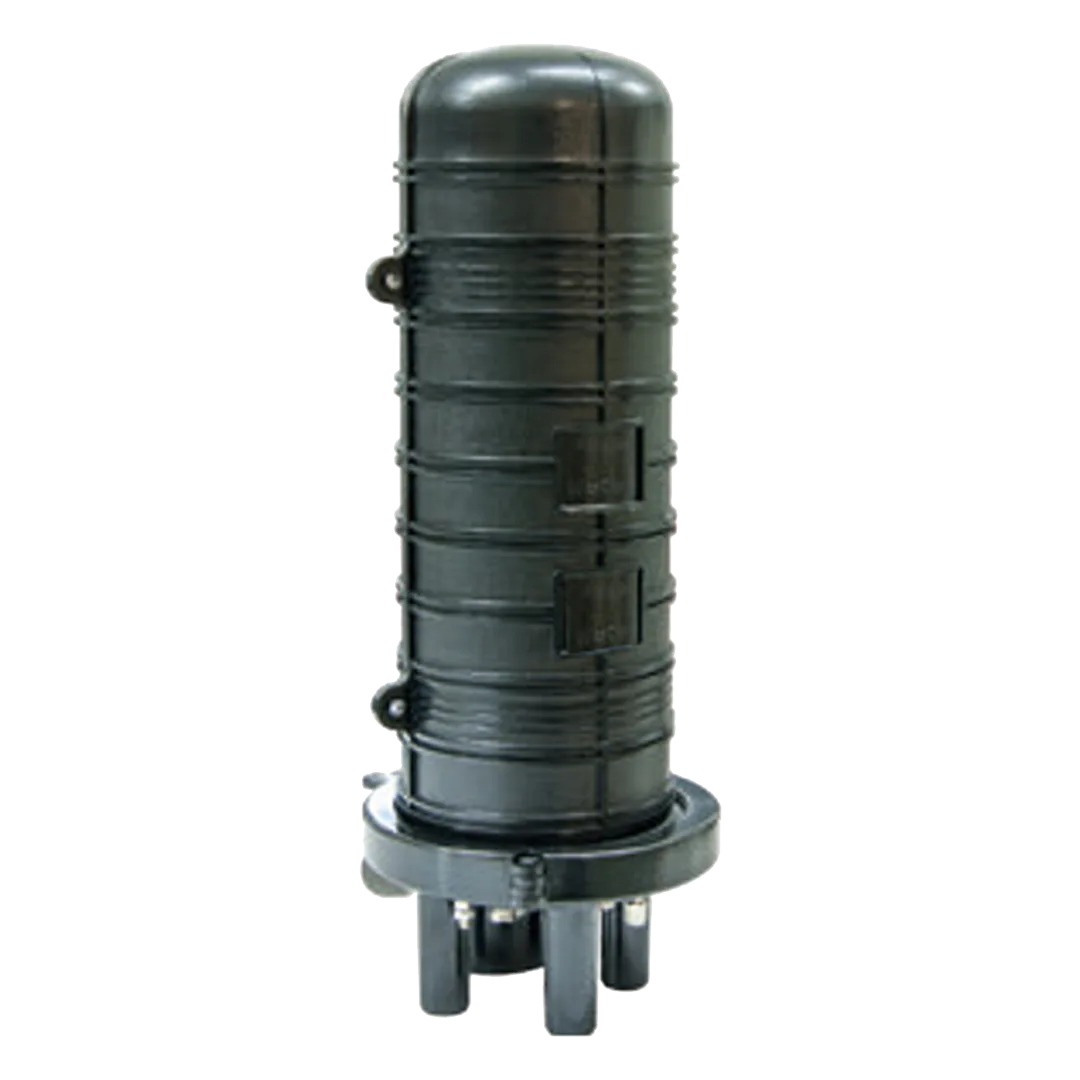

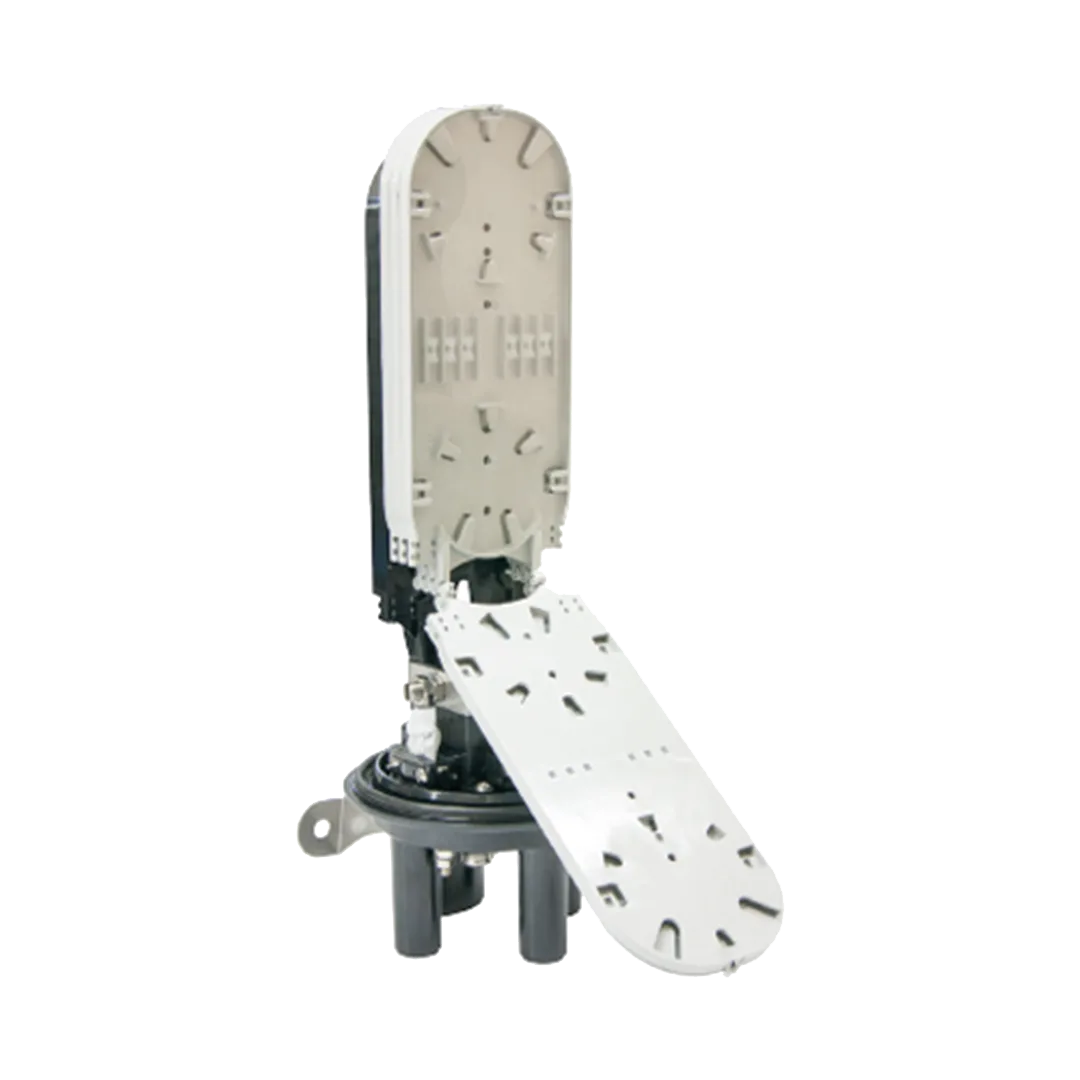

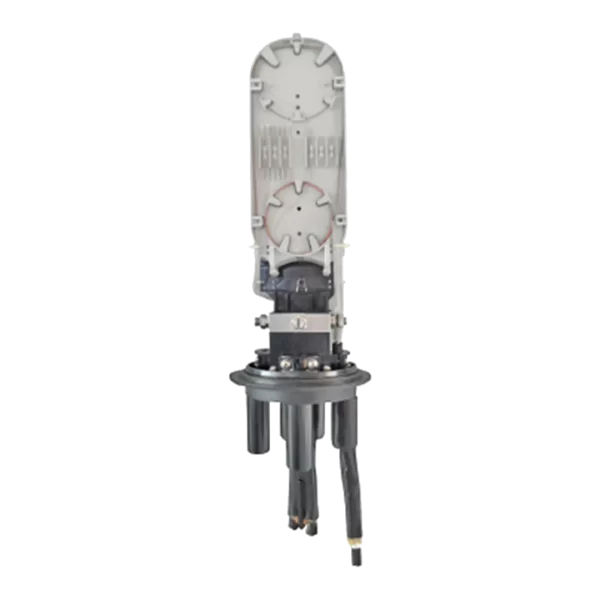

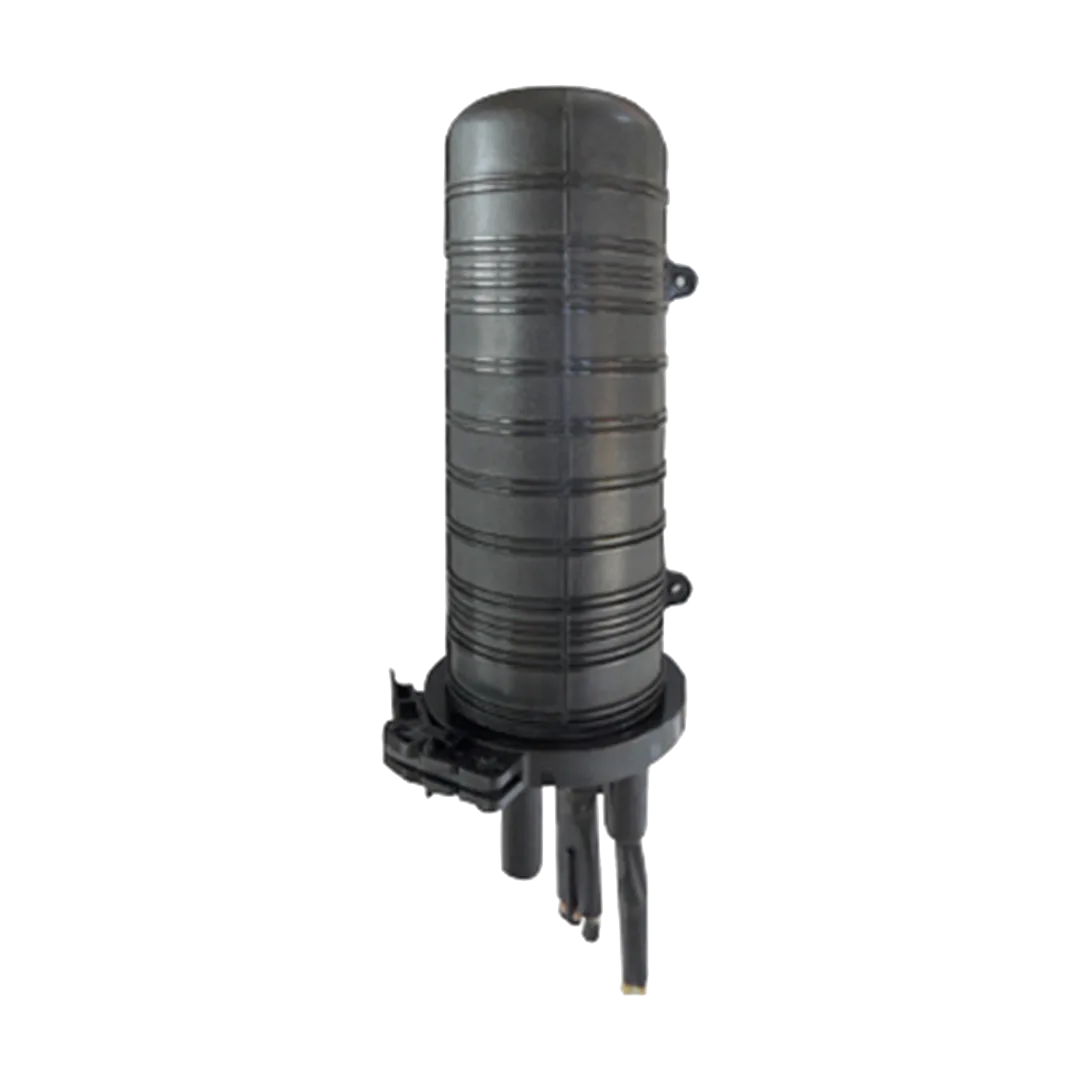

Canovate Splice Closure 48 Port
CAN-DO-7001 Dome Type
Fiber Optic Splice Closure
- Protection class: IP68

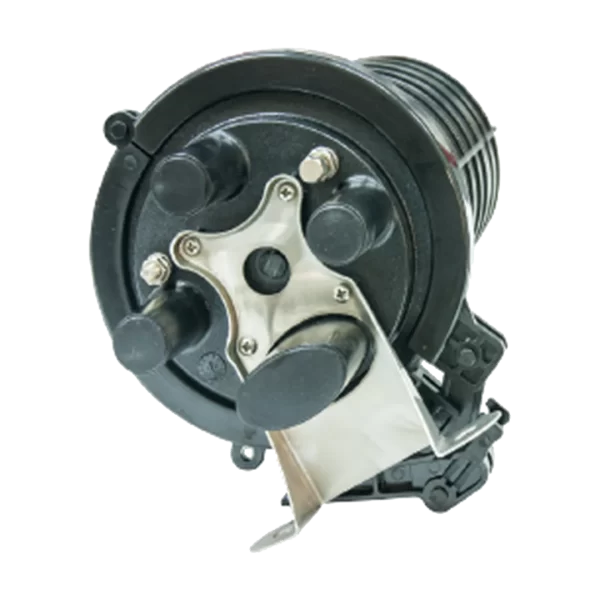

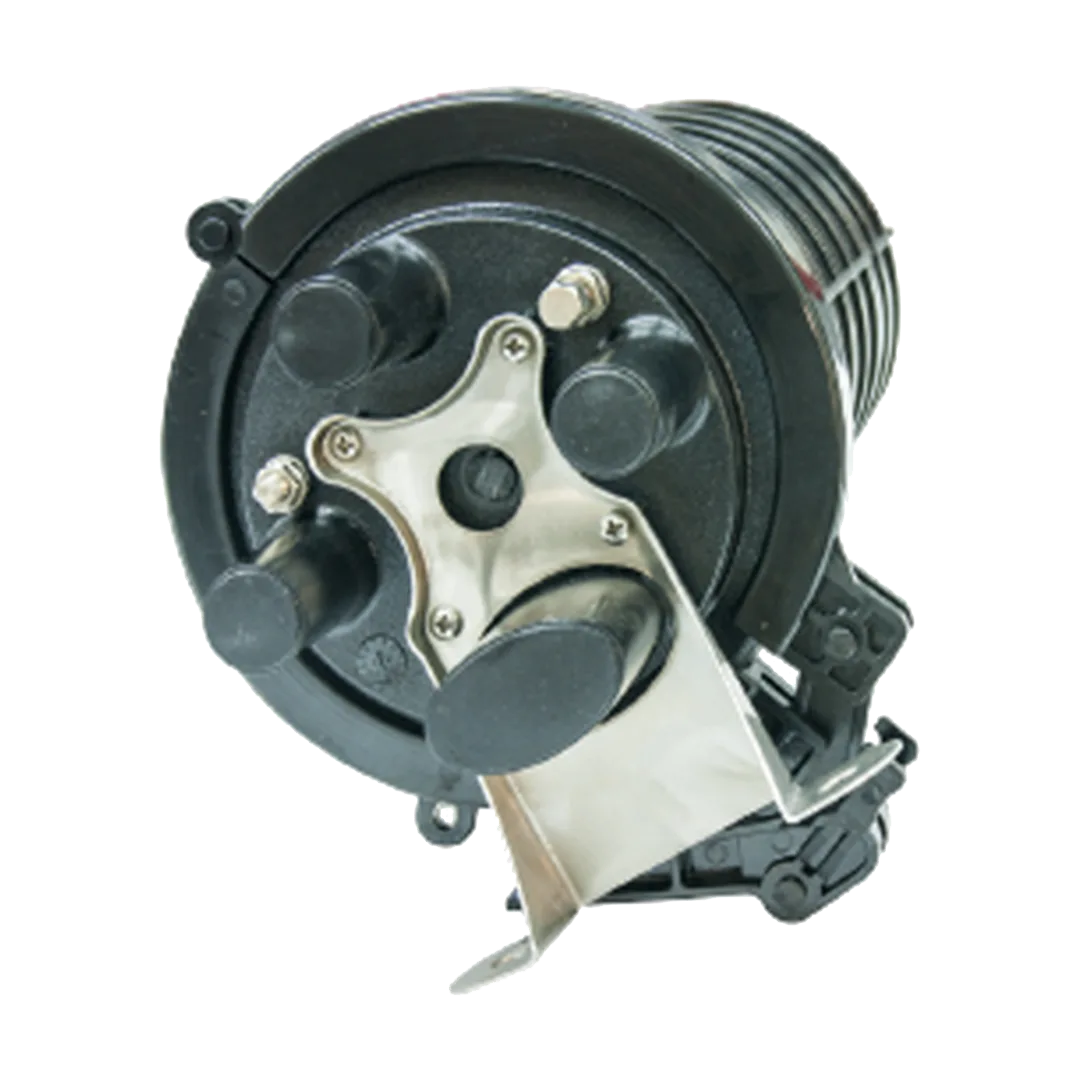

- Total 4 inlet/outlet ports
- Diameter of 3 ports is 16 mm
- Diameter of the oval port is 25 mm (can also accommodate 2 pcs of fiber cable with max. diameter of 21 mm)
- All installation accessories are included with good, sealed performance.
- Quick installation type, easy to install and maintain.
- Widely used for aerial and underground.
- Earthing deriving device
- Buffer tube for bunchy fiber
- Pressure testing valve
- Branching clip
- Heat shrinkable fixing sleeve
- Metal hoop
- Dimensions 435 mm x 190 mm (H x D)
- Material: Polypropylene
- Weight: 1,5 kg
- Capacity: 48 fibers

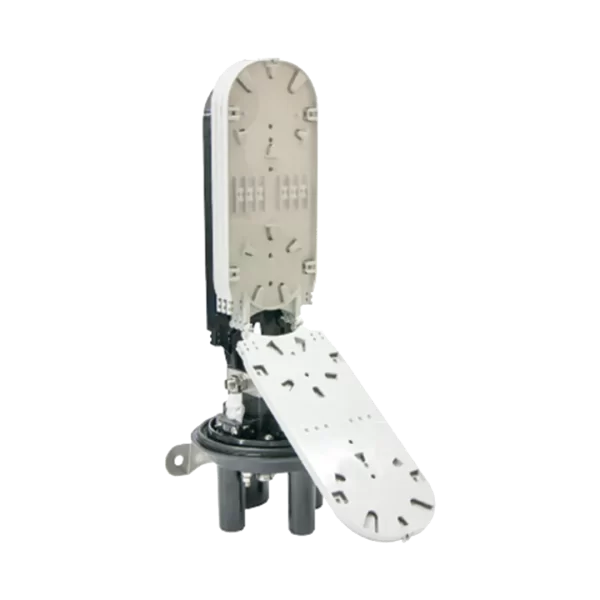

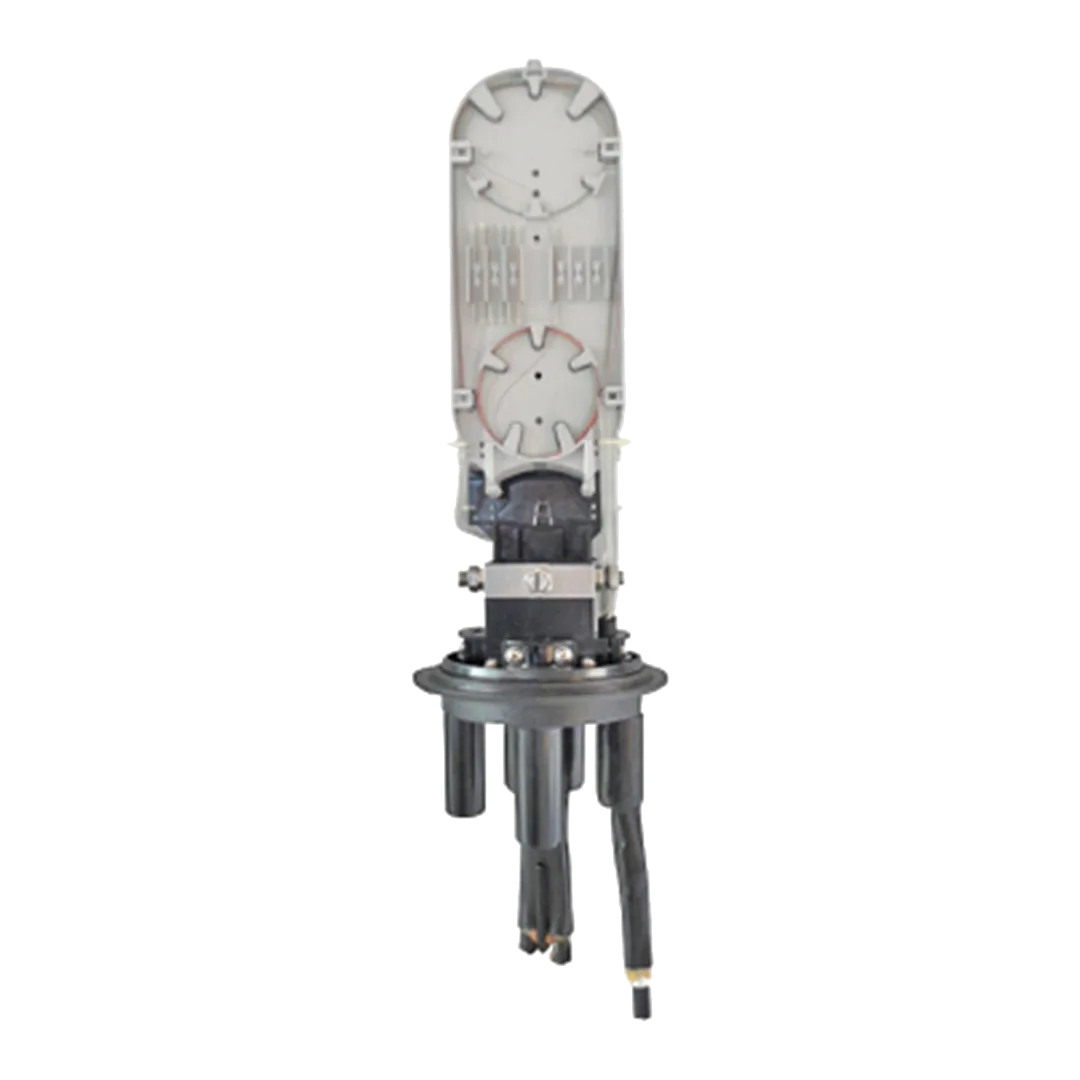

- Maximum Port Capacity 96 fibers with 4 pcs of 24 port bunchy tray
