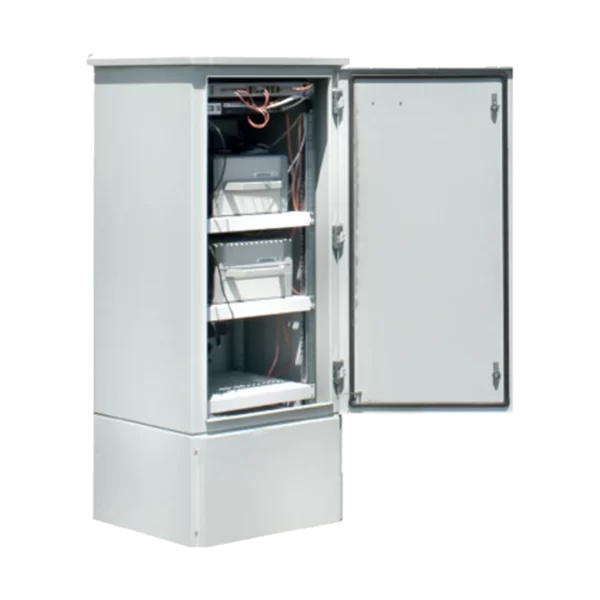

Canovate Inorax 16U Outdoor Cabinet

Canovate
Availability:

Out of stock


This outdoor cabinet is an ideal small-size solution for any 19” active equipment installation and a perfect fiber cross-connect cabinet for FTTX applications.

Highlights:

  • Weather-proof outdoor cabinet for installation of 19” active equipment and optical distribution modules
  • Assembly of modular optical building blocks like splice, patch, and splitter modules
  • Provides a secure anchor for incoming loose tube cables within the cabinet
  • Easy installation and removal
  • Doors are protected from external access through hidden hinges
  • High resistivity against corrosion
  • 1 pair of 19-inch mounting rails (Optional 2 pairs)
  • Single front door
  • CNC-controlled polyurethane (PUR) gasketing is available for all of the complete openable surfaces outdoors to provide IP65 protection degree, which is complying with the EN6O529 standard
  • 1,5 mm mounting plate for cable management on the back side
  • C-rail for fixing cables on the back side
  • Optional:
    -Double front door,
    -Aluminum material

R15,394.16 incl. VAT

Out of stock

Compare

Canovate Inorax 16U Outdoor Cabinet

This outdoor cabinet is an ideal small-size solution for any 19” active equipment installation and a perfect fiber cross-connect cabinet for FTTX applications.

Highlights:

  • Weather-proof outdoor cabinet for installation of 19” active equipment and optical distribution modules
  • Assembly of modular optical building blocks like splice, patch, and splitter modules
  • Provides a secure anchor for incoming loose tube cables within the cabinet
  • Easy installation and removal
  • Doors are protected from external access through hidden hinges
  • High resistivity against corrosion
  • 1 pair of 19-inch mounting rails (Optional 2 pairs)
  • Single front door
  • CNC-controlled polyurethane (PUR) gasketing is available for all of the complete openable surfaces outdoors to provide IP65 protection degree, which is complying with the EN6O529 standard
  • 1,5 mm mounting plate for cable management on the back side
  • C-rail for fixing cables on the back side
  • Optional:
    -Double front door,
    -Aluminum material

Technical Details:

  • Material: Single layer galvanized steel – 2 mm
  • Protection Level:  IP65
  • Plinth: 250 mm (H) plinth is included in standard configuration
  • Finish: Epoxy polyester outdoor paint, RAL 7035
Weight 10 kg
Dimensions 1094 × 600 × 600 cm
